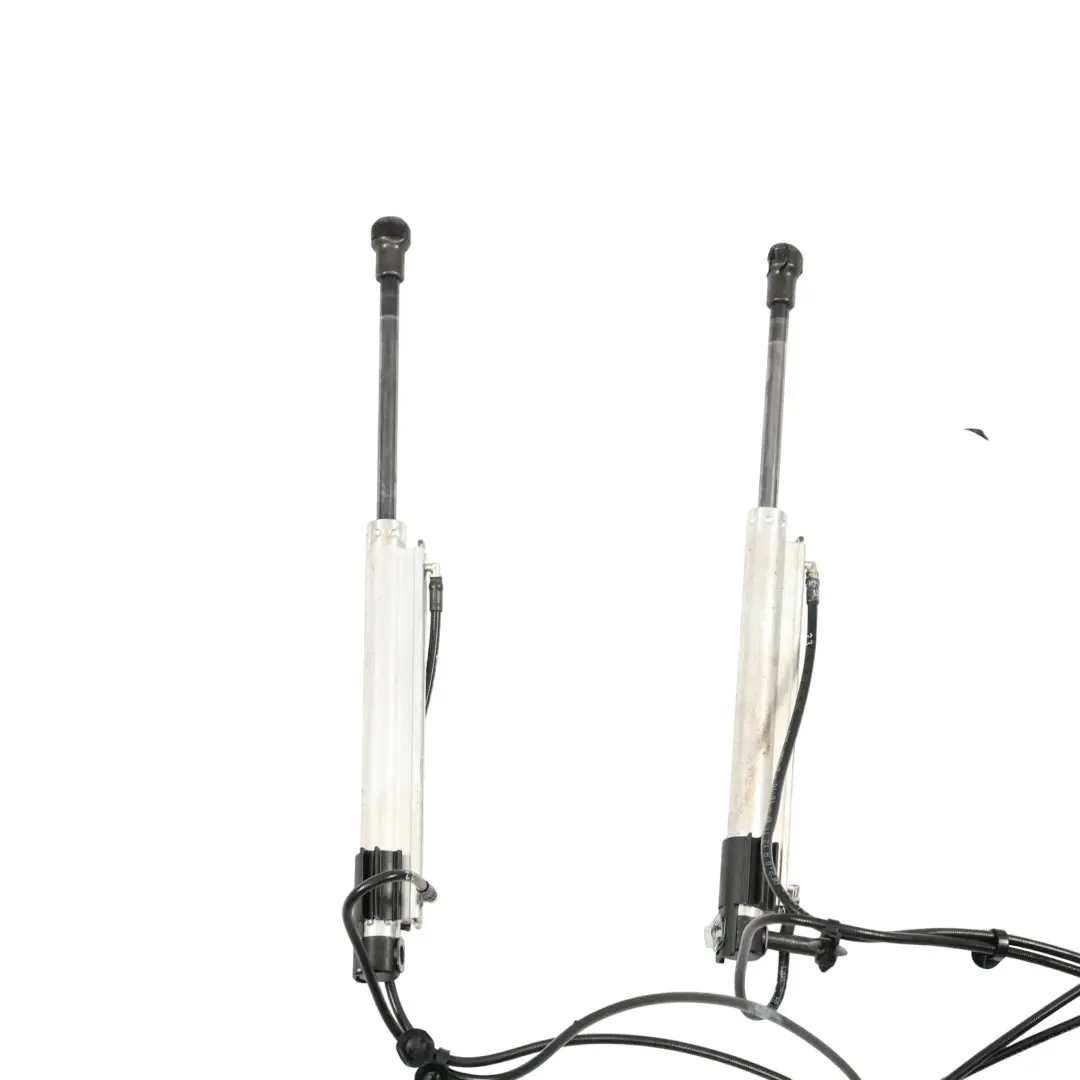

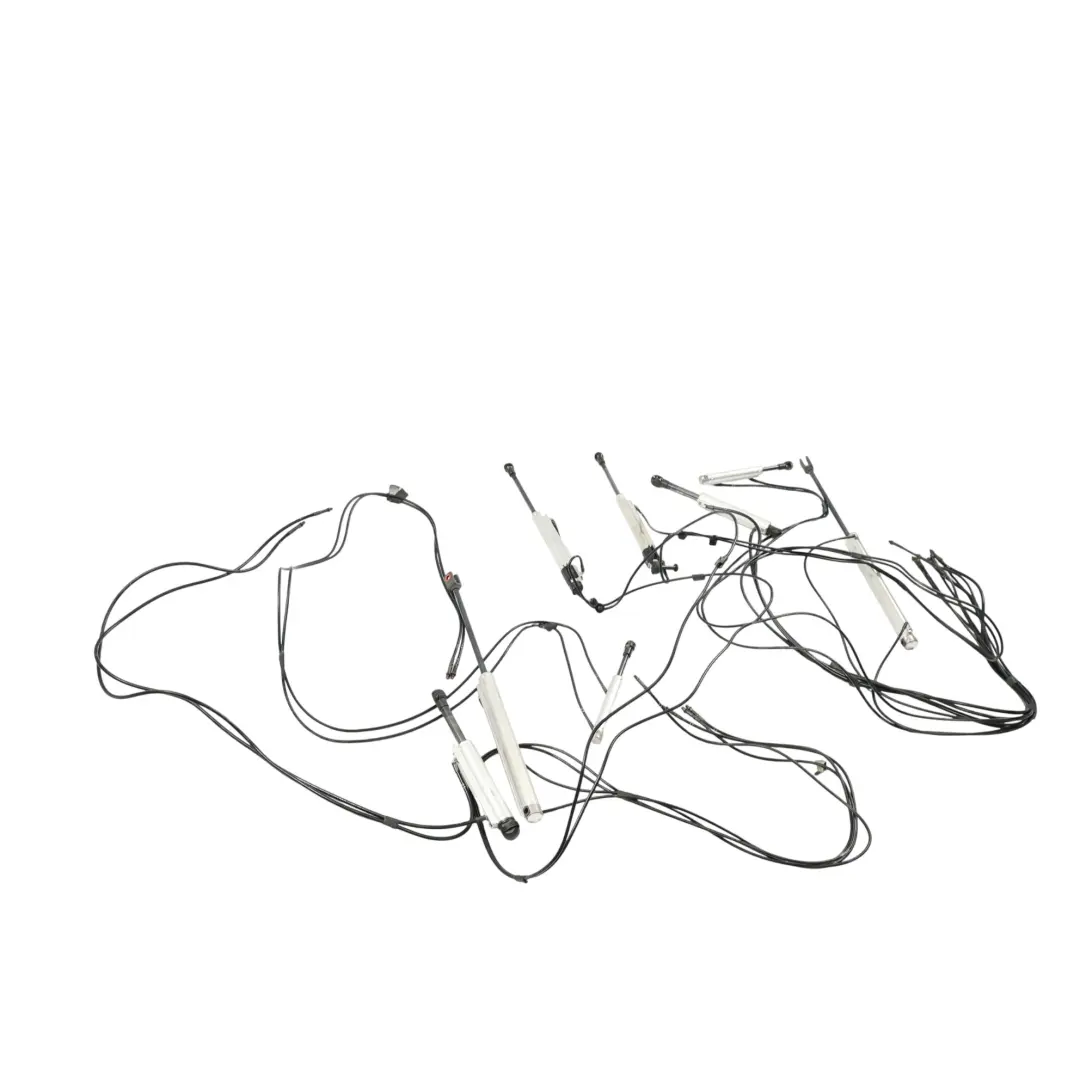

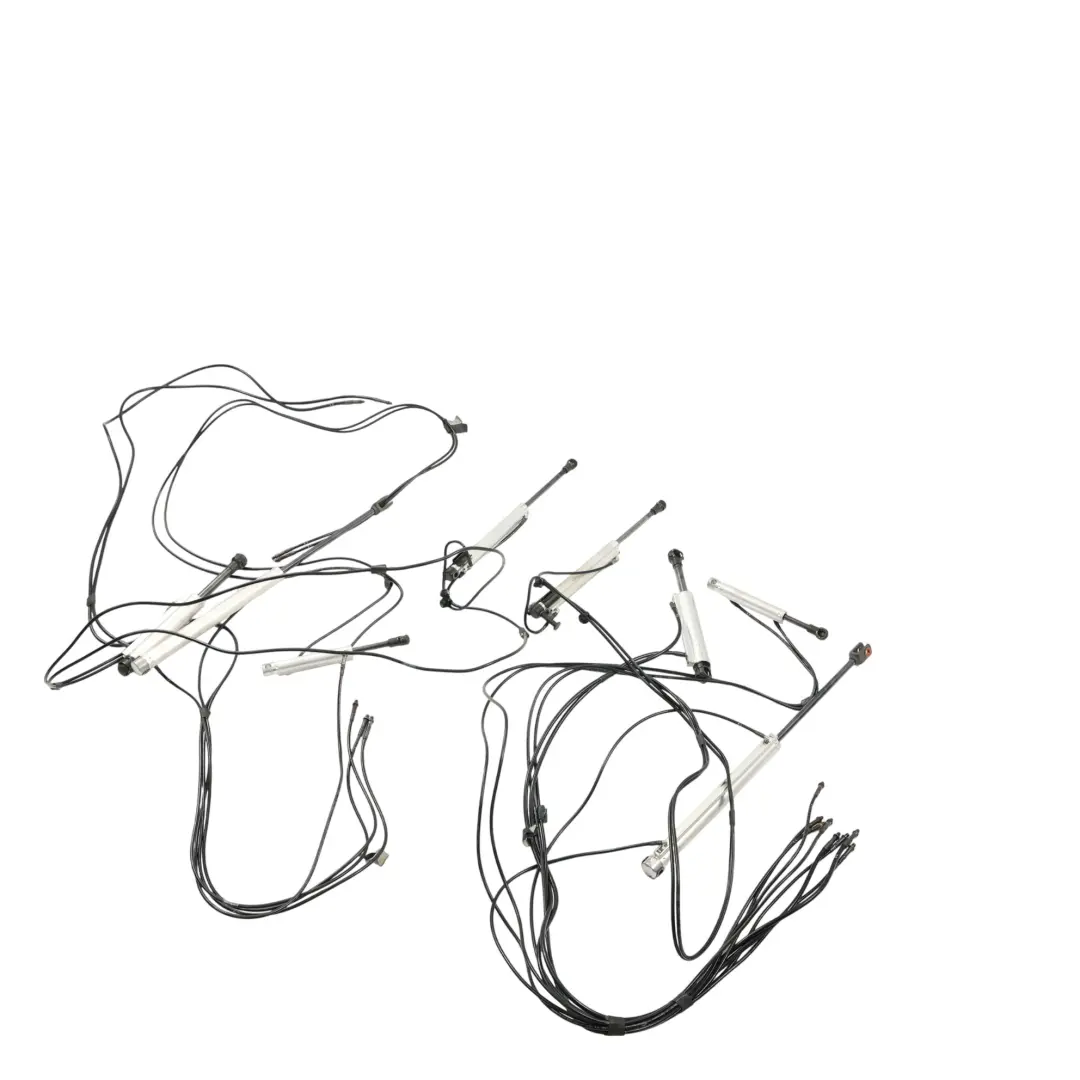

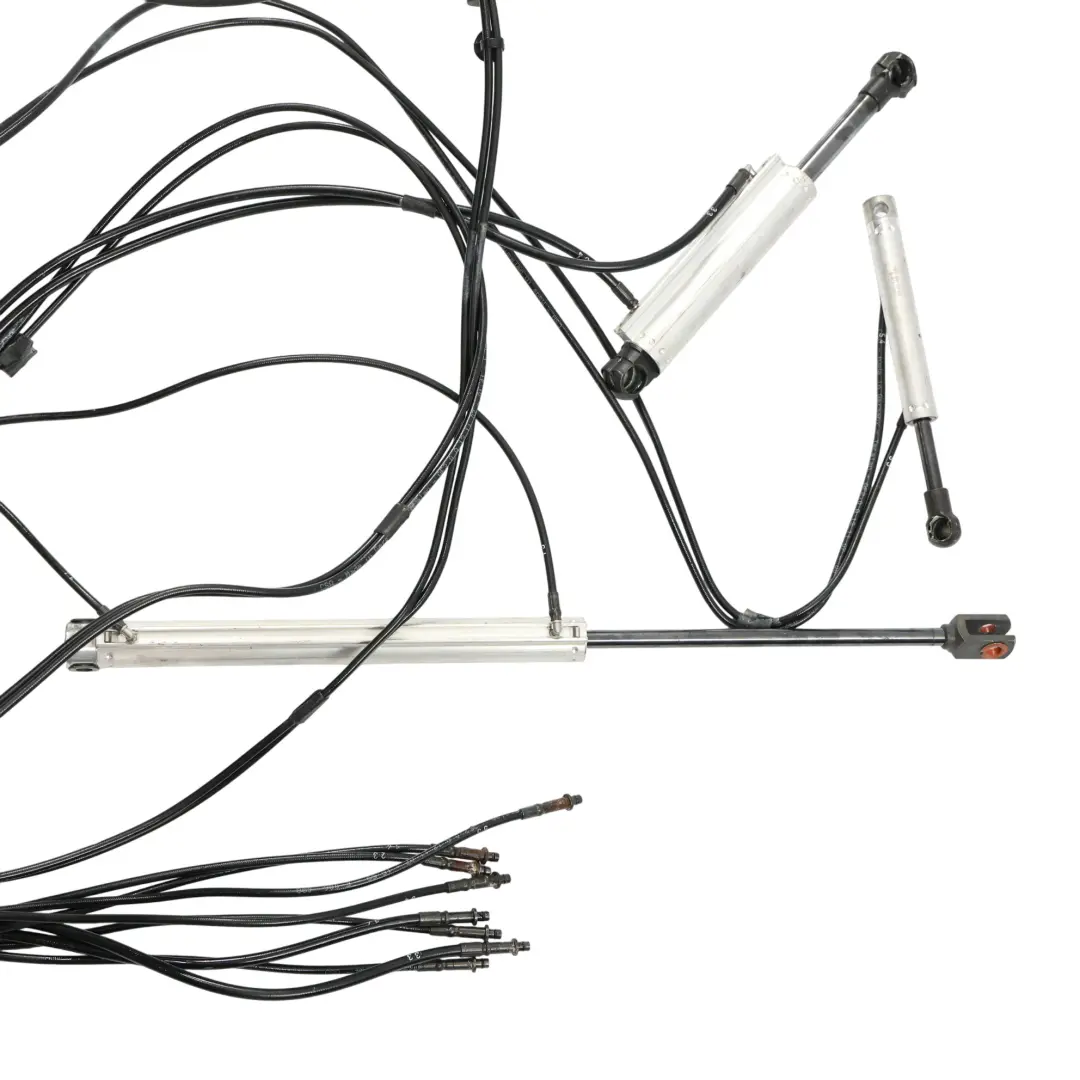

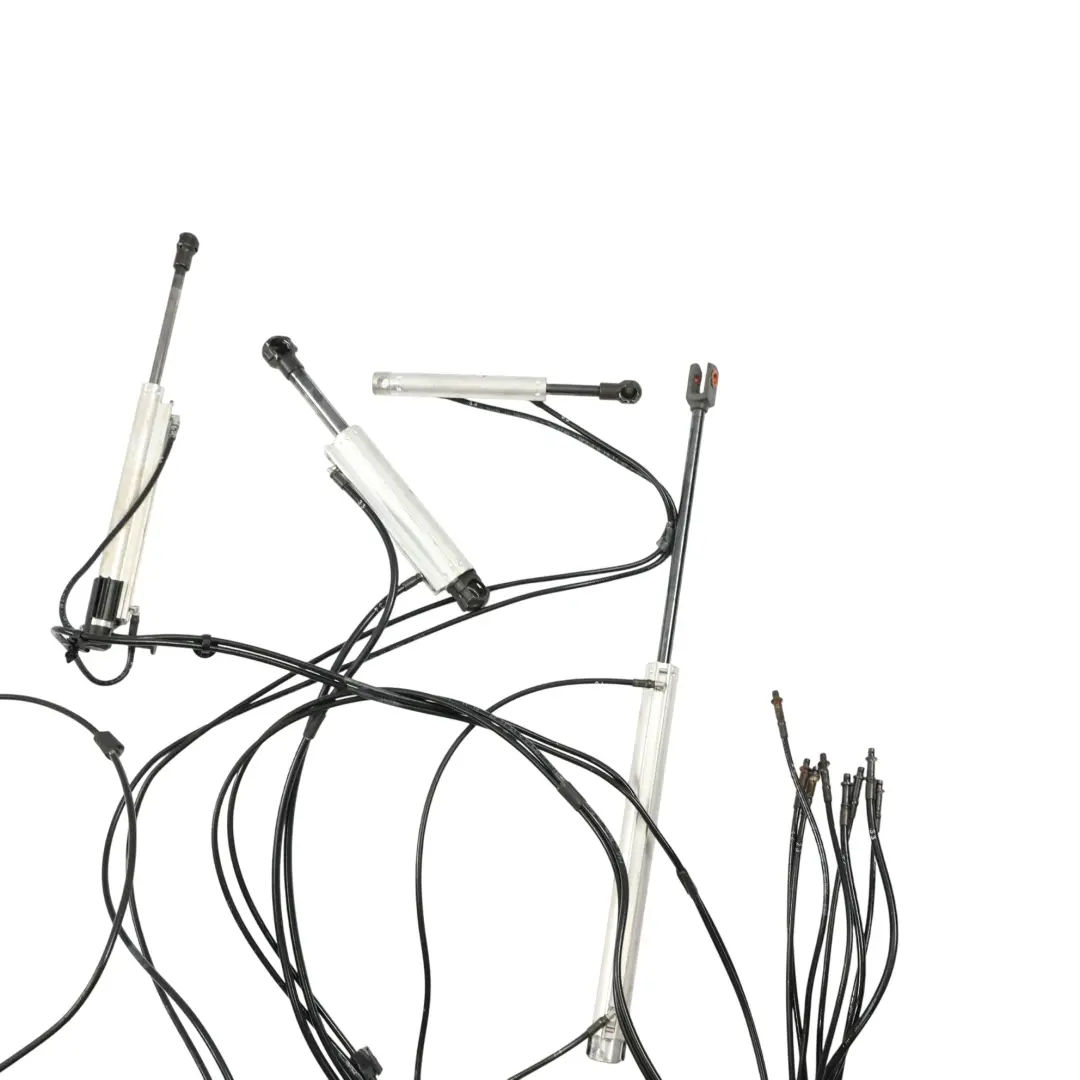

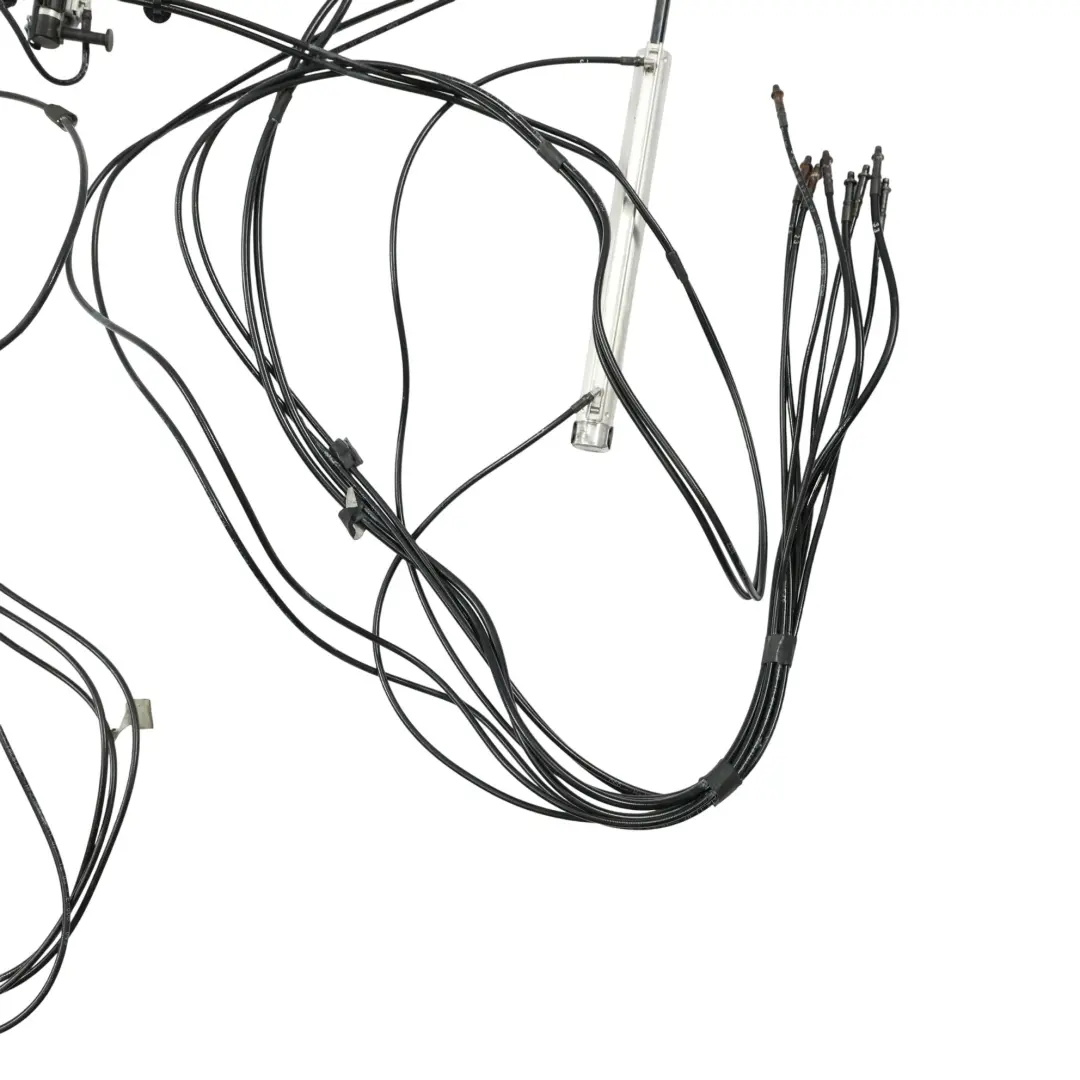

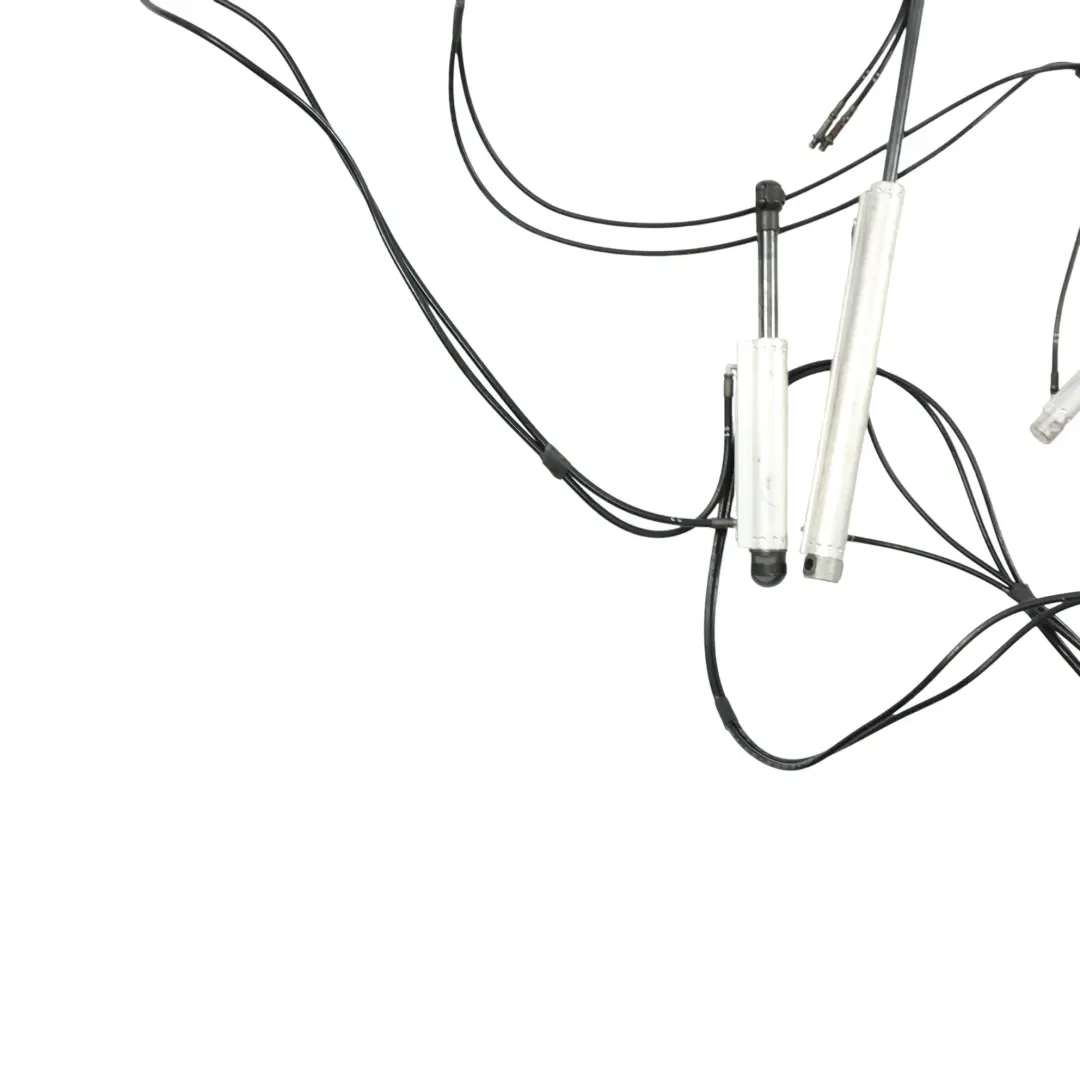

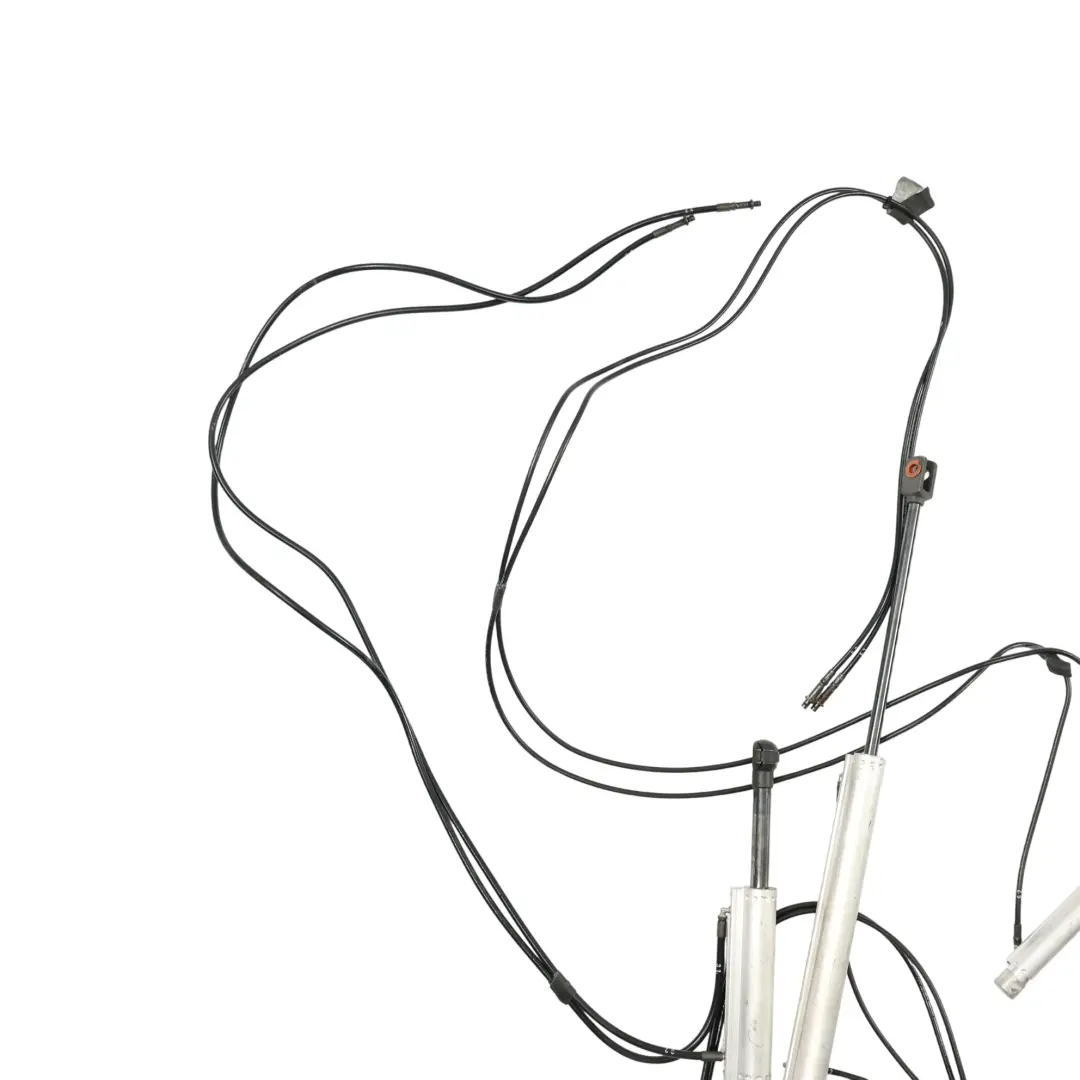

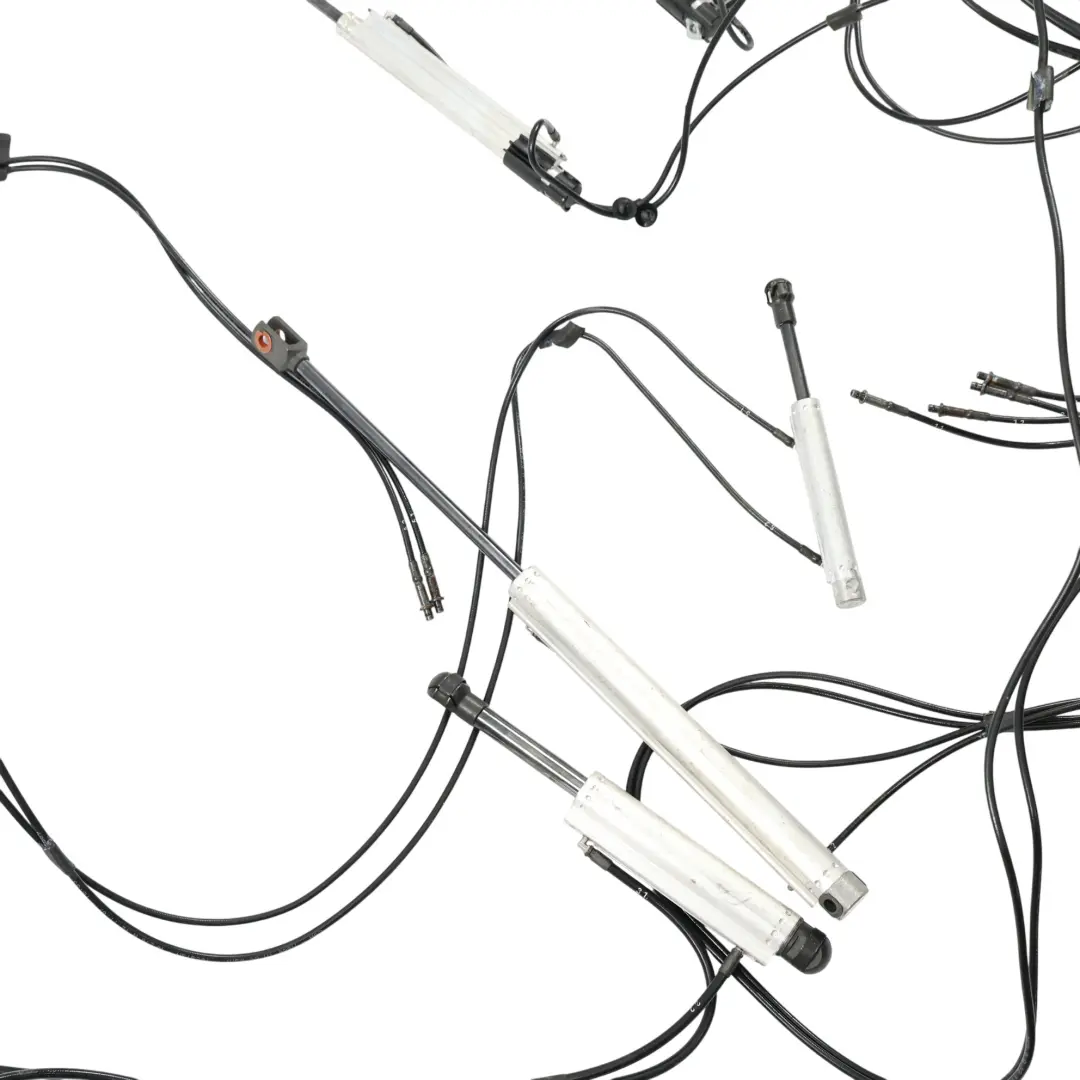

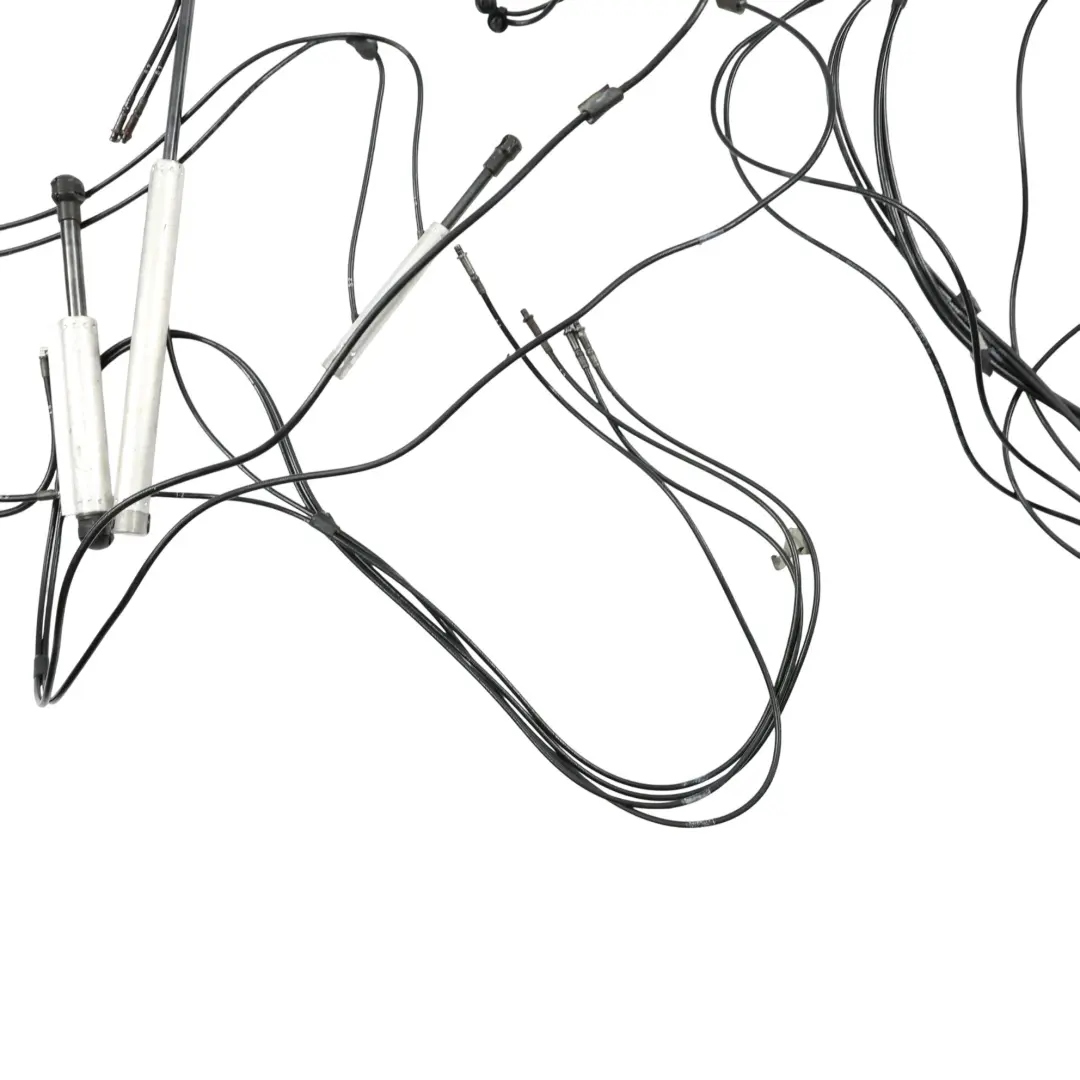

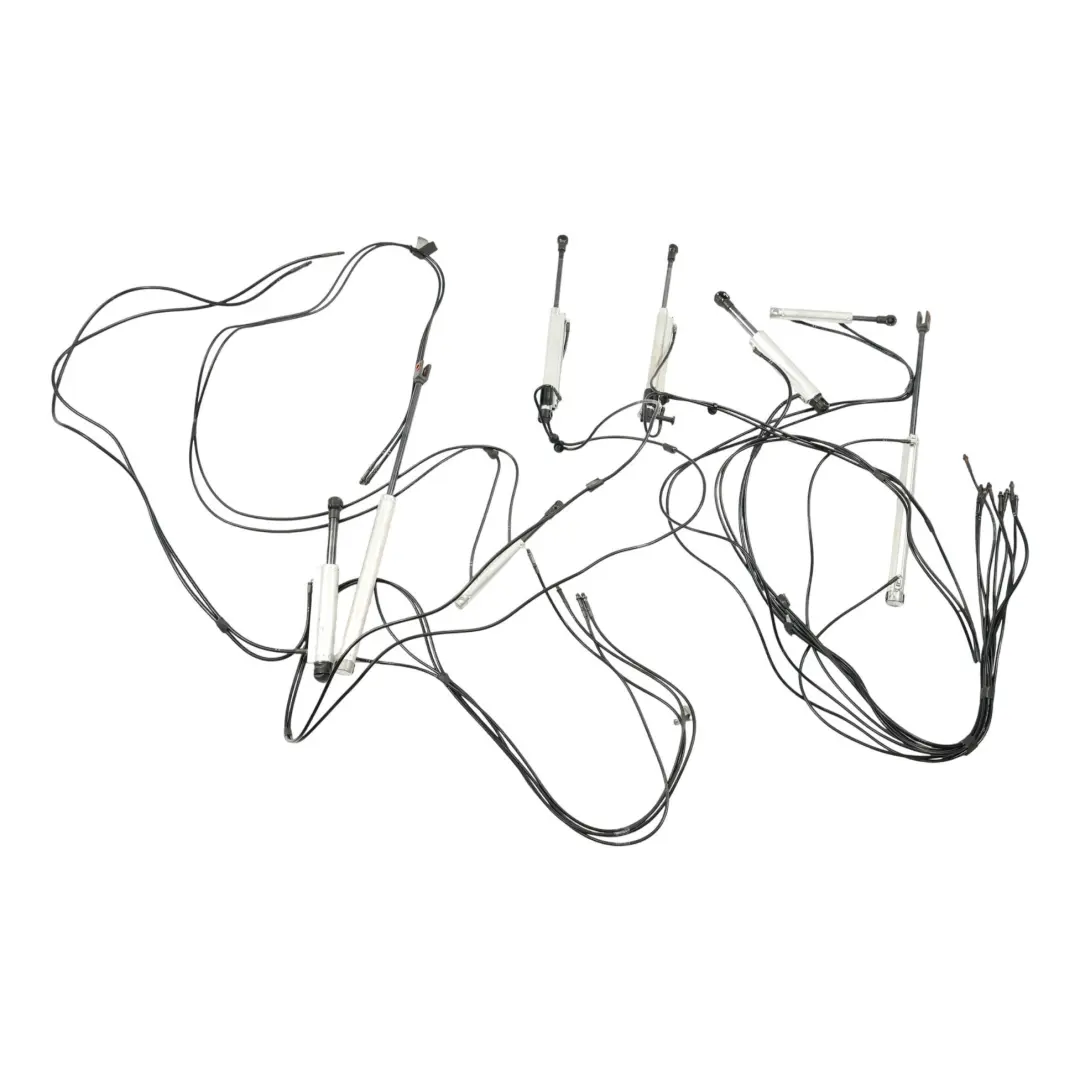

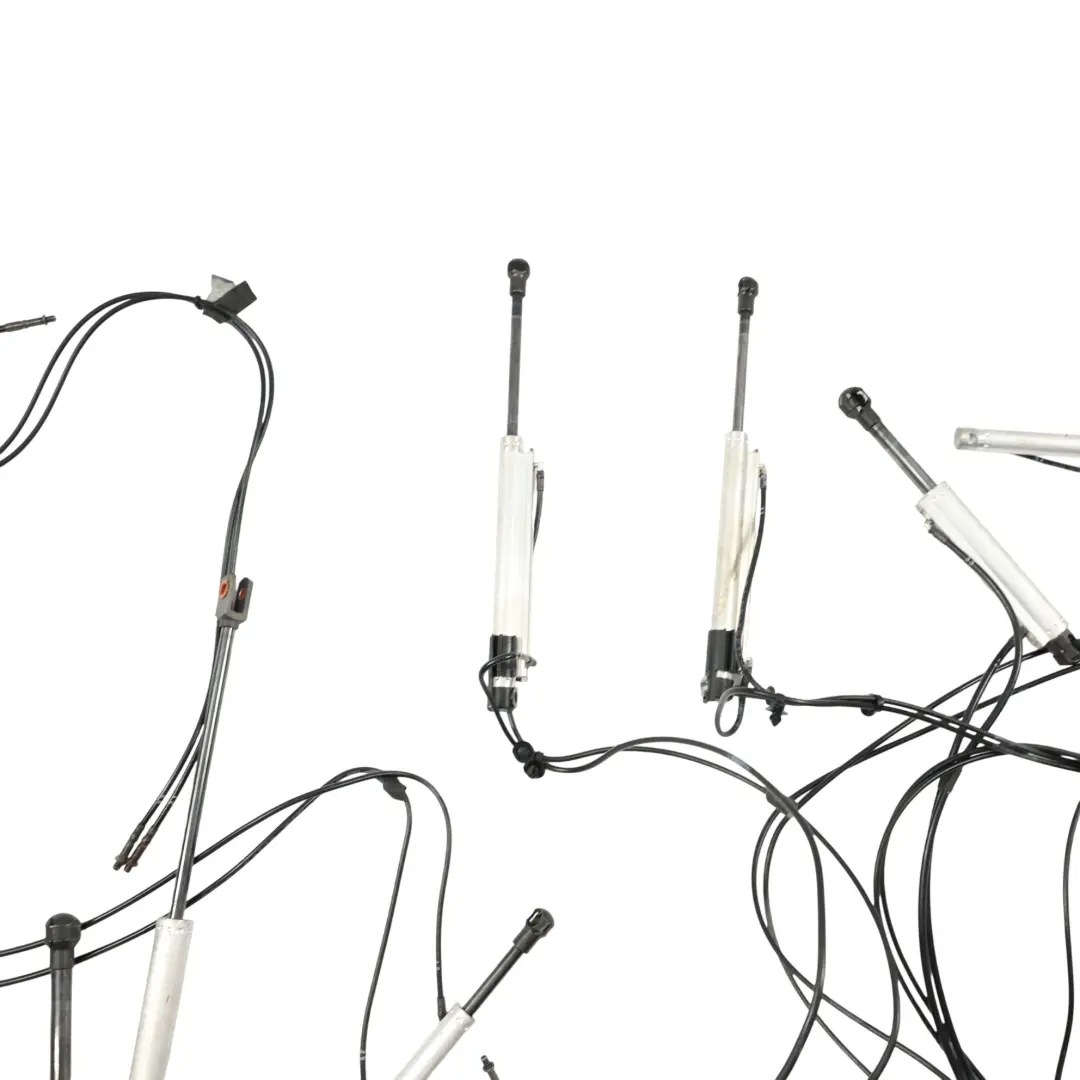

VW Volkswagen Eos 1F Convertible Folding Roof Hydraulic Cylinder Set 1Q0871604B

VW Volkswagen Eos 1F Convertible Folding Roof Hydraulic Cylinder Set is a set of original hydraulic components designed for the rear section of the folding roof mechanism in the Eos model. The set ensures the proper, smooth operation of the roof structure, restoring its factory functionality and stability. This is a solution for users who expect consistent operation of the entire roof system and a perfect fit for the specific kinematics of the convertible body.

Specifications and technical data

• SKU: 1Q0871604B-1
• Mark: Volkswagen
• Condition: Used
• OEM Part Number: 1Q0871604B
• Substitutable numbers: 1Q0871604B, 1Q0 871 604 B, 1Q0871795A, 1Q0 871 795 A, 1Q0871799A, 1Q0 871 799 A, 1Q0871603A, 1Q0 871 603 A
• Location on the vehicle: Rear
• Category: Tappets & Lifters

Purpose and function in the vehicle

The folding roof hydraulic cylinder set is responsible for the controlled movement of the rear roof structure components. Its placement in the rear area of the vehicle allows for precise control of the roof segments during opening and closing, which is crucial for tightness, geometry, and operational safety. By maintaining the original operating characteristics, the system works correctly with the factory hydraulics and control electronics.

Design and technical fitment

The set of cylinders has been designed specifically for the roof structure of the Eos model, taking into account the loads acting on the rear part of the body. Properly selected cross-sections, strokes, and mounting points allow for maintaining the correct geometry of the roof guidance. The use of original design solutions reduces the risk of stress on hinges, seals, and roof panels, which translates into stable operation of the entire system in the long term.

The components included in the set are factory-compatible with the hydraulic lines and mounts used in this model, which facilitates installation and reduces the need for additional modifications. This allows for maintaining technical consistency with other body components.

Benefits of using the original set

Choosing a complete roof cylinder set for the Eos allows you to:

• restore the correct roof opening and closing sequence,
• minimize the risk of jamming, uneven operation, or system errors,
• maintain proper alignment of the roof panels relative to the trunk lid and body,
• reduce the load on hinges, locks, and seals.

The original solution is particularly important in the case of complex roof structures, where the precision of individual cylinders affects the durability of the entire mechanism. Using a set from the same design series helps maintain uniform operating characteristics of the system.

Condition and practical application

The set comes from disassembly, which means it is a used part, but still intended for further use after proper installation and verification in the vehicle. This type of solution is often chosen for repairs of advanced roof mechanisms, where maintaining the original design at reasonable service costs is a priority. In many cases, a set of used components allows for faster restoration of functionality than time-consuming regeneration of individual subassemblies.

If you are considering whether it is a better choice to regenerate or install a used component, the following article may be helpful: Refurbished or used original – which part to choose for car repair?, which discusses the practical differences between these solutions.

Support for selection and further system expansion

When planning a roof mechanism repair, it is worth paying attention to the consistency of the entire system – from cylinders and lines to control elements. Proper selection of components helps avoid recurring faults and improper roof operation in the future. If you are completing a larger scope of work within mechanical and hydraulic systems, it may be helpful to browse related parts in the Valve lifters category, where you will find other elements of a similar technical nature.

For users who want to better understand the specifics of original parts and their impact on vehicle durability, we have also prepared a guide: Check how to consciously choose used parts for car repair. It will allow you to better assess when using a used roof cylinder set is an optimal solution in terms of technical and economic aspects.
