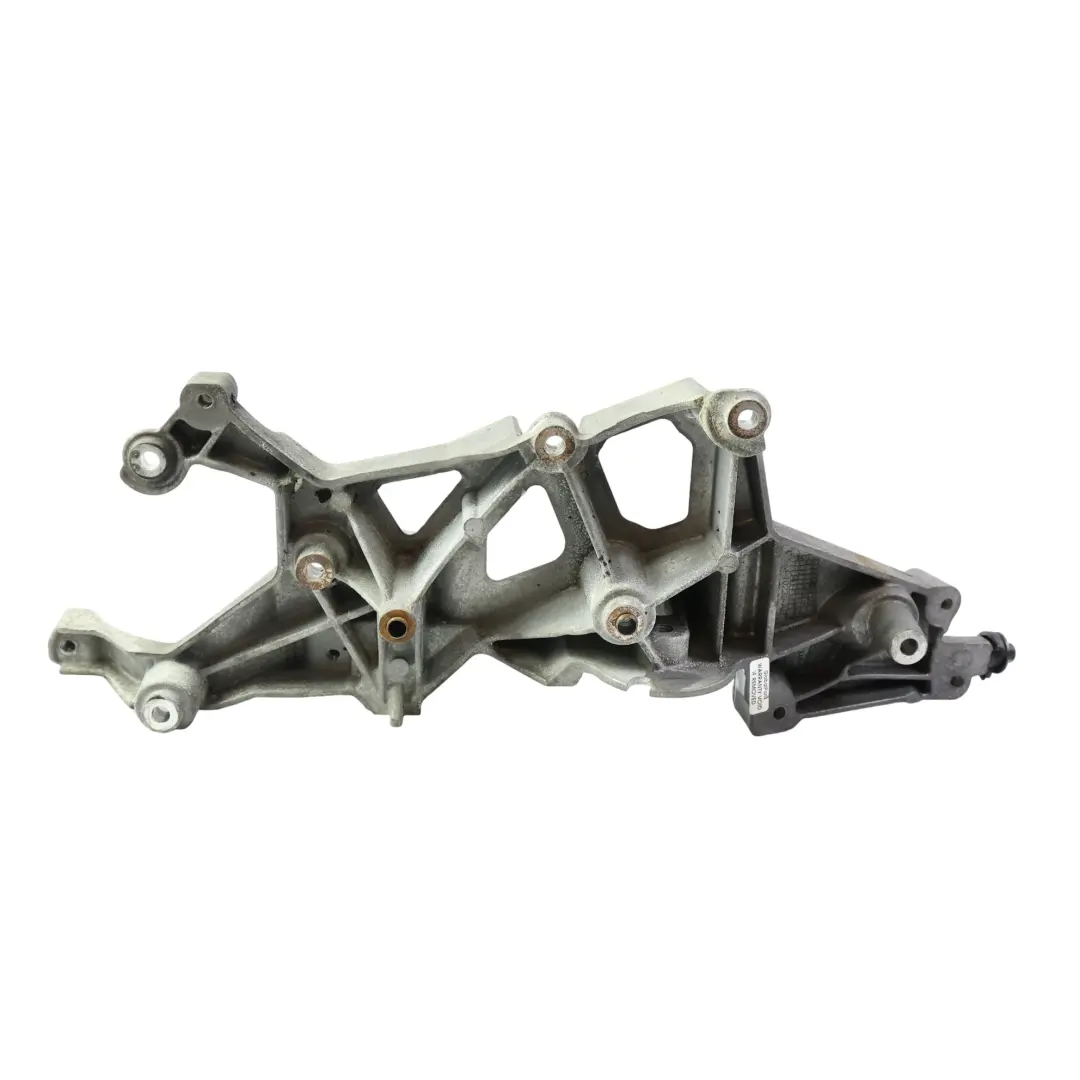

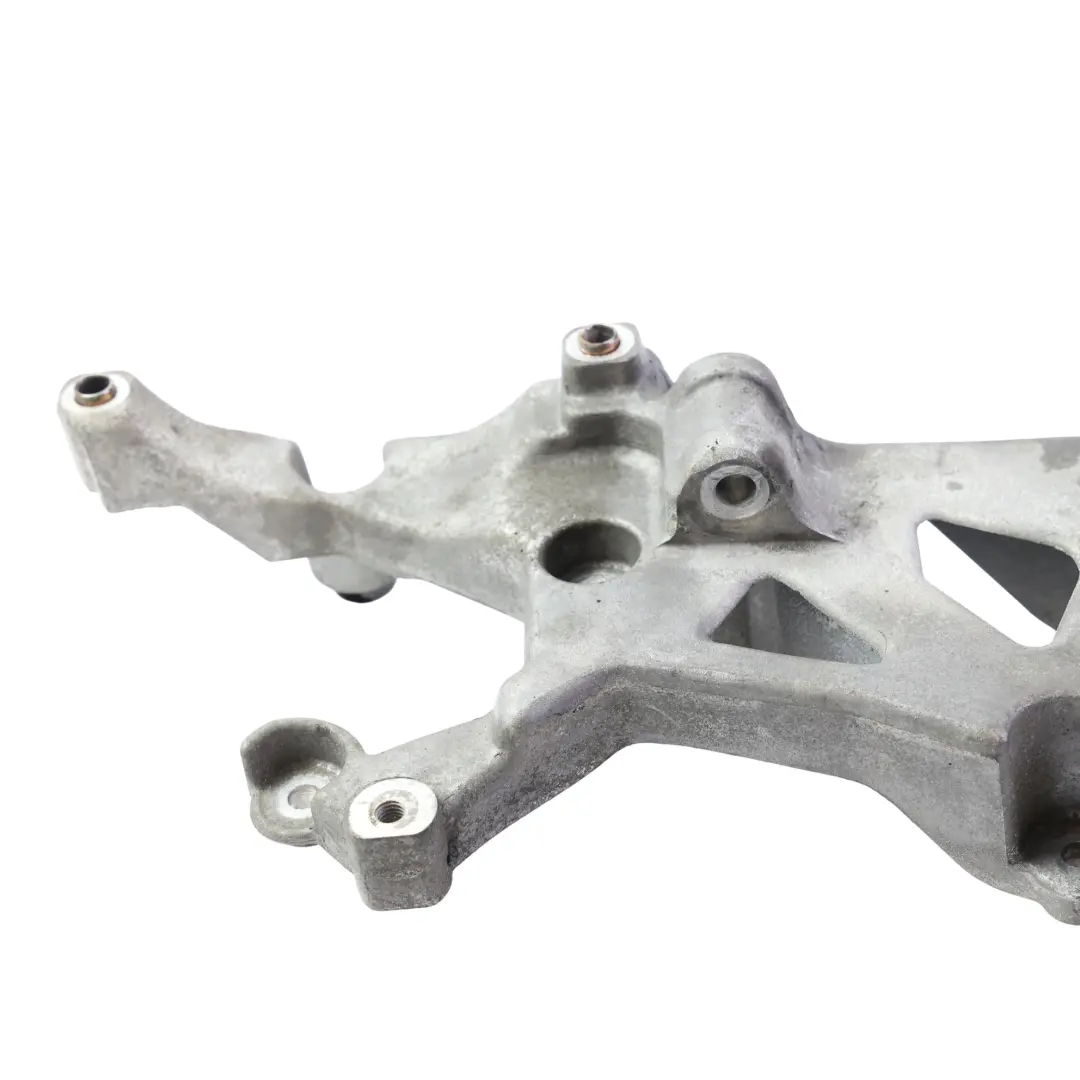

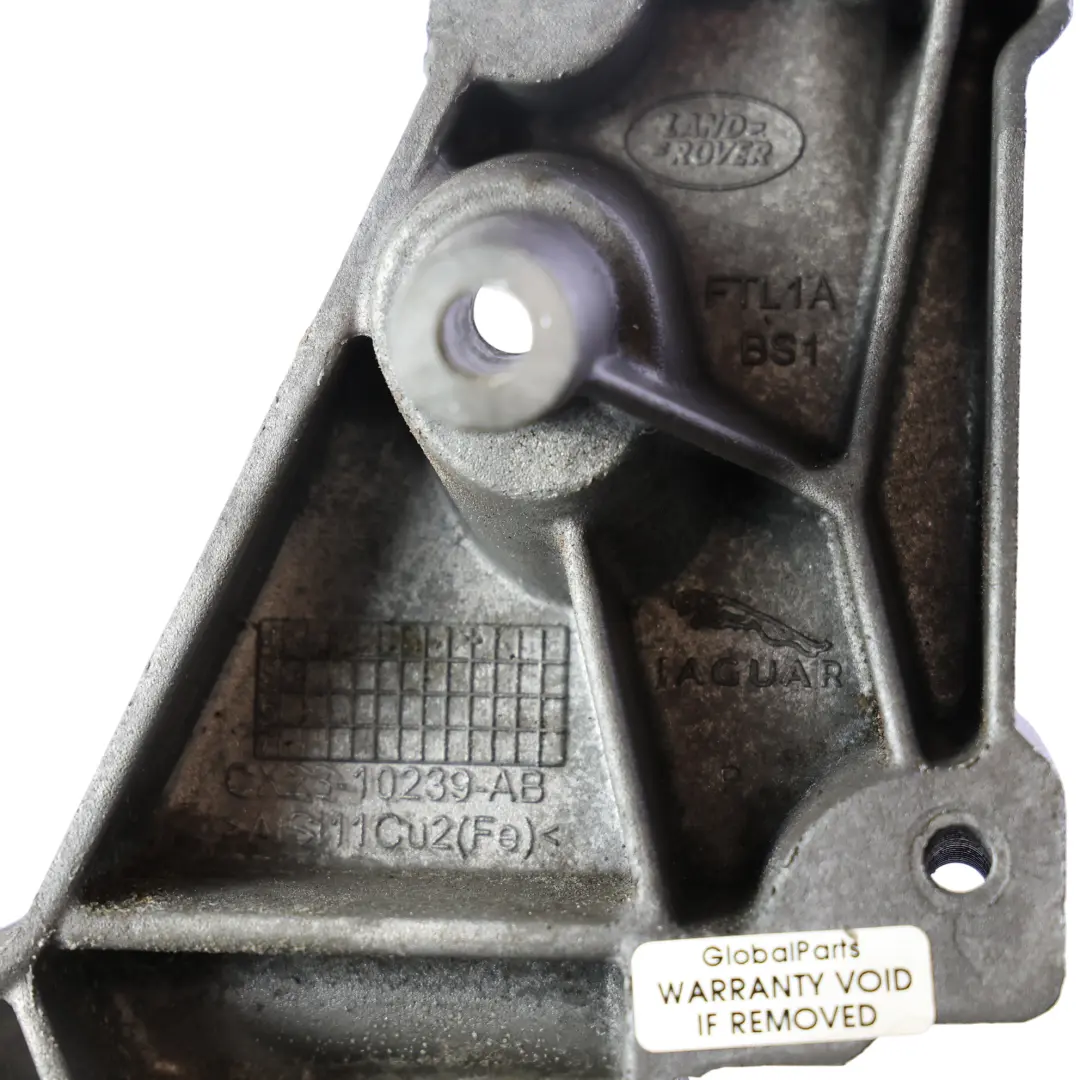

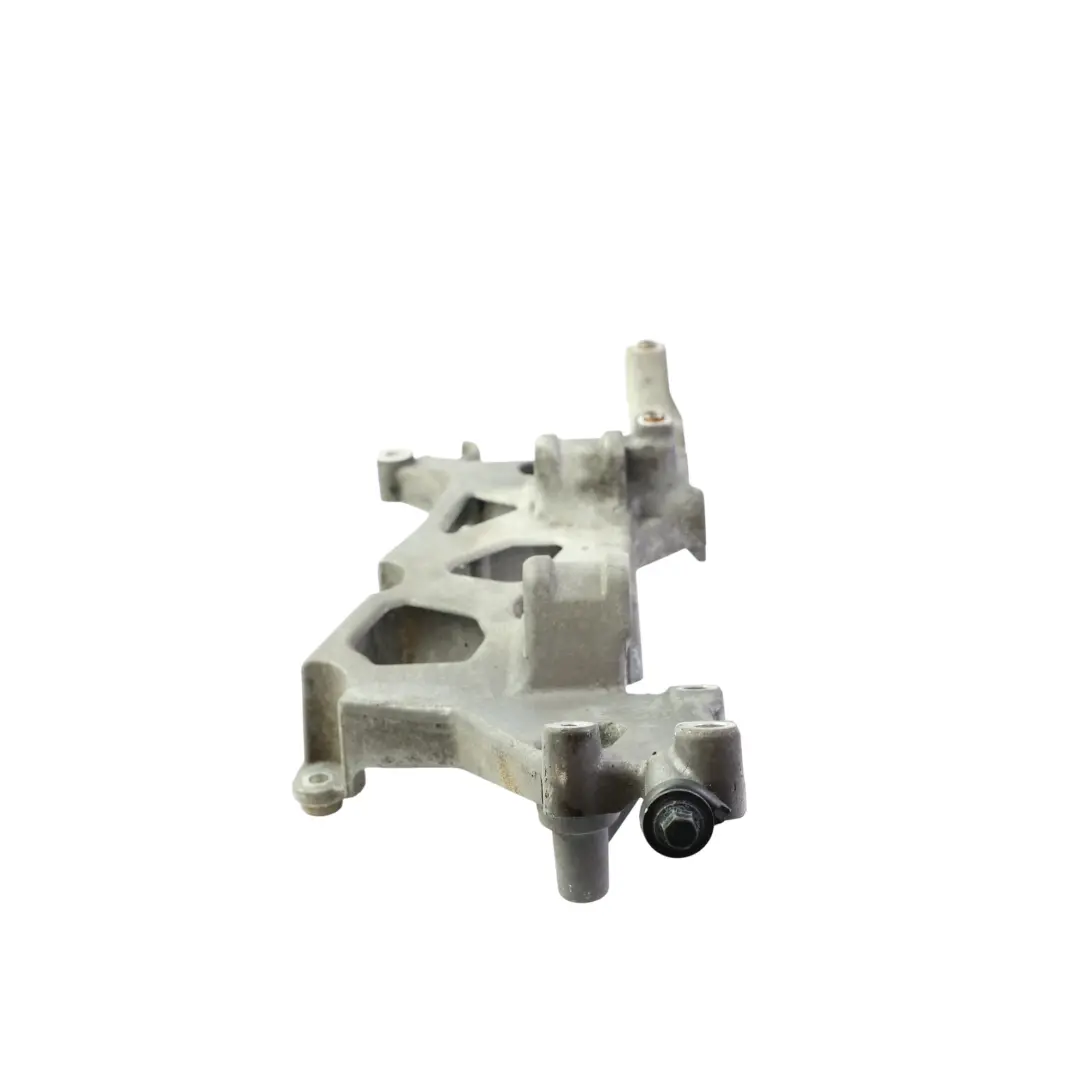

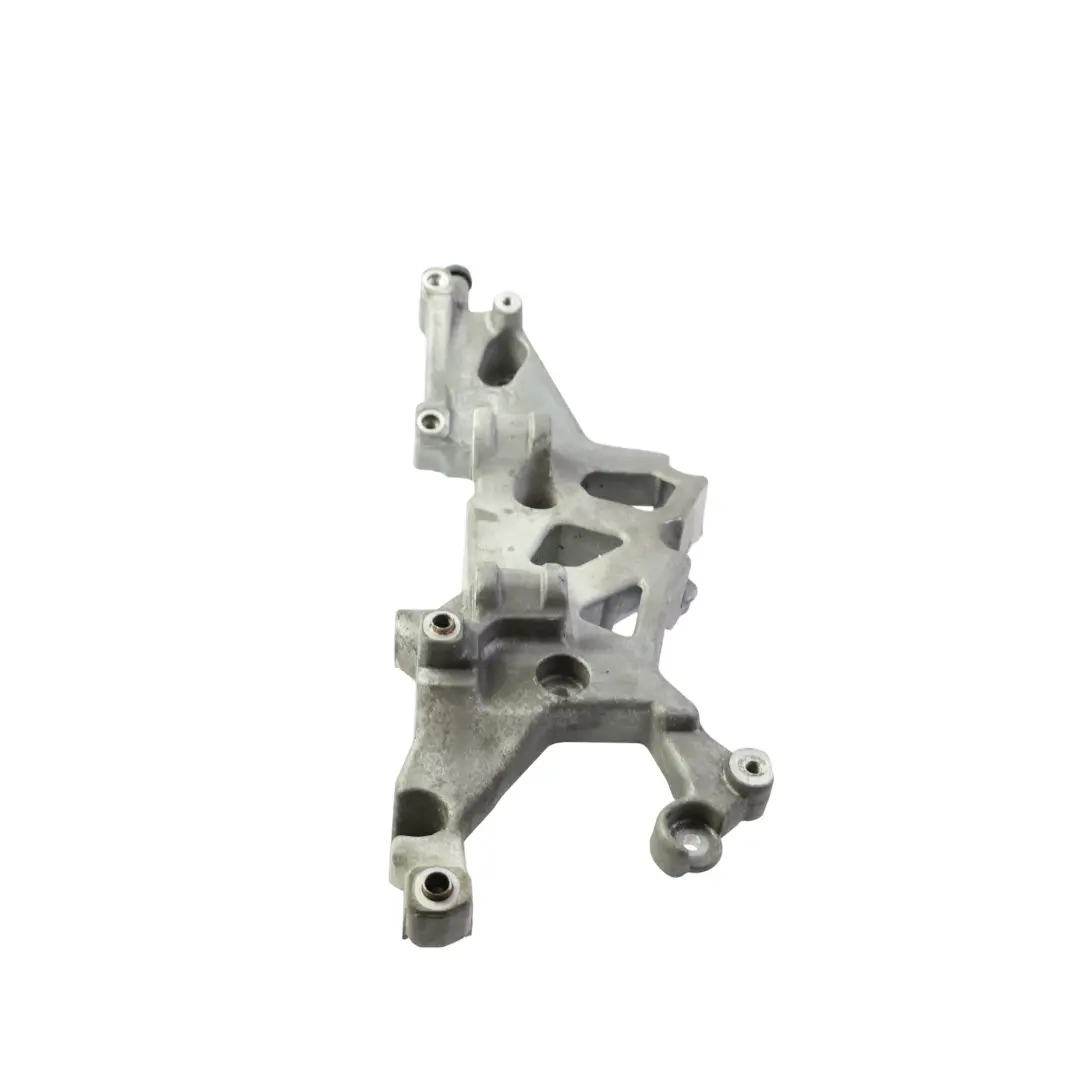

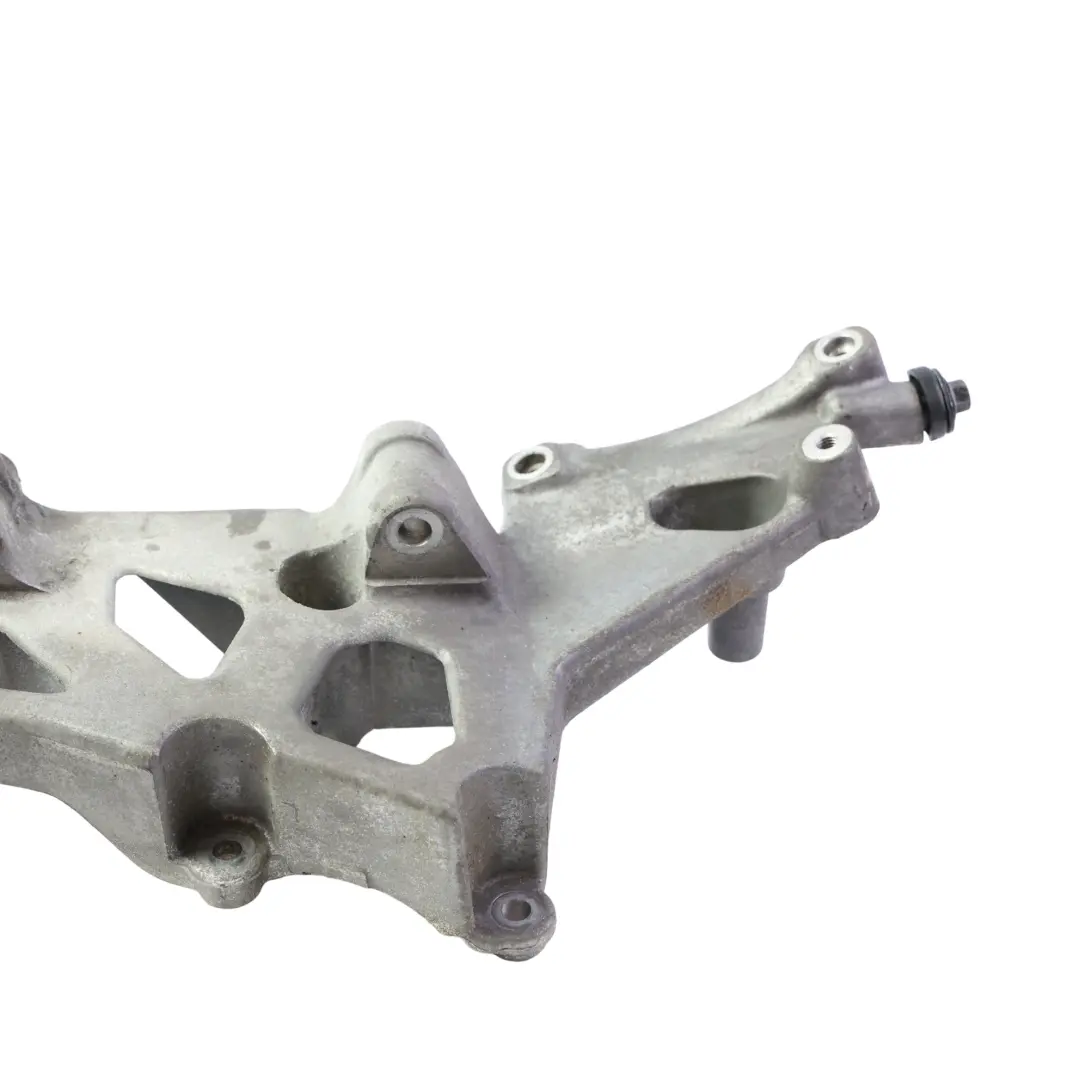

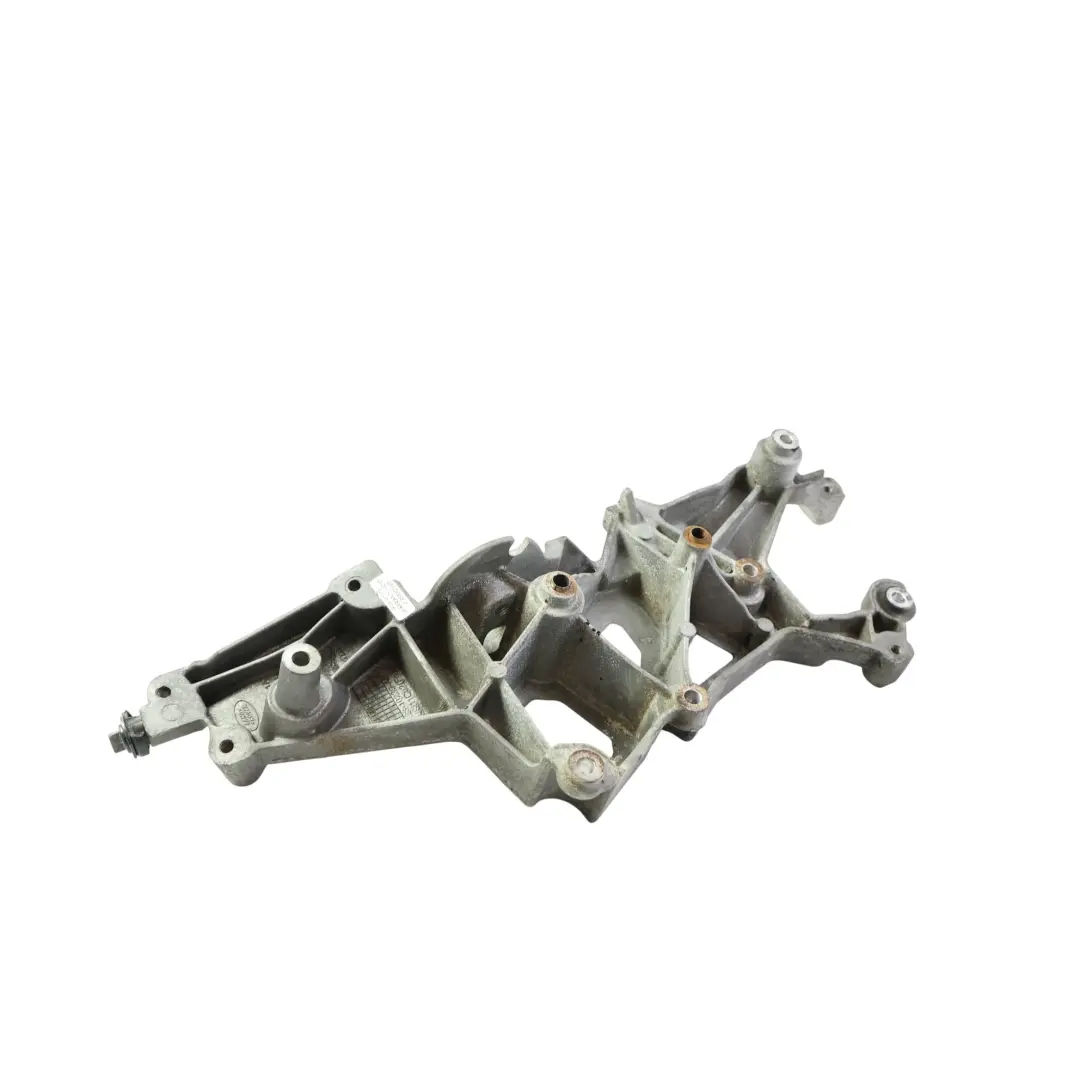

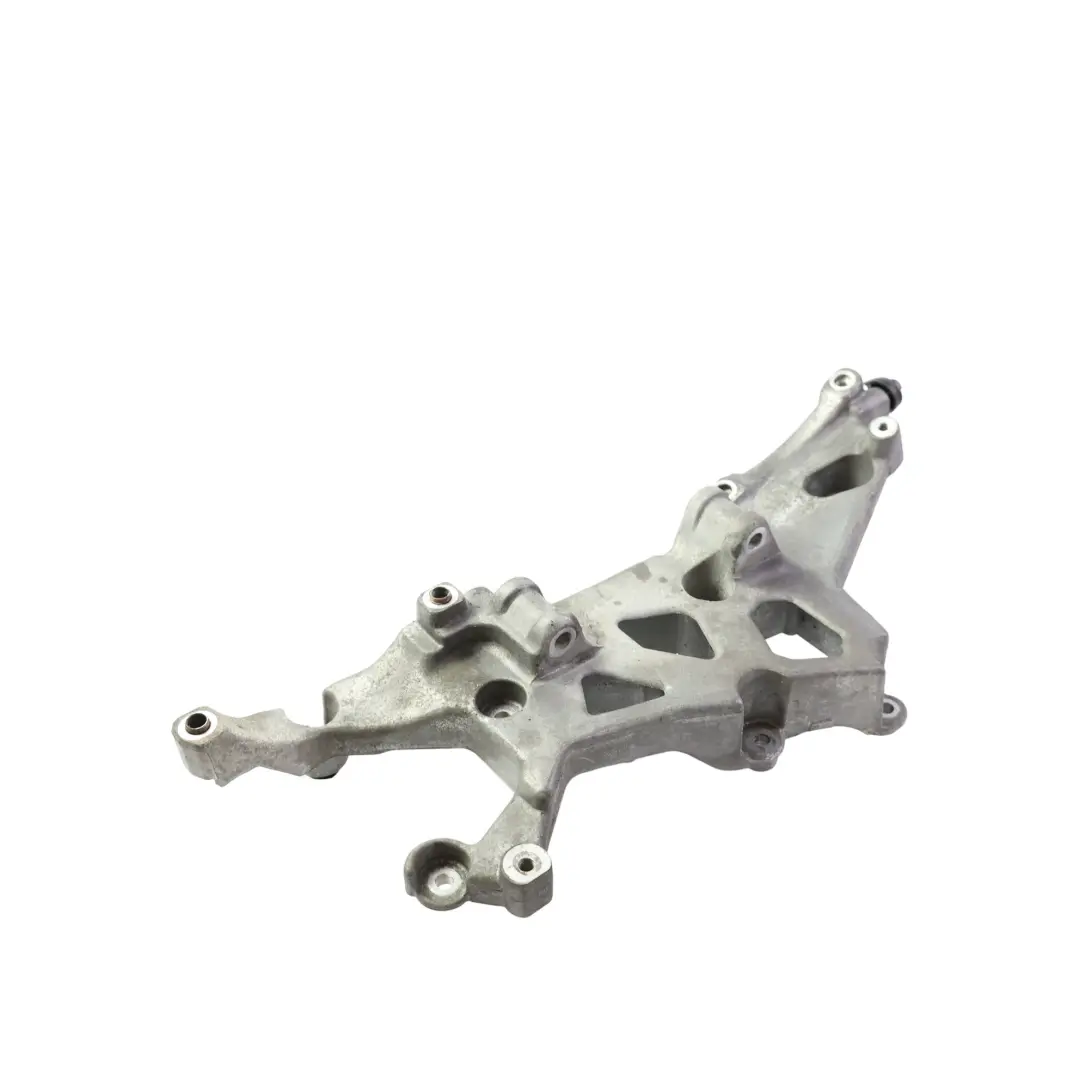

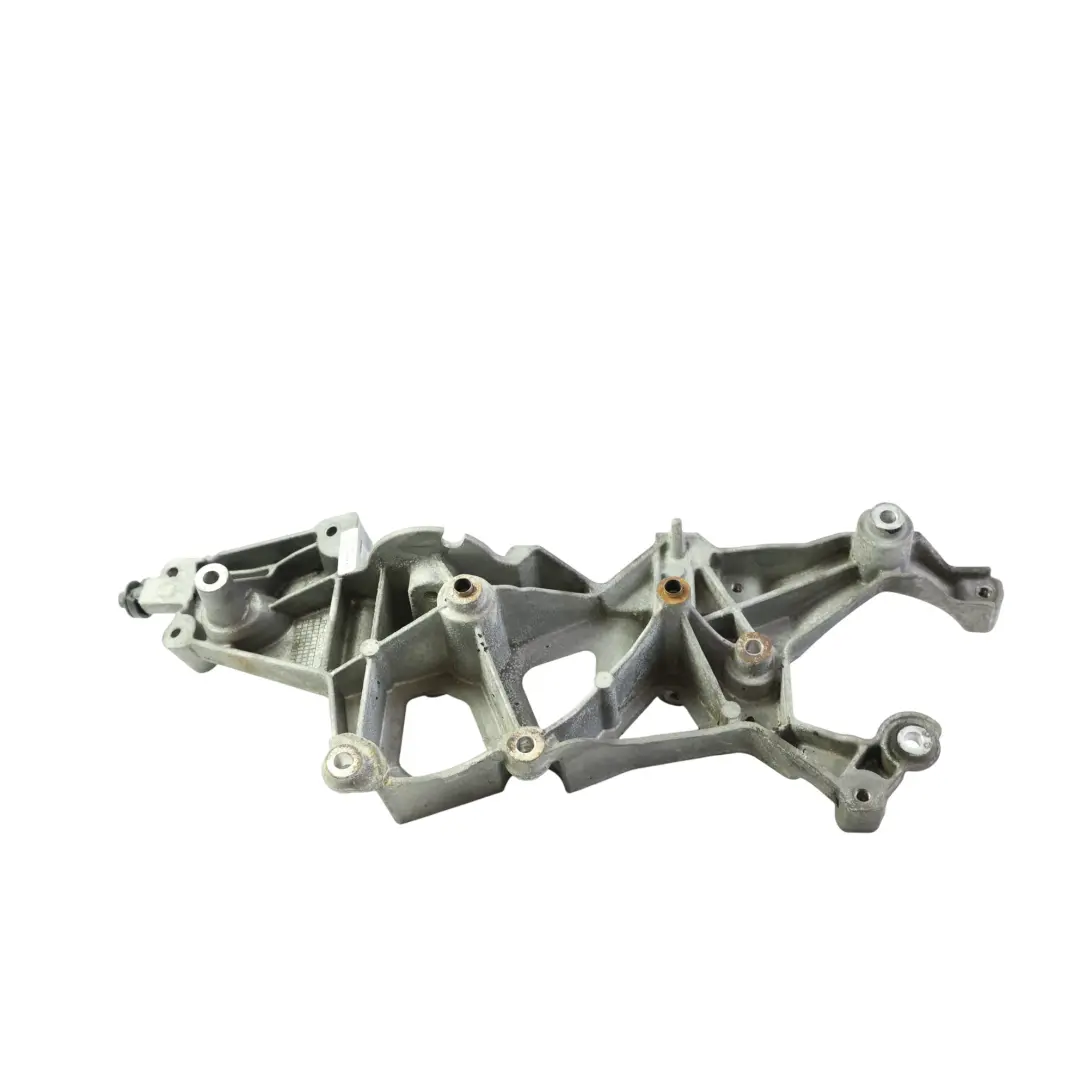

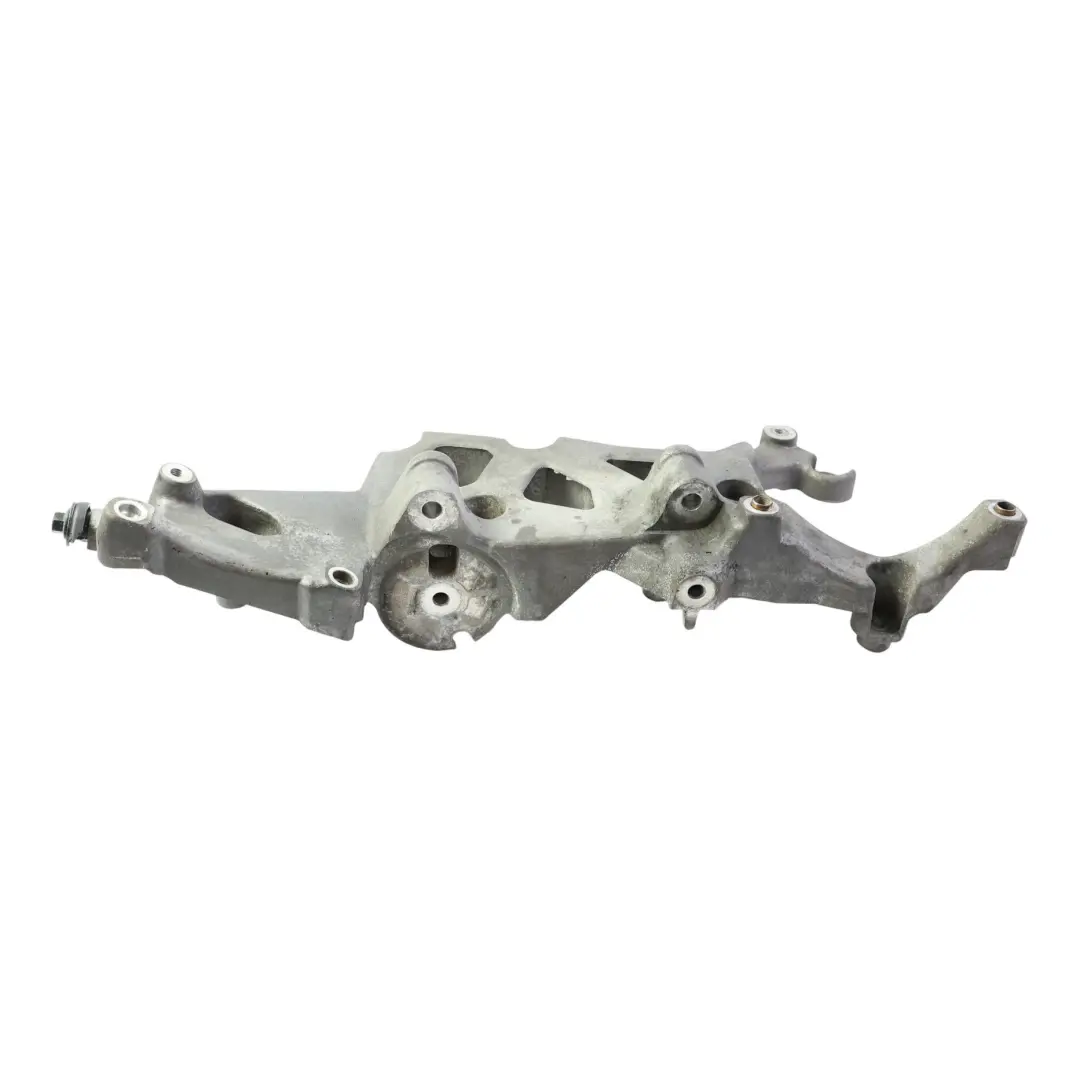

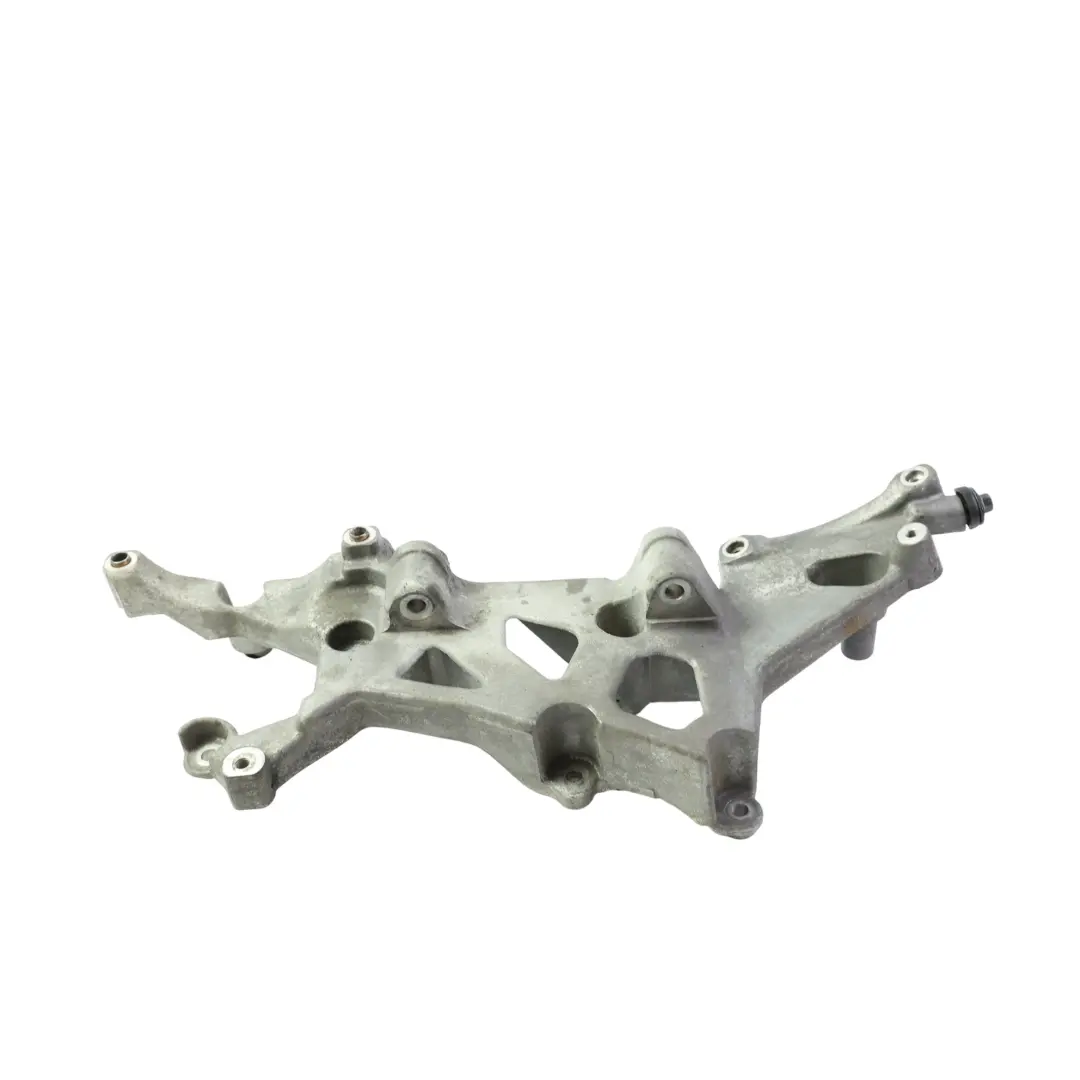

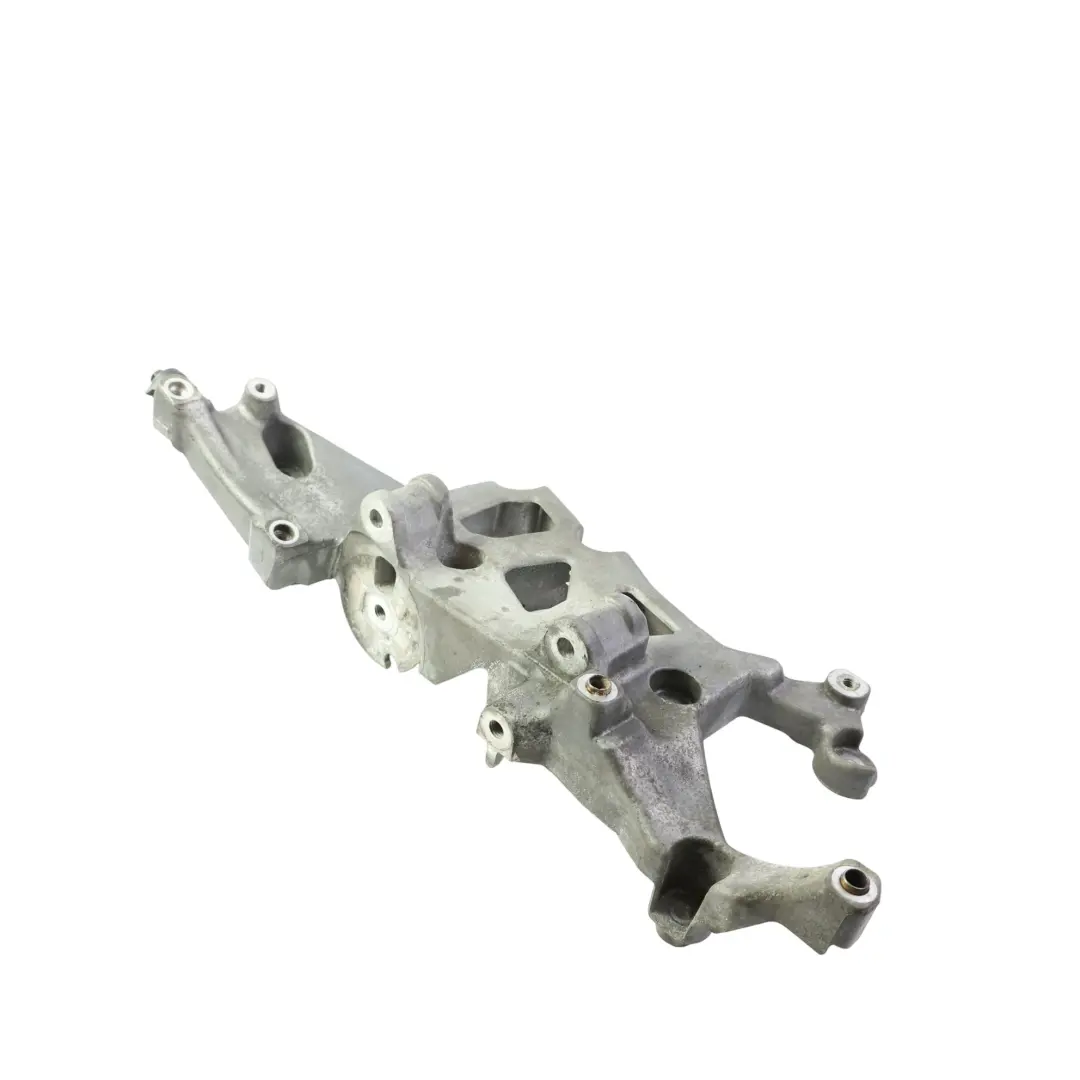

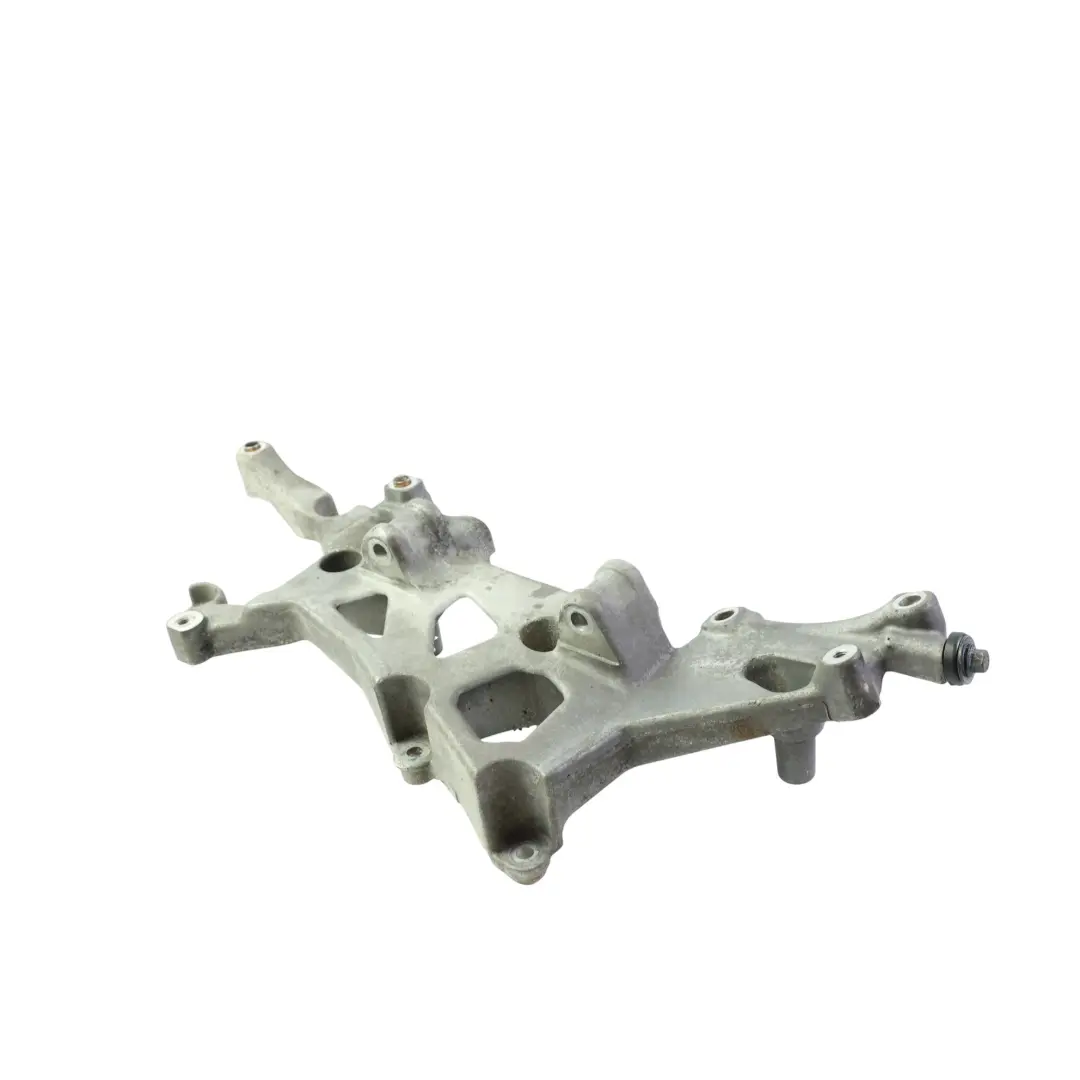

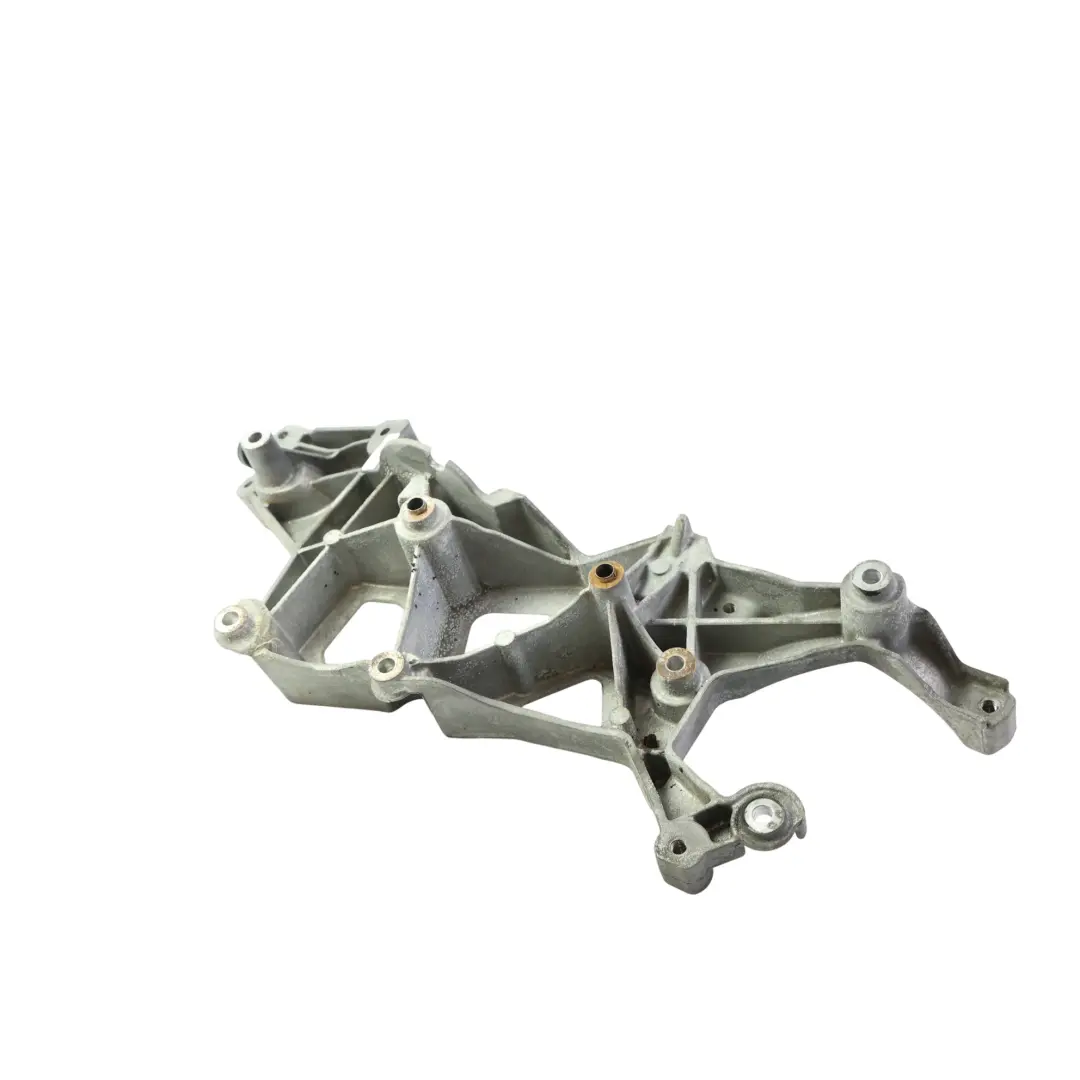

Jaguar XF X250 Alternator Bracket Mounting Support Carrier 224DT CX23-10239-AB

Jaguar XF X250 Alternator Bracket Mounting Support Carrier is an original structural component of the diesel engine accessory system, designed for the precise support and stable mounting of the alternator. Thanks to its factory-spec geometry and perfect fit for the Diesel unit, it ensures proper load distribution, vibration reduction, and safe operation of the accessory drive. This solution allows for the restoration of the correct operating line of the alternator and belt, which translates into stable charging of the electrical system.

Specifications and technical data

• SKU: C2Z13447
• Mark: Jaguar
• Condition: Used
• OEM Part Number: C2Z13447
• Substitutable numbers: C2Z13447, CX23-10239-AB, CX2310239AB
• Fuel type: Diesel
• Category: Other Starters, Alternators, ECUs & Wiring

Purpose and function in the accessory system

The alternator mounting bracket in the Jaguar XF X250 diesel model is responsible for the rigid yet appropriately flexible support of the alternator relative to the engine block. A correctly selected component:

• maintains the proper geometry of the accessory belt drive,
• limits unwanted alternator displacement under load,
• minimizes the risk of premature wear of bearings and the drive system,
• supports stable operation of the charging system across the entire RPM range. By maintaining factory mounting points, the bracket works with original bolts and accessory components, which facilitates service and reduces the risk of installation issues.

Benefits of using an original Jaguar bracket

Using an original bracket in a Jaguar XF X250 with a Diesel engine allows you to maintain the parameters specified by the vehicle manufacturer. In practice, this means:

• secure fit to the engine block and alternator without the need for modifications,
• appropriate structural rigidity, essential for the high torque of a diesel unit,
• preservation of proper pulley alignment, which reduces squealing and belt wear,
• compatibility with factory Jaguar mounting solutions. Choosing an original component instead of a replacement is particularly important for precision load-bearing components, where even small dimensional deviations can lead to vibrations, noise, or accelerated wear of the accessories.

Characteristics of the used component

The alternator mounting bracket offered as a used part is a cost-effective solution while maintaining factory specifications. A component of this type:

• retains original geometry and mounting points,
• has already been verified under real operating conditions,
• allows for economical repair of the accessory system without sacrificing OEM quality. During installation, it is recommended to use new mounting bolts in accordance with the manufacturer's service procedures and to check the condition of the belt, tensioner, and the alternator itself to fully utilize the potential of the factory bracket.

The importance of proper alternator mounting in a Diesel engine

In diesel units, vibration loads and torque are significantly higher than in many gasoline engines, which is why the quality and condition of the alternator bracket have a direct impact on:

• stability of the charging system under high electrical load,
• durability of alternator bearings and guide pulleys,
• reduction of noise and vibrations transmitted to the body,
• long-term trouble-free operation. Replacing a worn or damaged bracket with a functional OEM component is therefore an important step in the comprehensive maintenance of the engine accessories in a Jaguar XF X250. If you are planning a comprehensive repair or upgrade of the engine area in your Jaguar and need other components from the same group, such as additional brackets, supports, or accessory mounts, check the available parts in the Other Jaguar category.
