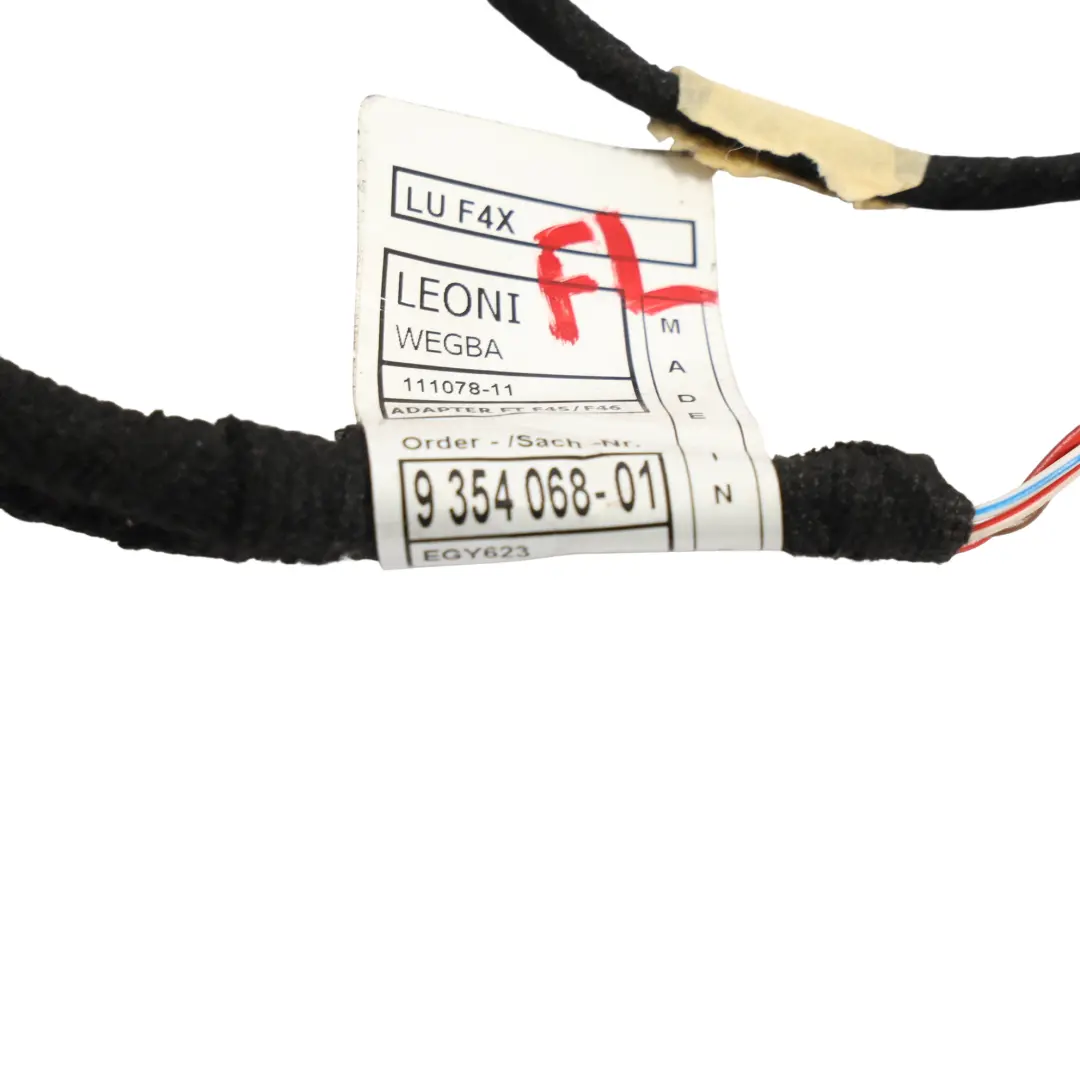

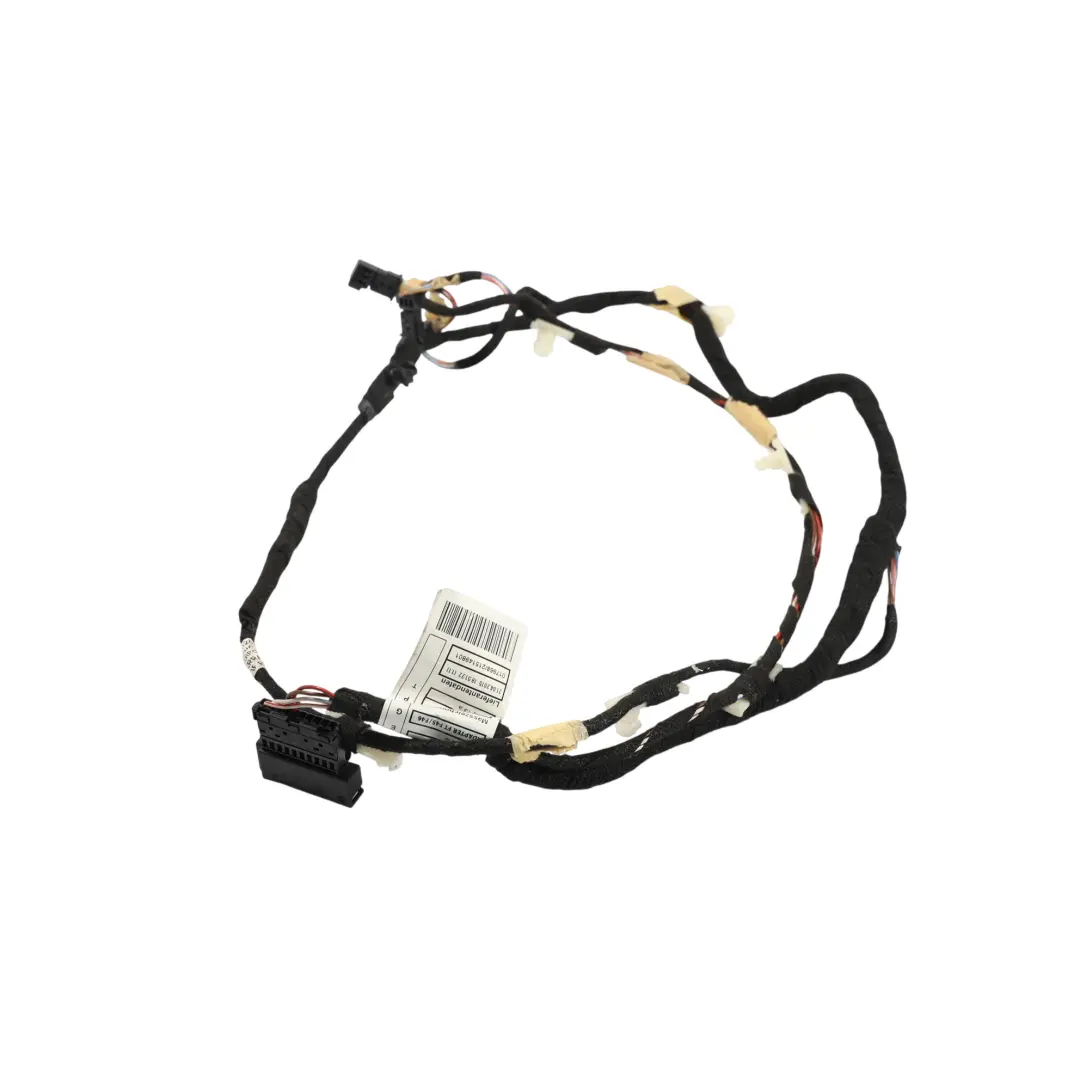

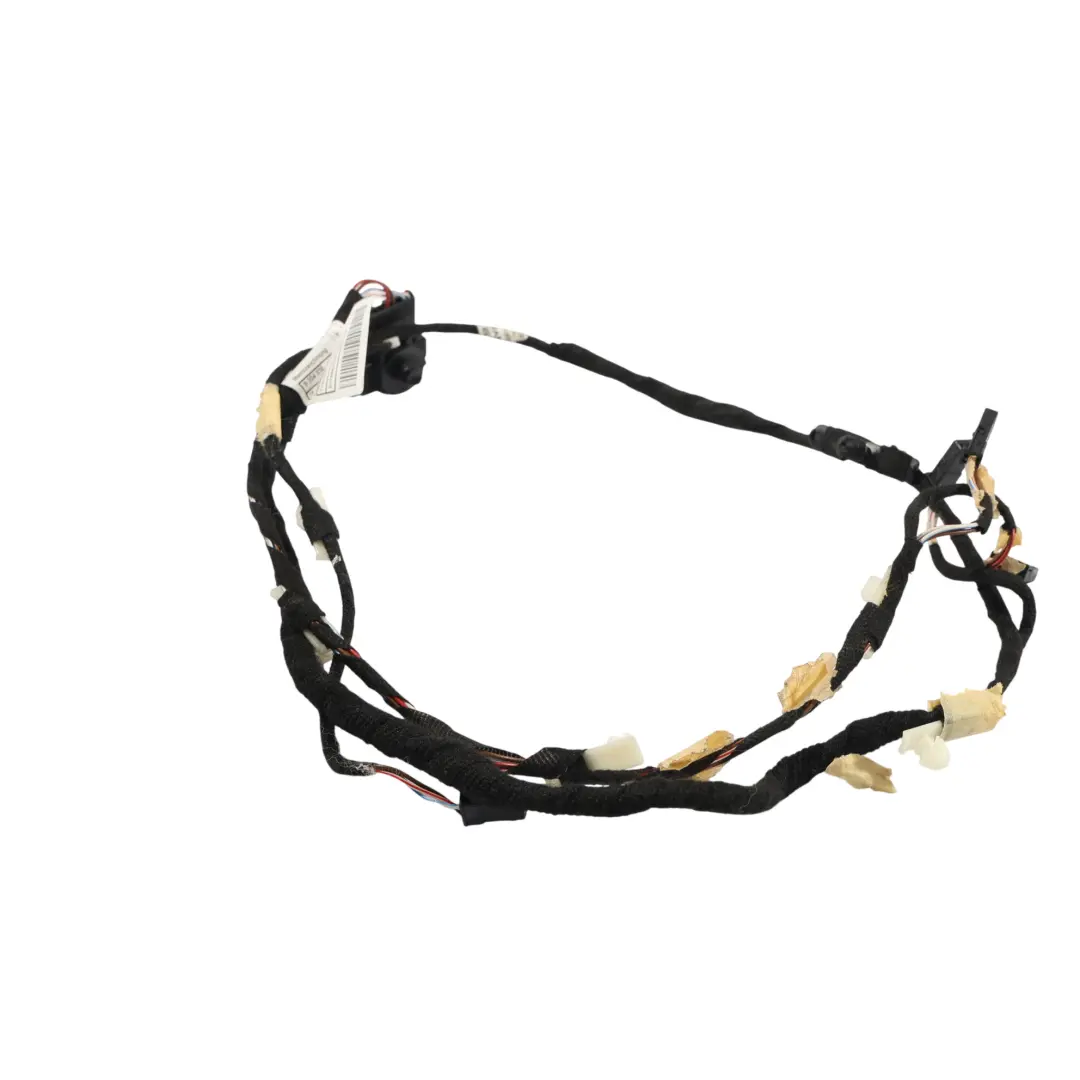

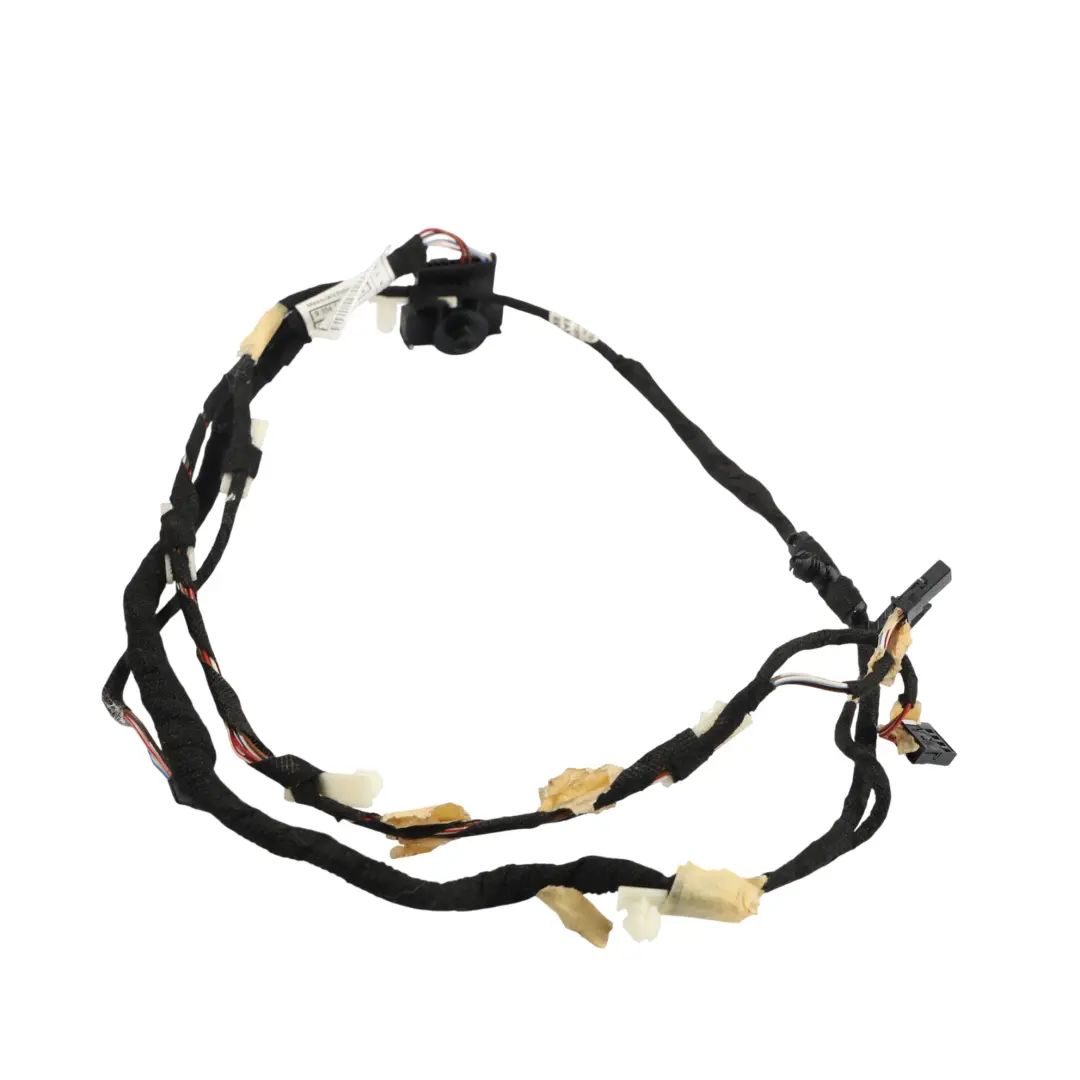

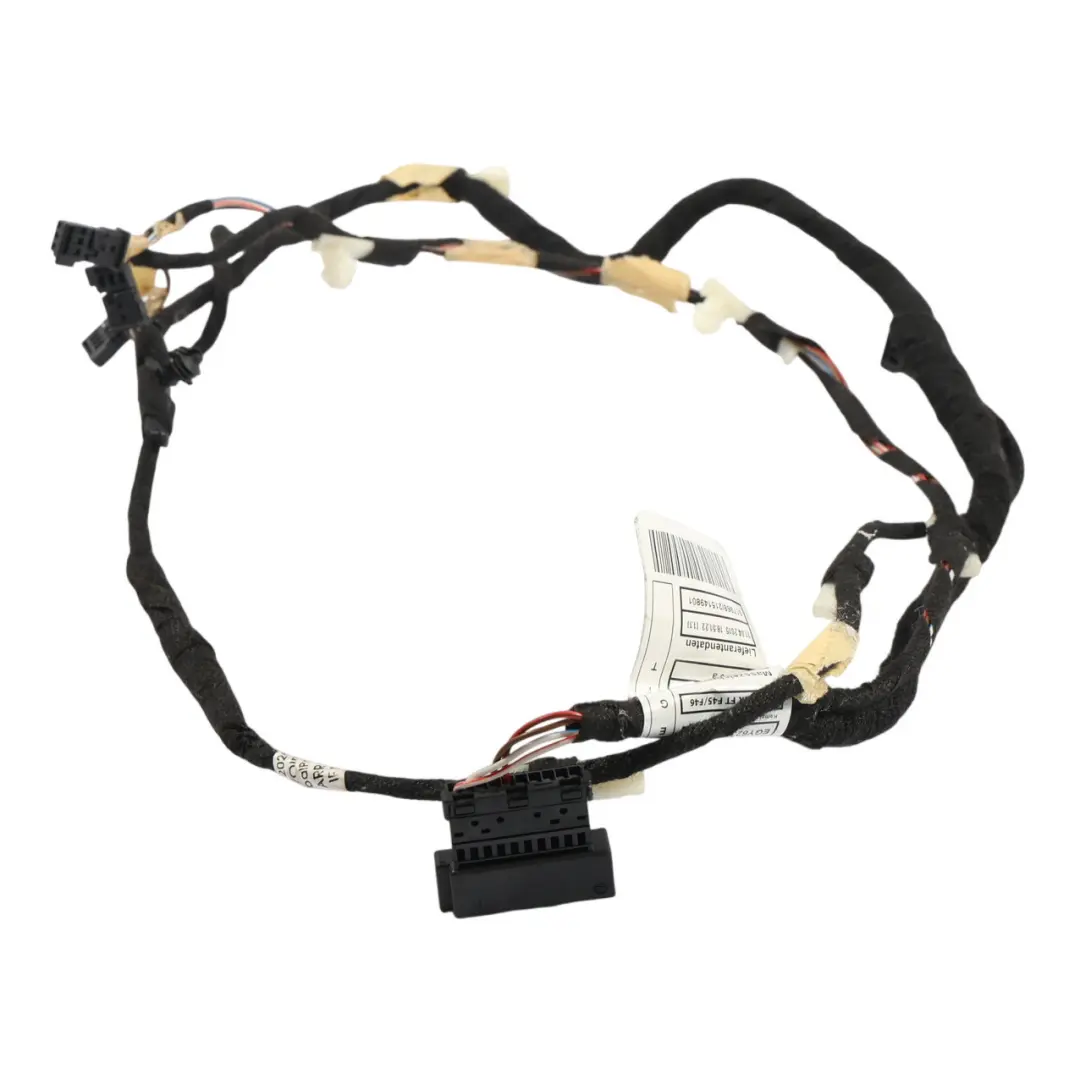

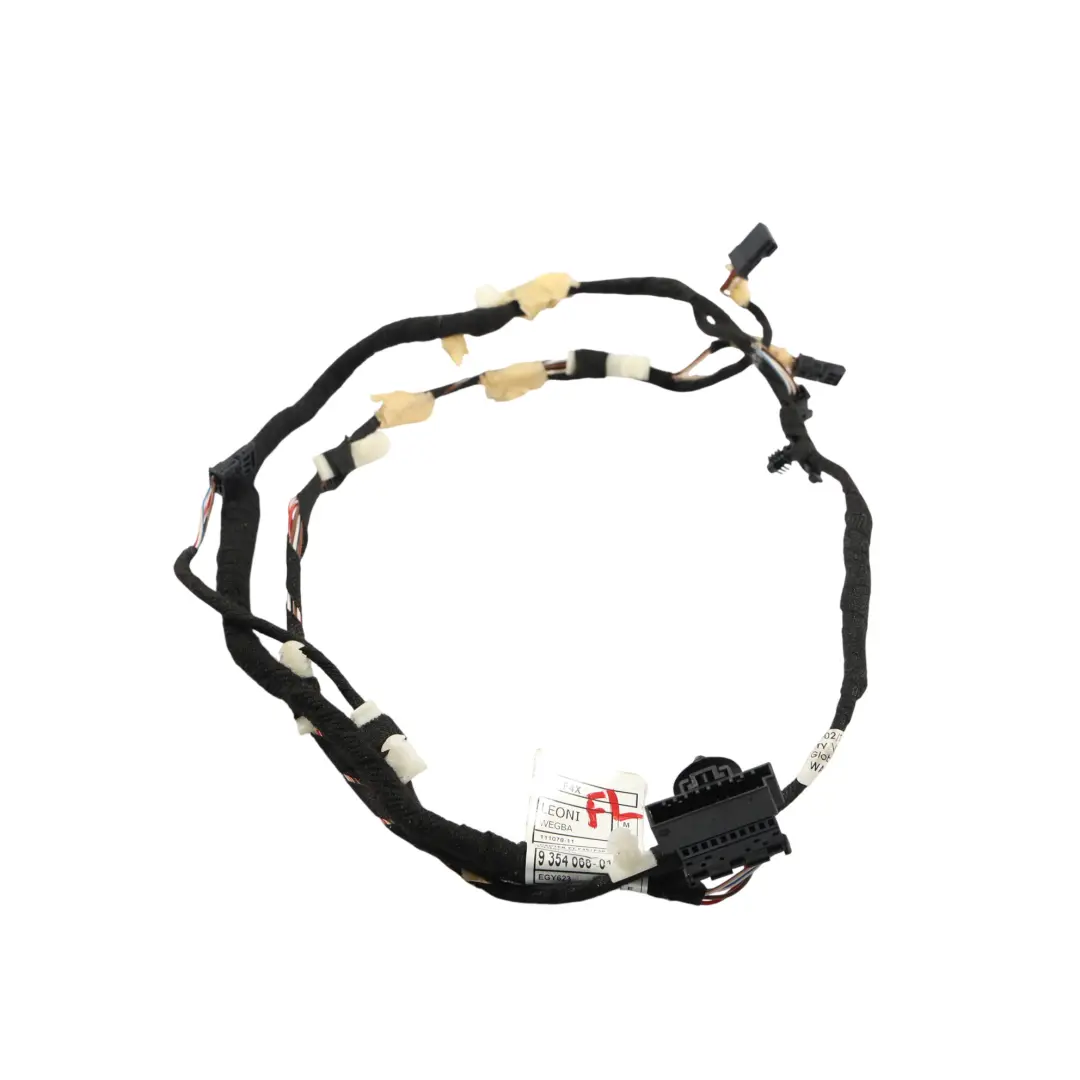

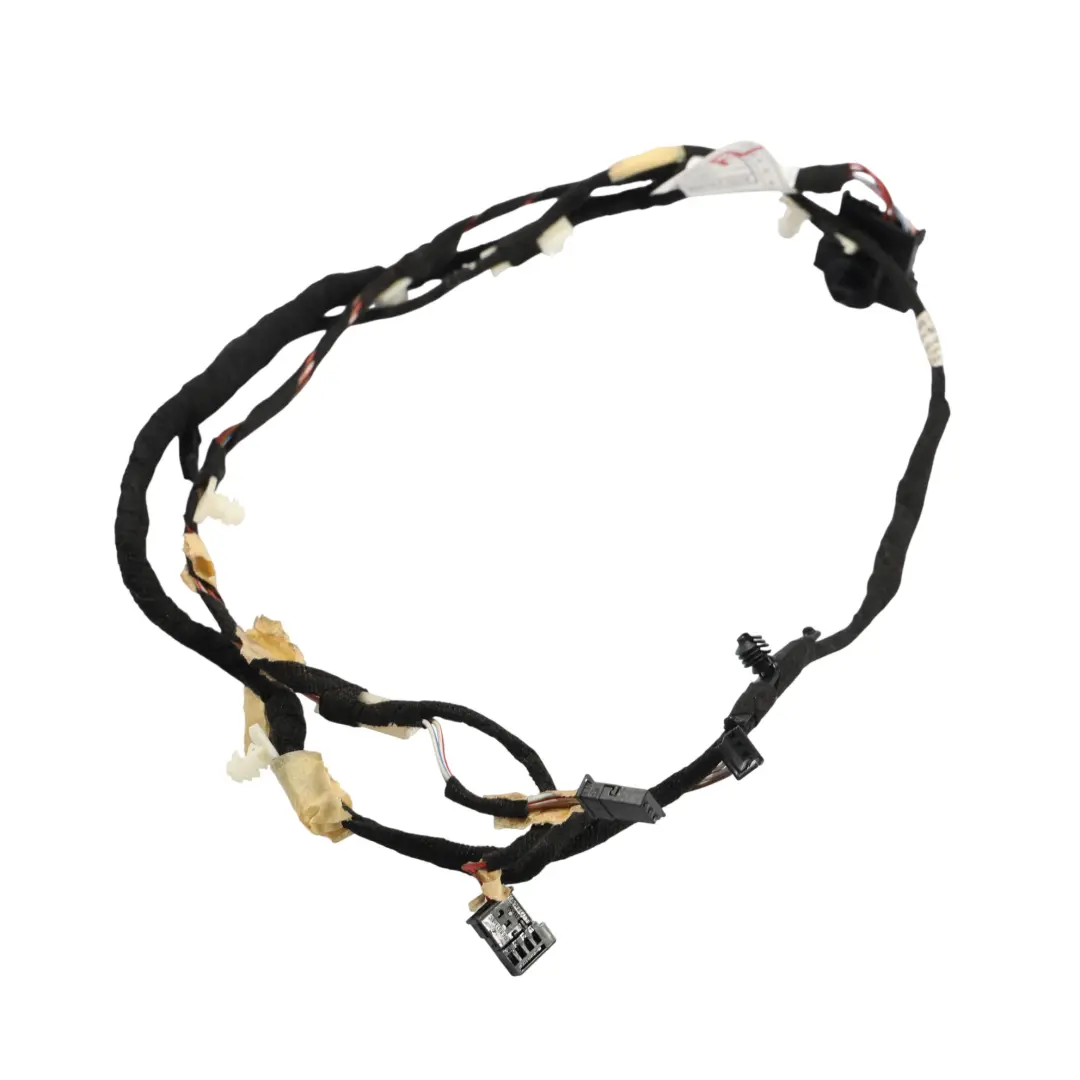

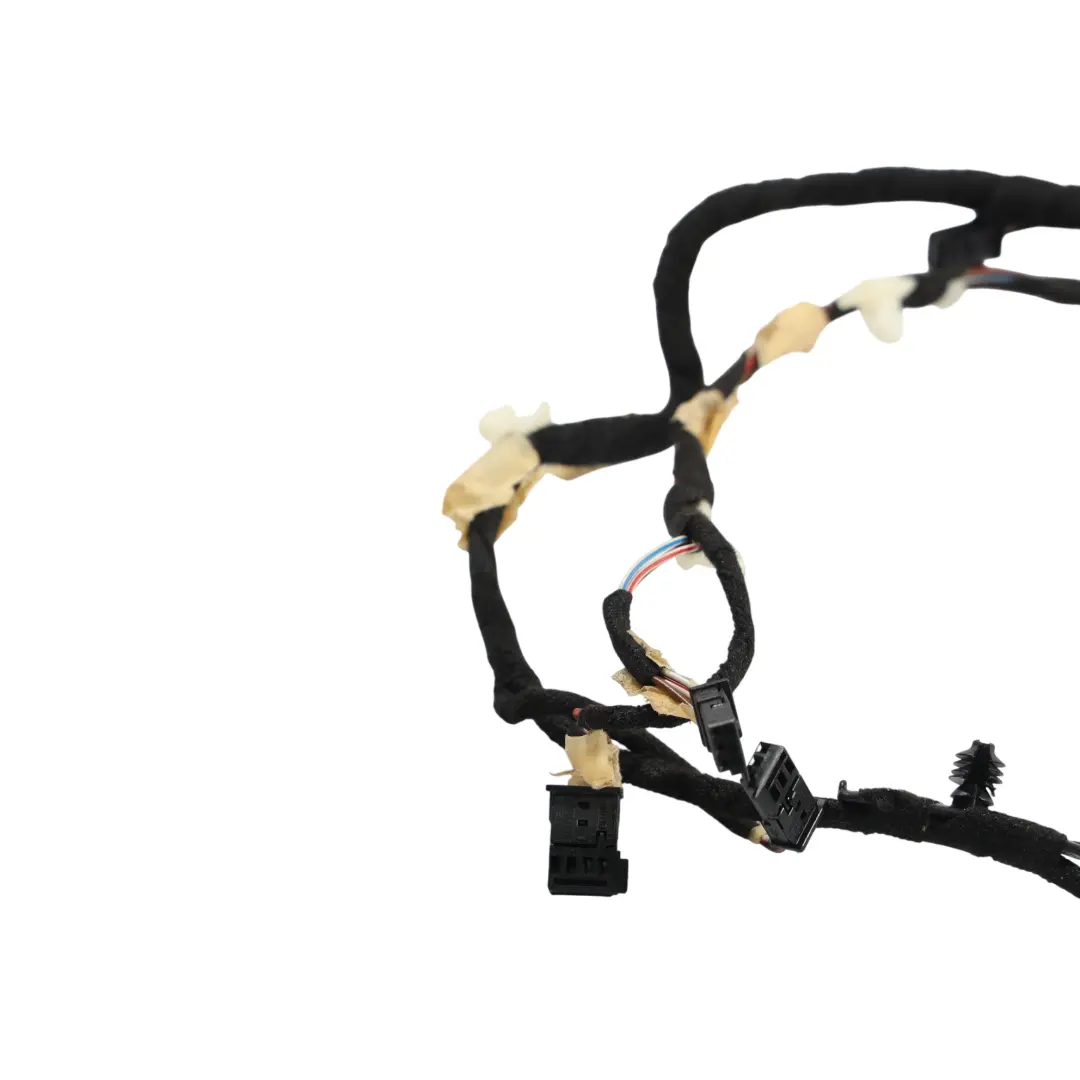

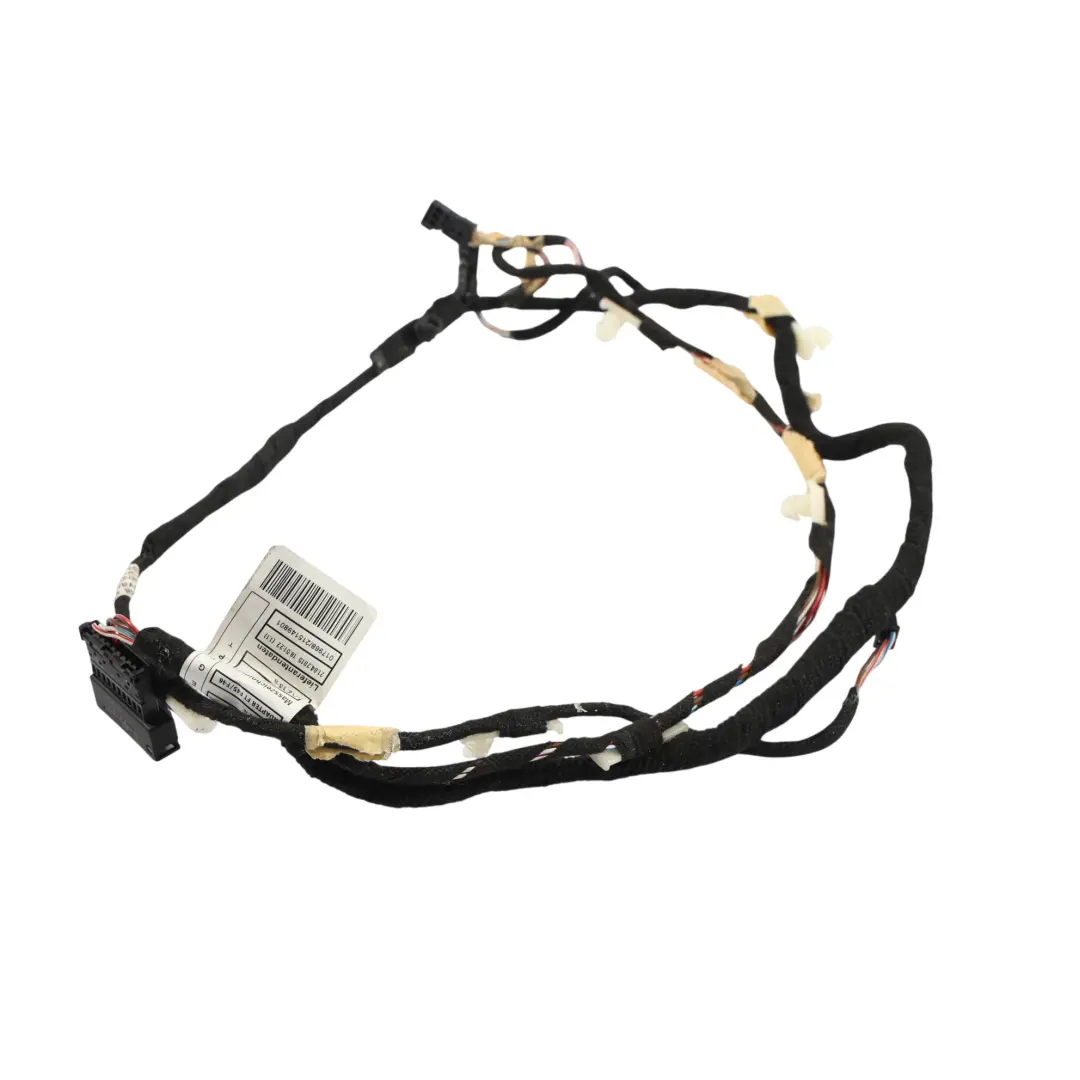

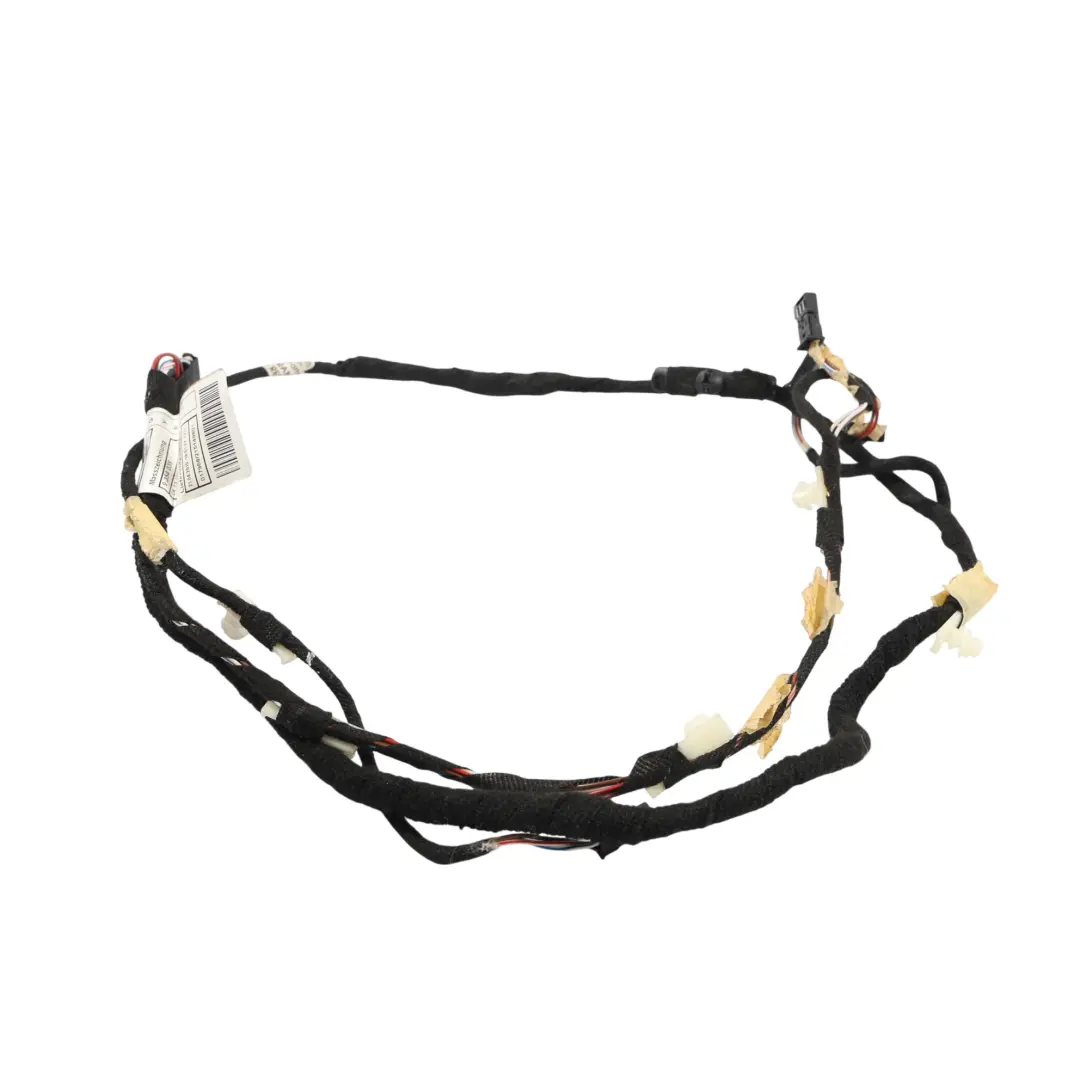

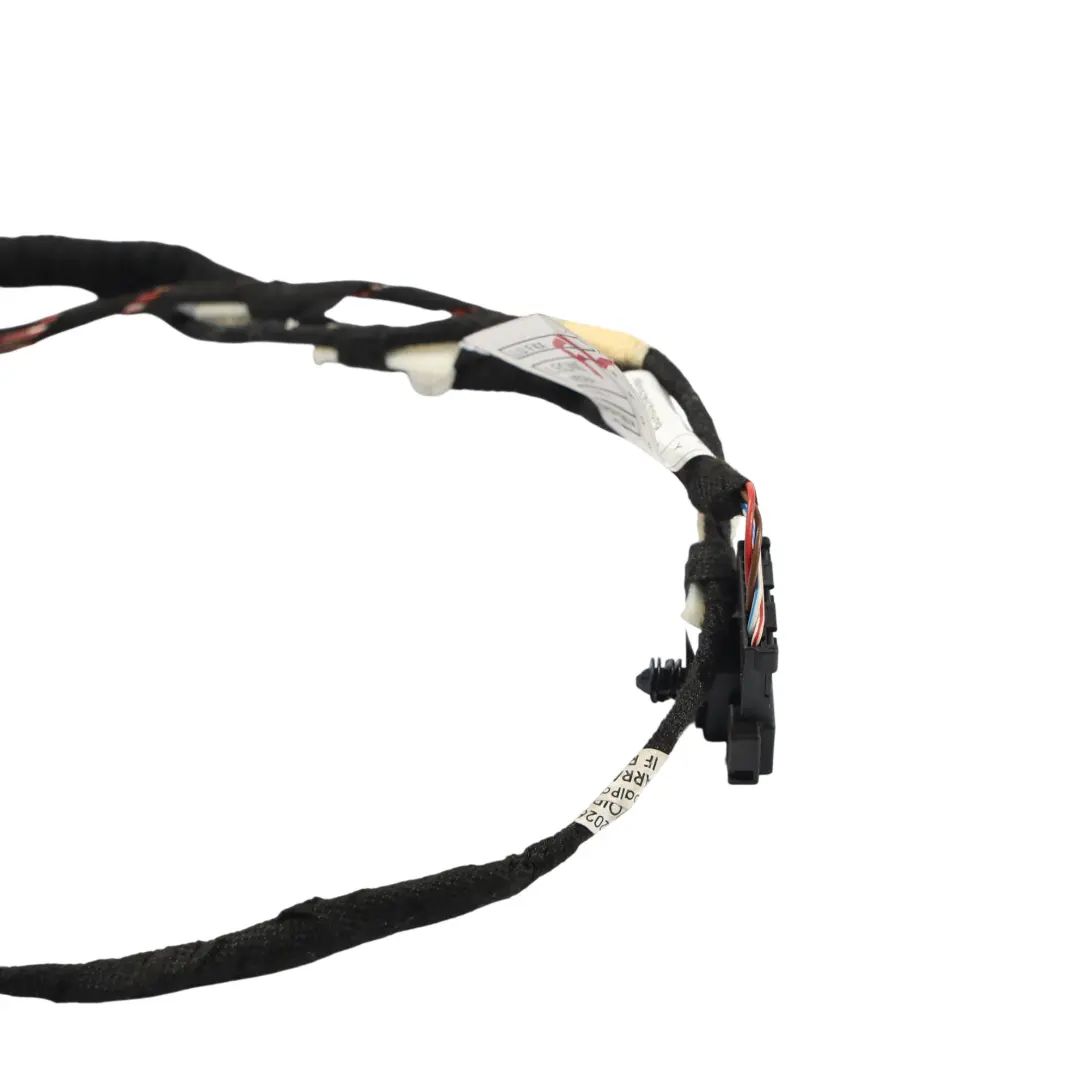

BMW F45 F46 Door Interior Lighting Wiring Harness Cable Front Right O/S 9354068

The BMW F45 F46 Door Harness Front Right Light Cable is an original door wiring component designed for BMW 2 Series Active Tourer and Gran Tourer models. It ensures stable power supply and signal for the front right door lighting, which translates to proper functioning of lamps, illumination, and electrical components in this area. It is a practical service solution for users who want to restore full functionality to their BMW's factory lighting.

Specifications and technical data

• SKU: 9354068
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9354068
• Substitutable numbers: 9354068
• Location on the vehicle: Front, Right
• Category: Other Starters, Alternators, ECUs & Wiring

Door Harness Purpose and Function

The presented door harness is dedicated for use in the front right door of BMW F45 and F46 models, within the lighting installation area. It is responsible for:

• power transmission to the light points in the door,
• stable electrical connection between the door and the rest of the vehicle's wiring,
• safe routing of cables within the door structure.

Thanks to its factory-matched fit for a specific vehicle location, the harness allows for maintaining the original wire routing and correct integration with the body's electrical system.

Benefits of Using an Original BMW Harness

Choosing an original door harness for BMW F45/F46 offers a range of technical advantages:

• compatibility with the vehicle's factory electrical architecture,
• appropriate length and wire terminations tailored to the front right door,
• preservation of correct pin order in connectors, minimizing the risk of installation errors,
• seamless integration with the existing lighting system.

This solution is particularly beneficial for collision repairs, door replacements, or cable damage due to wear and tear.

Installation Characteristics

The harness is designed for a specific vehicle location – front, right side. This simplifies component identification during repairs and reduces the risk of using the wrong harness for a given body area. The cable's design allows for:

• routing the wiring according to factory mounting points in the door,
• restoring original wire paths without modifications,
• maintaining the correct bending radius of wires in door grommets and hinges.

This ensures that the service can be performed in a repeatable manner, consistent with the vehicle manufacturer's specifications.

Application in Service and Diagnostics

This component is suitable for both professional service centers and workshops specializing in the BMW brand. The door harness can be used as:

• a replacement part for mechanical cable damage,
• a solution for problems with non-functioning front passenger-side door lighting,
• a component to restore wiring continuity after bodywork and paint repairs.

A correctly chosen harness reduces the need for custom wiring, soldering, or system modifications, positively impacting the reliability of the electrical system in the long term.
