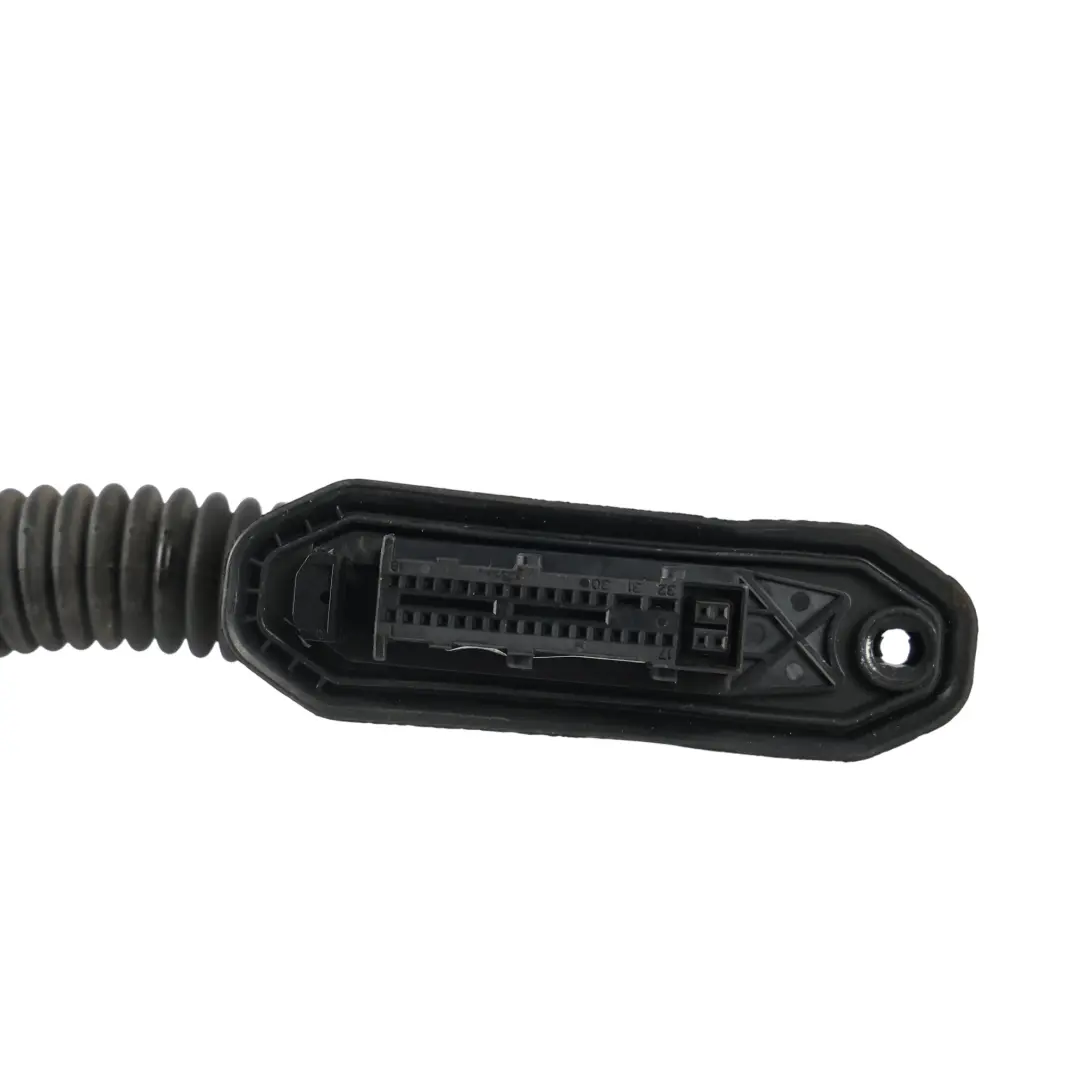

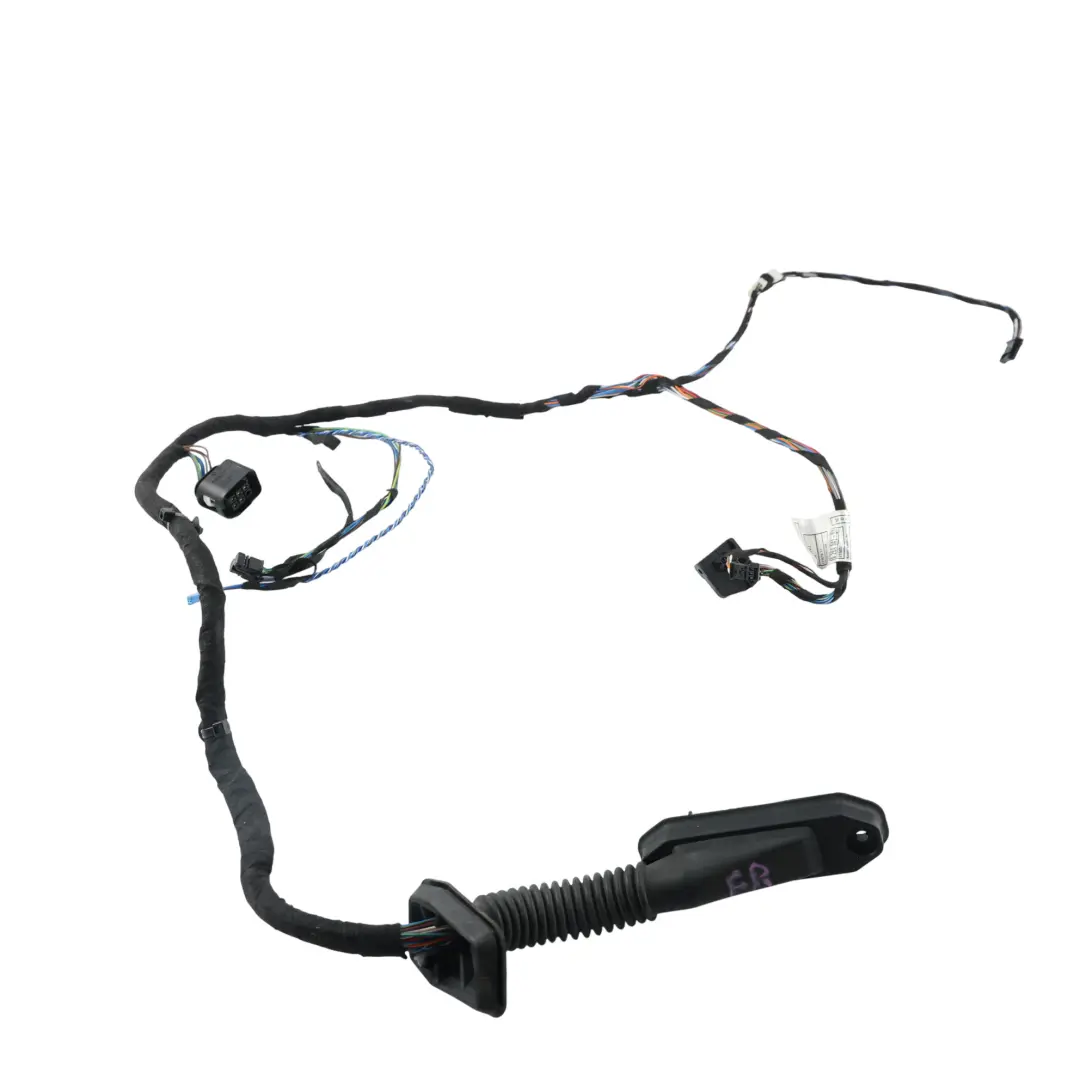

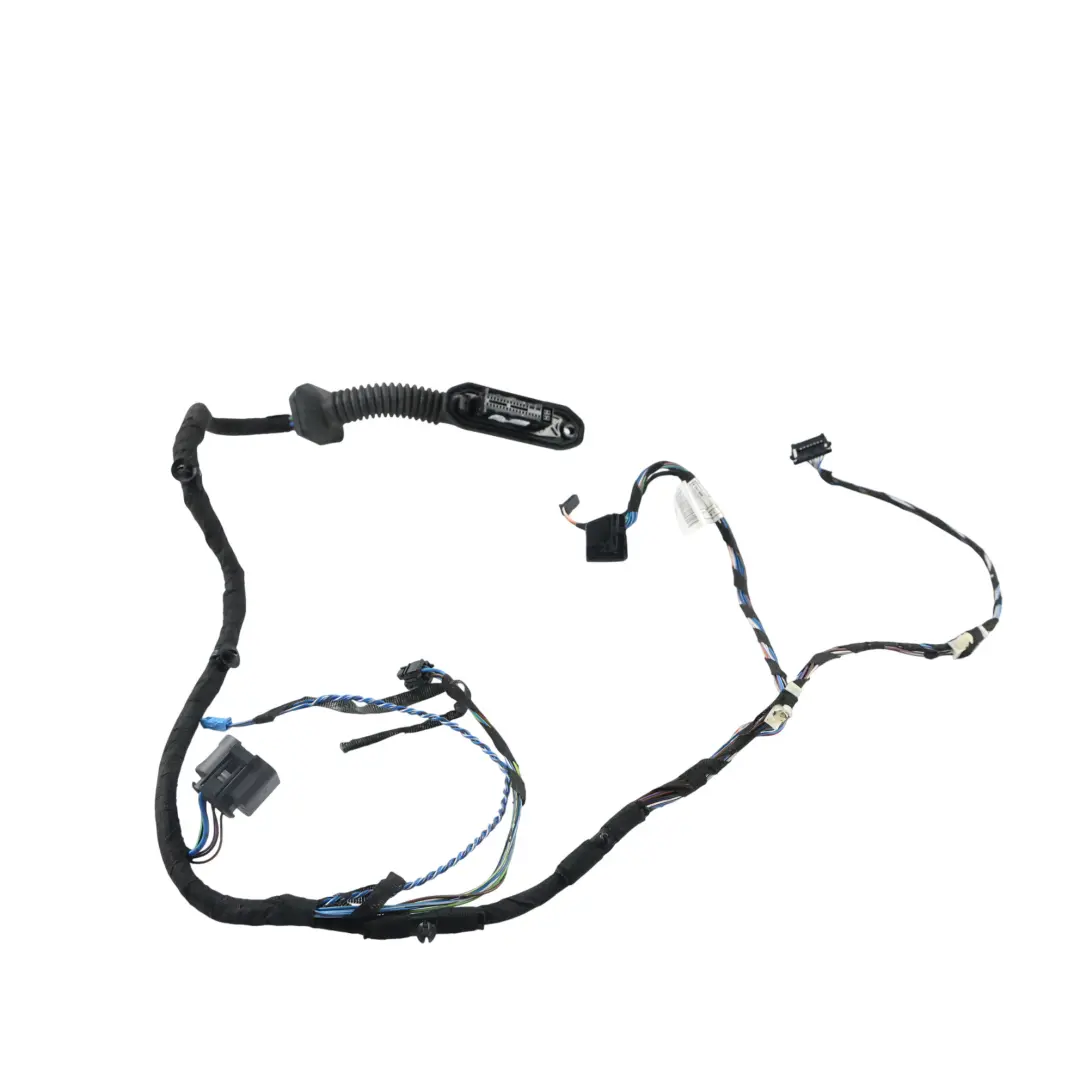

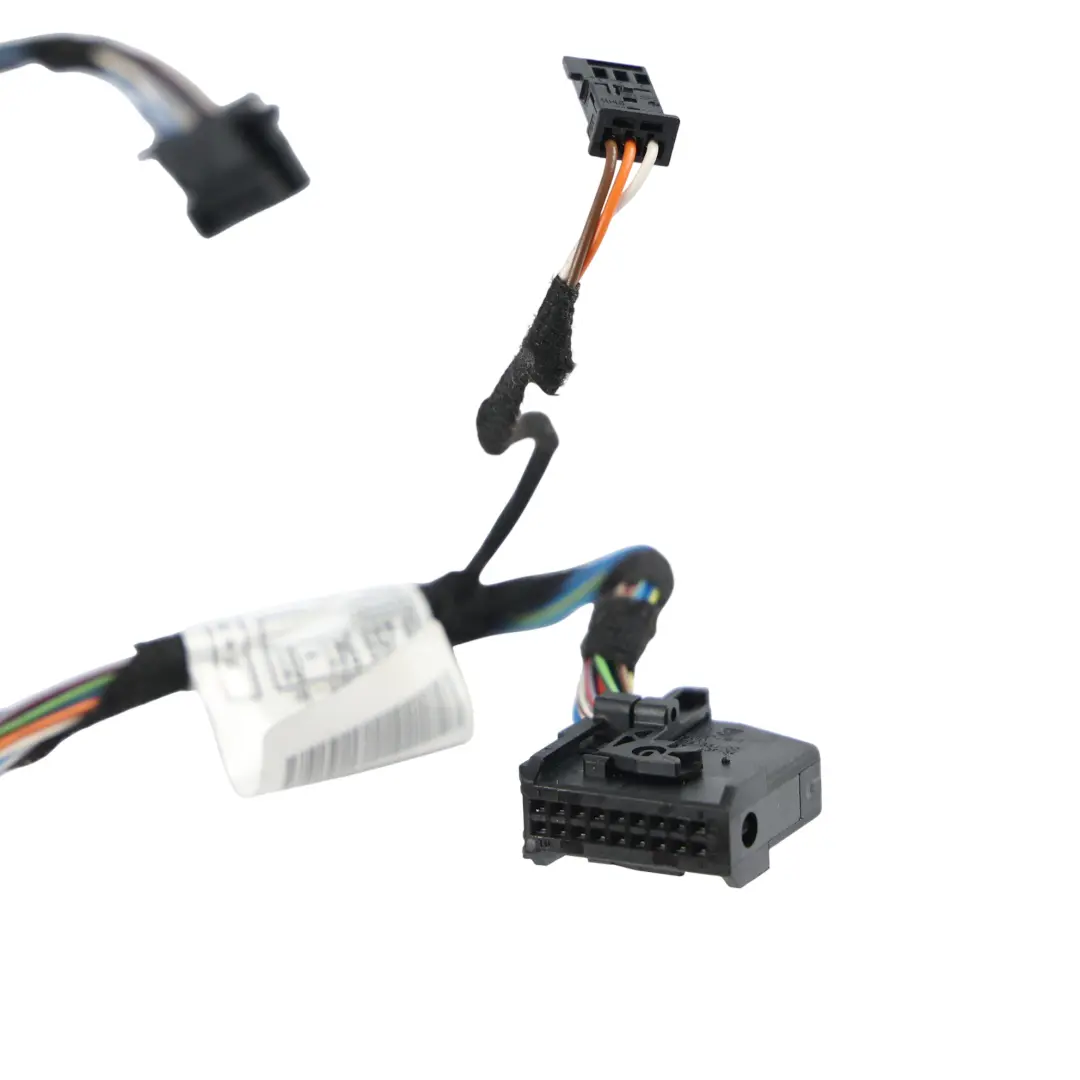

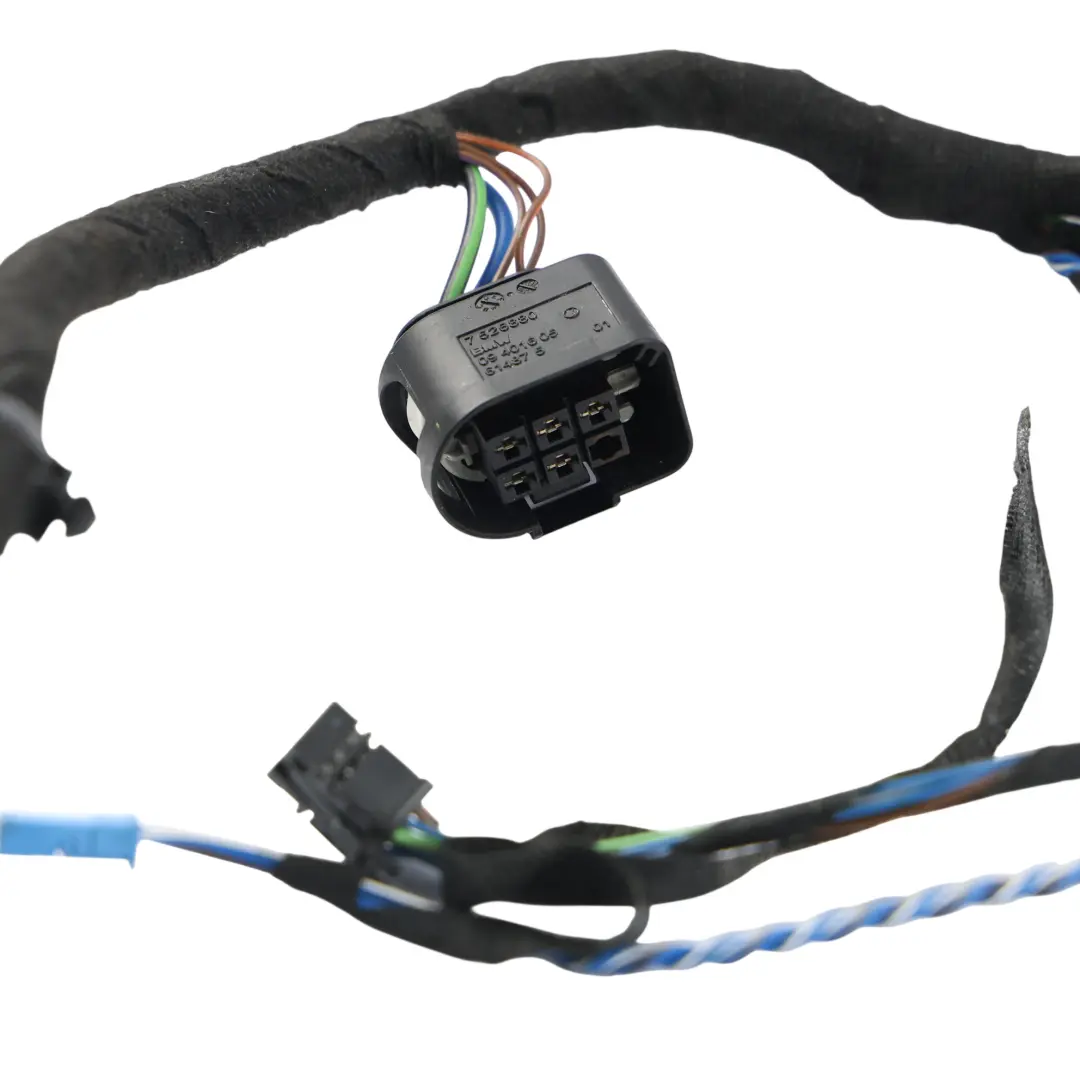

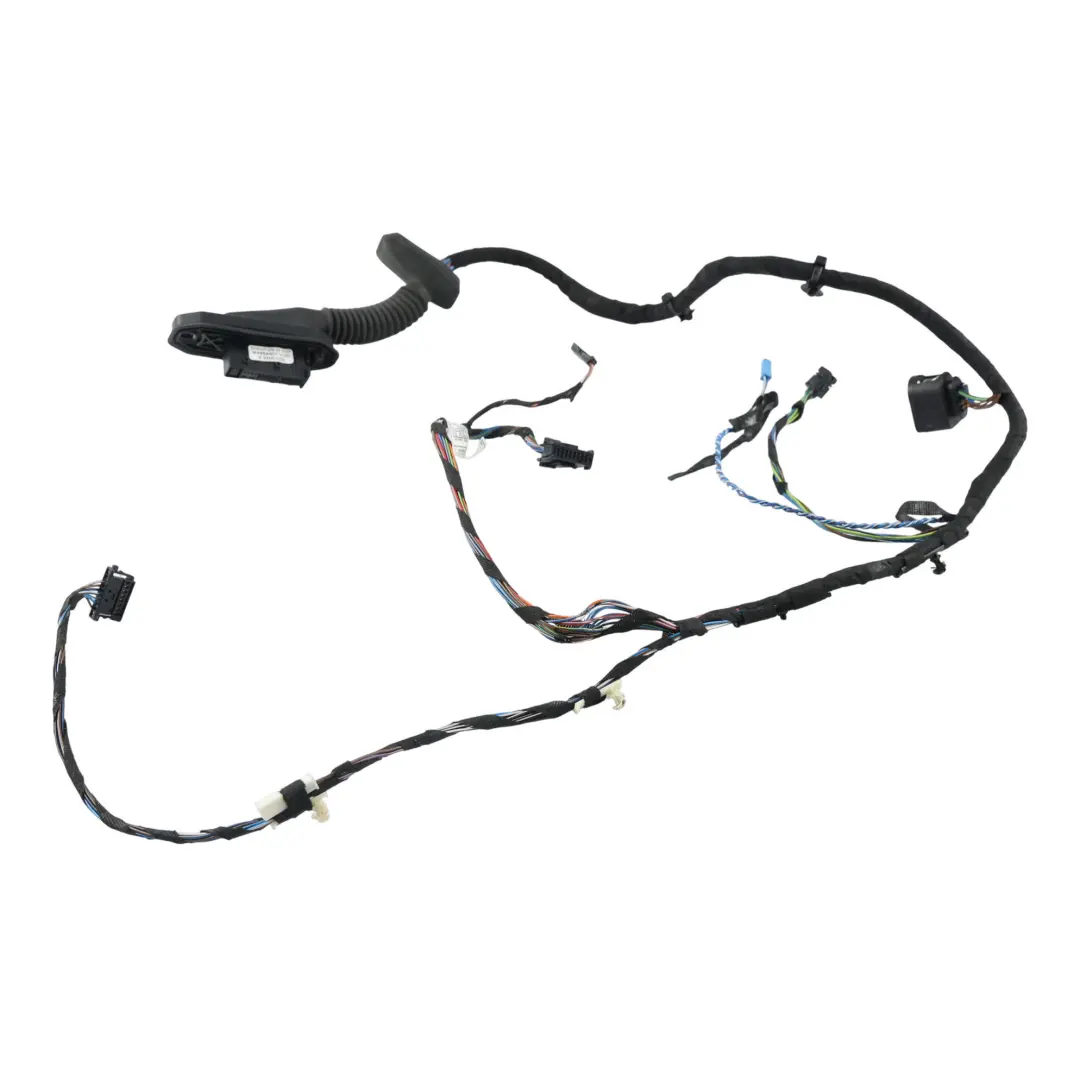

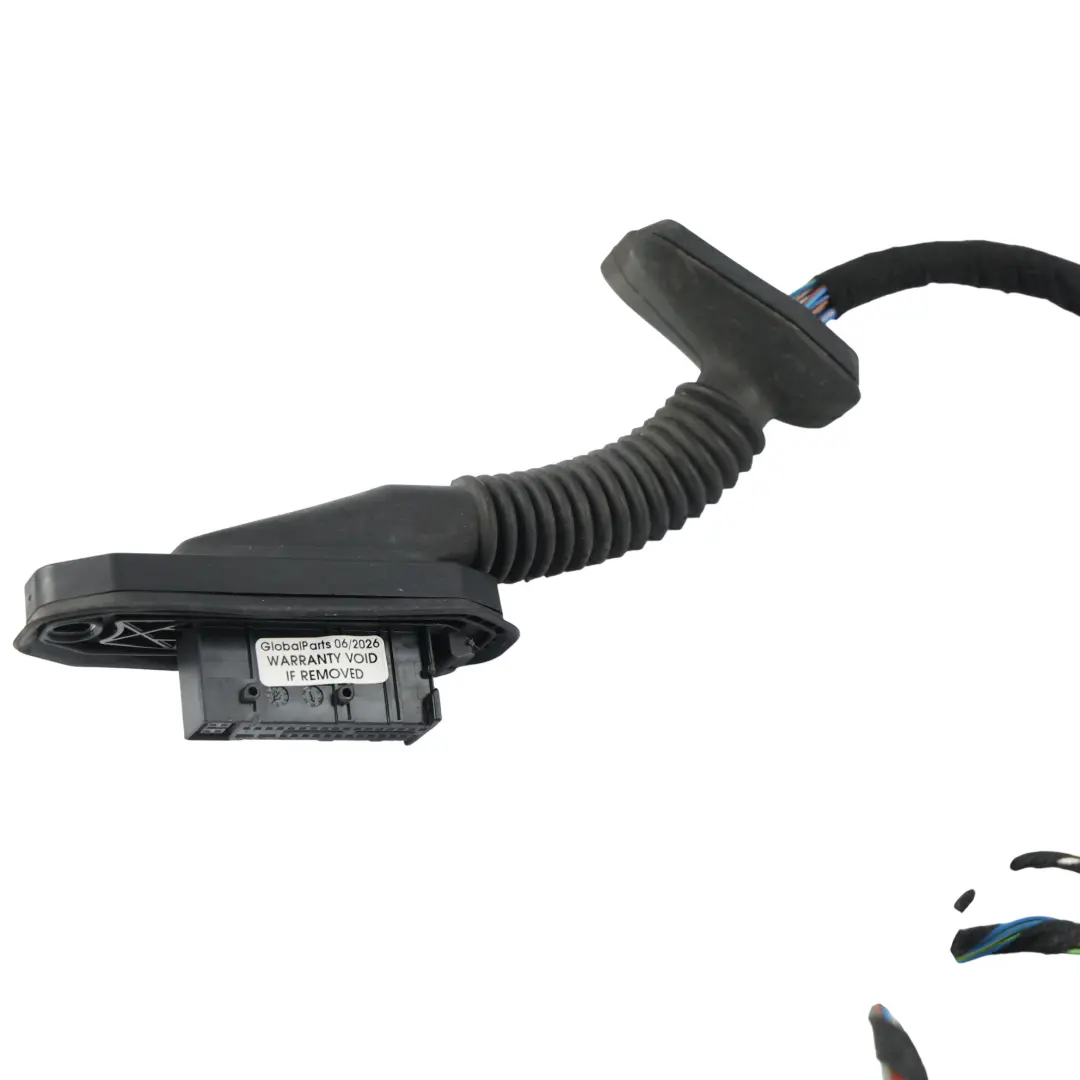

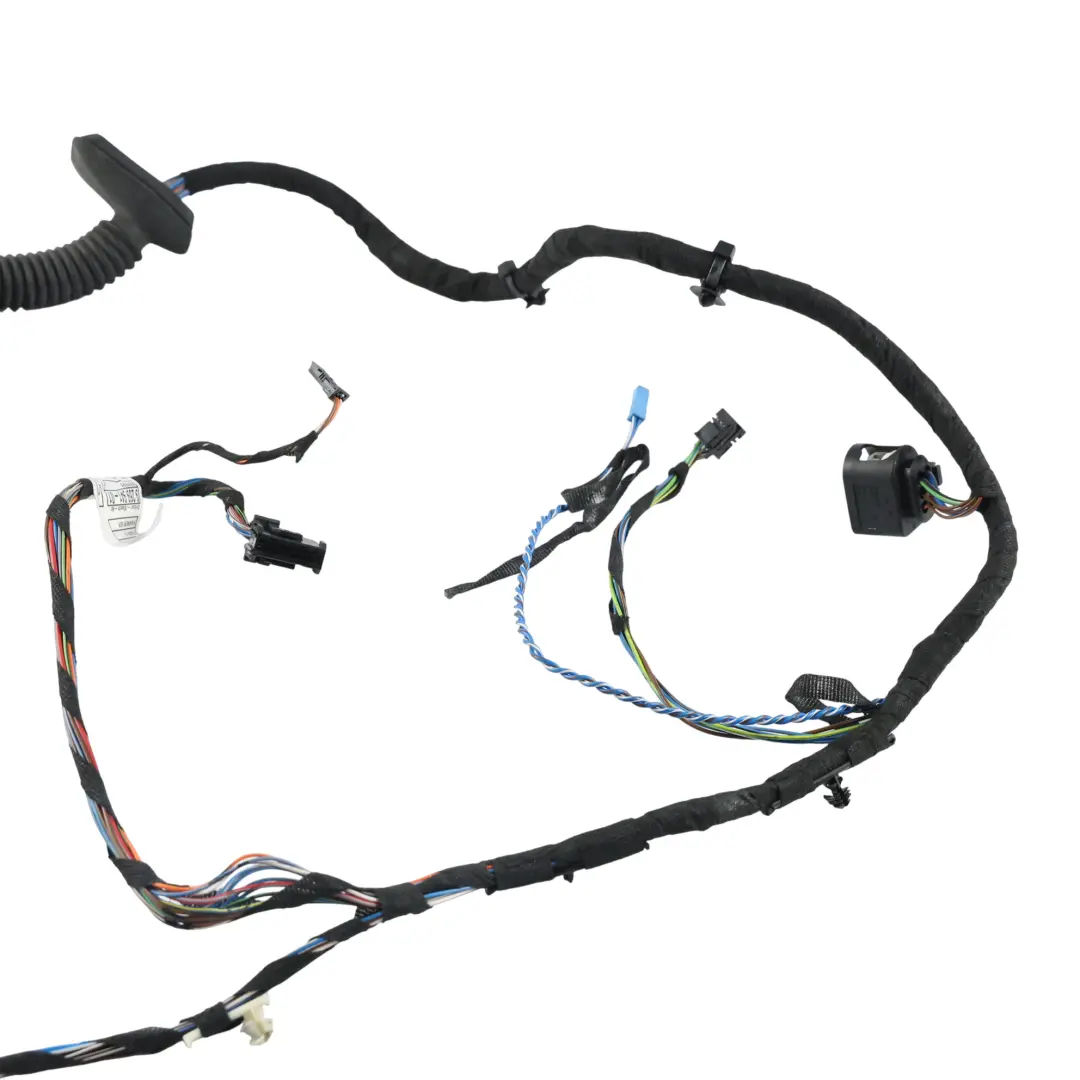

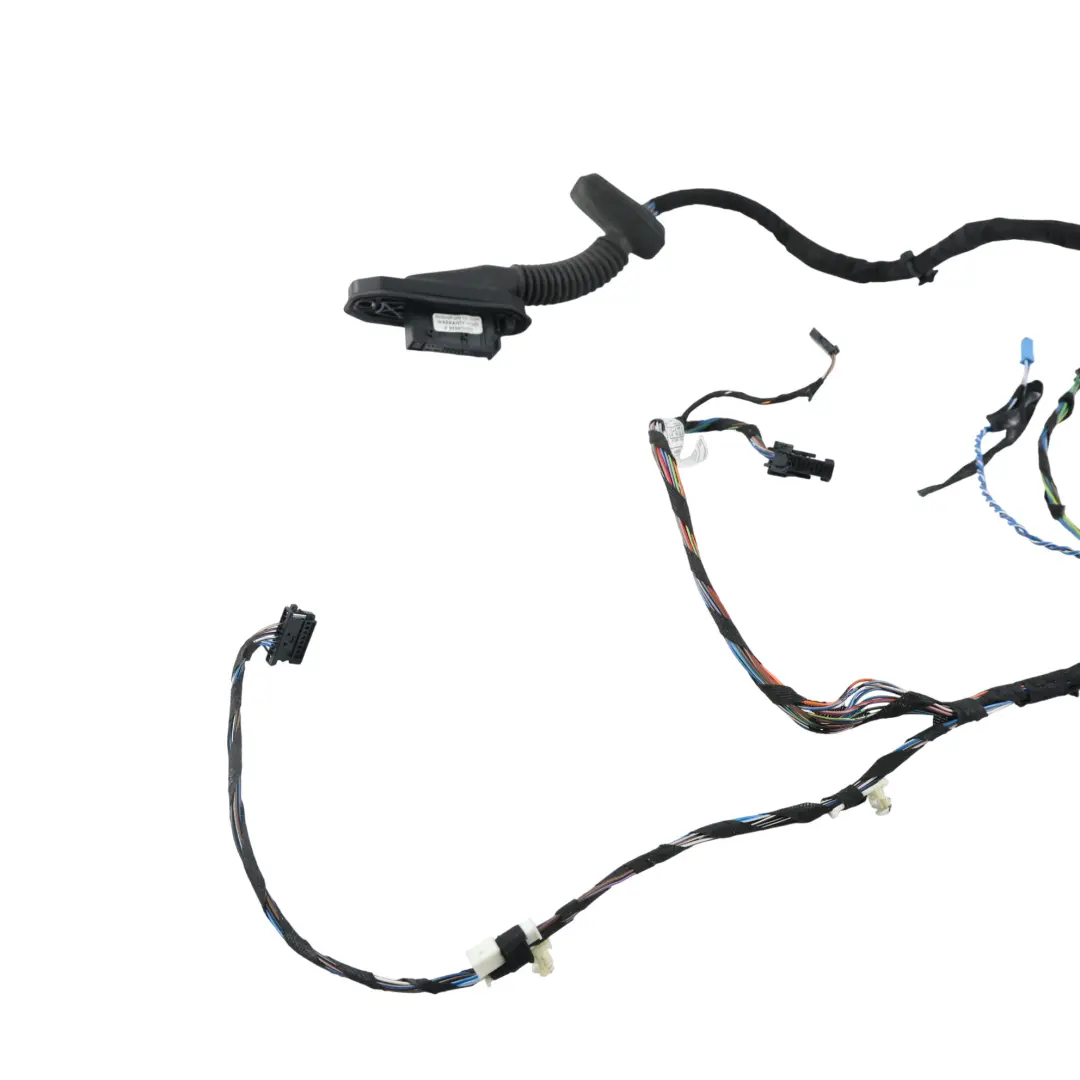

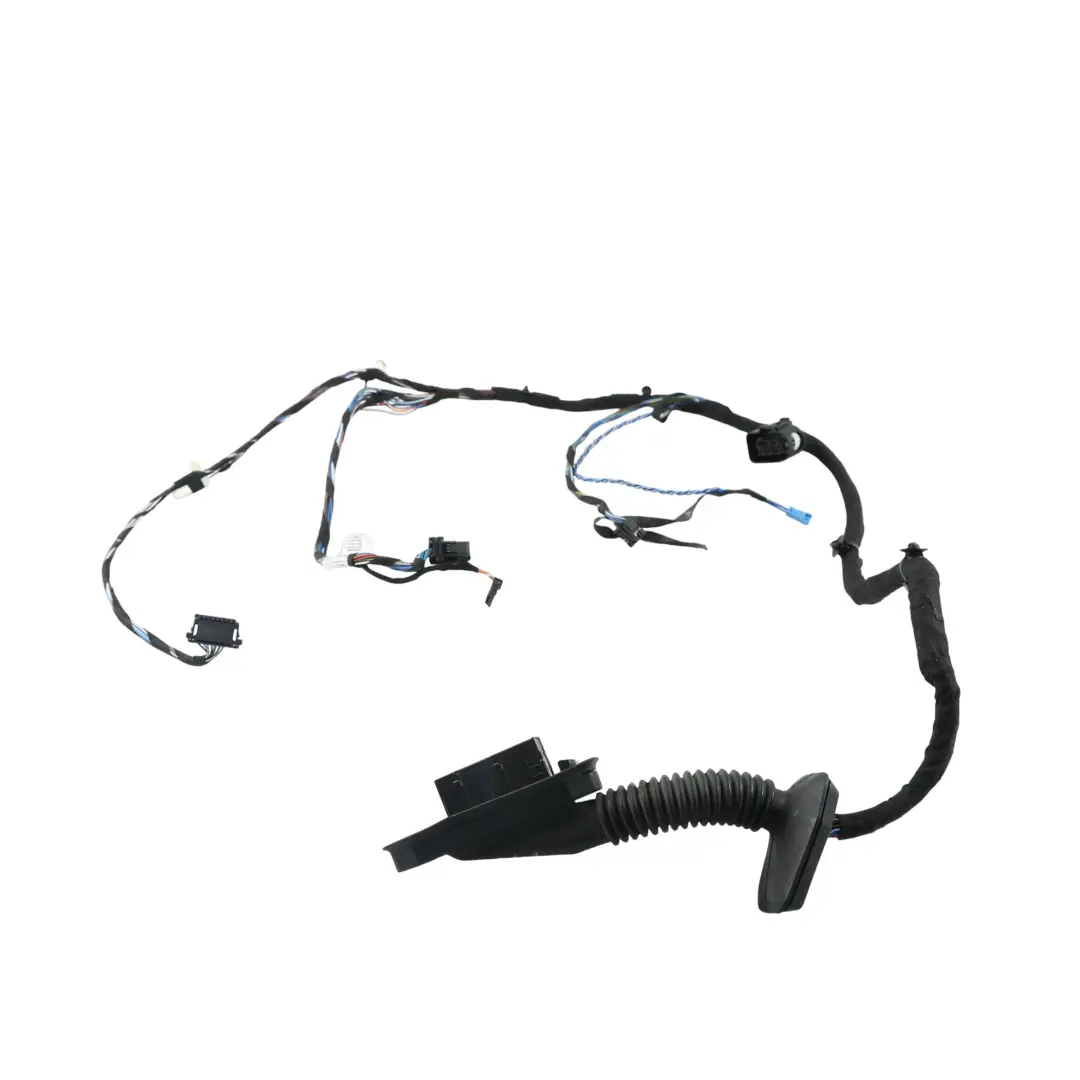

BMW X1 E84 Front Door Cable Harness Loom Driver Side Wiring 9233551

BMW X1 E84 Front Door Cable Harness Loom Driver Side Wiring is a factory-original electrical installation component designed for the front driver-side door of the BMW X1 E84 model. It is responsible for a secure and stable electrical connection between the door and the vehicle body, ensuring the proper operation of all connected components. By maintaining the original design, the harness ensures a precise fit to factory mounting points and connectors.

Specifications and technical data

• SKU: 9269941
• Mark: BMW (Genuine OE)
• Condition: Used

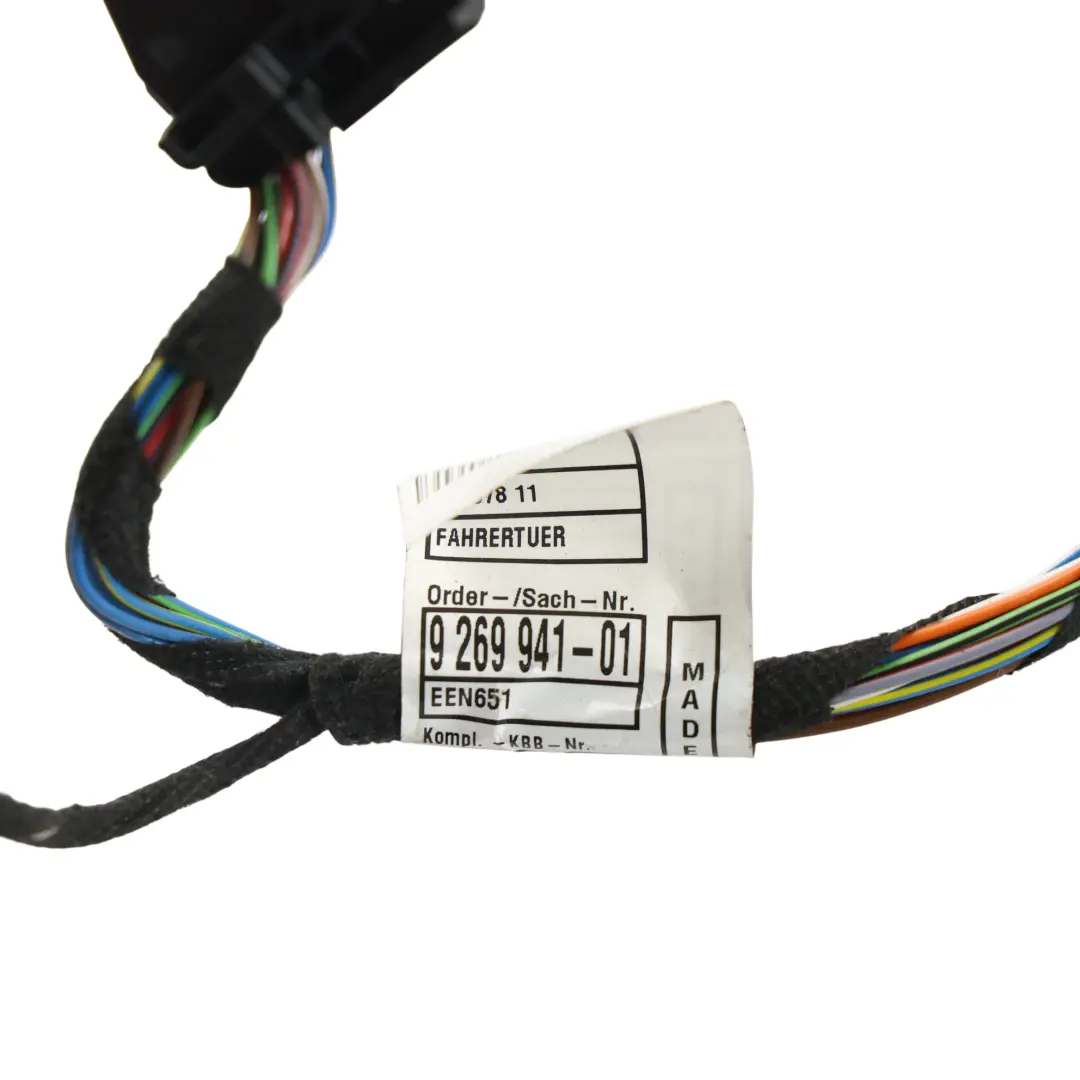

• OEM Part Number: 9269941
• Substitutable numbers: 61129384571, 9384571, 9269941
• Location on the vehicle: Front
• Category: Other Starters, Alternators, ECUs & Wiring

Purpose and function of the driver door harness

The presented wiring harness is dedicated to the front section of the vehicle, specifically the driver door area of the BMW X1 E84. Its task is to route signals and power between the body control modules and components located in the door, such as window regulators, mirrors, or locks (depending on the specific vehicle configuration). Using an original harness allows for maintaining the correct wire routing, appropriate segment lengths, and proper placement of connectors within the grommet between the pillar and the door.

Construction and advantages of the original BMW design

BMW X1 E84 Front Door Cable Harness Loom Driver Side Wiring has been designed in accordance with the manufacturer's standards, taking into account the mechanical and electrical loads occurring in the door zone. It includes factory connectors, properly selected wire gauges, and protective covers against abrasion and bending during repeated opening and closing of the door. This minimizes the risk of circuit breaks, signal interference, or communication issues between modules.

Using an original harness from the BMW group allows for maintaining the consistency of the vehicle's electrical installation, which is important for both proper diagnostics and subsequent service maintenance. Unlike universal solutions, the factory harness is matched to the specific body model and door configuration, which facilitates installation and reduces the need for modifications.

Benefits of using a used OEM harness

Choosing a used driver door harness from dismantling is a solution that allows you to combine cost-effectiveness with maintaining the manufacturer's original specifications. This type of component is particularly useful for:

• repairing wire damage in the door grommet,
• restoring the efficiency of electrical controls in the door,
• restoring the installation after a collision or interference with the factory wiring.

By using an original harness, you reduce the risk of connector compatibility issues, communication errors in the vehicle network, and accidental short circuits resulting from improper modifications. It is a practical solution for workshops specializing in the BMW brand and users who want to restore full functionality to the driver door without compromising on fitment.

Professional installation and system diagnostics

When replacing the wiring harness in the front driver door, it is recommended to perform a thorough diagnostic of the electrical system, including checking the condition of connectors, grommets, and any signs of previous repairs. Proper installation includes routing the wires according to the factory path, correctly securing the clips, and verifying that all connectors are properly latched. This helps avoid subsequent problems with intermittent power loss or communication issues within the door area.
