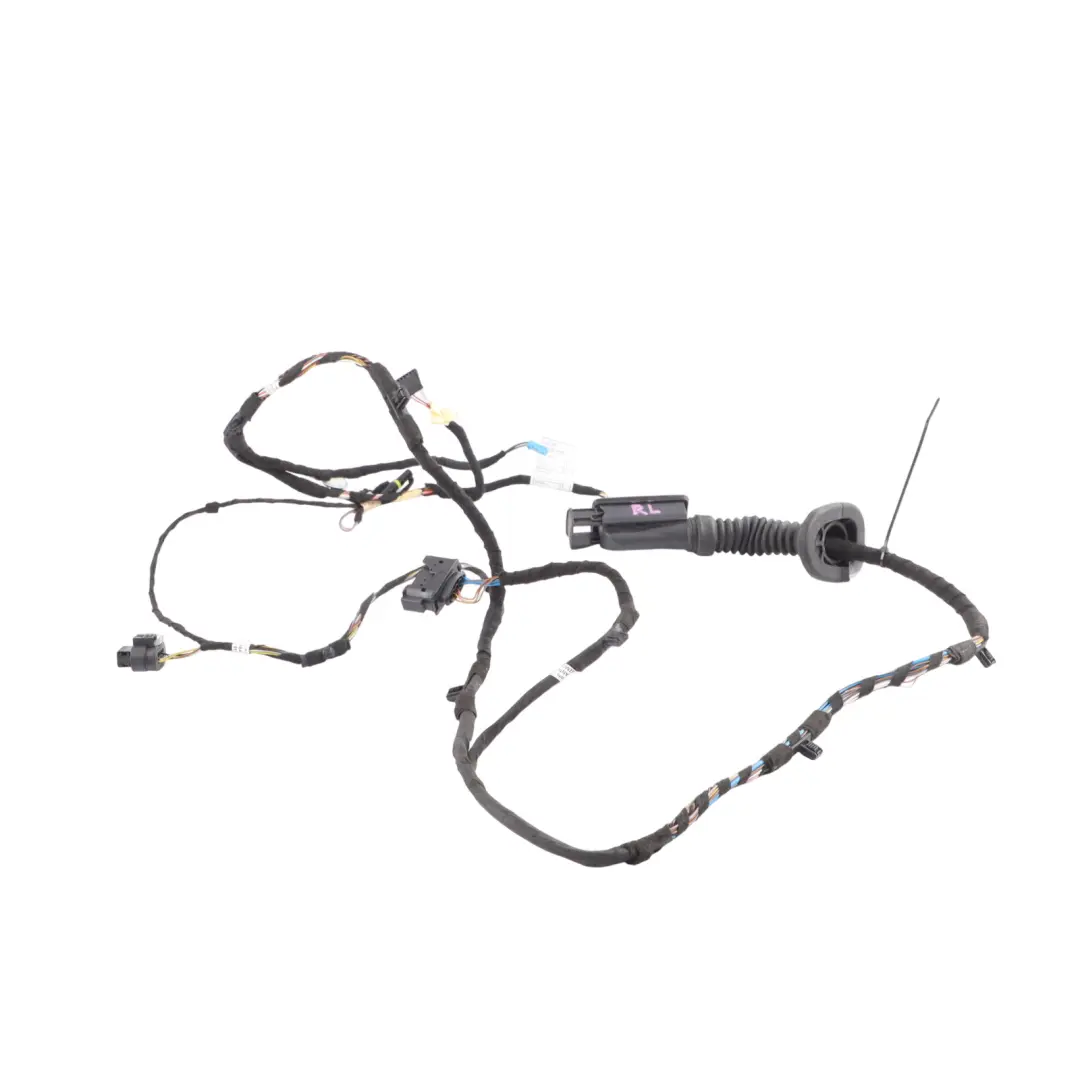

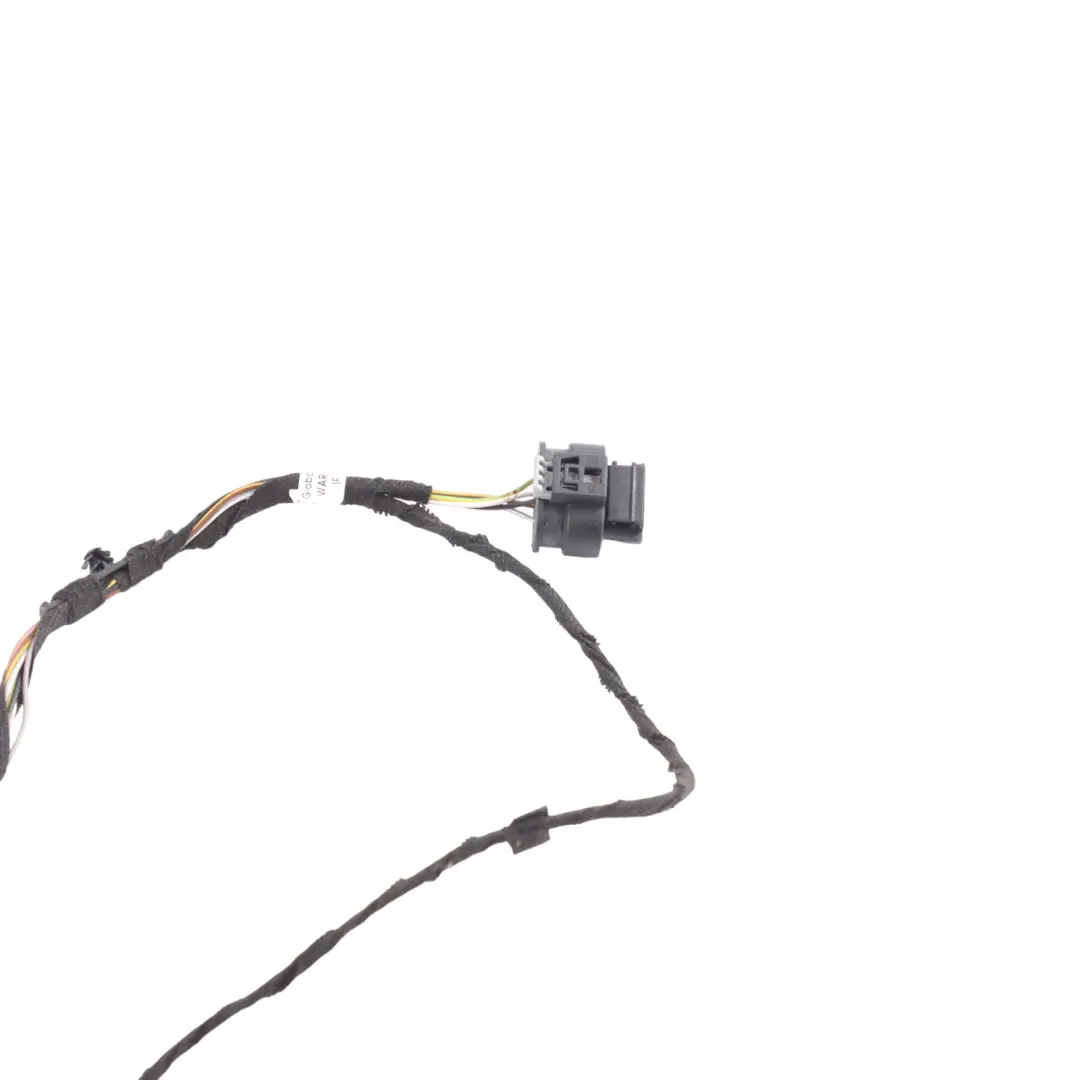

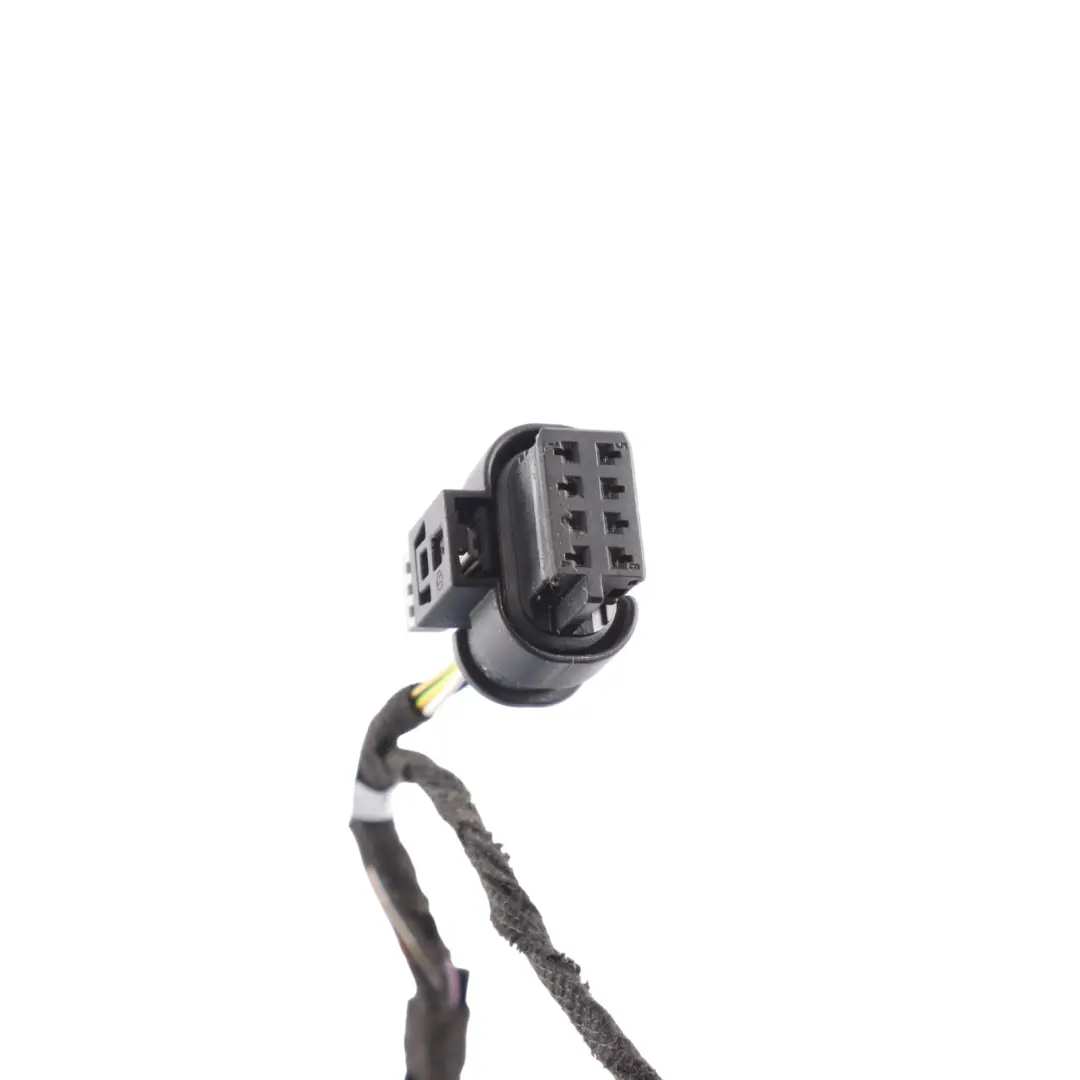

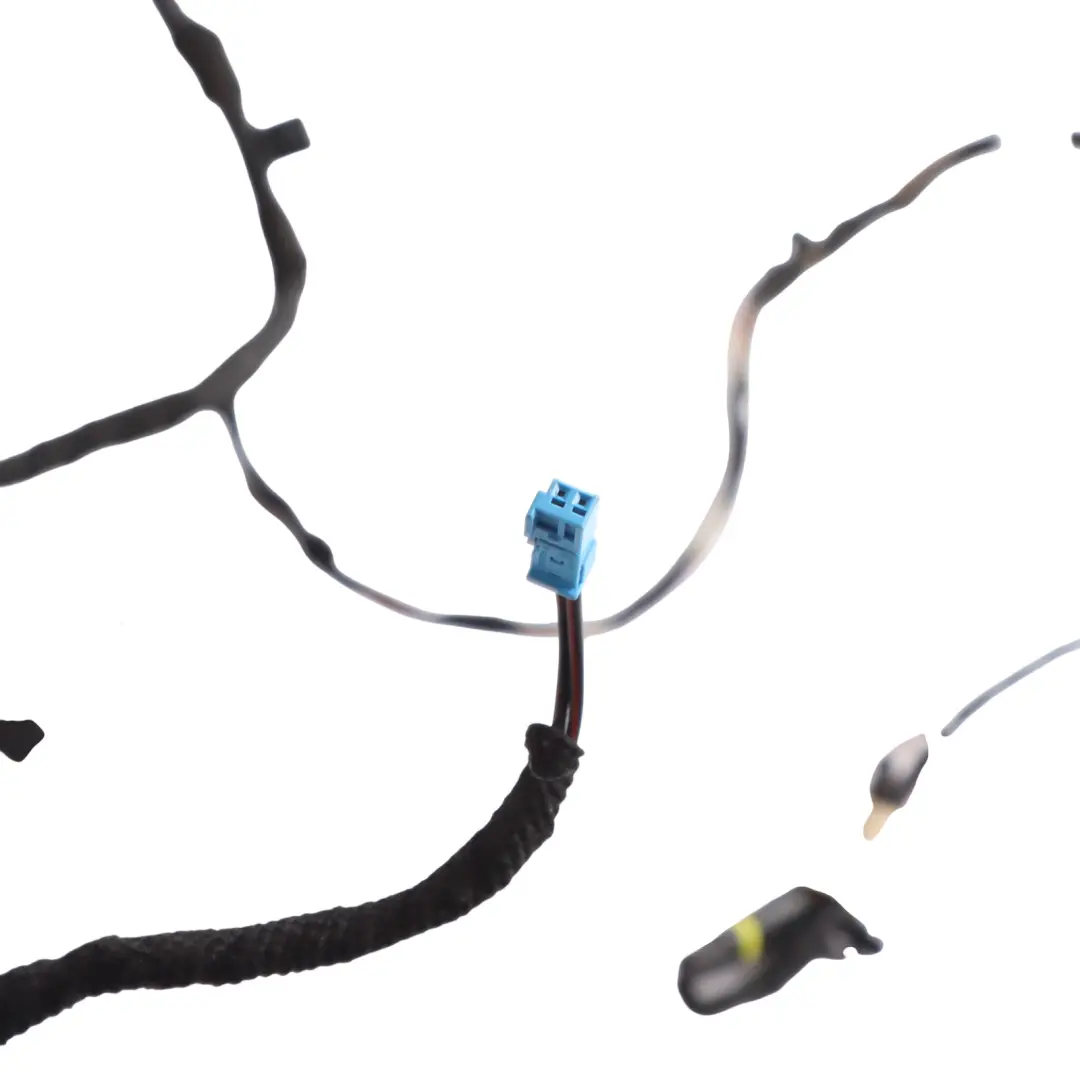

BMW X1 F48 Rear Door Wiring Loom Harness Cable Left N/S 6840096

BMW X1 F48 Rear Door Wiring Loom Harness Cable Left N/S is an original electrical component from the Wires, harnesses and connectors group, designed to support the rear left door in the BMW X1 F48. It enables a proper electrical connection between the door and the body, ensuring stable power supply and communication for door locks, window controls, and lighting.

Specifications and technical data

• SKU: 6840094
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6840094
• Substitutable numbers: 6840094, 6840096
• Location on the vehicle: Rear, Left
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the vehicle

The presented wiring harness is dedicated for installation in the rear left door area of the BMW X1 F48. It is responsible for routing signals and power between the body control modules and the components located in the door, which is essential for the proper operation of comfort and safety systems.

Thanks to the factory fitment for the specific body model, the cable routing, segment lengths, and connector placement are optimized for installation in the original mounting points, without the need for any modifications to the installation.

Construction and technical advantages

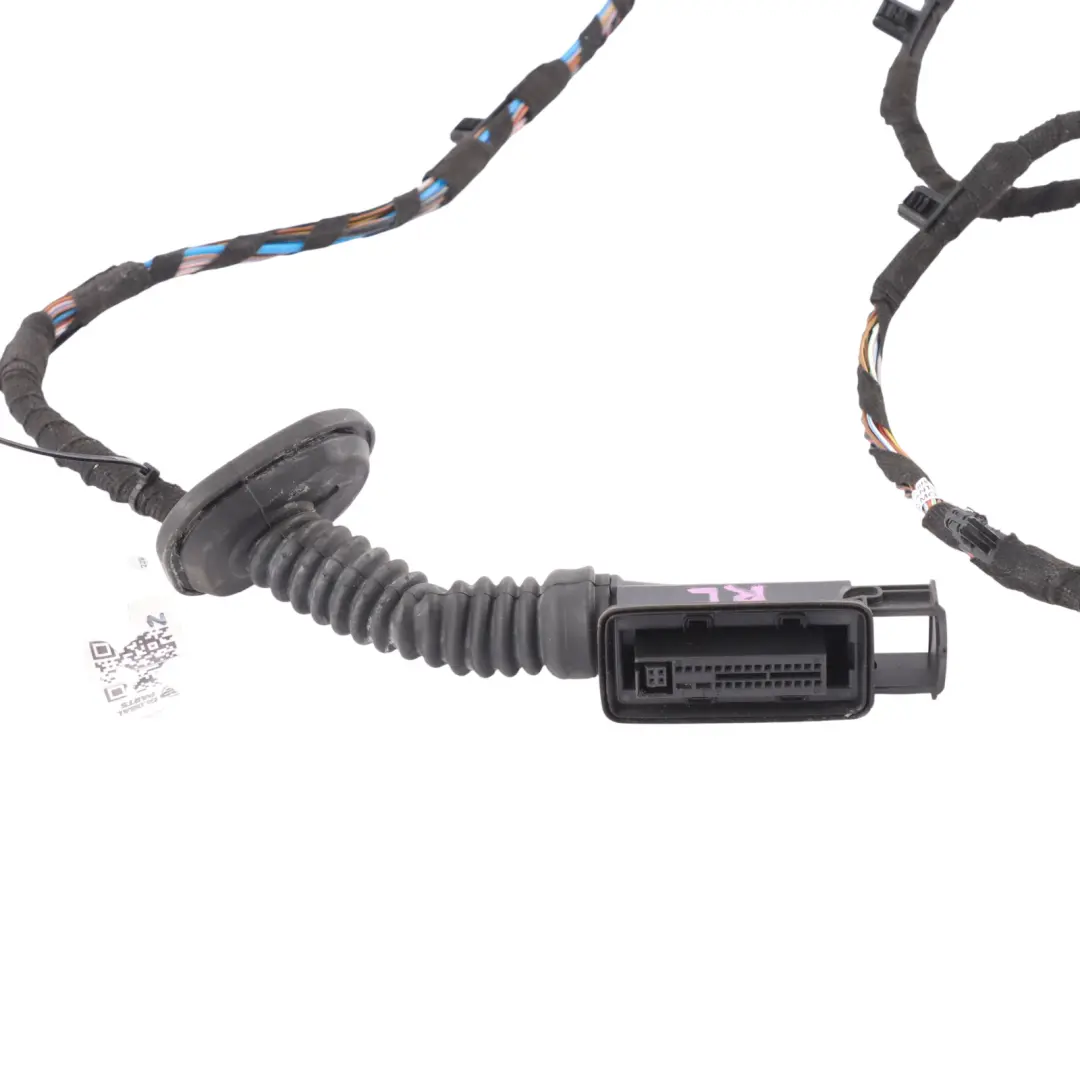

The harness belongs to the BMW Wires, harnesses and connectors group, which means it complies with the manufacturer's factory standards regarding wire cross-sections, insulation, and types of connectors used. The design provides for proper cable routing in the grommet between the pillar and the door, taking into account the operation of the hinges and the movement of the door leaf.

Key technical advantages include:

• dedicated connectors matched to the BMW X1 F48 installation,
• cables routed in an organized manner, reducing the risk of abrasion,
• preservation of the vehicle's original electrical architecture,
• possibility of direct replacement of a damaged harness without interfering with the rest of the installation.

Vehicle placement and installation

The component is intended for installation in the rear left side zone, within the rear passenger door. Such placement requires the harness to be properly shaped and equipped with mounts allowing for stable routing of the cables in the door and the body pillar.

In practice, the installation involves removing the door trim, disconnecting the existing connectors, and routing the harness through the factory grommets. Using the original door installation facilitates service work, shortens repair time, and reduces the risk of assembly errors compared to universal solutions.

Operational characteristics and service application

This type of door wiring harness is particularly useful for damage resulting from years of operation, frequent door opening, or interference with the electrical system. Using an original component allows for restoring the correct operation of circuits without the need for soldering or creating custom wiring.

This solution will work well both in professional service centers specializing in the BMW brand and in independent workshops that expect a component consistent with factory technical documentation. The used nature of the part allows for an economical repair while maintaining the proper standard of workmanship.

Electrical system expansion and technical knowledge

If you are planning a comprehensive repair or upgrade of the door zone in your BMW and need other elements from the same group, such as door installation sections, harness connectors, or additional cable branches, check the available parts in the BMW Wires, harnesses and connectors category.
