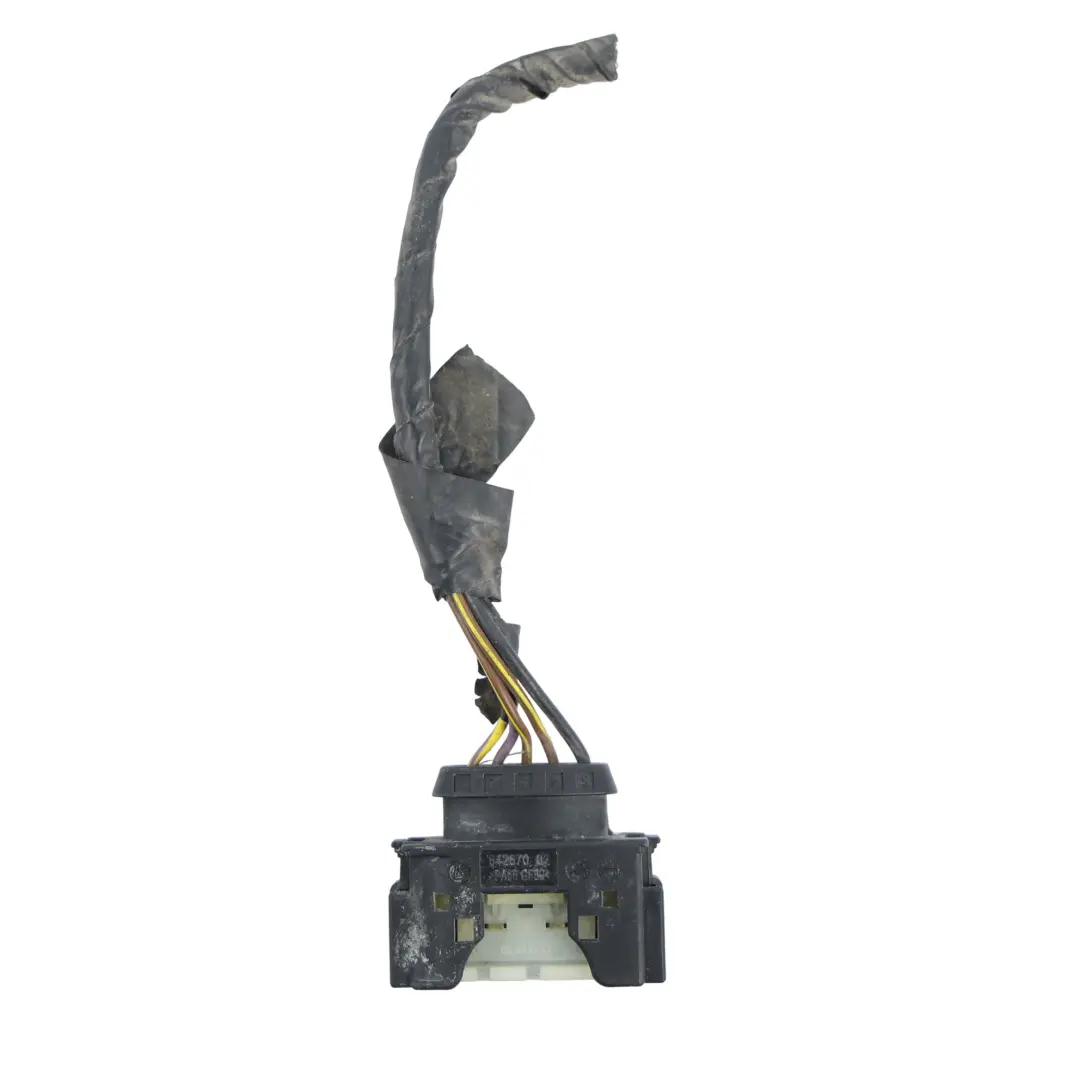

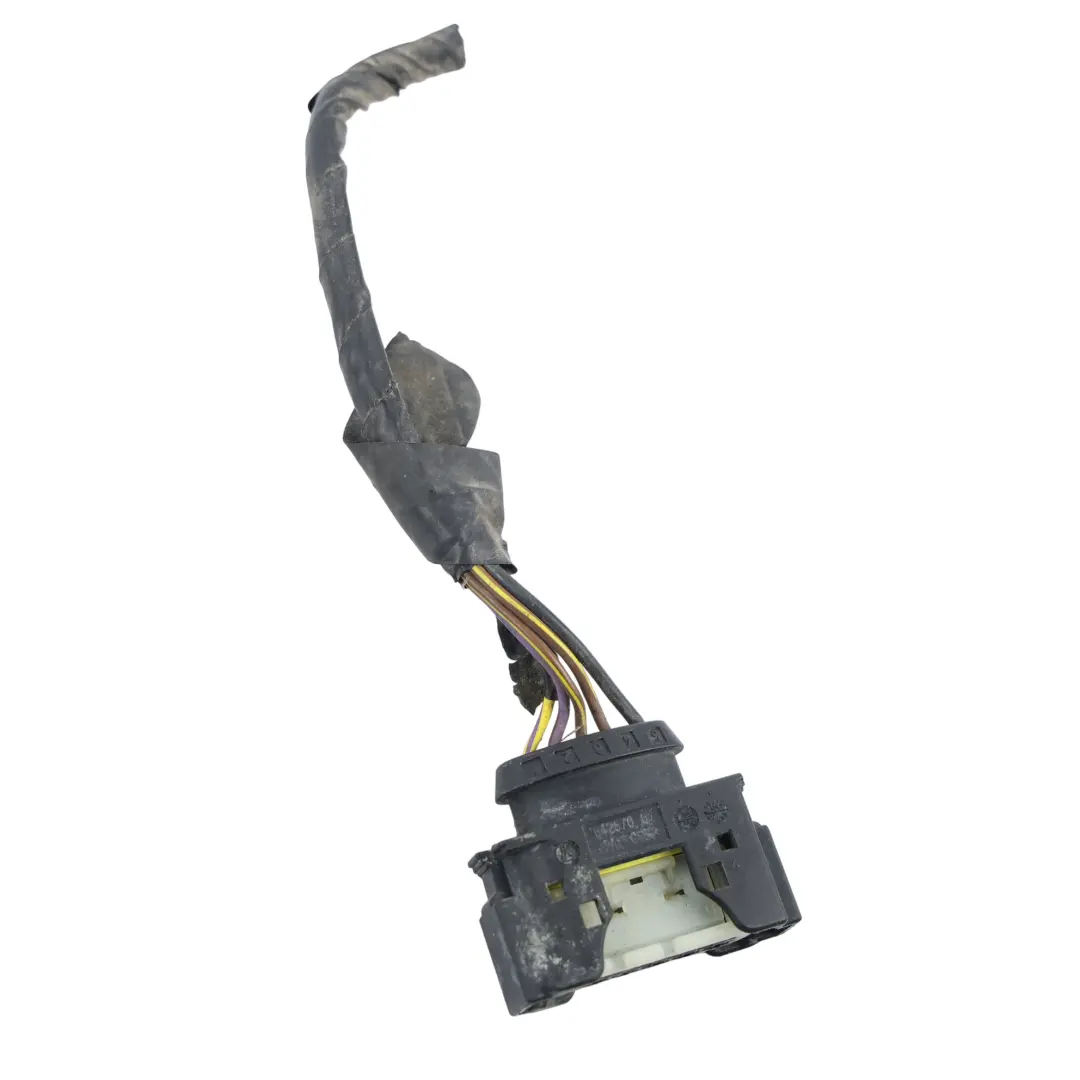

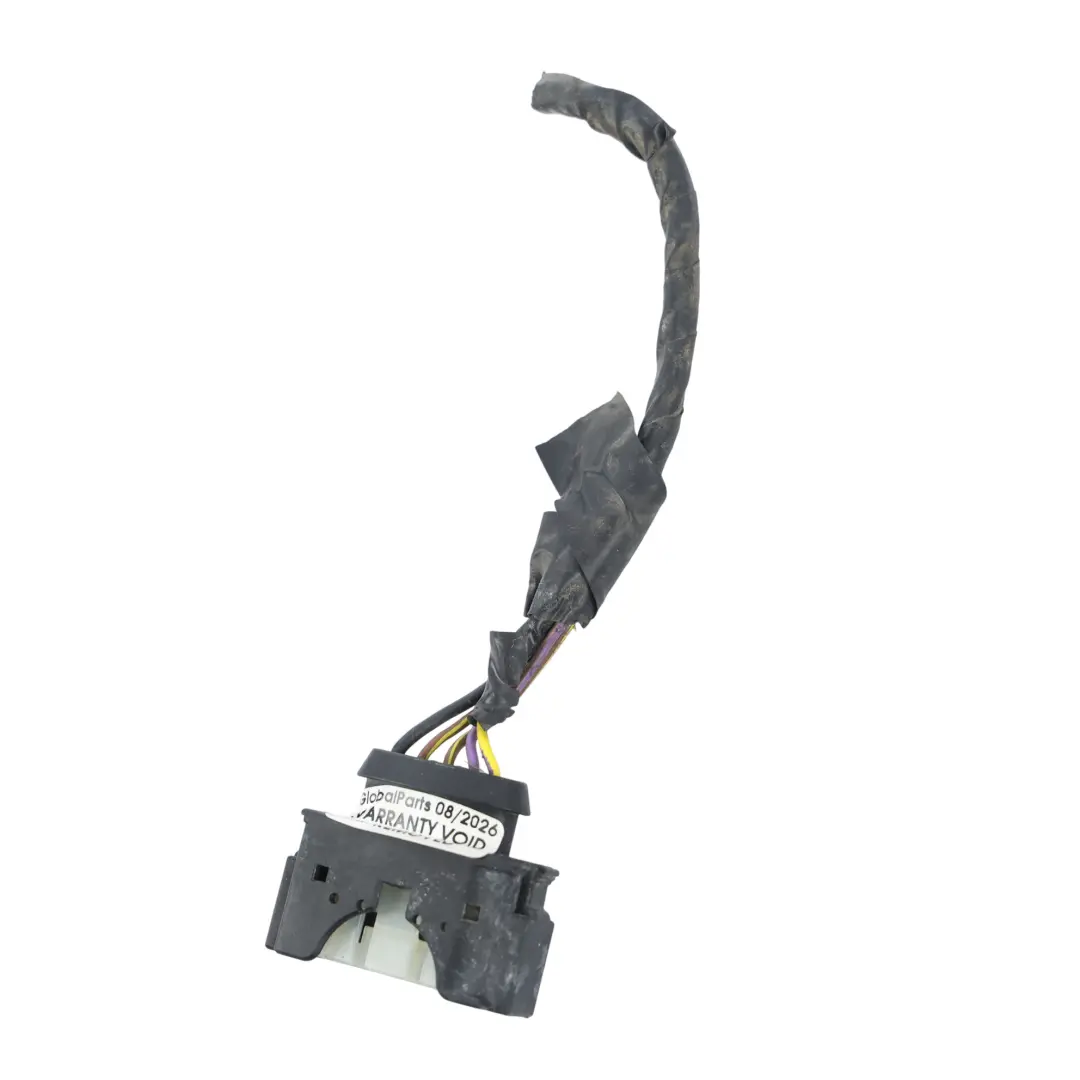

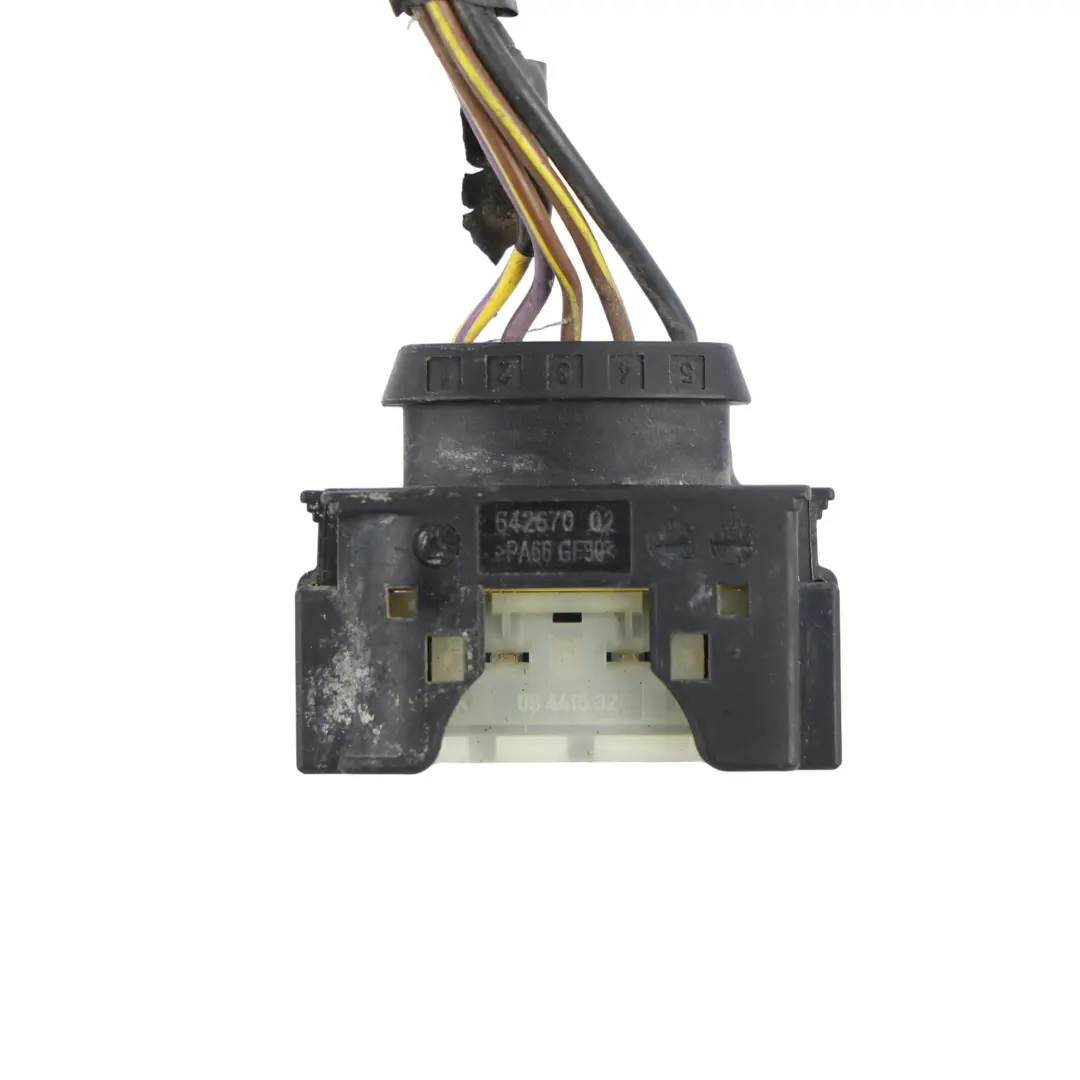

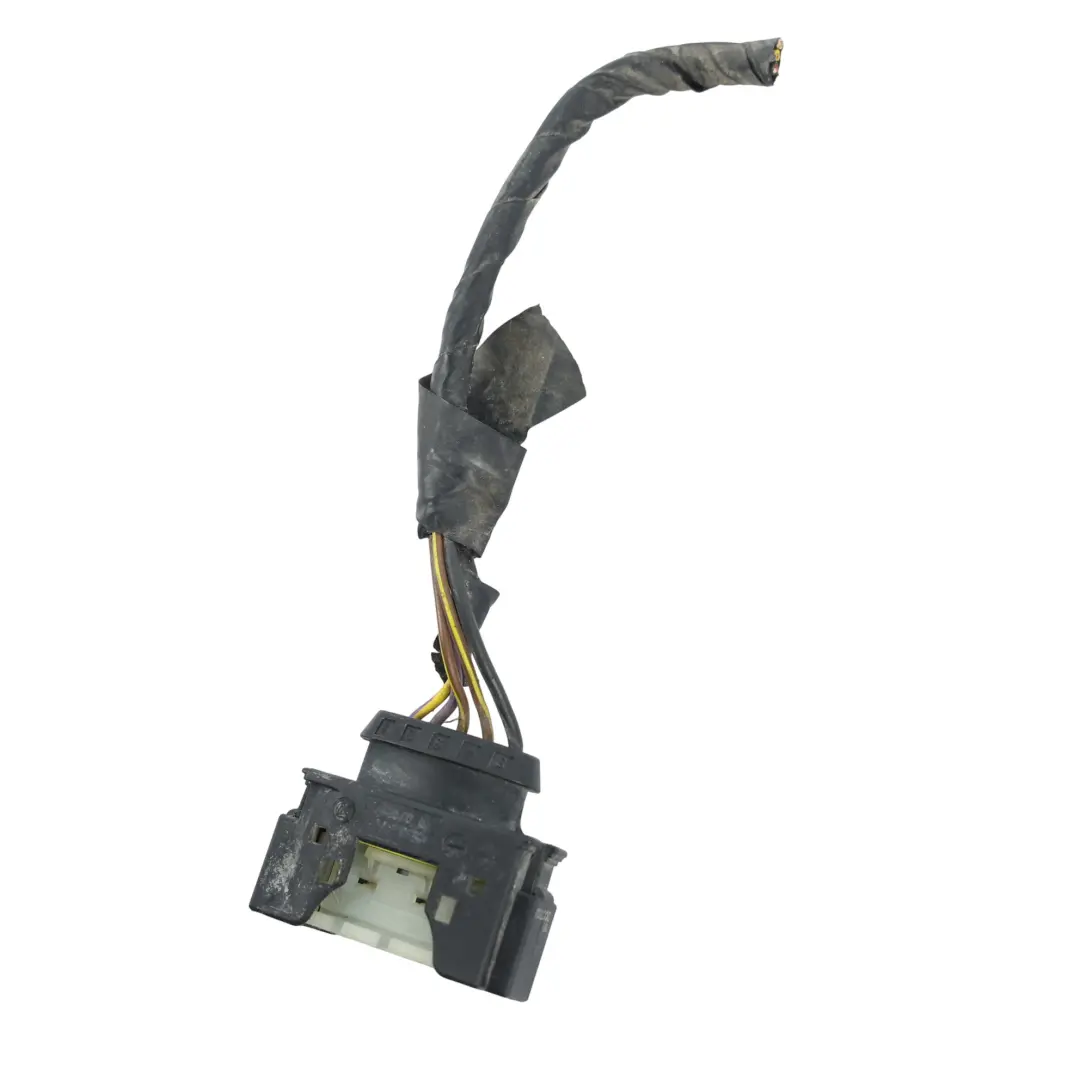

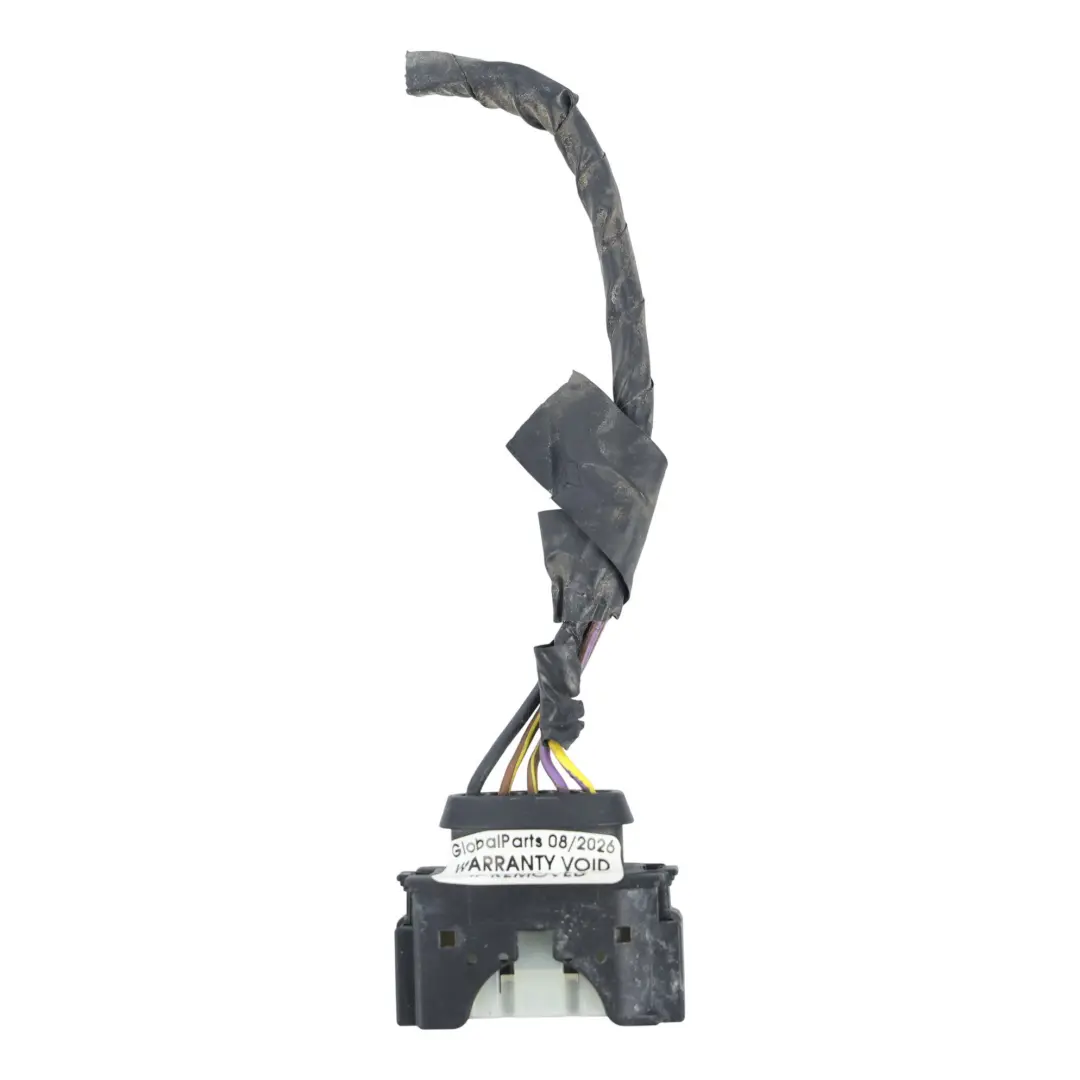

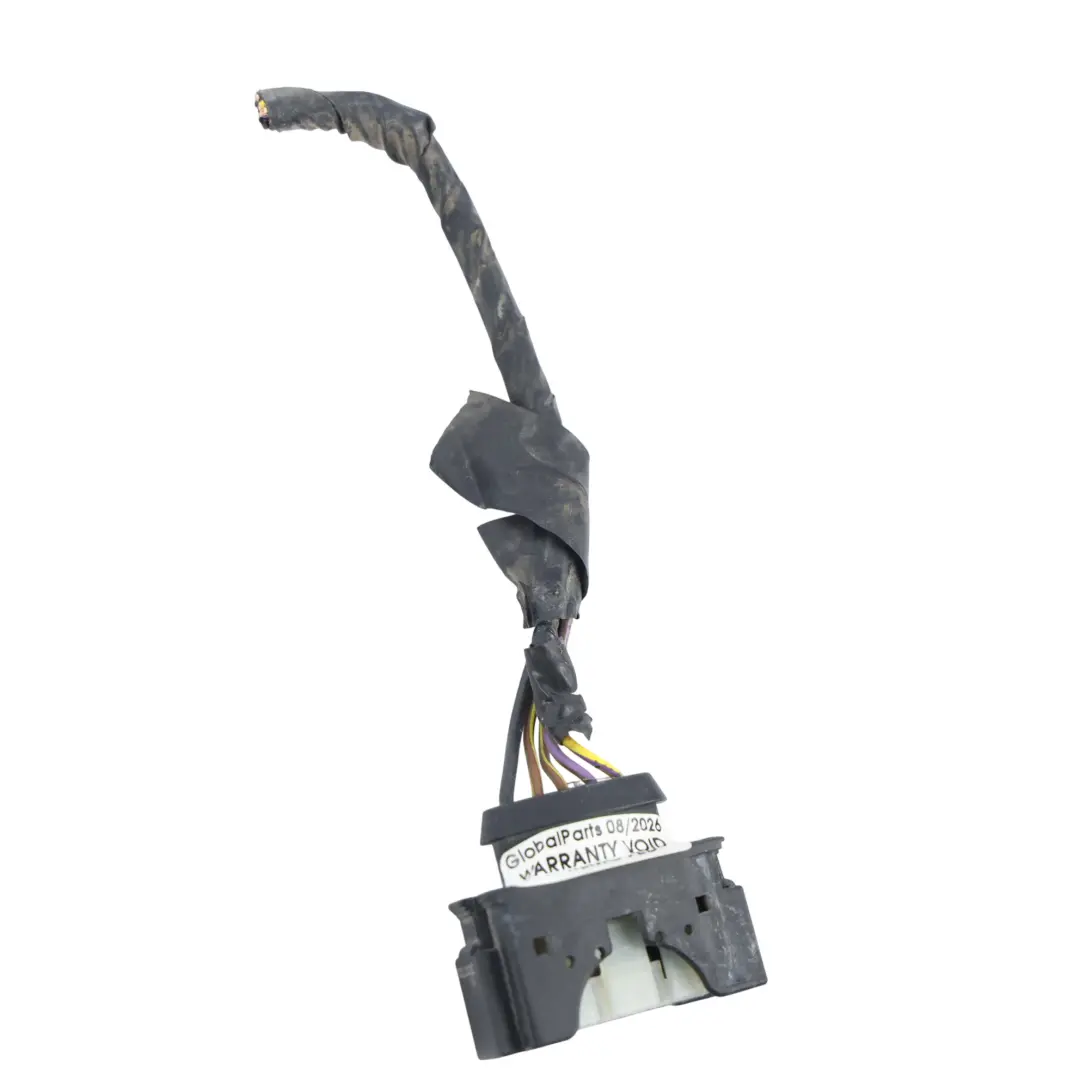

Range Rover L322 Tail Light Lamp LED Taillight Wiring Rear Right O/S LR028513

Range Rover L322 Tail Light Lamp LED Taillight Wiring Rear Right O/S is a specialized electrical installation component designed to support the right rear LED tail light in this model. The offered wiring harness ensures a proper connection between the lamp and the vehicle's electrical system, enabling stable lighting operation and correct communication with control units. The product comes from the original Range Rover electrical system, which translates into a perfect fit for the vehicle's factory architecture.

Specifications and technical data

• SKU: LR028513-2
• Mark: Range Rover
• Condition: Used
• OEM Part Number: LR028513
• Substitutable numbers: LR028513, CH42-13404-AB, CH4213404AB
• Location on the vehicle: Rear, Right
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the vehicle

The presented wiring harness is designed to operate in the rear right section of the body, where it is responsible for power supply and signal transmission to the LED lamp. This allows the lighting system to correctly perform functions such as position lights, brake lights, or turn signals (depending on the specific lamp configuration), ensuring the vehicle remains compliant with safety requirements and traffic regulations. This component is particularly important in vehicles equipped with advanced body electronics, where stable electrical connections reduce the risk of diagnostic system errors and unwanted warning messages on the instrument cluster.

Construction and fitment for Range Rover L322

The wiring harness has been developed for the specific geometry of the Range Rover L322 rear body section, which facilitates routing the wires along the original mounting paths. The connectors used are prepared for compatibility with the factory right-side LED tail light, allowing for installation without the need for wiring modifications or the use of adapters. This solution helps maintain consistency with the factory electrical schematic, which is beneficial both for daily operation and for subsequent service diagnostics.

Application in repairs and upgrades

The wiring harness for the rear right LED tail light is suitable for several typical service scenarios:

• repairing mechanical damage or wire chafing in the rear section of the vehicle,
• restoring lighting functionality after a collision or unauthorized interference with the installation,
• replacing a missing component after lamp removal or bodywork. By maintaining the original electrical installation concept, you can minimize the risk of compatibility issues and avoid makeshift connections that often lead to long-term failures.

Condition and benefits of choosing a used part

The offered wiring harness comes from the secondary market, allowing for an economical repair while maintaining the original electrical design. In practice, this means it can be integrated into the existing installation without the need to modify schematics or change the operating parameters of control systems. Choosing this solution is particularly advantageous for vehicles where the priority is to maintain the factory electrical configuration and reduce service costs while ensuring high-quality workmanship.

Complementary Range Rover installation components

If you are planning a comprehensive repair or upgrade of the rear electrical system in your Range Rover and need other components from the same category, such as additional harnesses, connectors, or wire sections, check out the available parts in the Range Rover wires, harnesses, and connectors category.
