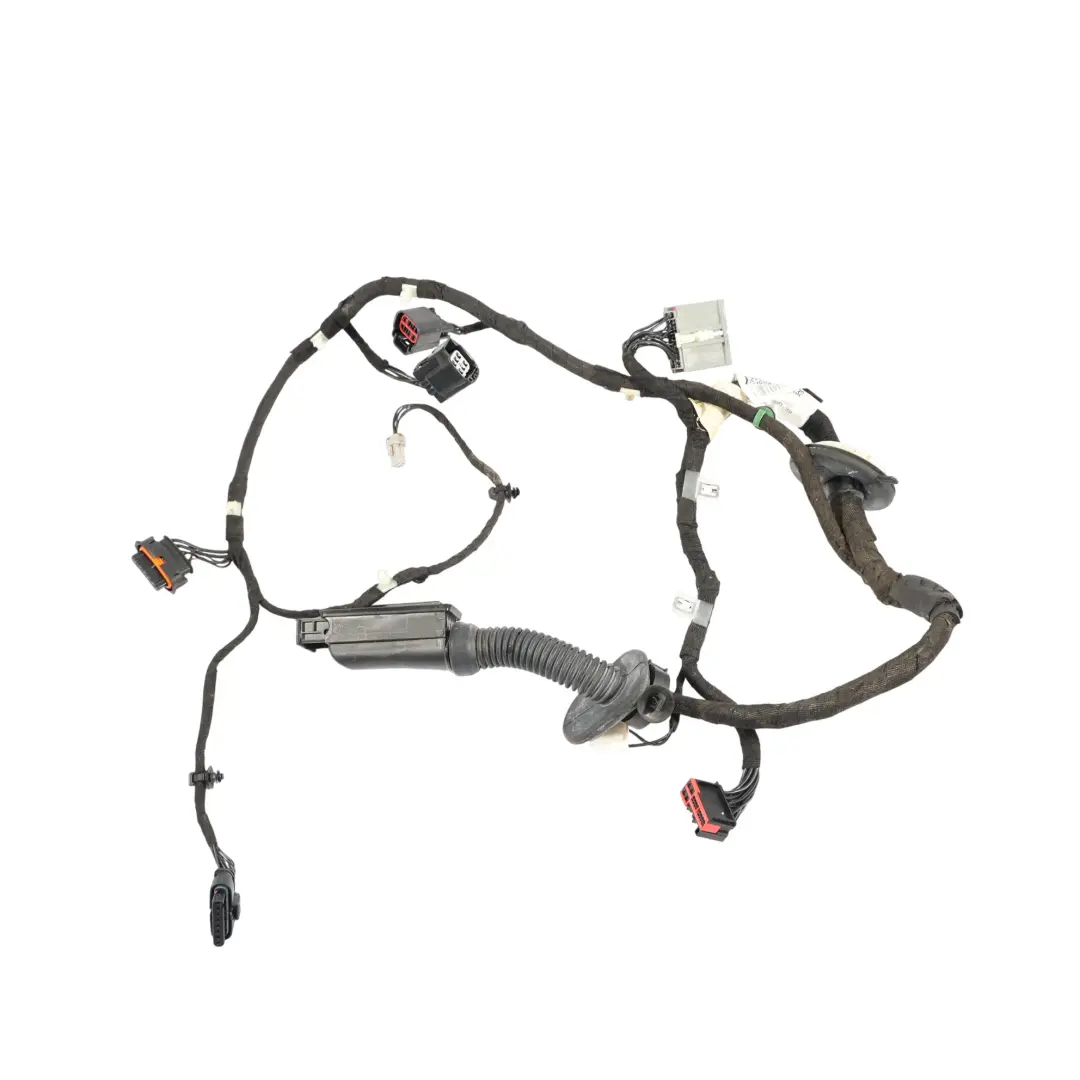

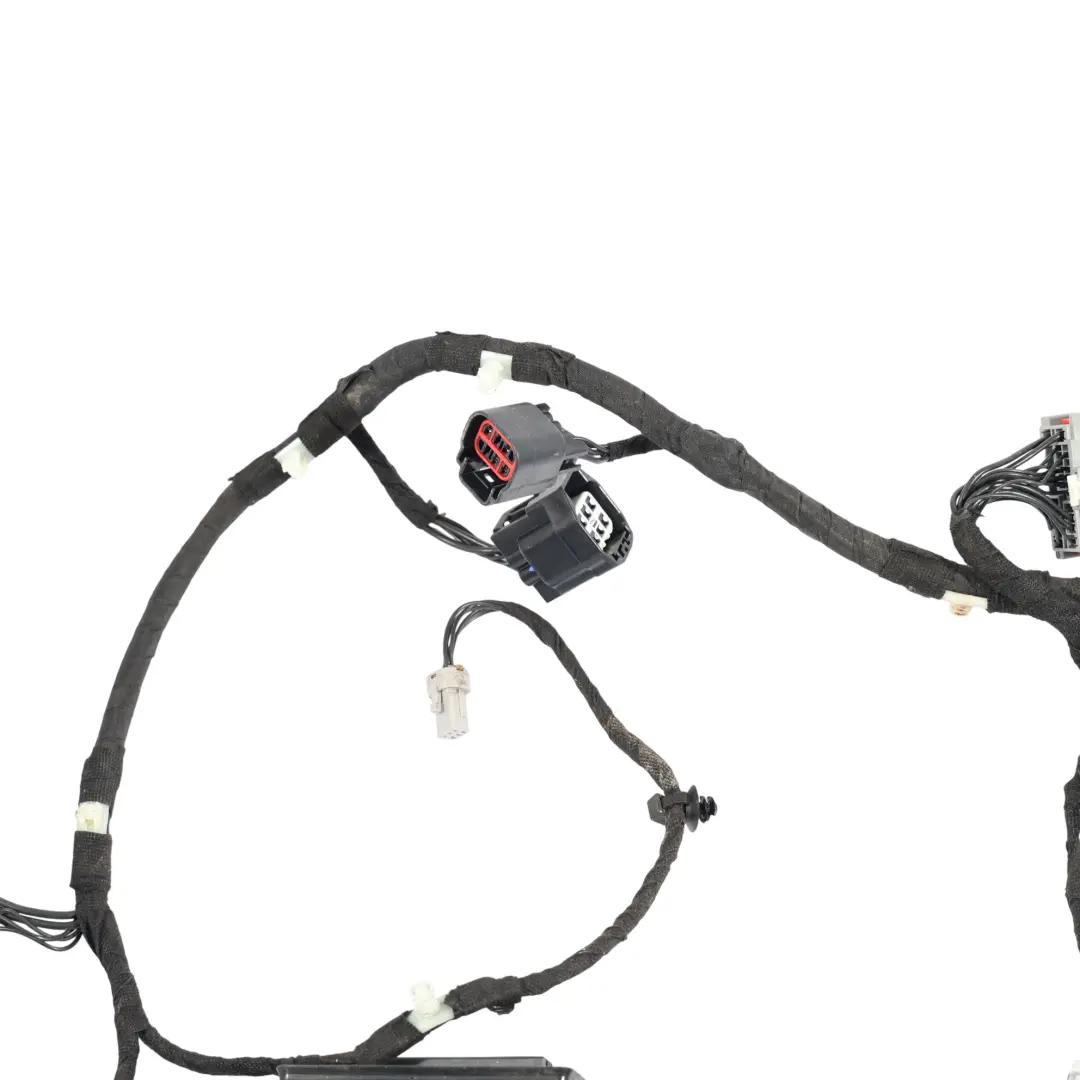

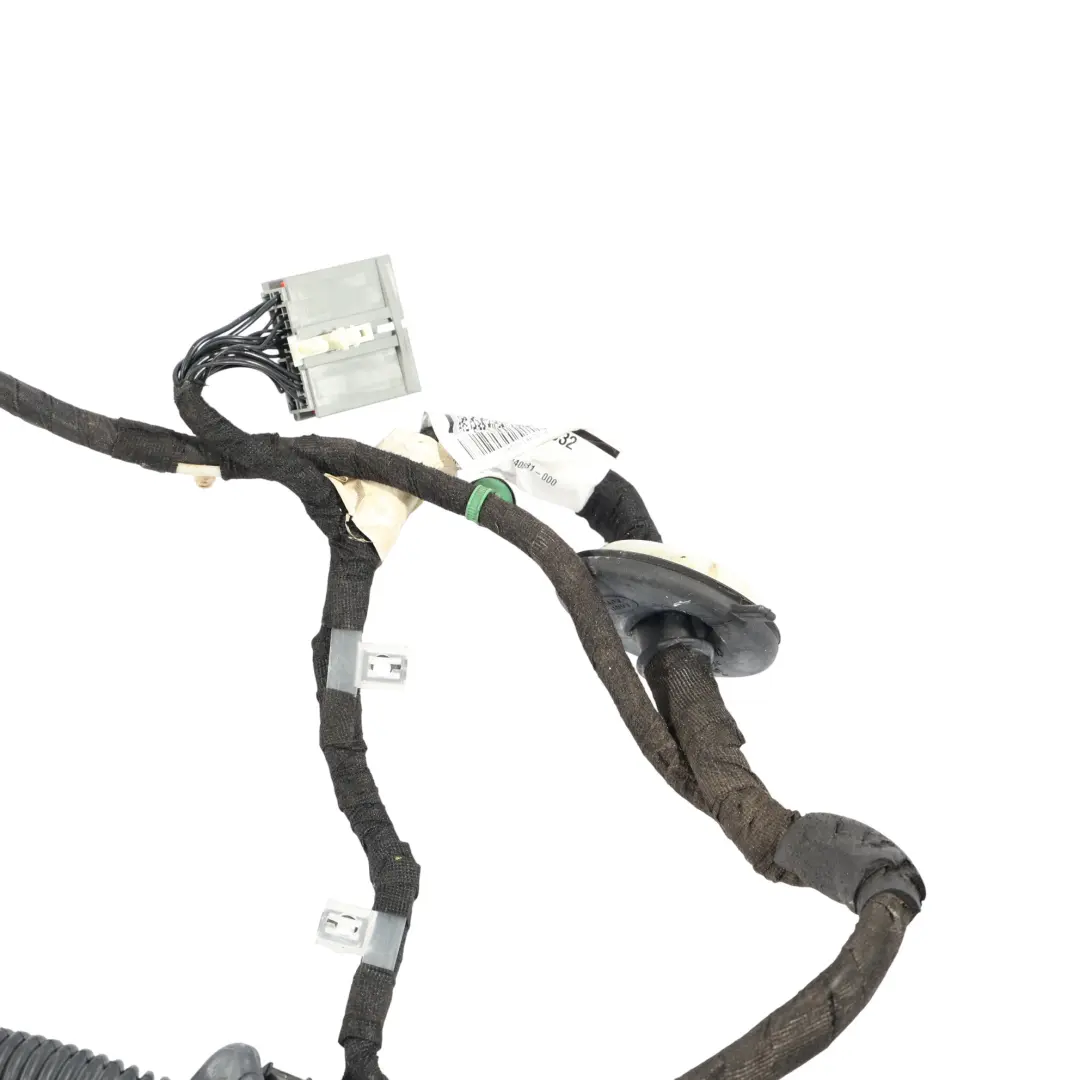

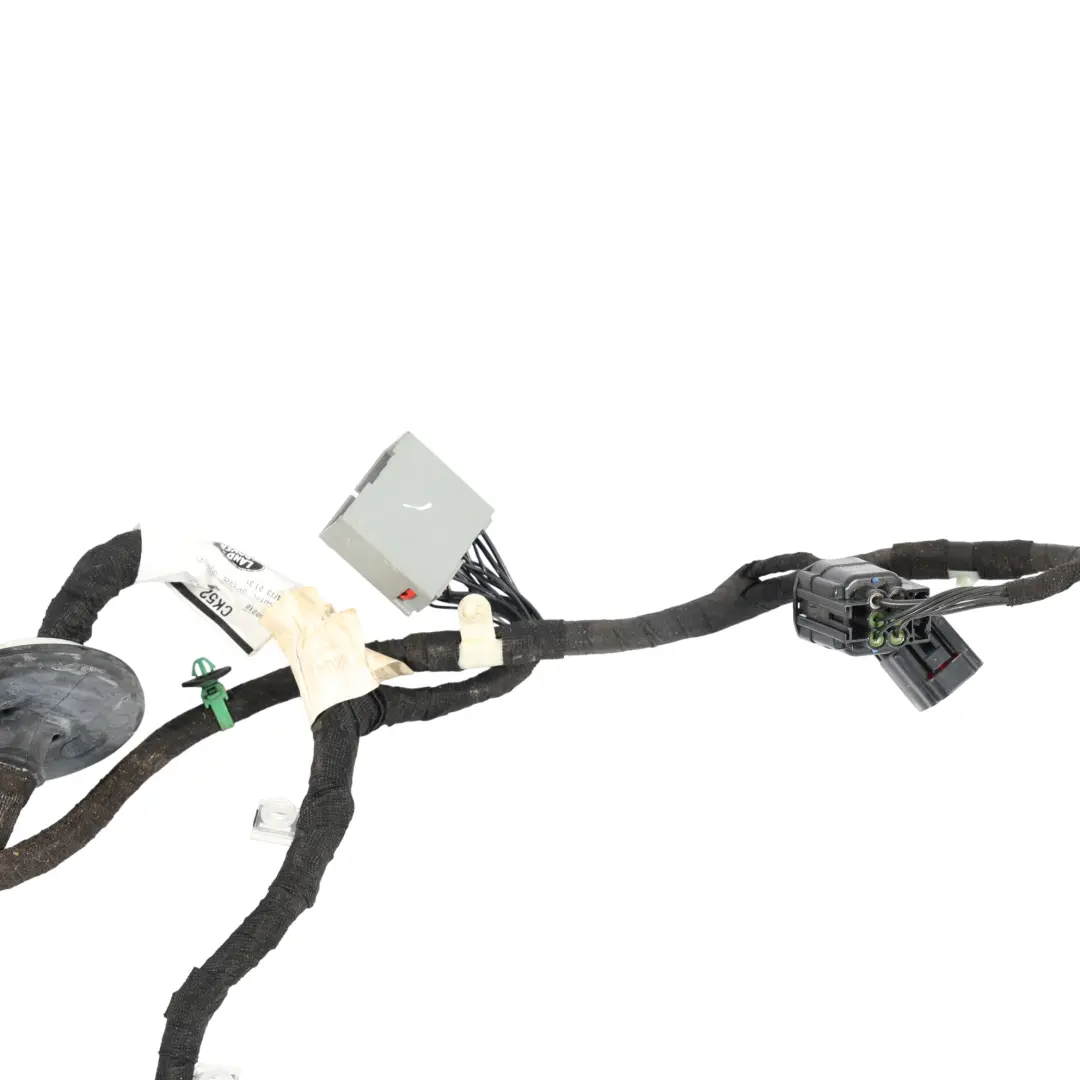

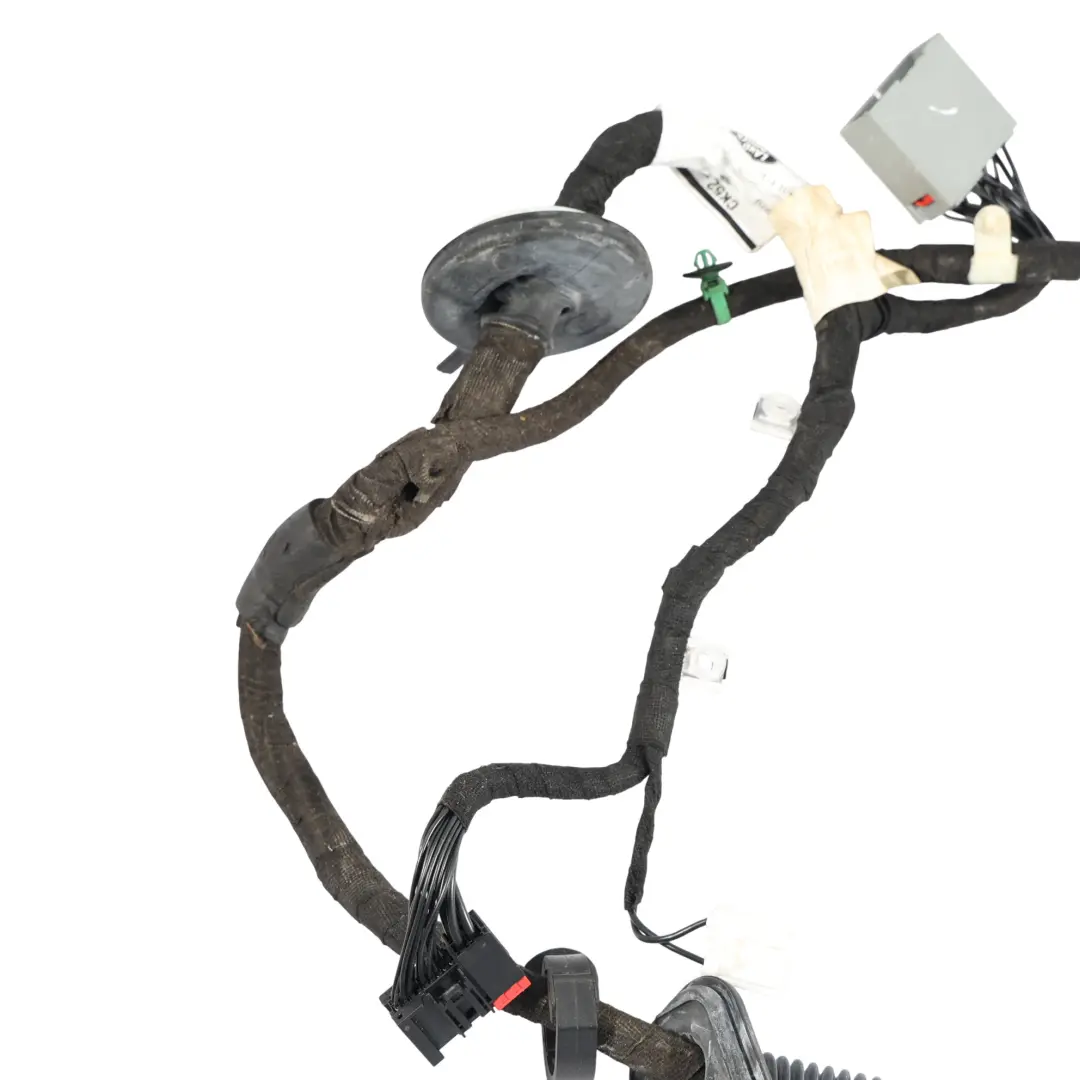

Range Rover L405 Door Wiring Loom Harness Cable Rear Right O/S CK52-14632-AE

The Range Rover L405 Rear Right Door Wiring Harness Cable is an original electrical installation component designed for the right rear door. It ensures a stable connection between the body modules and the door hardware, leading to predictable electrical operation and comfortable daily use.

Specifications and technical data

• SKU: CK52-14632-AE
• Mark: Range Rover
• Condition: Used

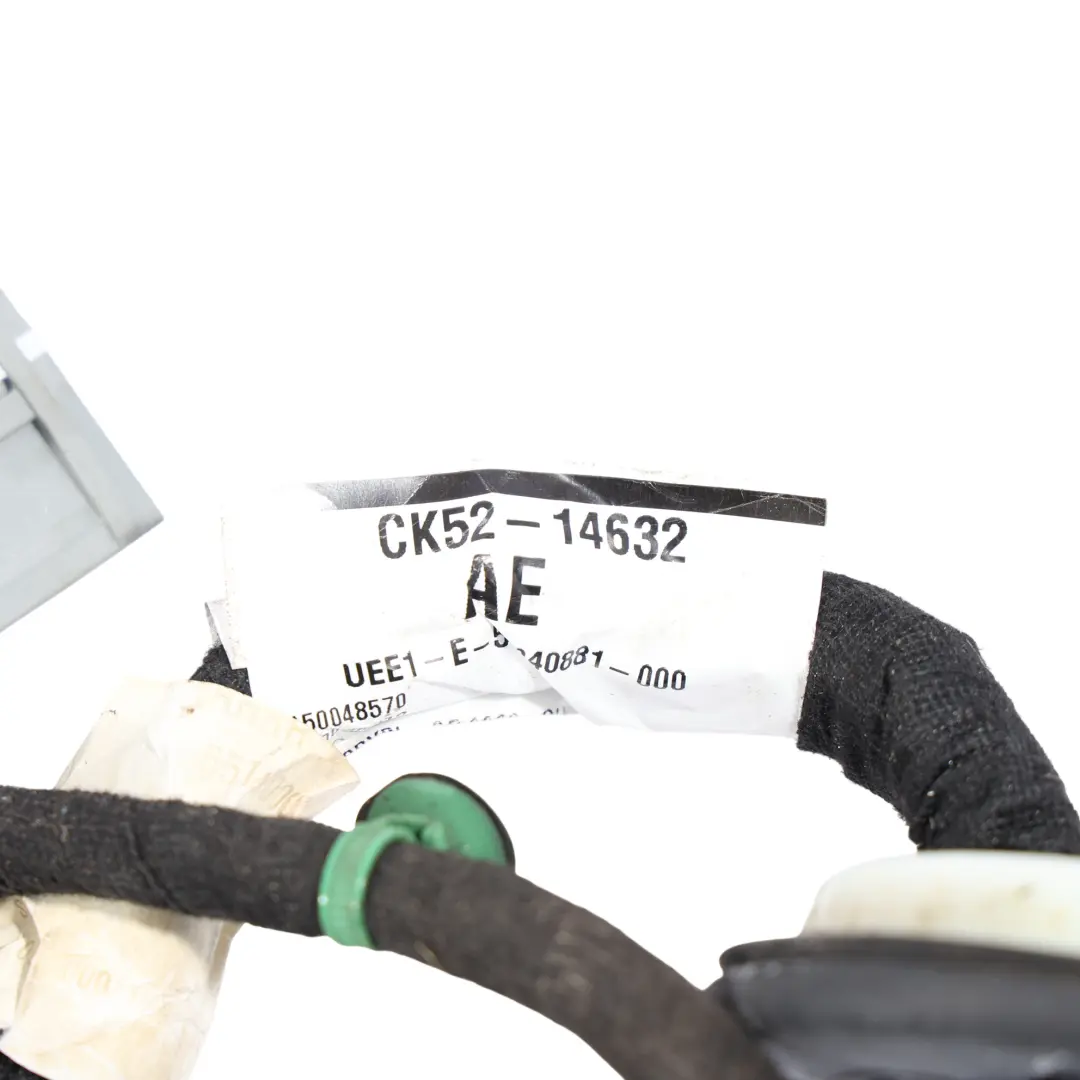

• OEM Part Number: CK52-14632-AE
• Substitutable numbers: CK52-14632-AE, CK5214632AE, LR046803
• Location on the vehicle: Rear, Right
• Part type: Body Harness
• Category: Wiring Harnesses, Cables & Connectors

Vehicle Application and Function

The presented rear right door wiring harness has been specifically designed for the Range Rover L405 model. It is responsible for transmitting signals and power between the vehicle's main electrical system and the components located in the right rear door, such as the window control, central locking, and other factory-installed electrical receivers.

Its dedicated placement on the vehicle (rear, right side) means that the harness's geometry, section lengths, and connector layout are adapted to the factory wiring routing in the Range Rover L405. This ensures the correct installation routing through grommets and within the door cavity, without strain or risk of insulation abrasion.

Construction and Technical Advantages

This harness belongs to the Wires, Harnesses, and Connectors category, meaning it is an integral part of the vehicle's body electrical system. Its construction is based on multi-core wires with appropriately selected cross-sections and factory connectors, which provide:

• stable electrical connections through the use of original connectors matched to the Range Rover's electrical system,

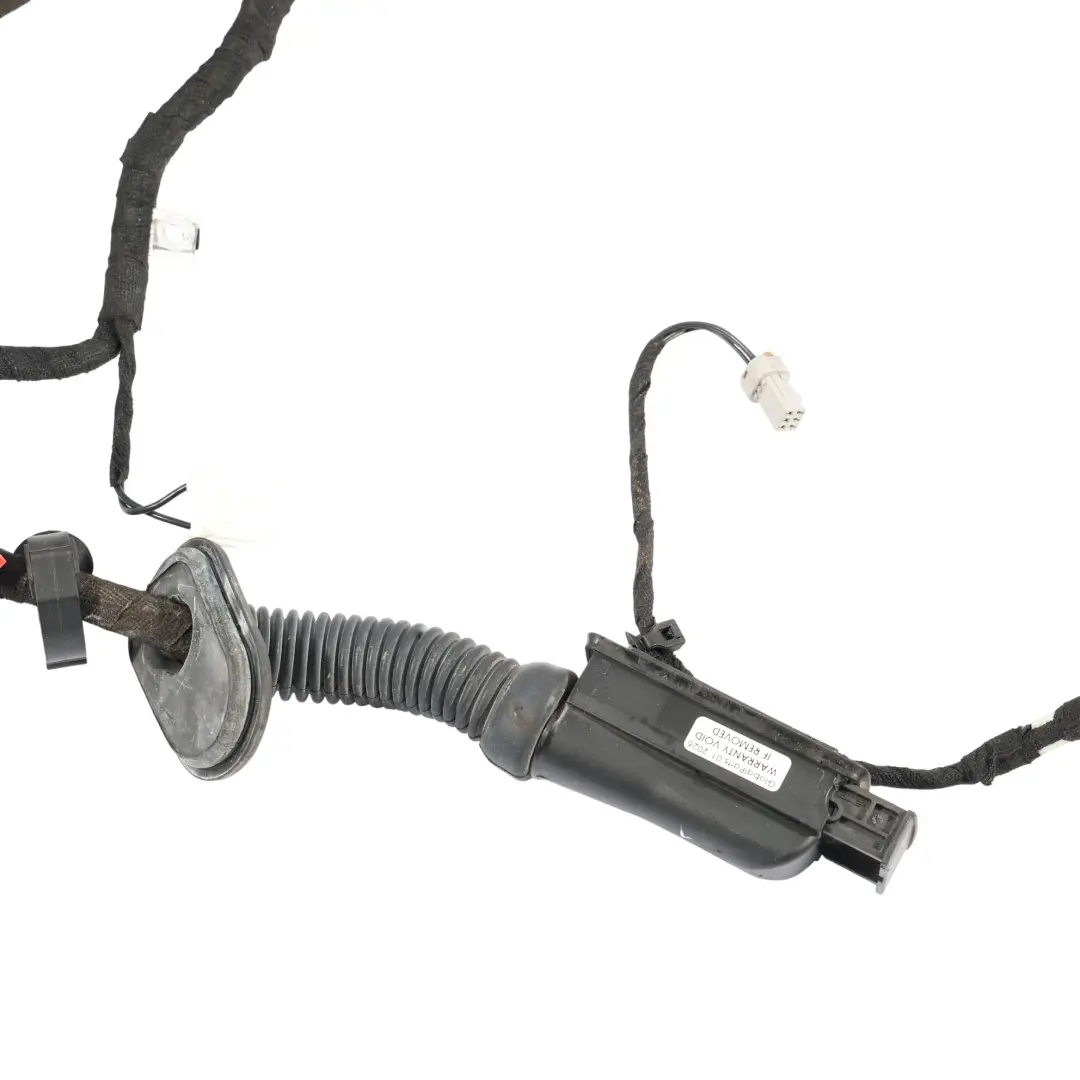

• adequate bending resistance in the grommet area between the pillar and the door,
• clear circuit separation, facilitating diagnostics and potential service work.

As an OEM component, the harness maintains the factory wiring topology, minimizing the risk of installation errors and compatibility issues with control modules.

Application Scope and Installation

The harness is intended for installation in the right rear door of the Range Rover L405. Its use is particularly beneficial in situations where:

• the wires in the door grommet have been damaged (cracks, breaks, short circuits),
• there are problems with power supply or communication for electrical components in the right rear door,
• a professional electrical repair is necessary after a collision or door intervention.

Installation involves removing the door trim, disconnecting the old connectors, and routing the harness according to the factory path. The use of original plug-in connectors allows for seamless connection to the existing vehicle wiring without the need for soldering or modifying wires.

Benefits of Using an Original Range Rover Harness

Choosing an original wiring harness for the Range Rover L405 offers a range of practical benefits:

• Full electrical compatibility with factory control modules and system architecture.
• Proper mechanical fit – wire lengths and connector placement correspond to the original routing within the door.
• Reduced risk of faults resulting from unprofessional electrical repairs (twisted wires, non-original connectors, makeshift solutions).
• Easier diagnostics – maintaining the factory wiring layout simplifies work for service technicians and diagnosticians.

Condition and Service Application

This item is from a dismantling and is offered as a used wiring harness. It is a sensible solution for owners and workshops looking to restore the functionality of the electrical system in a Range Rover L405 while preserving the factory specifications of the part and optimizing repair costs.
