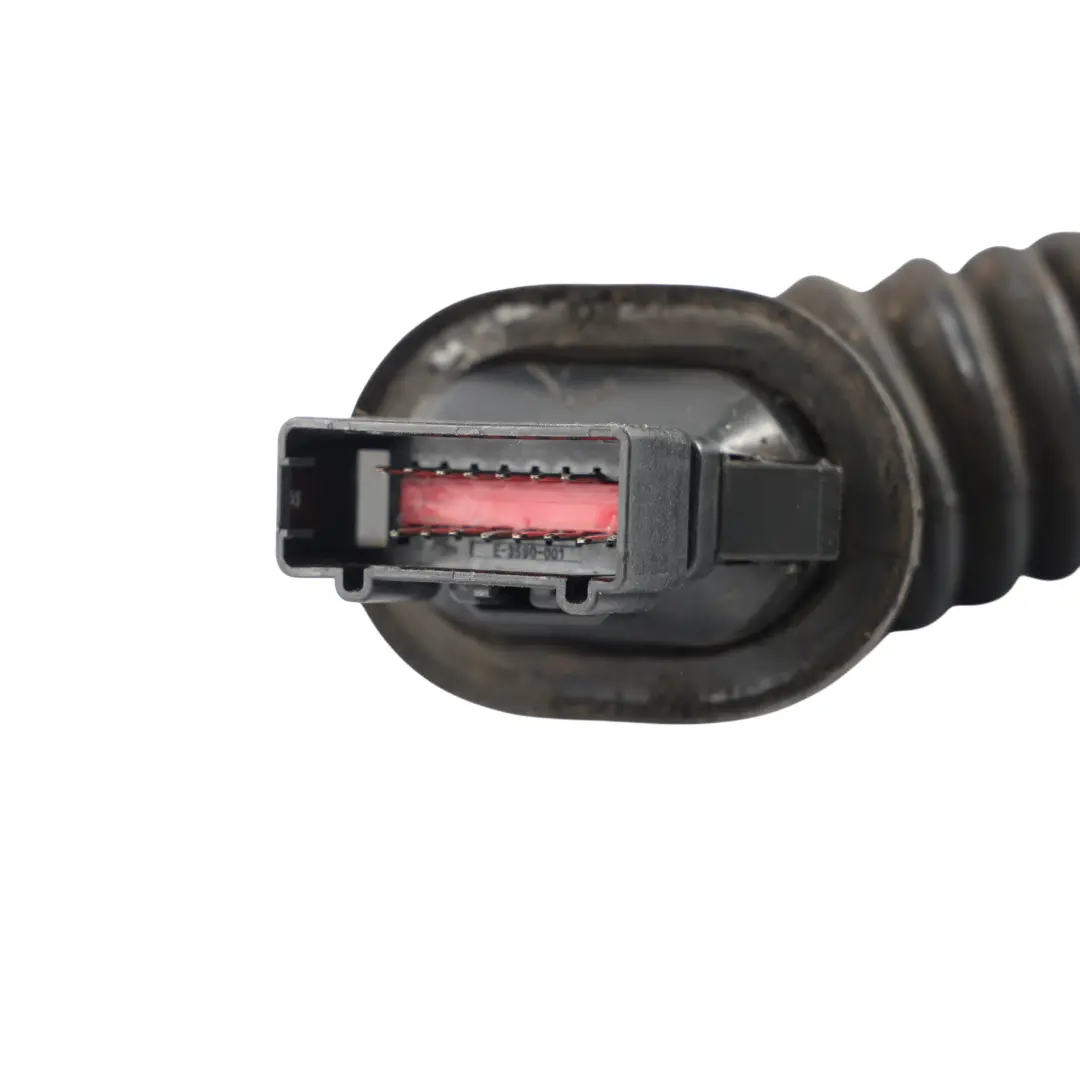

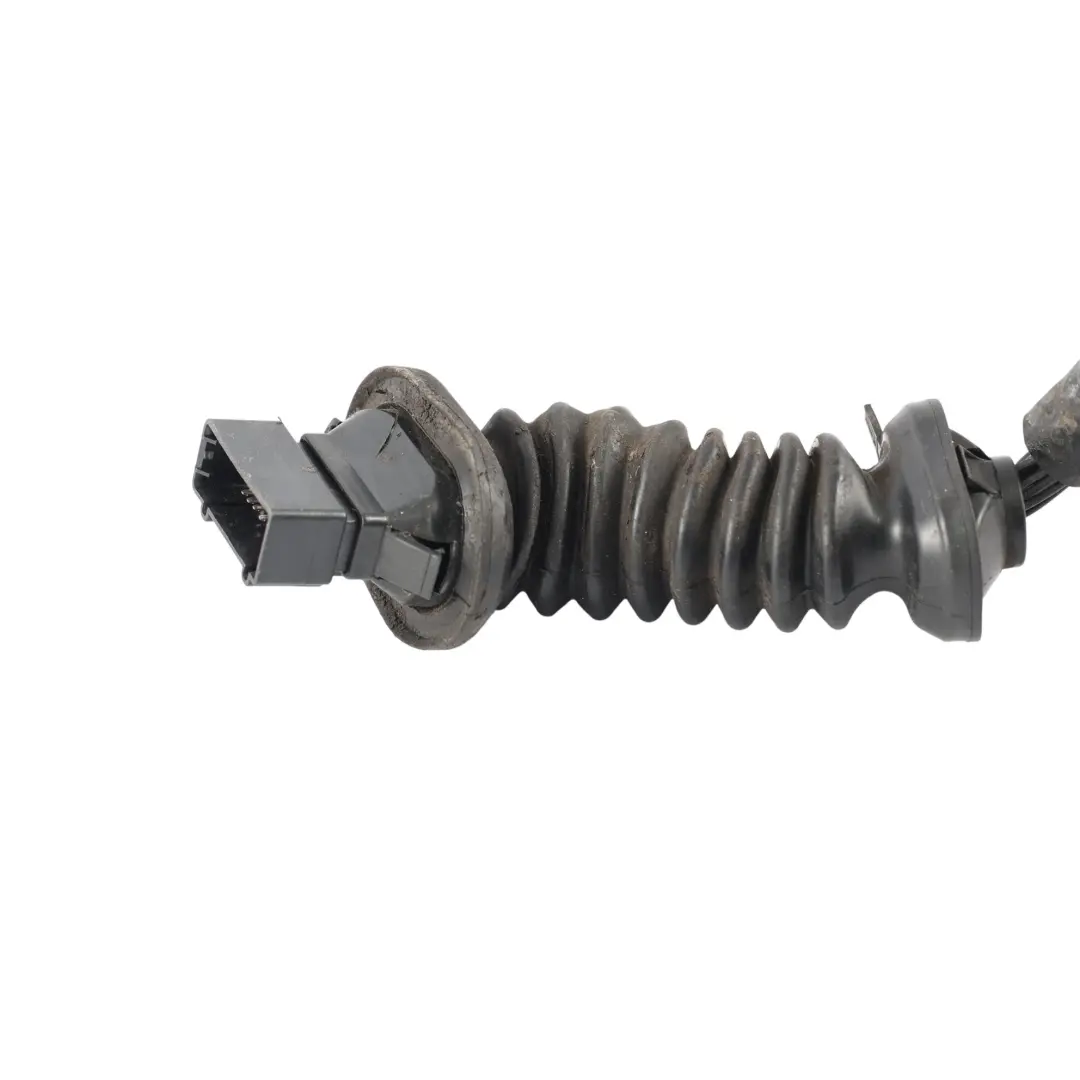

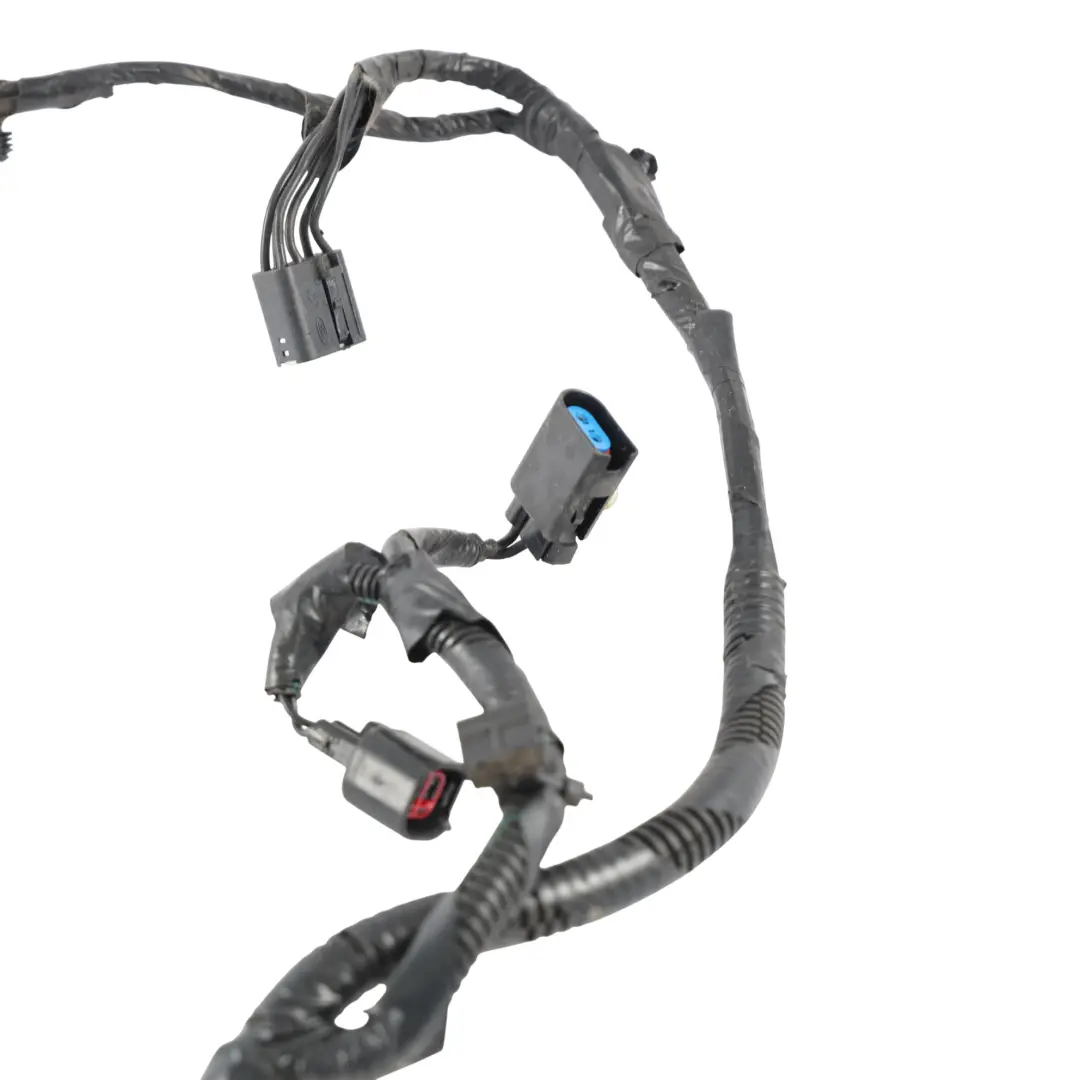

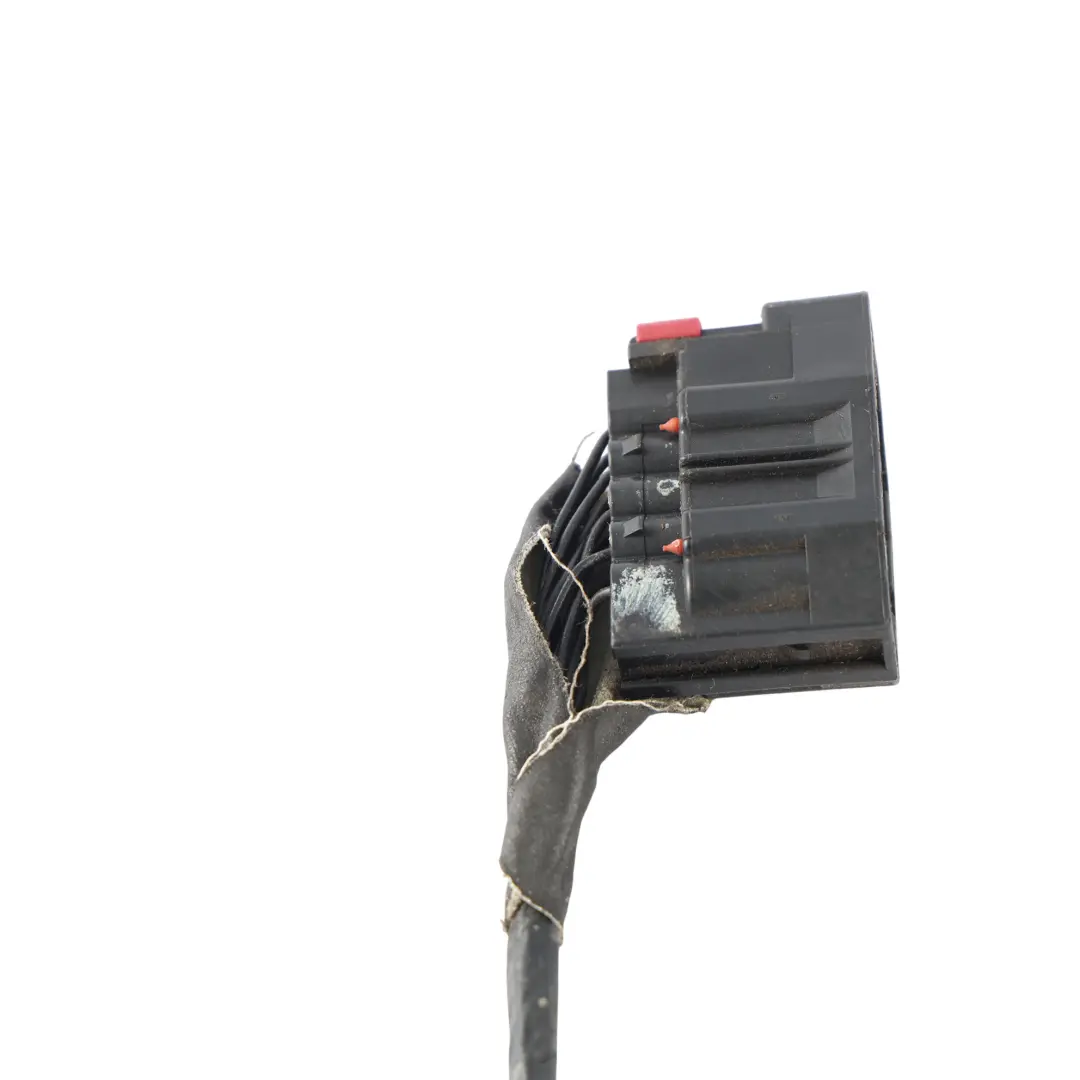

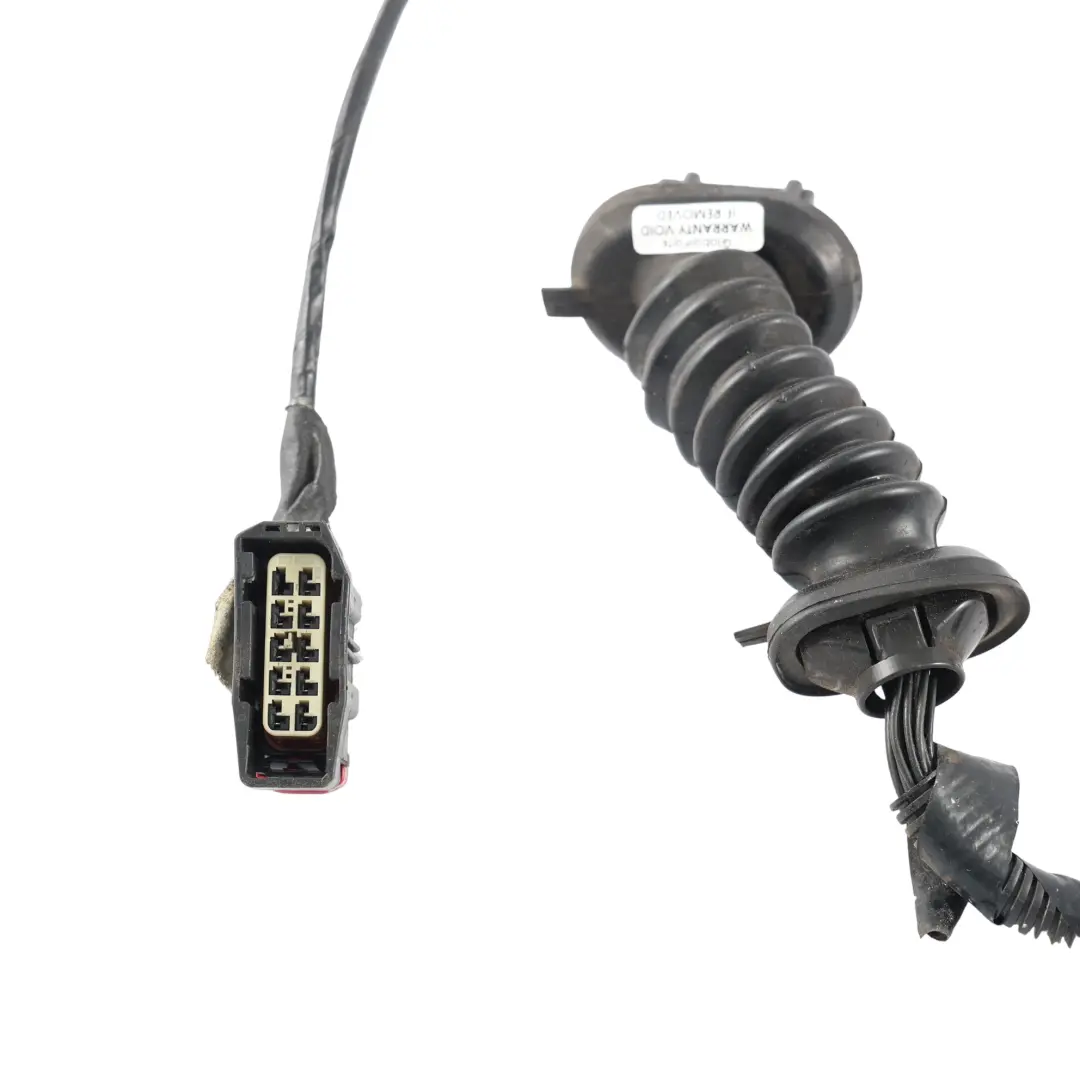

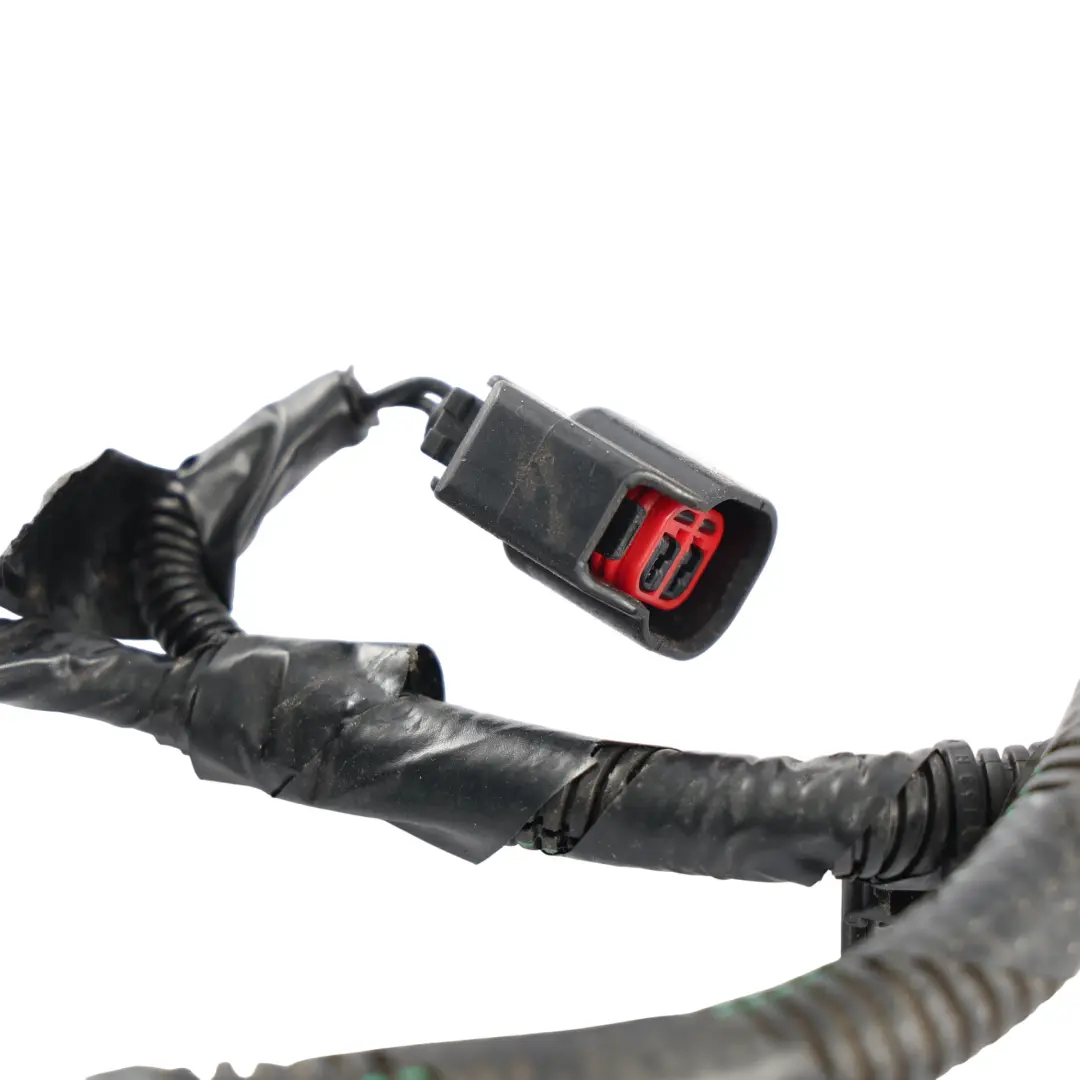

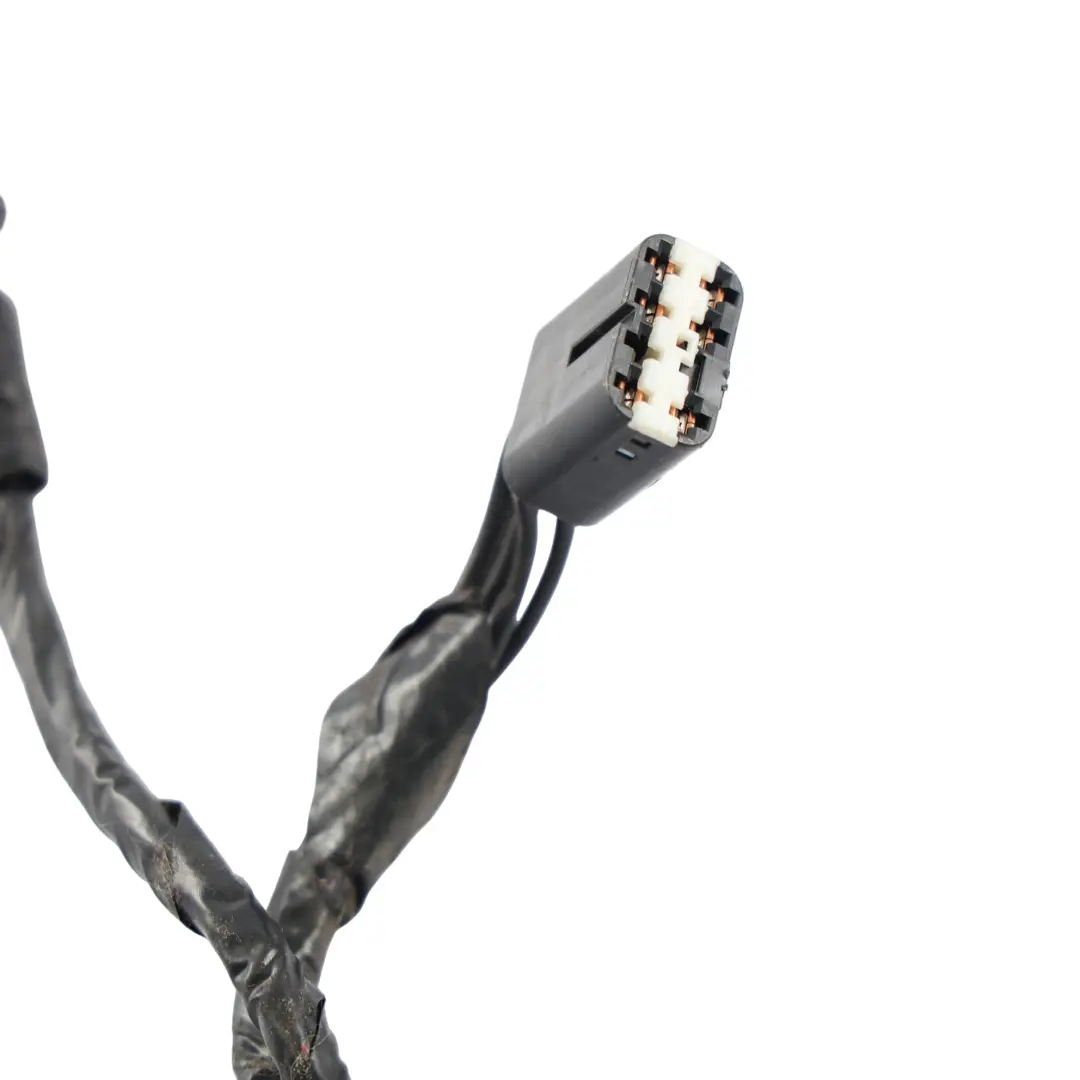

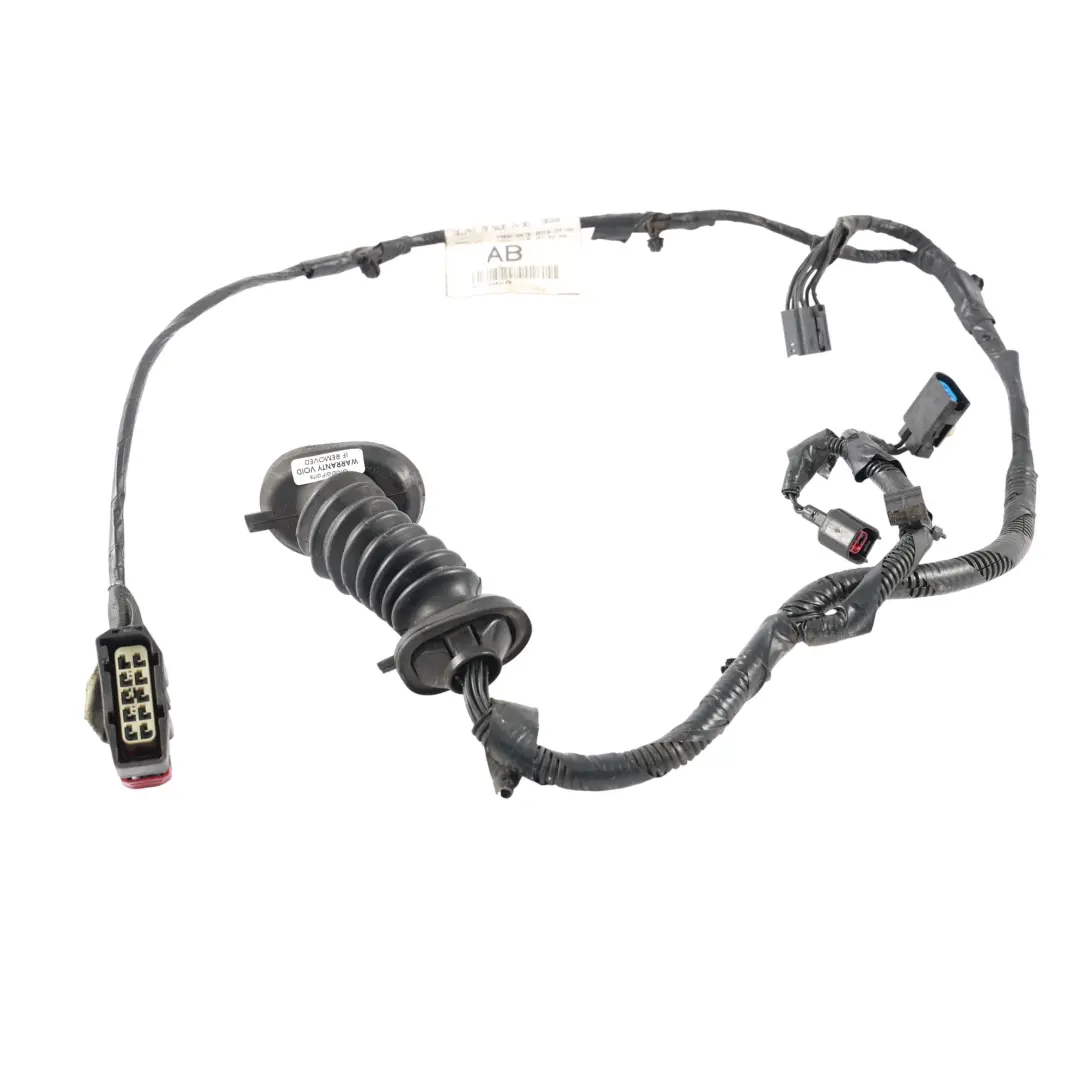

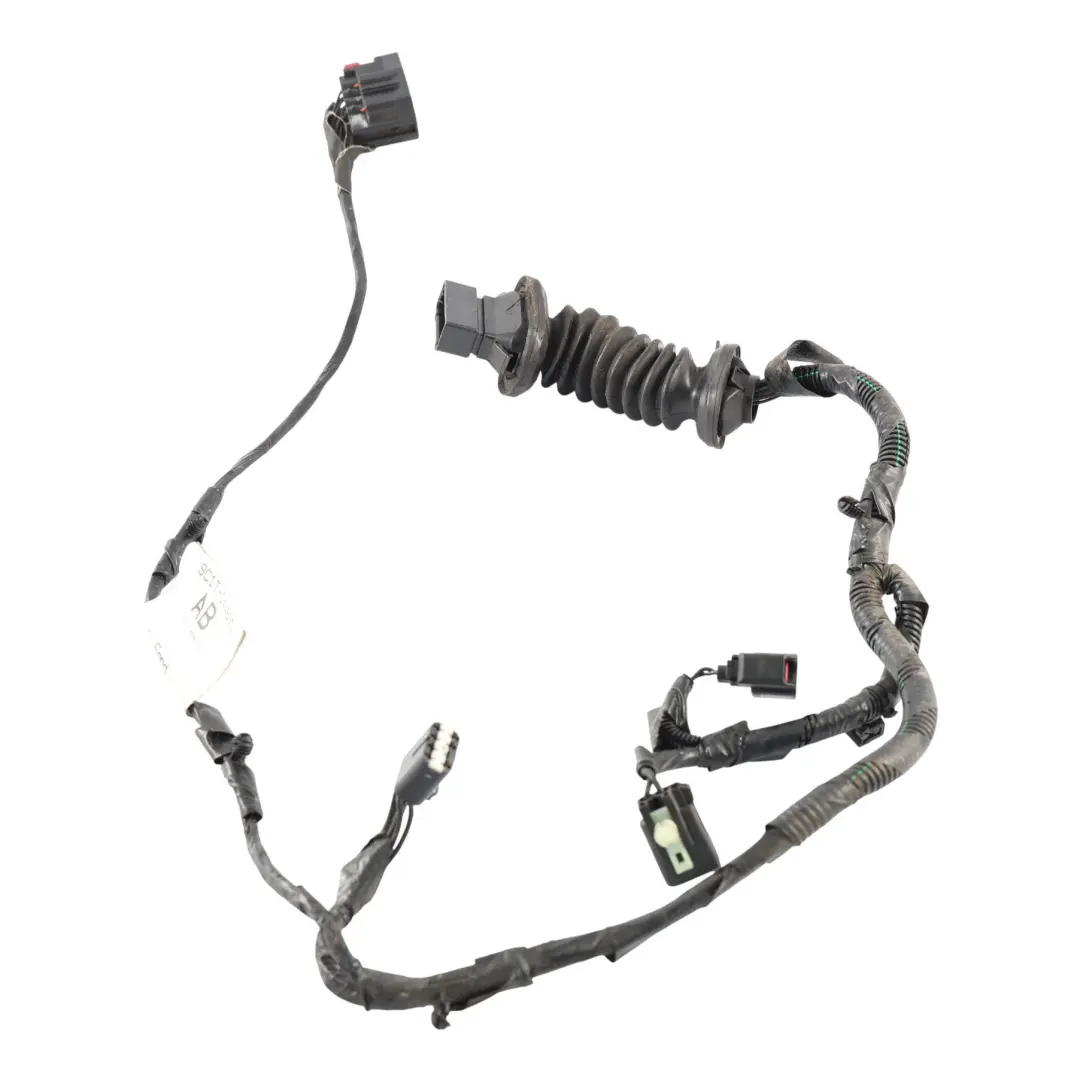

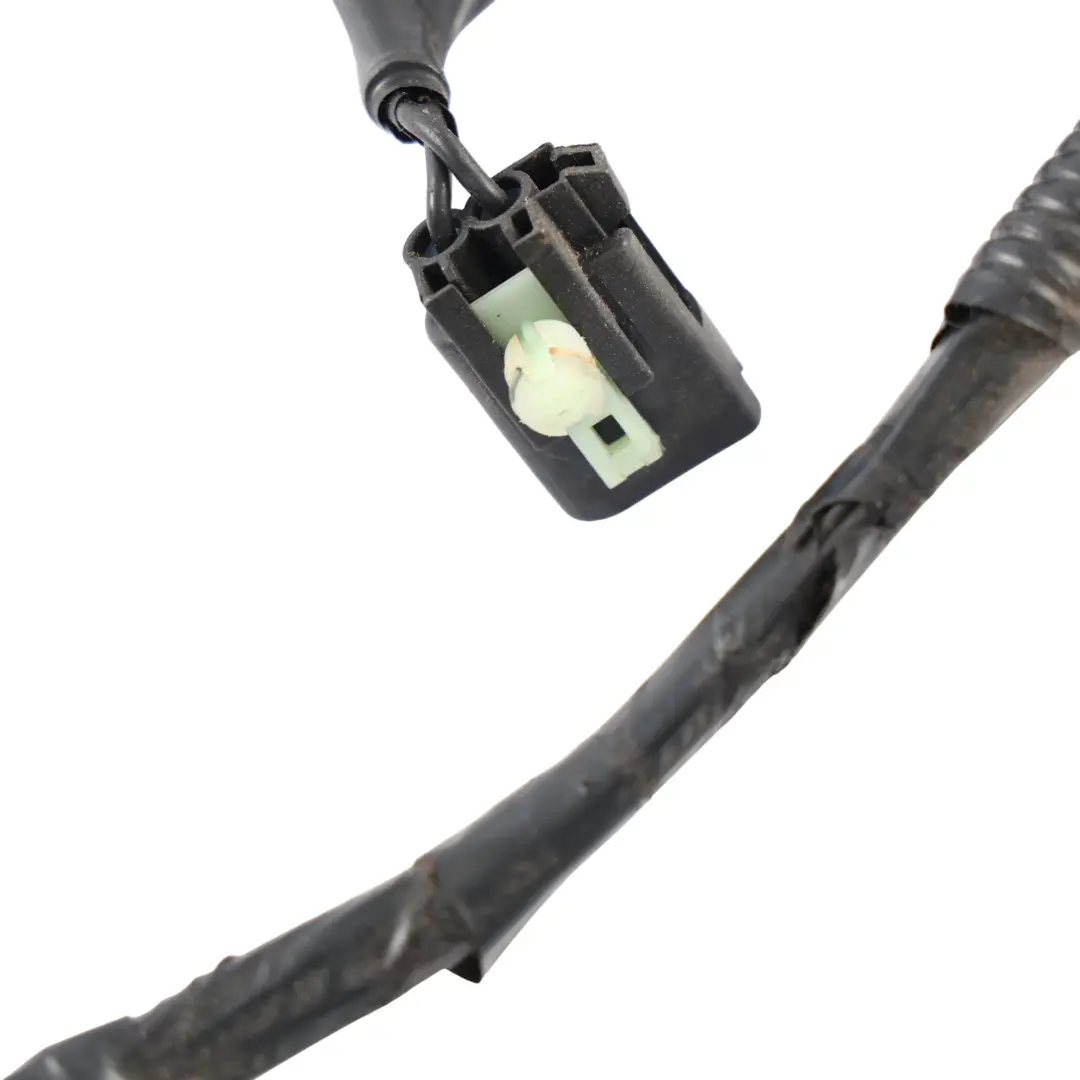

Ford Transit Mk7 Door Wiring Harness Cable Front Driver's Side 9C1T-14A631-AB

Ford Transit Mk7 Door Wiring Harness Cable Front Driver's Side is an original electrical installation component from the Wires, harnesses and connectors group, designed for the front right body area. It ensures a stable electrical connection between the door and the body, enabling the proper operation of factory receivers and modules in the driver's or passenger's door.

Specifications and technical data

• SKU: 1778152
• Mark: Ford
• Condition: Used
• OEM Part Number: 1778152

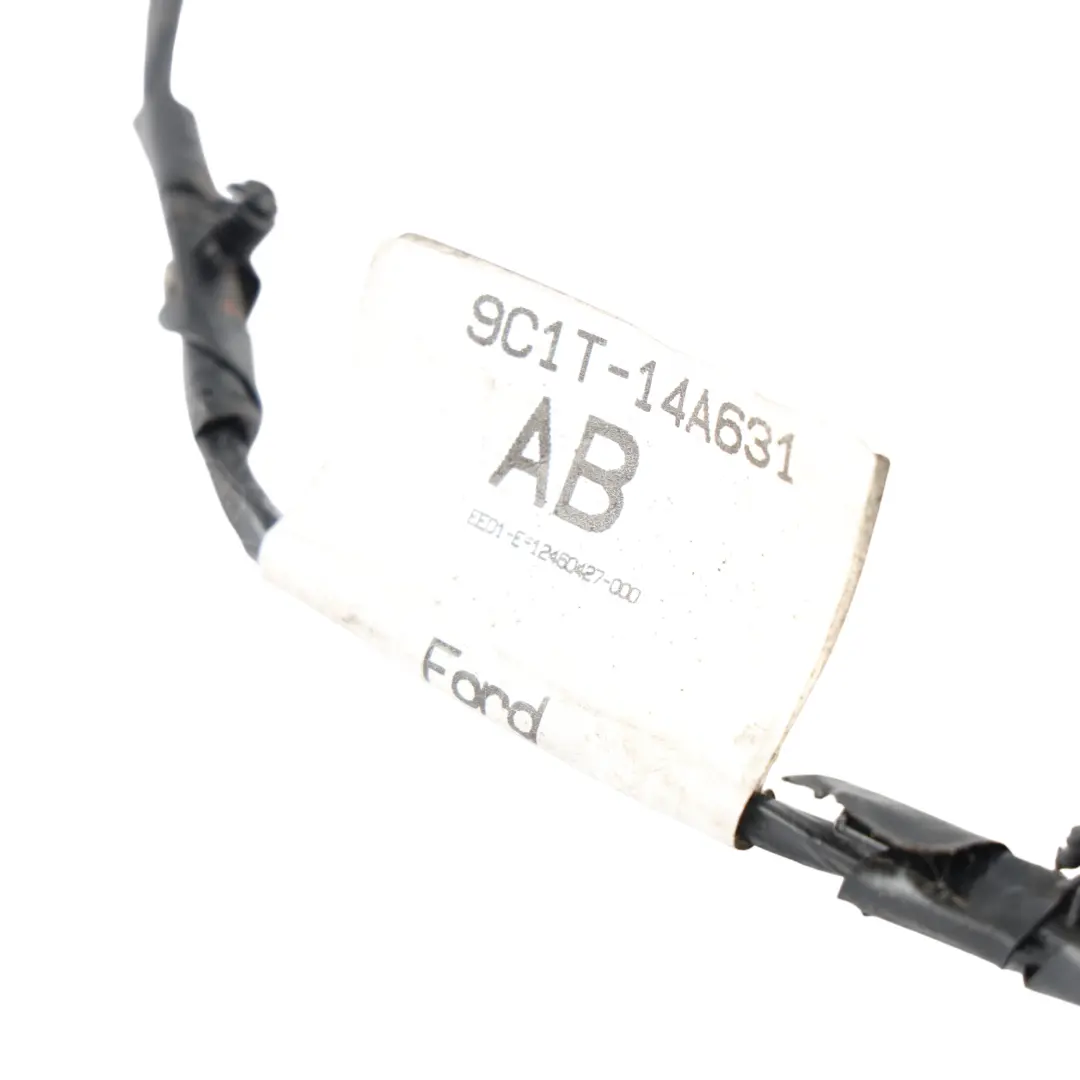

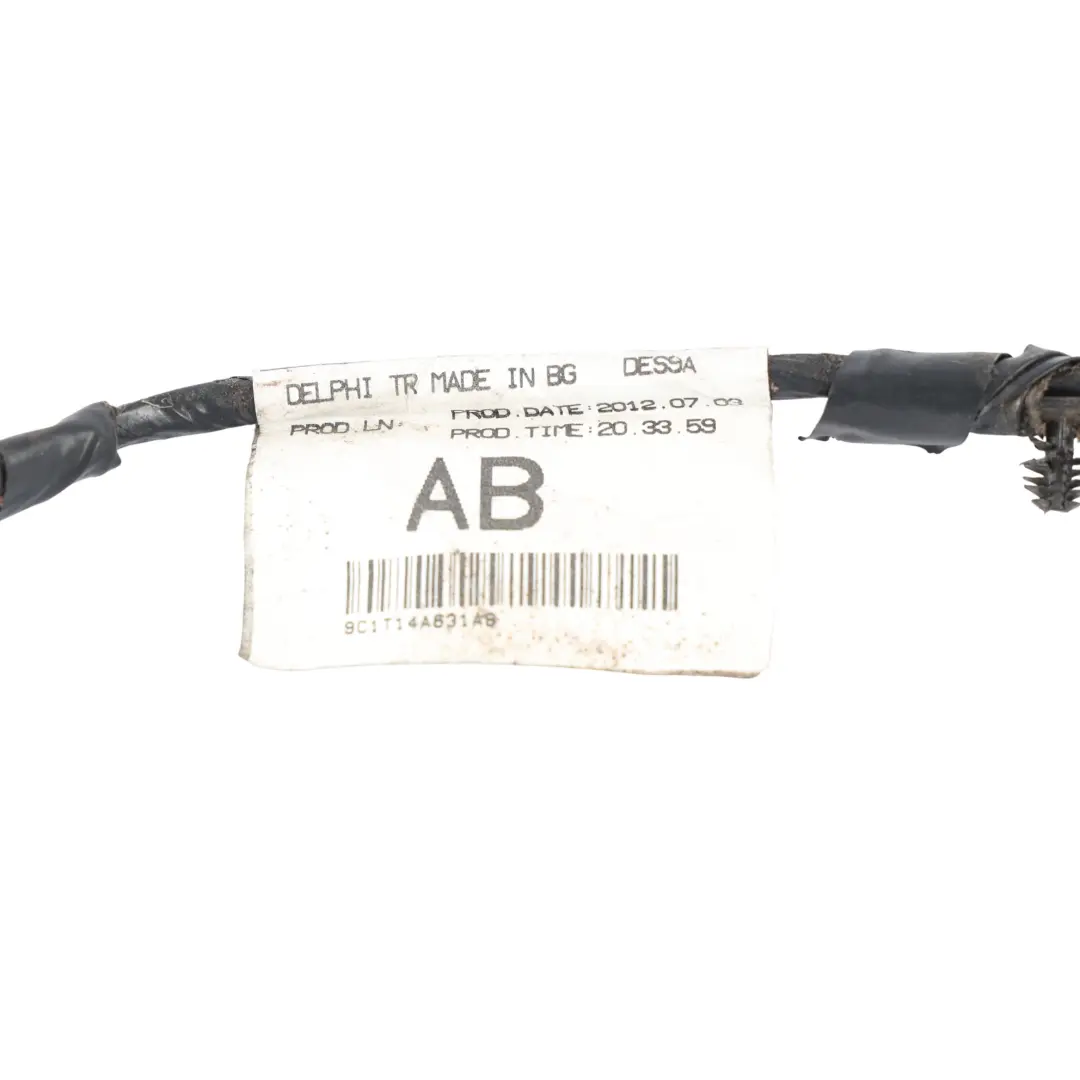

• Substitutable numbers: 1778152, 9C1T-14A631-AB, 9C1T14A631AB
• Location on the vehicle: Front
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function of the wiring harness

The presented wiring harness is designed for installation in the front right zone of the vehicle, where it is responsible for transmitting signals and power between the body installation and the equipment located in the door. This includes typical electrical circuits routed to the door, in accordance with the factory electrical architecture of the Ford Transit Mk7. Thanks to a design consistent with the vehicle manufacturer's solutions, the harness allows for maintaining the original routing of wires, proper connector guidance, and appropriate mechanical strain relief in the door hinge. This minimizes the risk of chafing, circuit breaks, and communication issues between modules.

Construction and fitment for Ford Transit Mk7

The wiring harness belongs to the Wires, harnesses and connectors group, which means it has been configured for specific mounting points and grommets in the Ford Transit Mk7 body. The arrangement of connectors, section lengths, and branches are adapted to the factory installation layout, which facilitates assembly without the need for modifications. Properly selected wire cross-sections and used connectors allow for the safe transmission of electrical loads provided by the manufacturer. Using an original wiring harness reduces the risk of assembly errors typical of universal solutions, such as improper soldering, insecure connections, or incorrect insulation protection.

Benefits of using an original Ford wiring harness

Using a factory wiring harness in a Ford Transit Mk7 translates into a number of practical benefits in daily vehicle operation:

• maintaining compliance with the vehicle's original electrical diagram,
• secure fitment of connectors to factory sockets in the door and body,
• reducing the risk of failures resulting from unprofessional installation modifications,
• easier electrical diagnostics thanks to maintaining the factory wire layout. For fleet users and service workshops, this means a more predictable repair process, shorter assembly time, and greater repeatability of service results. The original wiring harness also provides a convenient solution when replacing a damaged section of the installation within the front right door.

Characteristics of the used product

The item comes from an operated vehicle, which allows for maintaining compliance with Ford's factory assembly specifications. For many service applications, this is a practical solution, enabling the restoration of electrical system efficiency while maintaining a favorable cost-to-functionality ratio. A wiring harness of this type is particularly useful in situations where there has been damage to wires in the door grommet, insulation breakage, or electrical communication problems within the right front door wing. Using a complete wiring harness instead of point-to-point wire repairs often shortens service time and improves system reliability.

Expanding work within the Ford door installation
