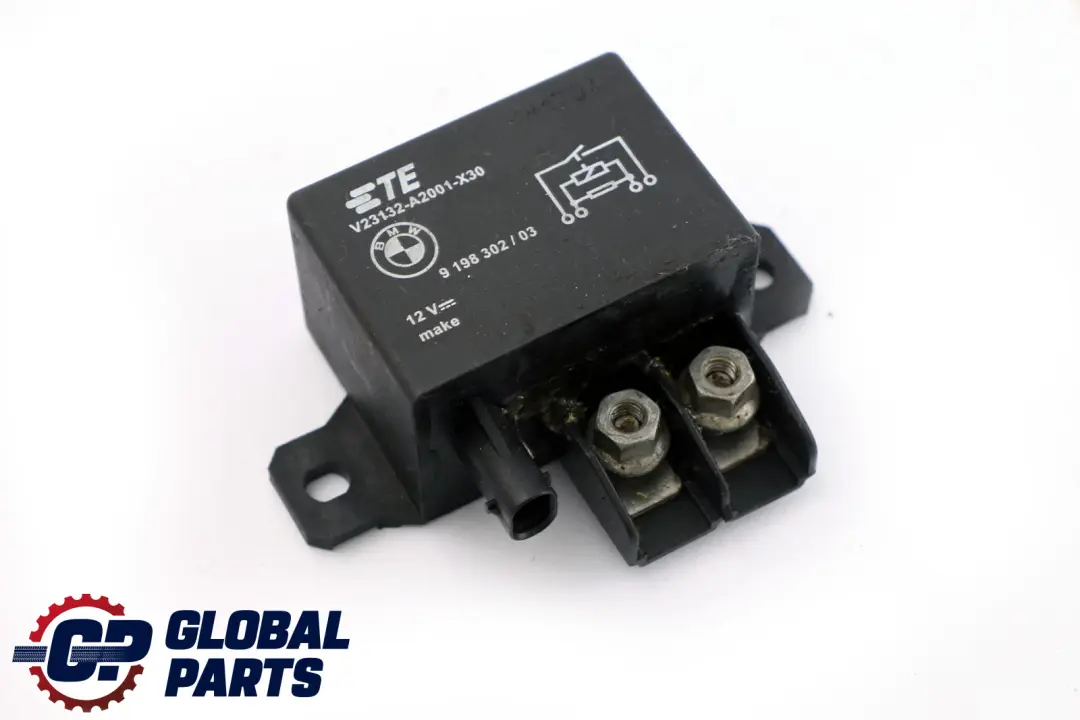

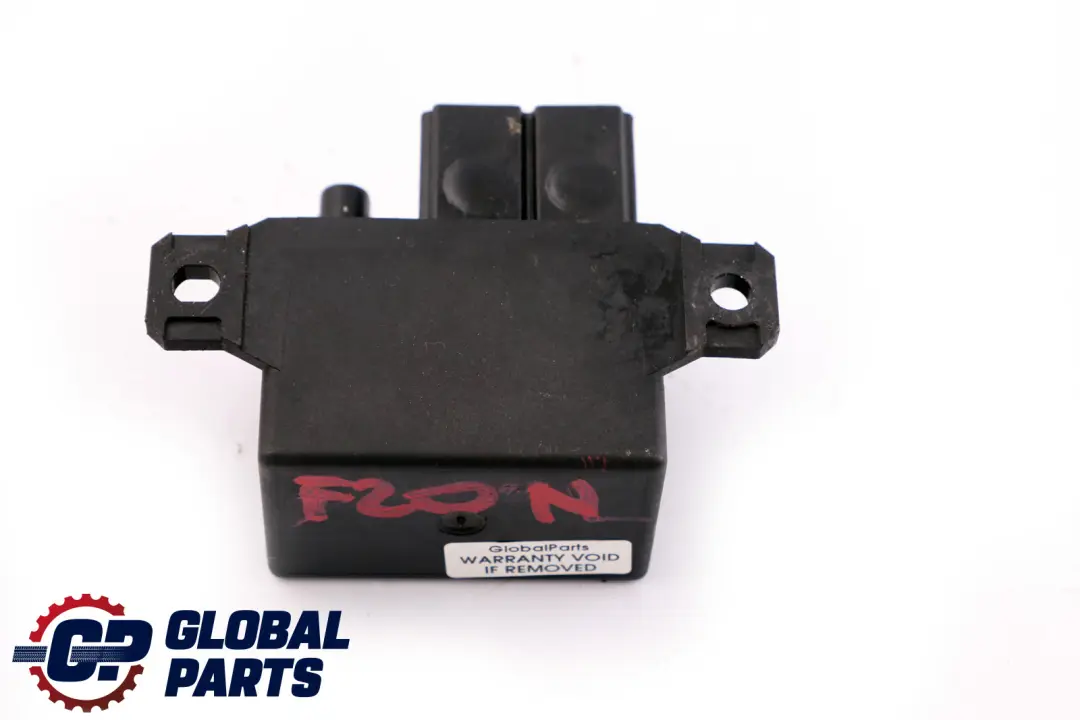

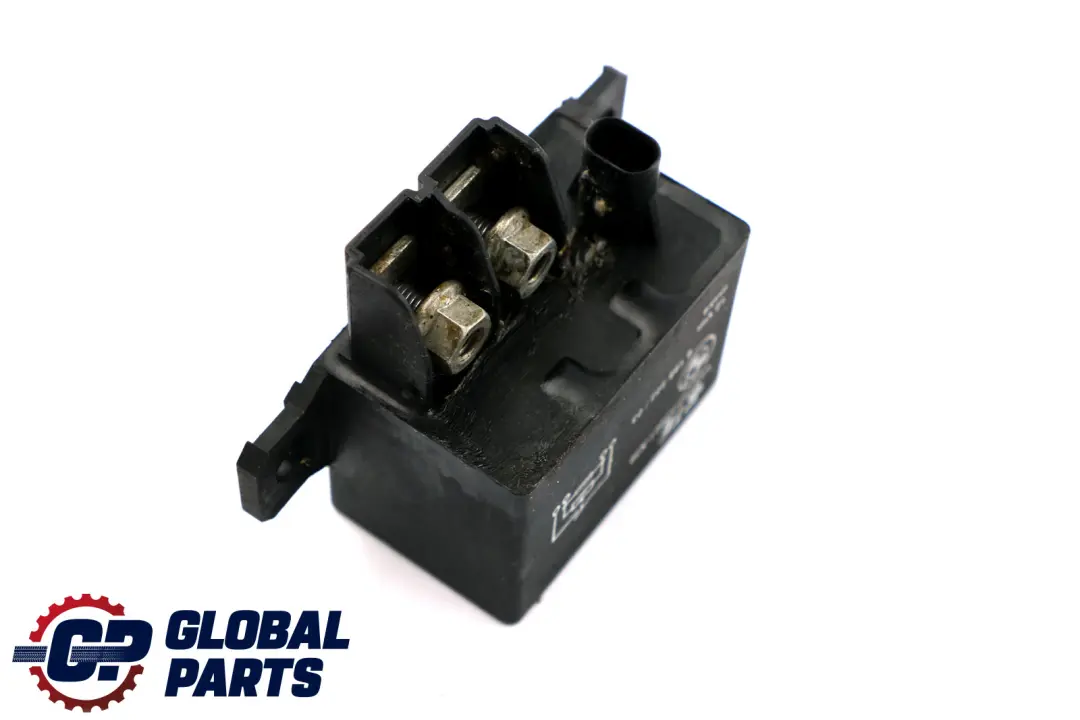

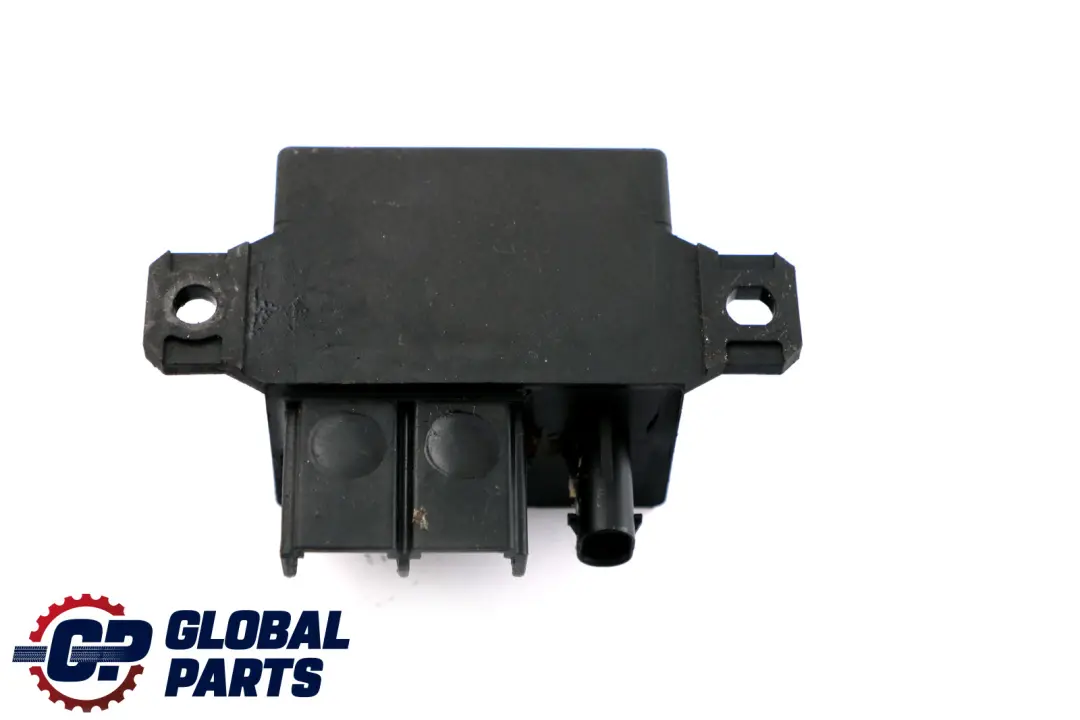

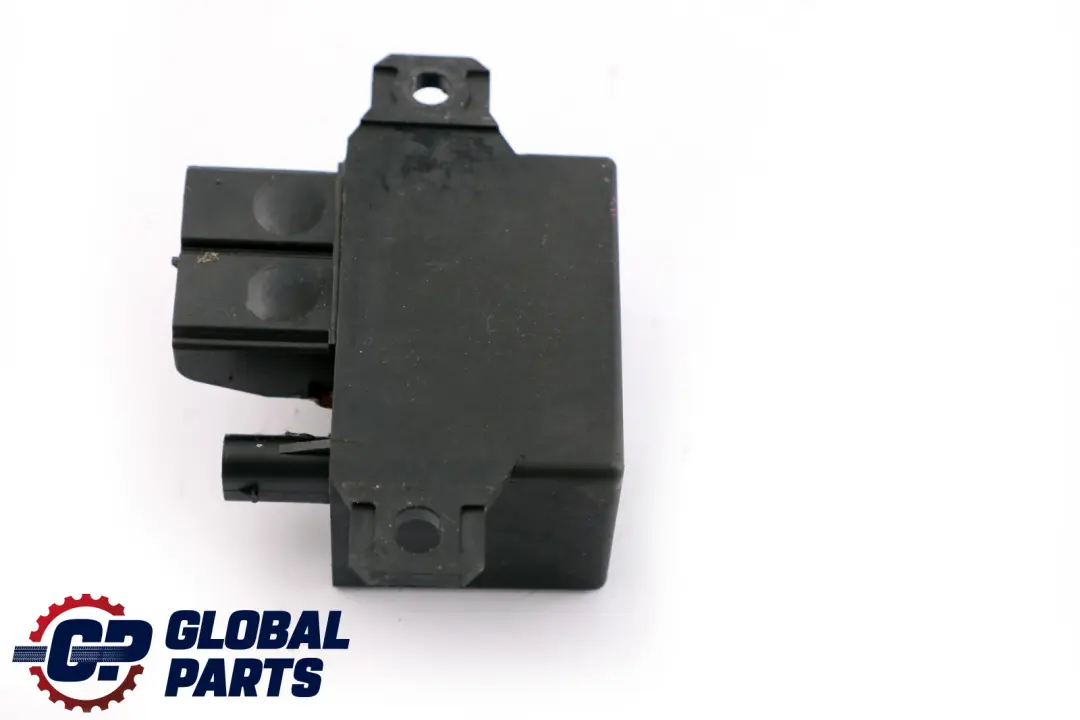

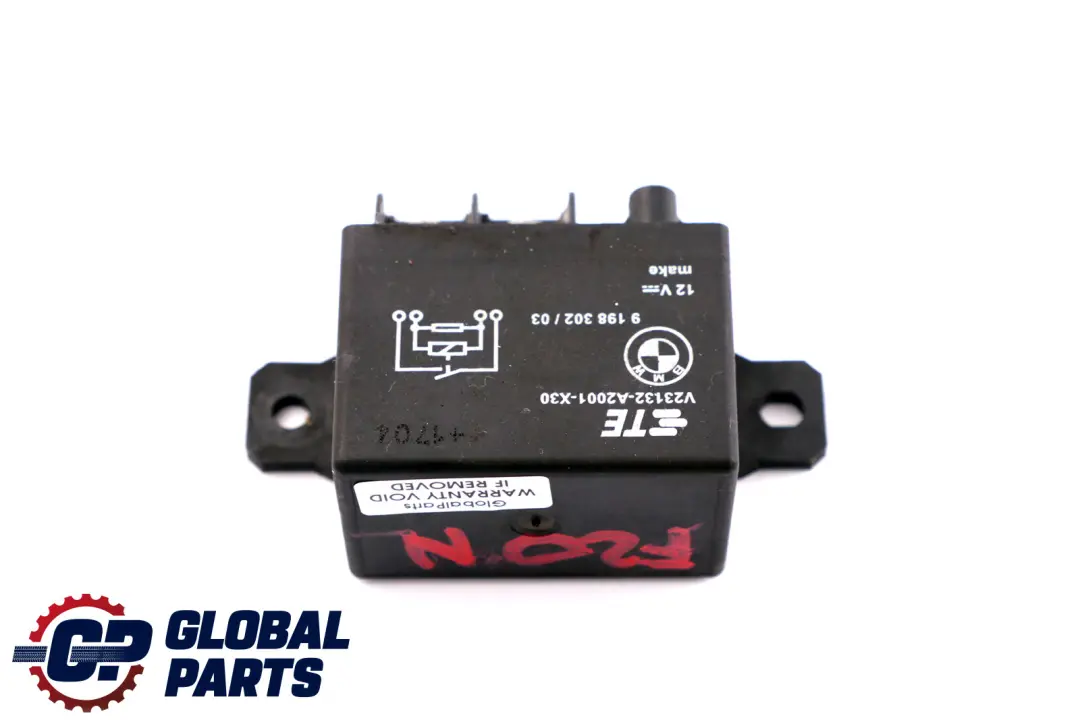

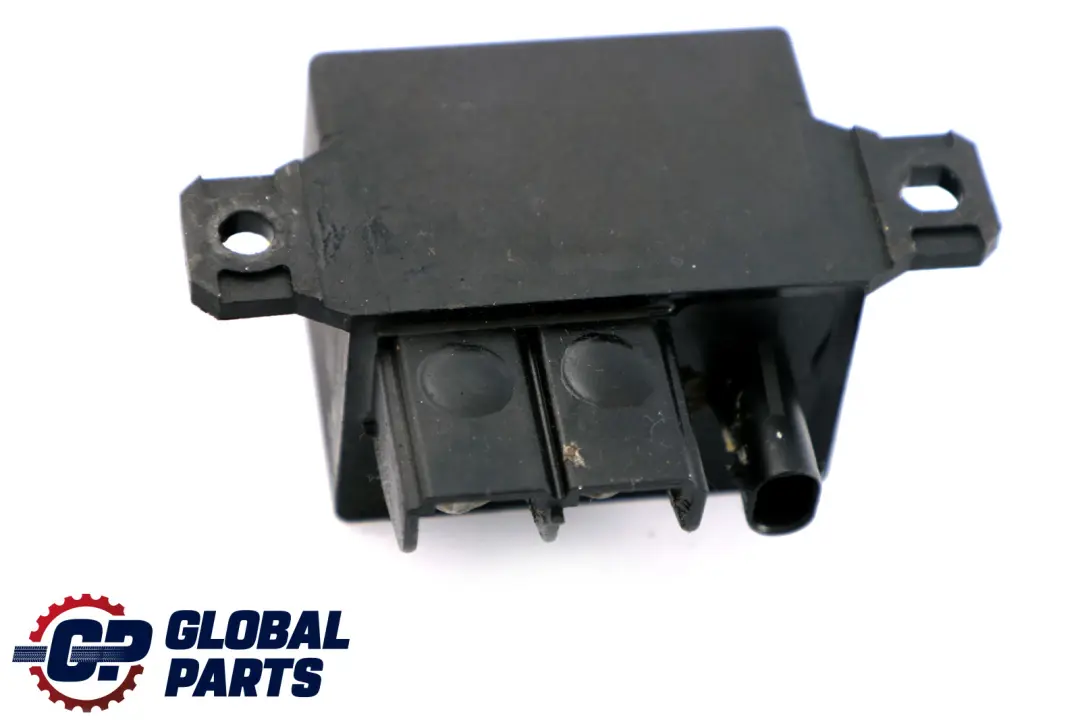

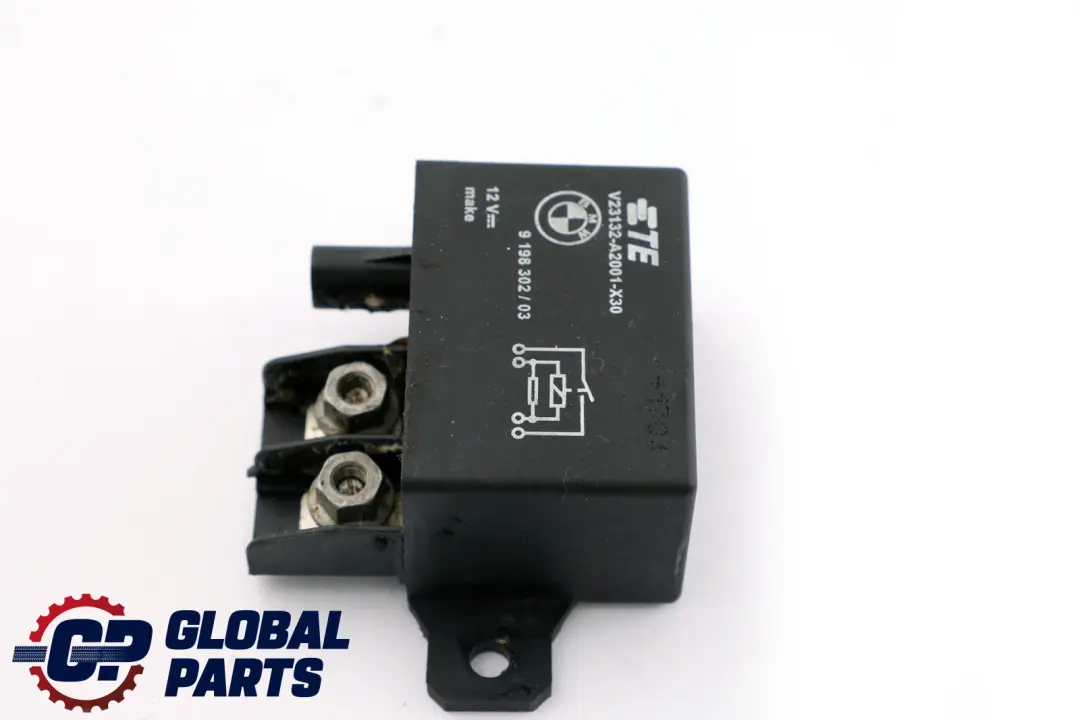

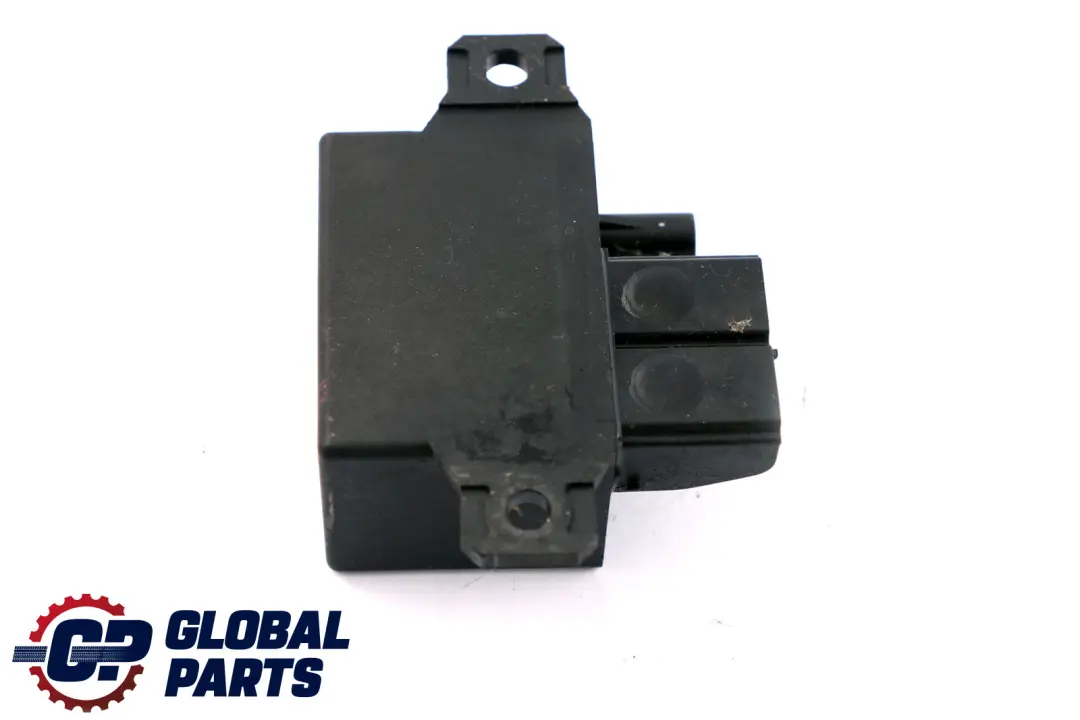

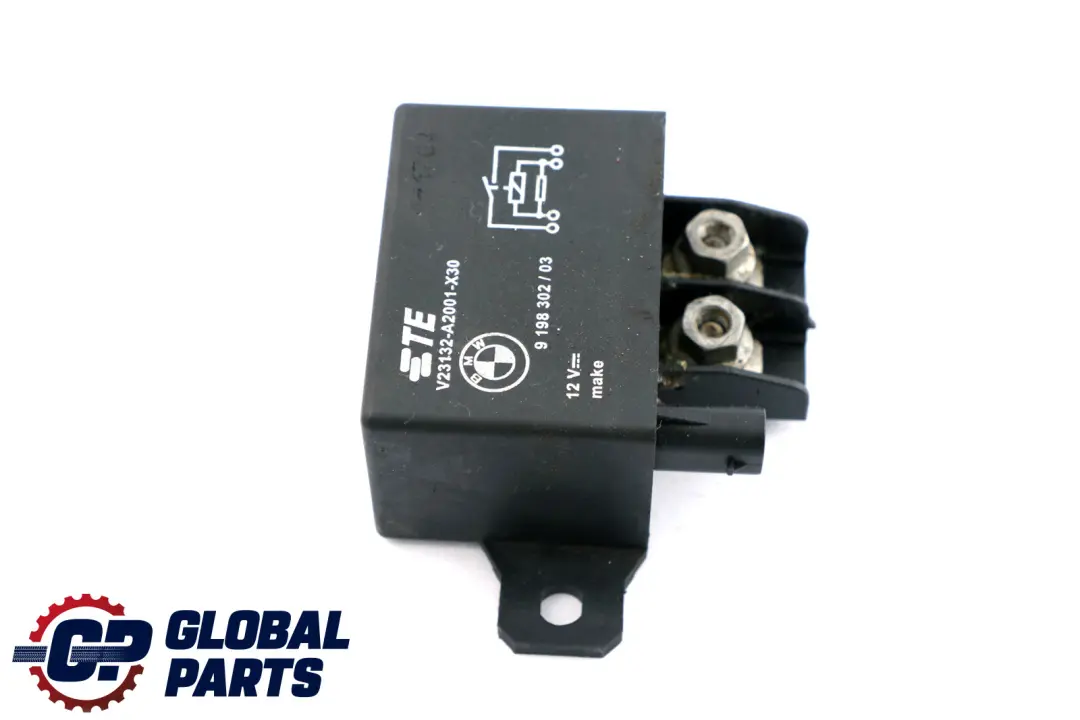

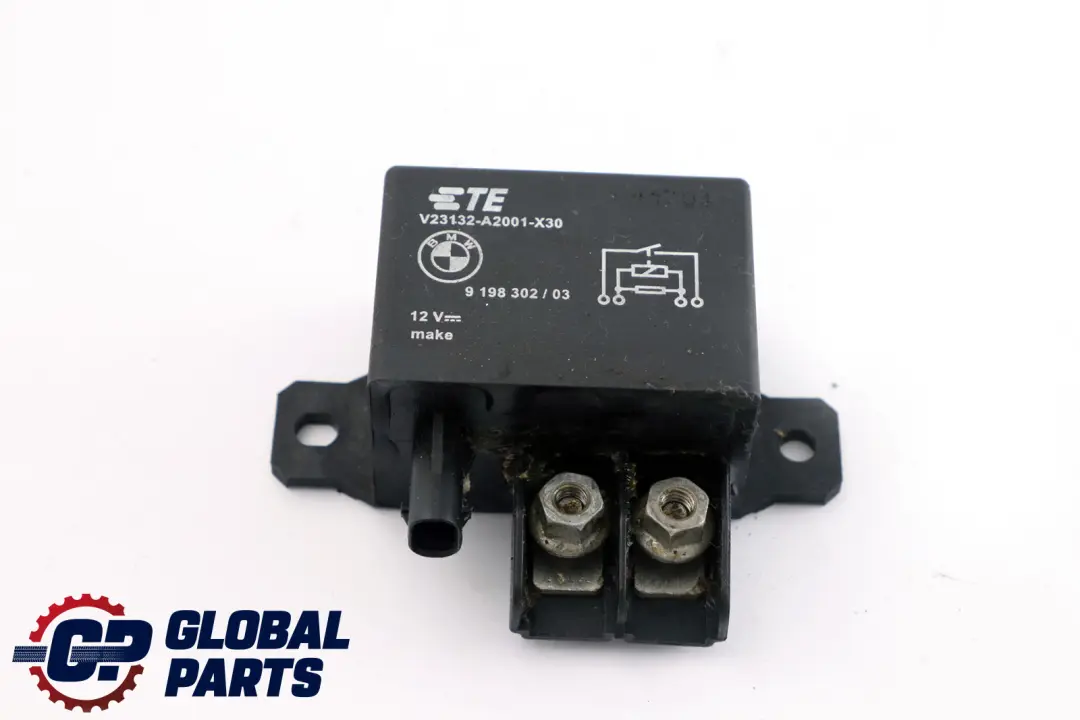

BMW F10 F11 F20 F21 F30 F31 130A Electric Fan Motor Relay 9198302

BMW F10 F20 F21 F30 130A Fan Relay 9198302 is an original part from the relays group, designed for the fan control system in selected BMW F-series models. It enables stable fan power supply under high current load, ensuring safe and predictable operation of the cooling system. This is a solution for users who want to restore the correct functionality of the factory system without compromising electrical compatibility.

Specifications and technical data

• SKU: 9198302
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9198302

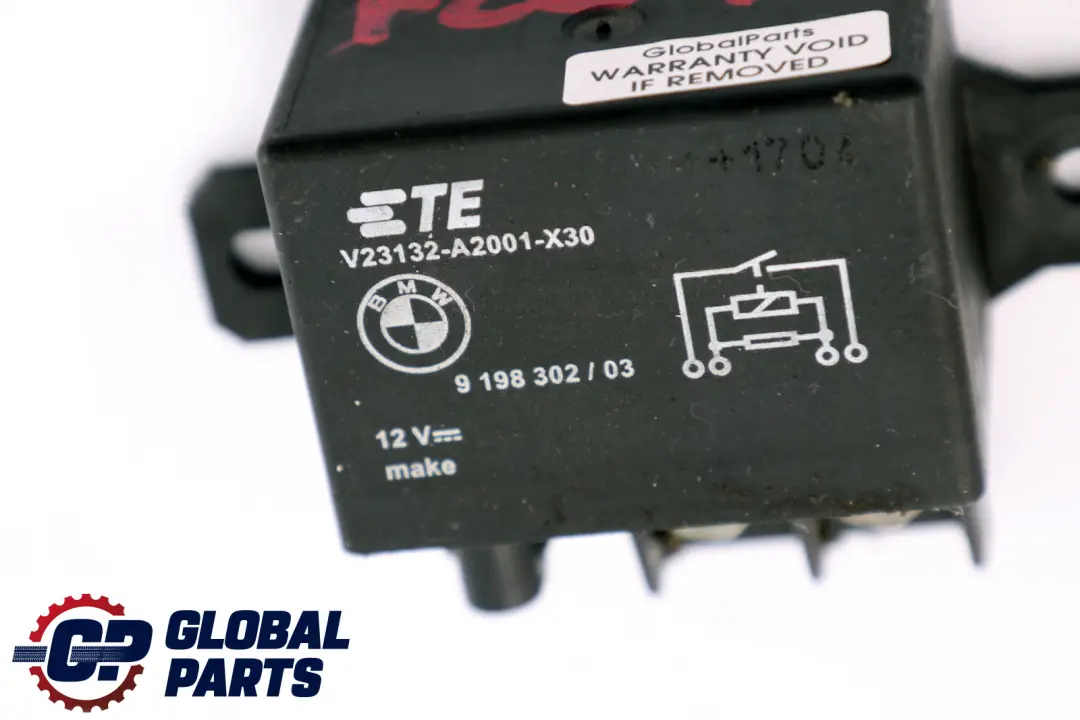

• Substitutable numbers: 61369198302, 9198302, V23132-A2001-X30
• Category: Relays

Application and Role in the Cooling System

The fan relay in BMW F-series models is responsible for switching the radiator fan on and off according to control signals from the vehicle's modules. The 130A version is designed to operate with high operating currents, typical for high-performance fans used in modern powertrains.

This component is particularly important in situations such as:

• increased engine thermal load (traffic jams, towing, high ambient temperatures),
• air conditioning operation, when the fan needs to engage more frequently and for longer periods,
• after cooling system modifications, where stable operation of the factory control is required.

Construction, Electrical Parameters, and Compatibility

As a component from the relays category, this model is adapted for operation in a 12 V system with high load current. The construction based on OEM components ensures appropriate switching characteristics, matched to the control logic used in BMW F-series vehicles.

The relay is designed to work with the factory wiring harness and control modules, facilitating plug-and-play installation without the need for electrical modifications. The presence of dedicated part numbers and interchangeable numbers allows for precise verification of compatibility with a specific vehicle configuration.

Benefits of Using an Original BMW Relay

Using an original fan relay in BMW F-series vehicles offers a number of practical technical benefits:

• Stable cooling system operation – proper fan engagement reduces the risk of engine overheating.
• Full integration with vehicle electronics – electrical parameters matched to factory control modules.
• Reduced diagnostic errors – a correctly selected relay minimizes the risk of errors appearing in the control unit memory related to the fan circuit.
• Safe operation under high load – construction designed to handle high fan operating currents.

Condition, Verification, and Installation Recommendations

The offered part is in used condition, meaning it comes from a dismantled vehicle and has been verified for its suitability for further use. This solution allows for economical repair while maintaining the original specifications of BMW parts.

Before installation, it is recommended to:

• check the part number and interchangeable numbers against the vehicle's documentation,
• inspect the socket and wiring harness for signs of overheating or corrosion,
• perform a fan operation test after installation (engagement at the correct temperature or after air conditioning activation).

Why Choose This Fan Relay

BMW F10 F20 F21 F30 130A Fan Relay 9198302 is a proposal for users who expect compatibility with the factory installation, predictable cooling system behavior, and a reasonable repair cost. Choosing an original component from this series minimizes the risk of overheating issues, incorrect fan operation, or diagnostic system errors.
