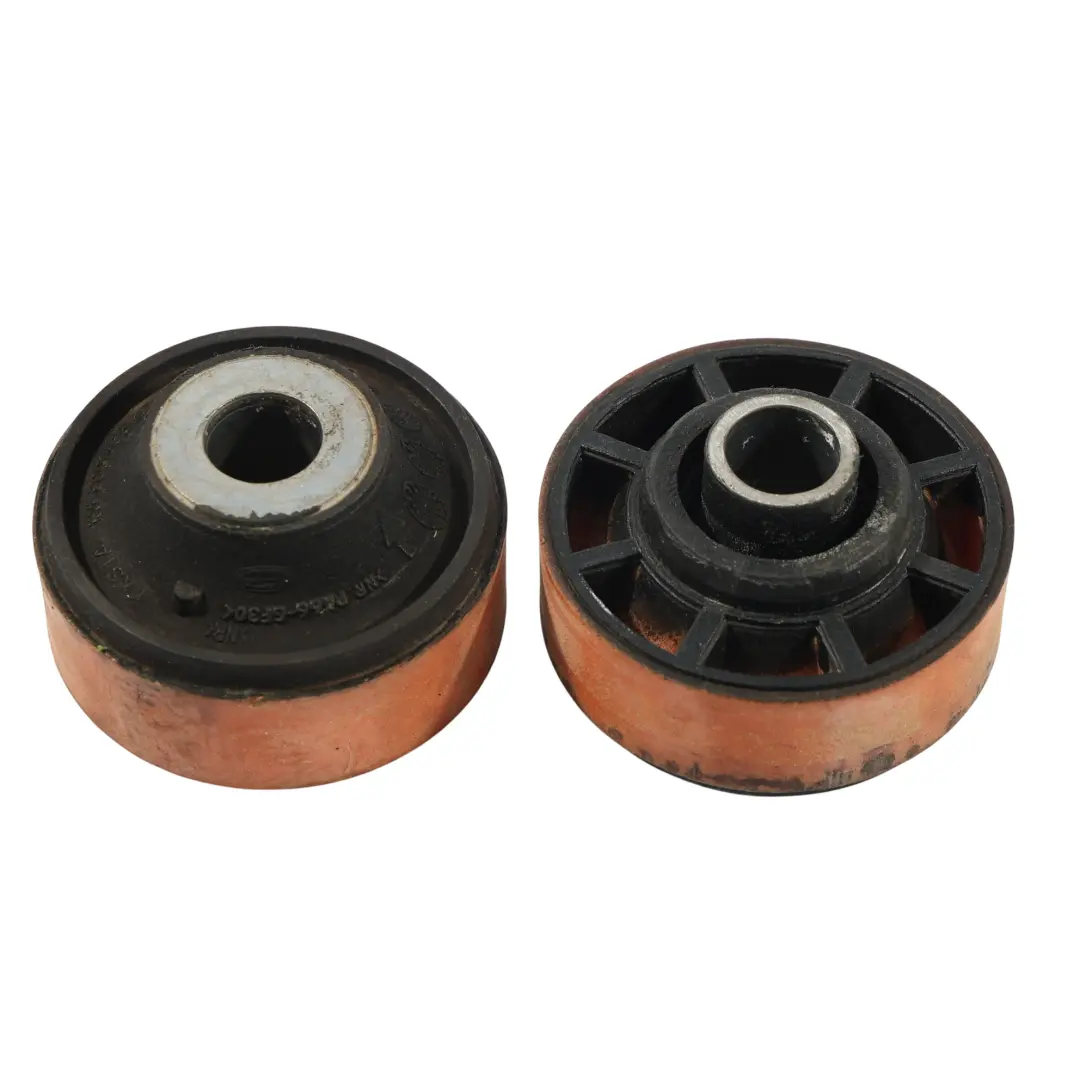

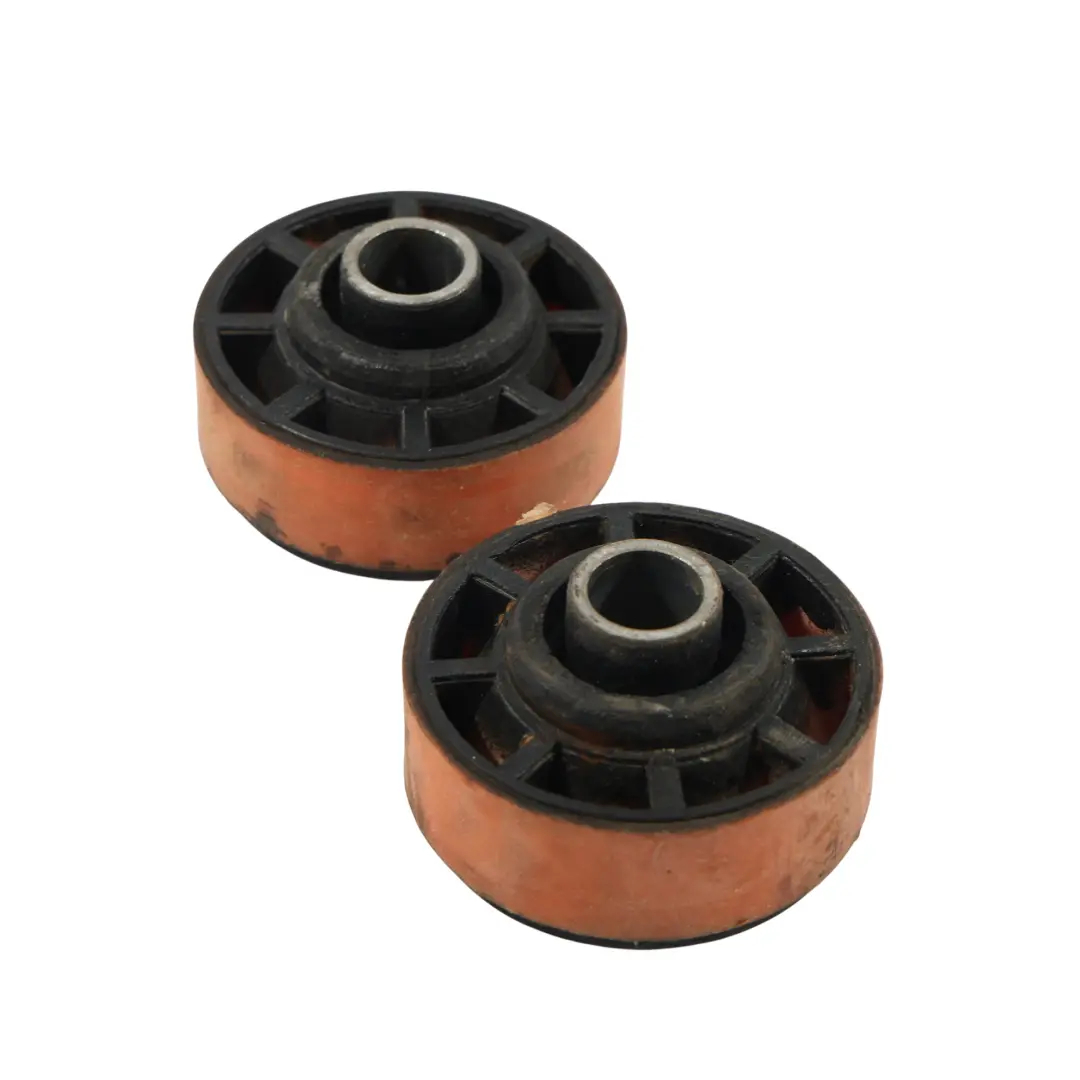

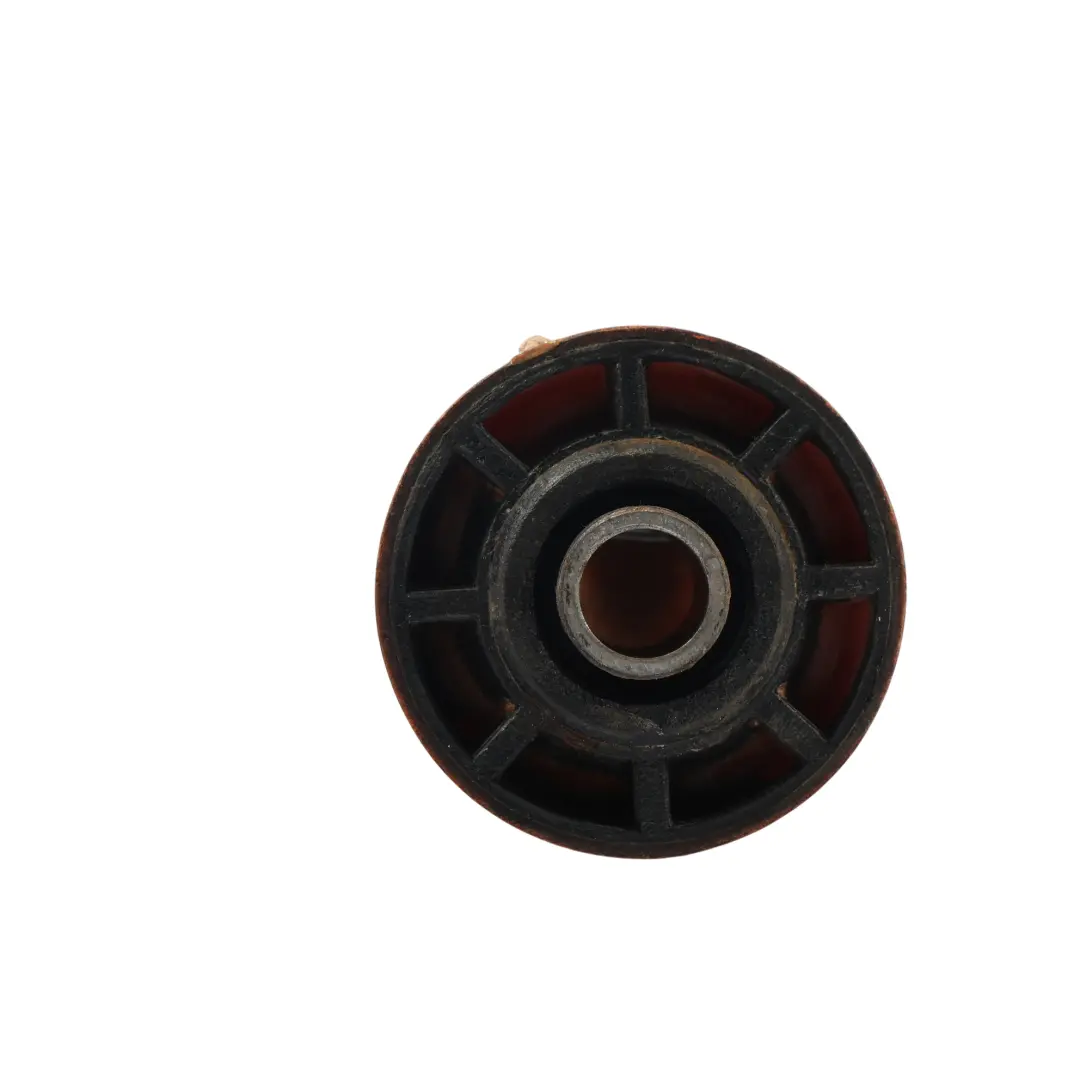

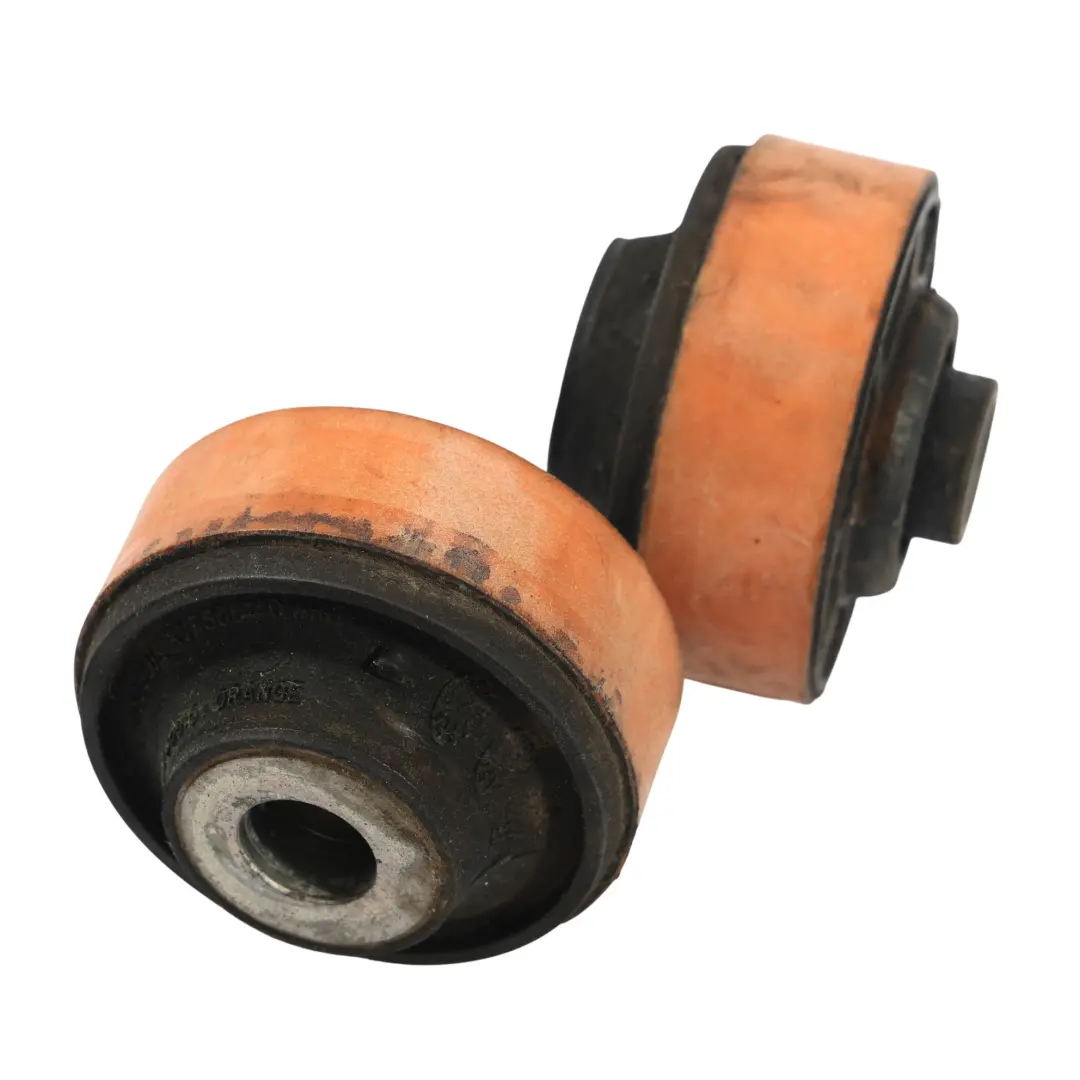

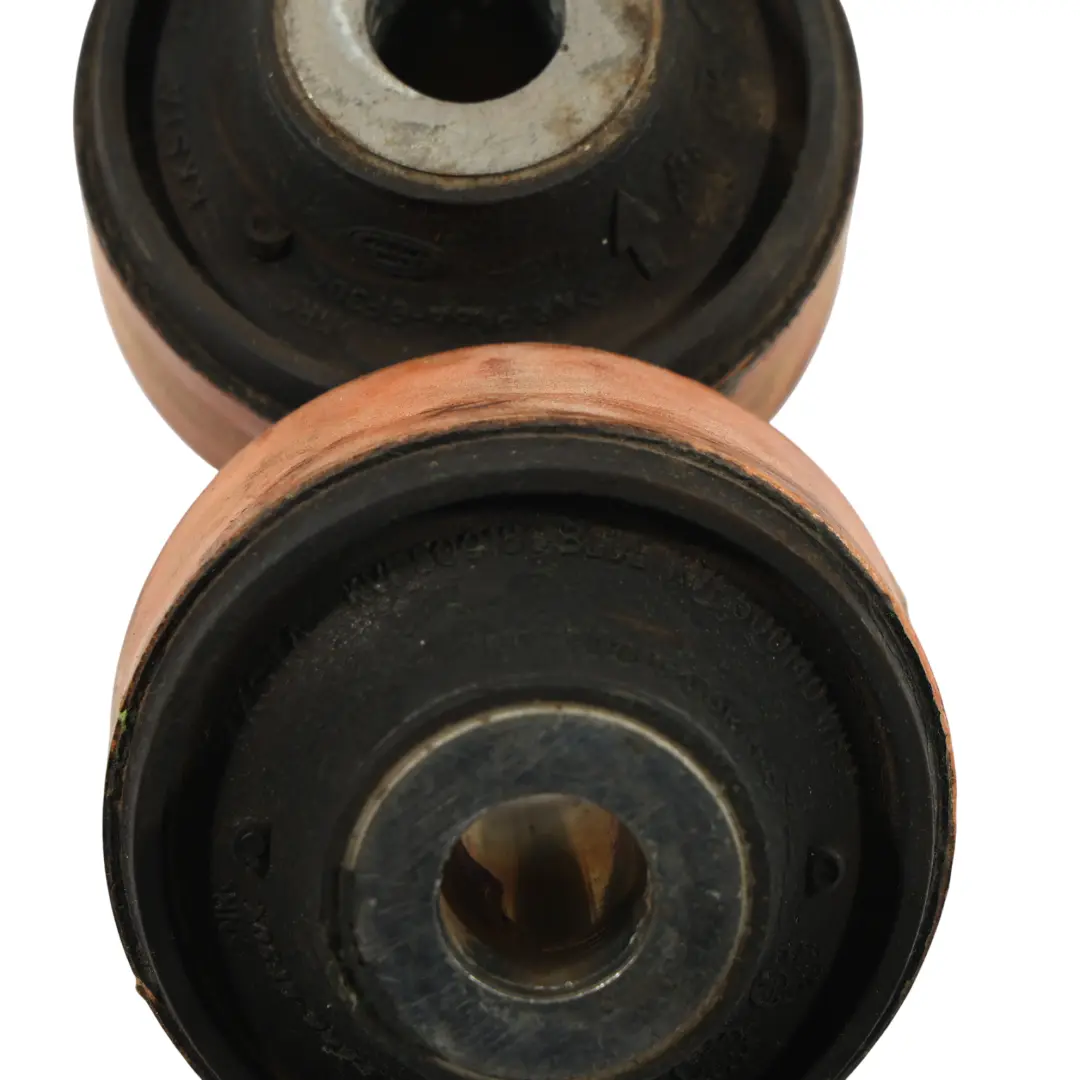

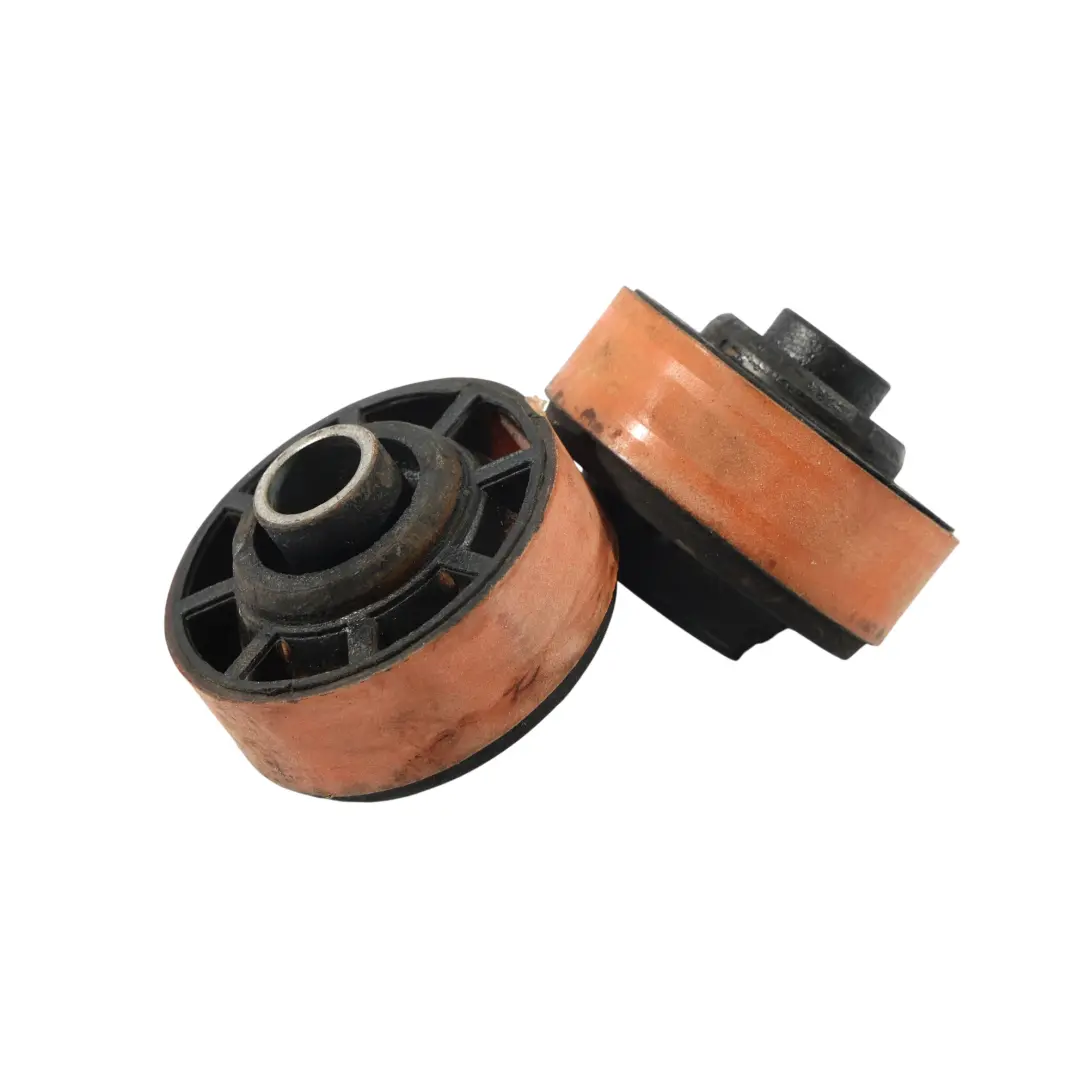

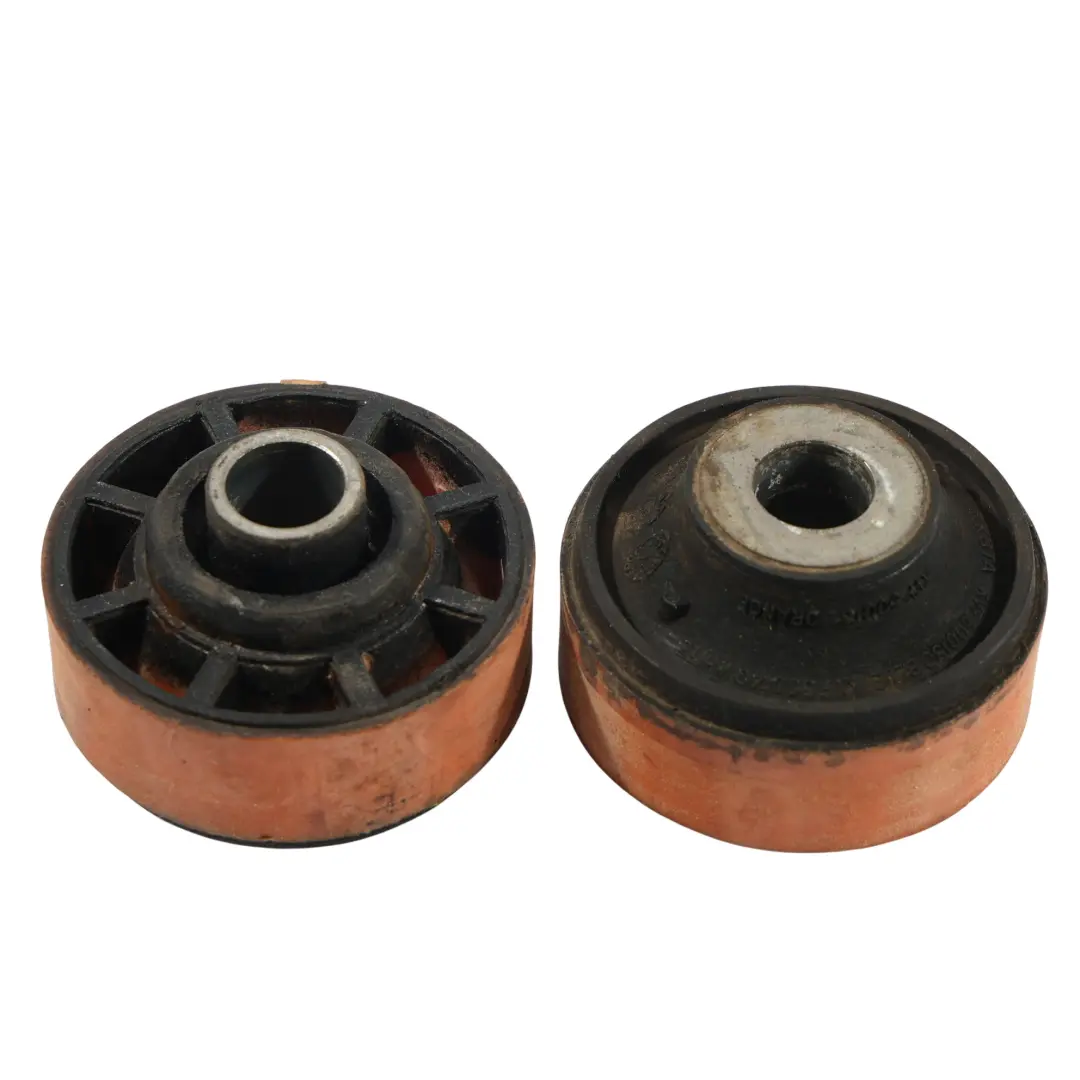

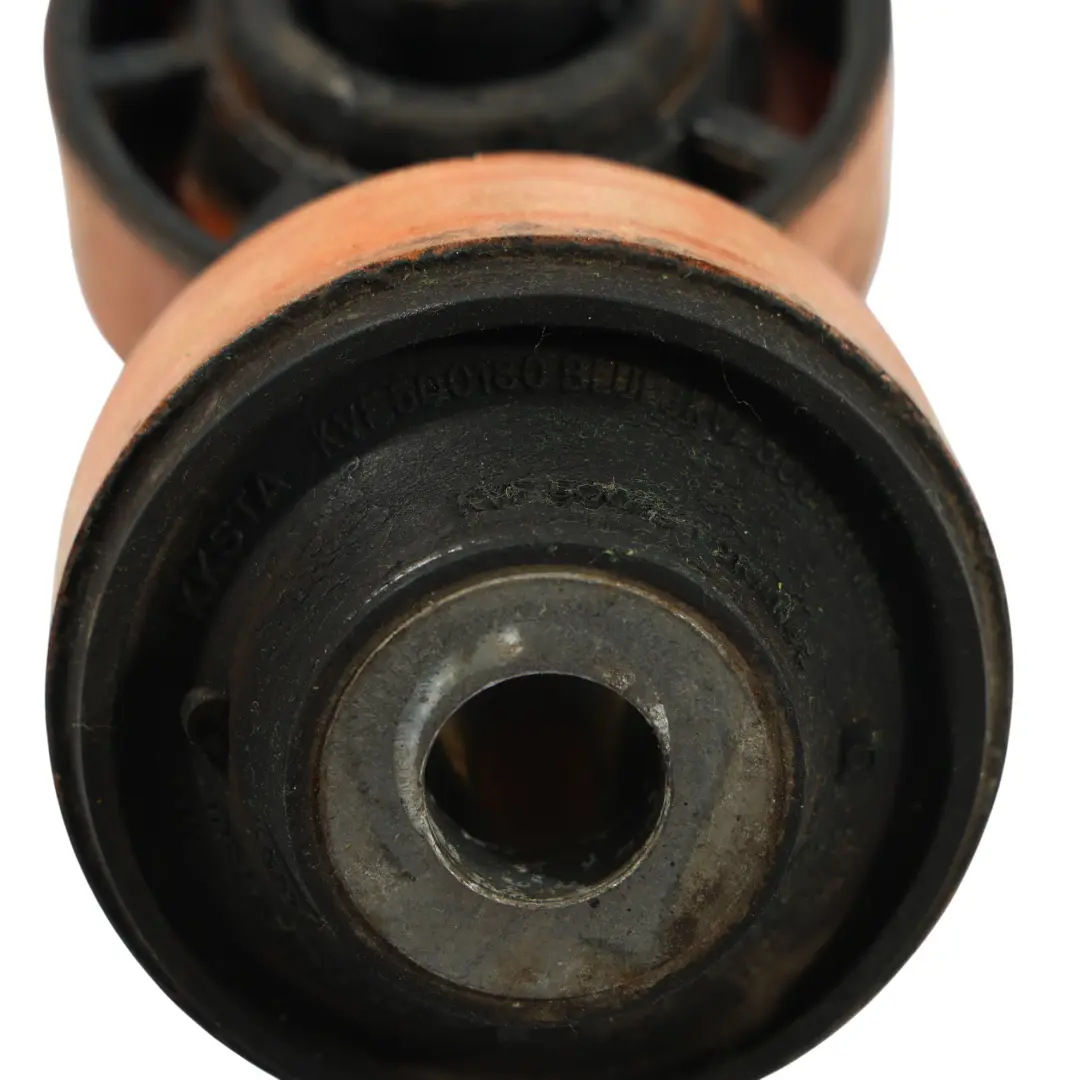

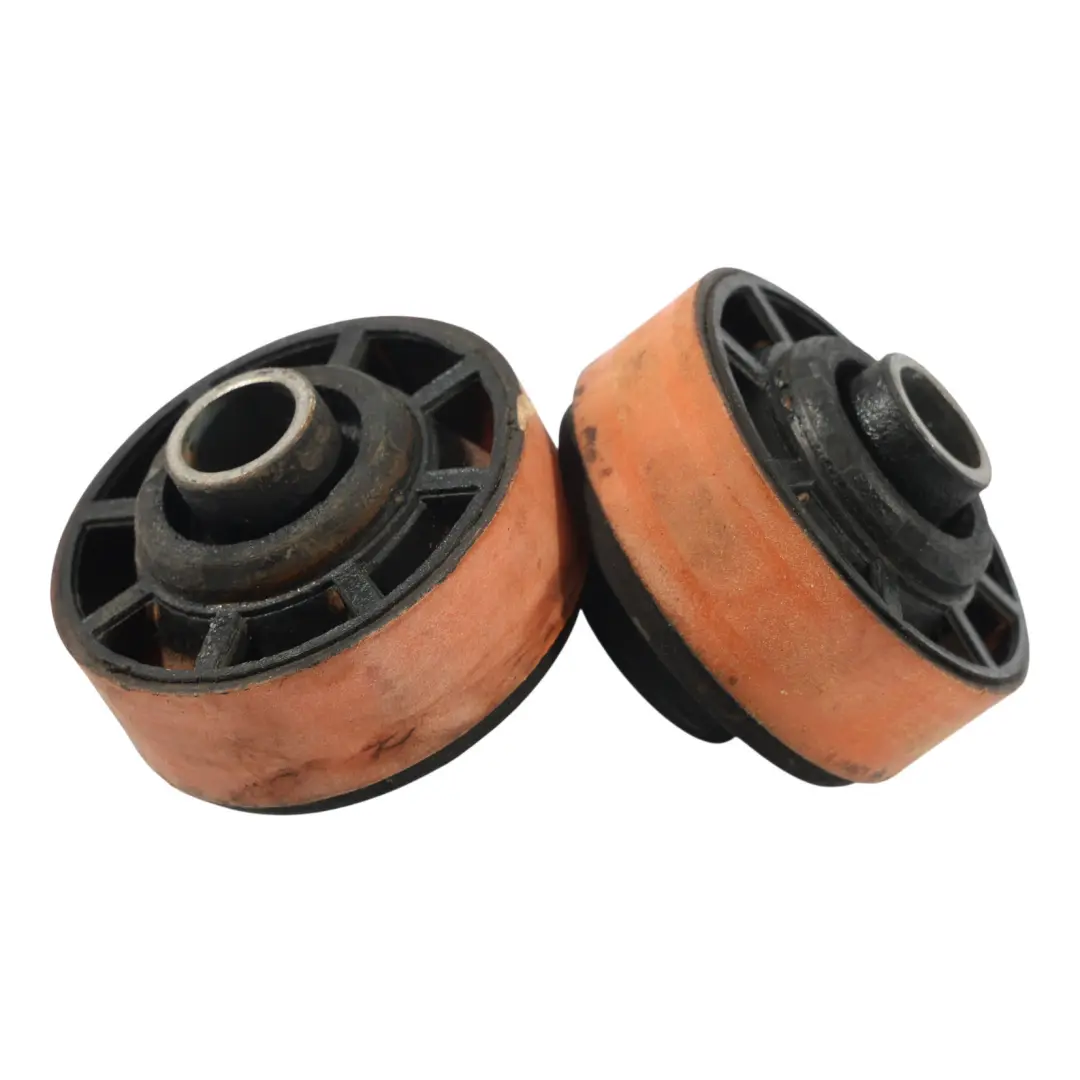

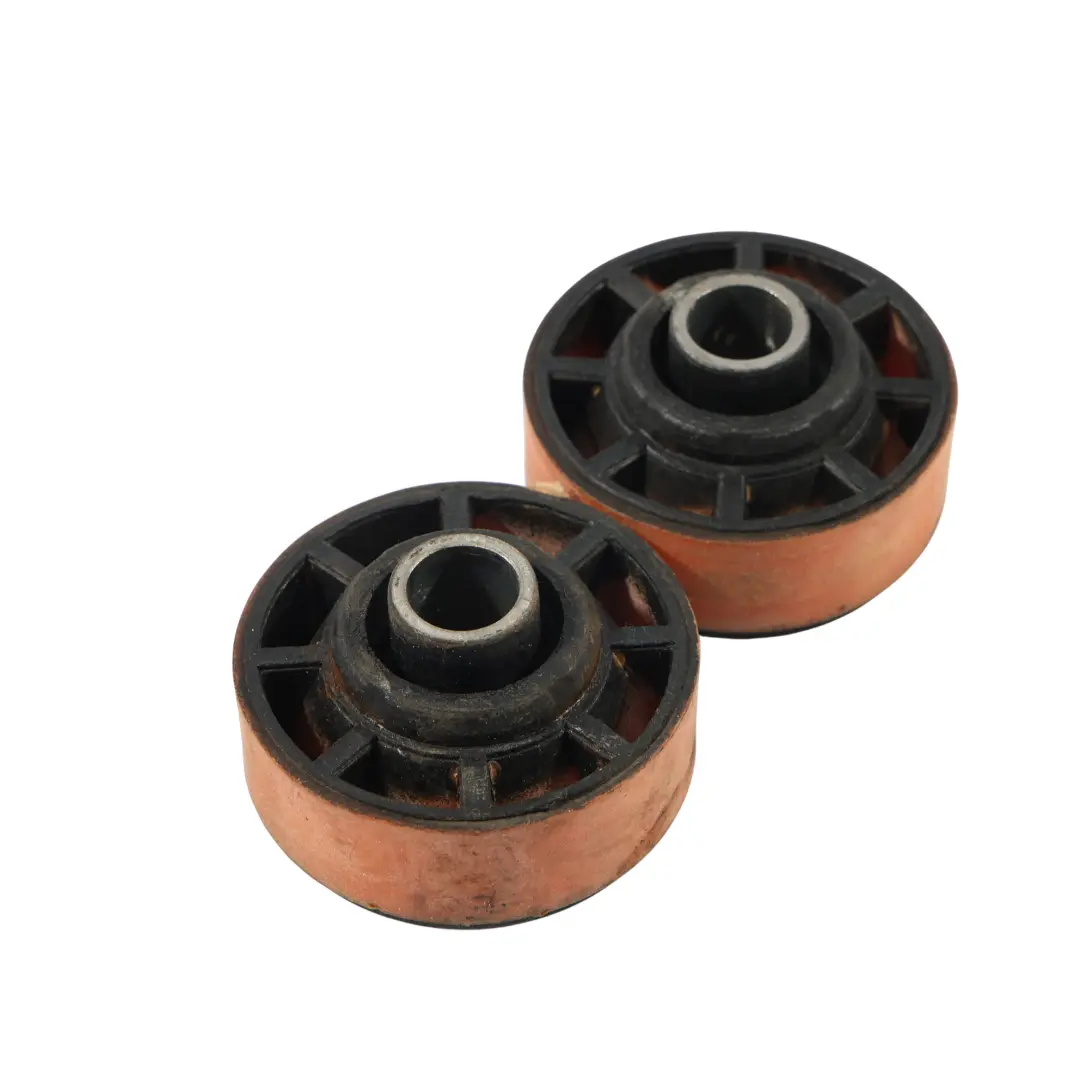

Land Rover Discovery 3 L319 Frame Body Mount Bracket Insulation Set x2 KVF500161

Land Rover Discovery 3 L319 Body Frame Brackets X2 KVF500161 is a set of two mounting components designed for the rear left side of the body, specifically engineered for the Discovery 3's chassis construction. This set, from the Brackets, Mounts & Fasteners category, ensures a stable connection between the body and the frame, contributing to predictable vehicle handling and proper suspension operation. Thanks to their factory-set geometry, these brackets provide correct structural support in the critical rear area of the vehicle.

Specifications and technical data

• SKU: KVF-500161-1
• Mark: Land Rover
• Condition: Used
• OEM Part Number: KVF-500161
• Substitutable numbers: KVF-500161, KVF500161, 5H2200054HA, 5H22-00054-HA
• Location on the vehicle: Rear, Left
• Category: Mounts, Brackets & Hardware

Purpose and Function in the Discovery 3 Construction

The body frame bracket set operates in the rear left zone of the vehicle, where significant loads are transferred from suspension operation, body weight, and off-road driving. Appropriately selected brackets in this location:

• stabilize the frame-to-body connection in the transverse and longitudinal axes,
• limit undesirable structural displacement during uneven terrain driving,
• support the correct operation of suspension and drivetrain components.

By maintaining the original mounting geometry, the set allows for precise replication of the factory mounting system, which is particularly important for repairs following corrosion or mechanical damage.

Technical and Mounting Characteristics

The brackets are designed as load-bearing elements, working with the frame and body in a multi-point mounting system. Their construction enables:

• precise fitting to factory bolt points in the rear left part of the vehicle,
• maintenance of the correct body position relative to the frame,
• compatibility with original bushings and mounting components.

The product is a used part, meaning it is an original Land Rover part, retaining its factory structural and material parameters. For workshops and users, this translates to predictable performance in operation and easier installation compared to aftermarket alternatives with uncertain geometry.

Practical Application and Benefits of Replacement

Replacing worn or corroded body frame brackets in the Discovery 3 is crucial not only for the aesthetics of the undercarriage but, more importantly, for the safety and durability of the entire structure. Using this set allows for:

• restoring the rigidity of the frame-to-body connection in the rear of the vehicle,
• reducing the risk of stress and cracks in adjacent components,
• maintaining correct suspension geometry and predictable vehicle handling.

For vehicles used off-road or towing a trailer, a stable body-to-frame mounting directly impacts driving comfort and the even distribution of loads within the vehicle's structure.

Condition, Origin, and Part Selection

The offered set comes from the original Land Rover production line and is a used part, ensuring factory-fitment to the Discovery 3 L319 construction. This solution is particularly beneficial for workshops specializing in off-road model servicing, where compliance with manufacturer documentation and assembly repeatability are paramount.

To select the correct set for a specific vehicle instance, it is advisable to use manufacturer designations and reference numbers assigned to this item – this facilitates verification of compatibility with the specific body version and year. In case of doubt, selecting by factory numbers helps avoid installation problems and ensures consistency with other mounting system components.
