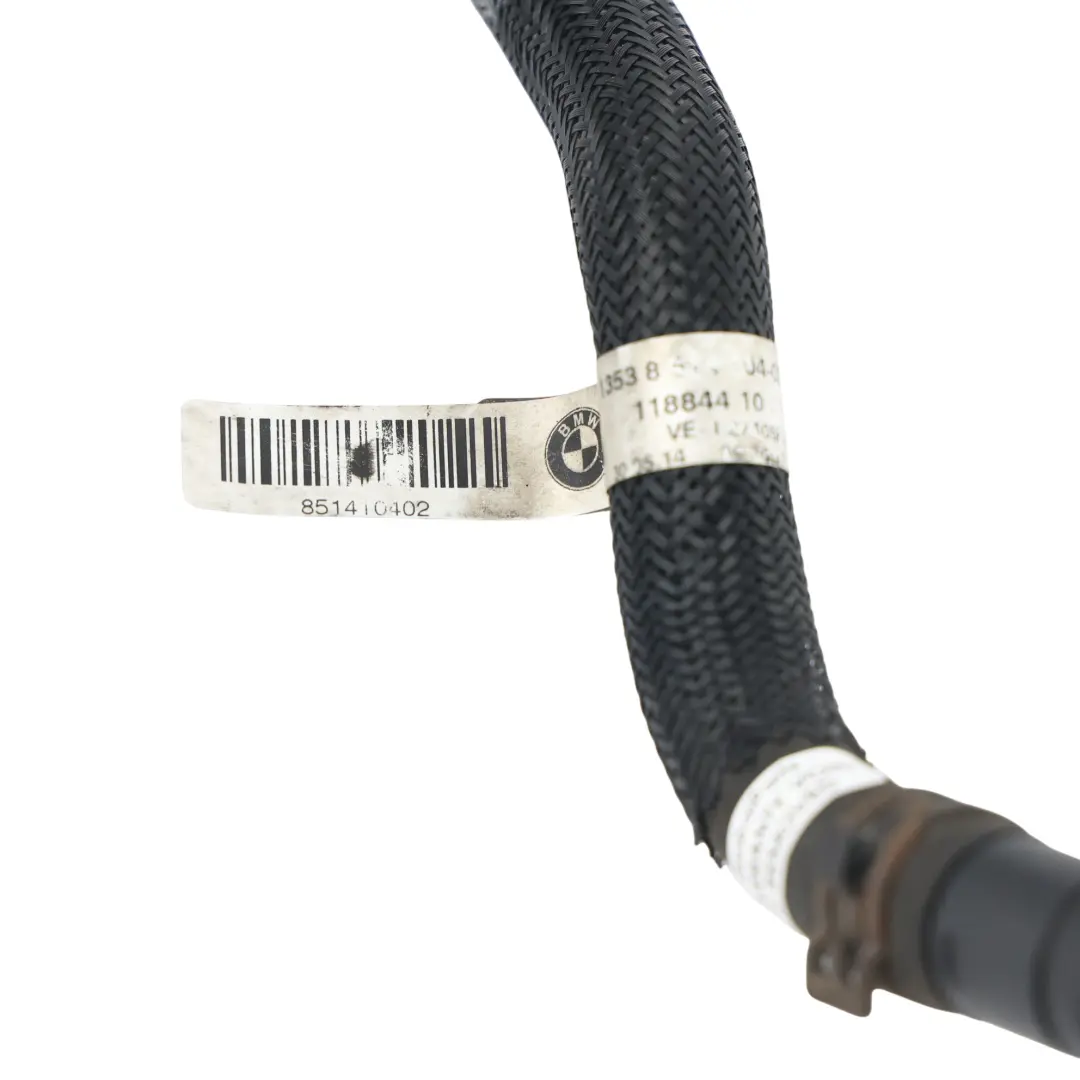

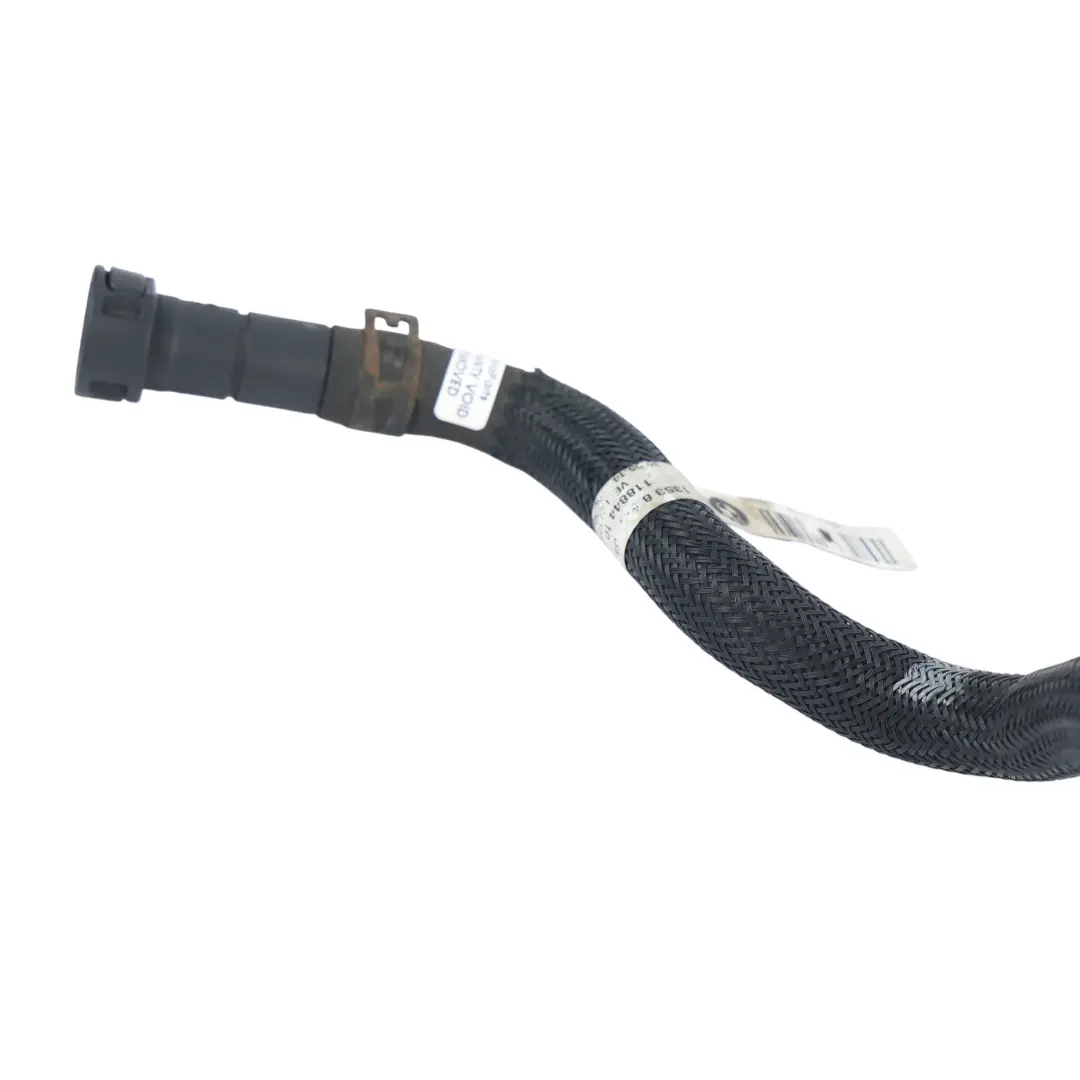

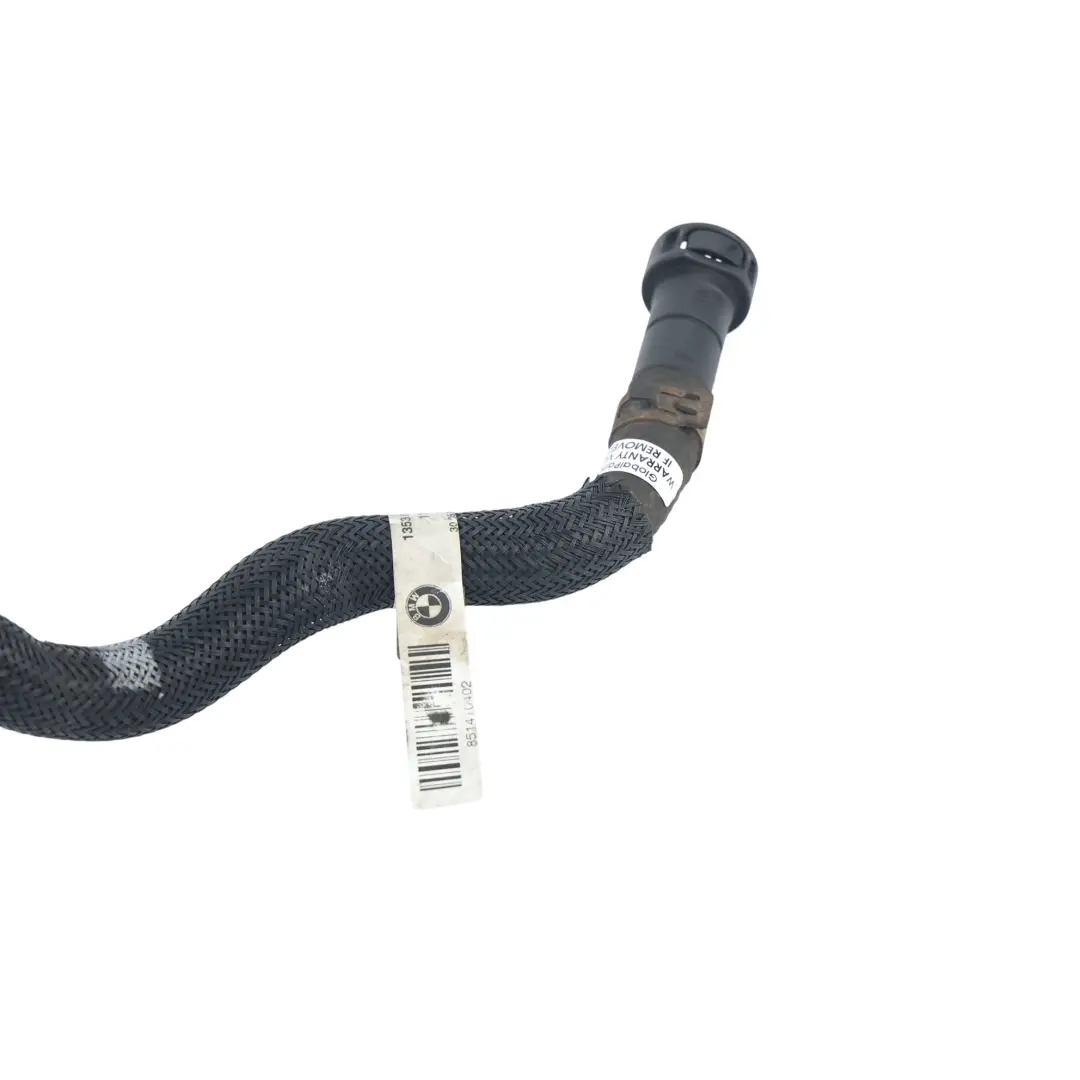

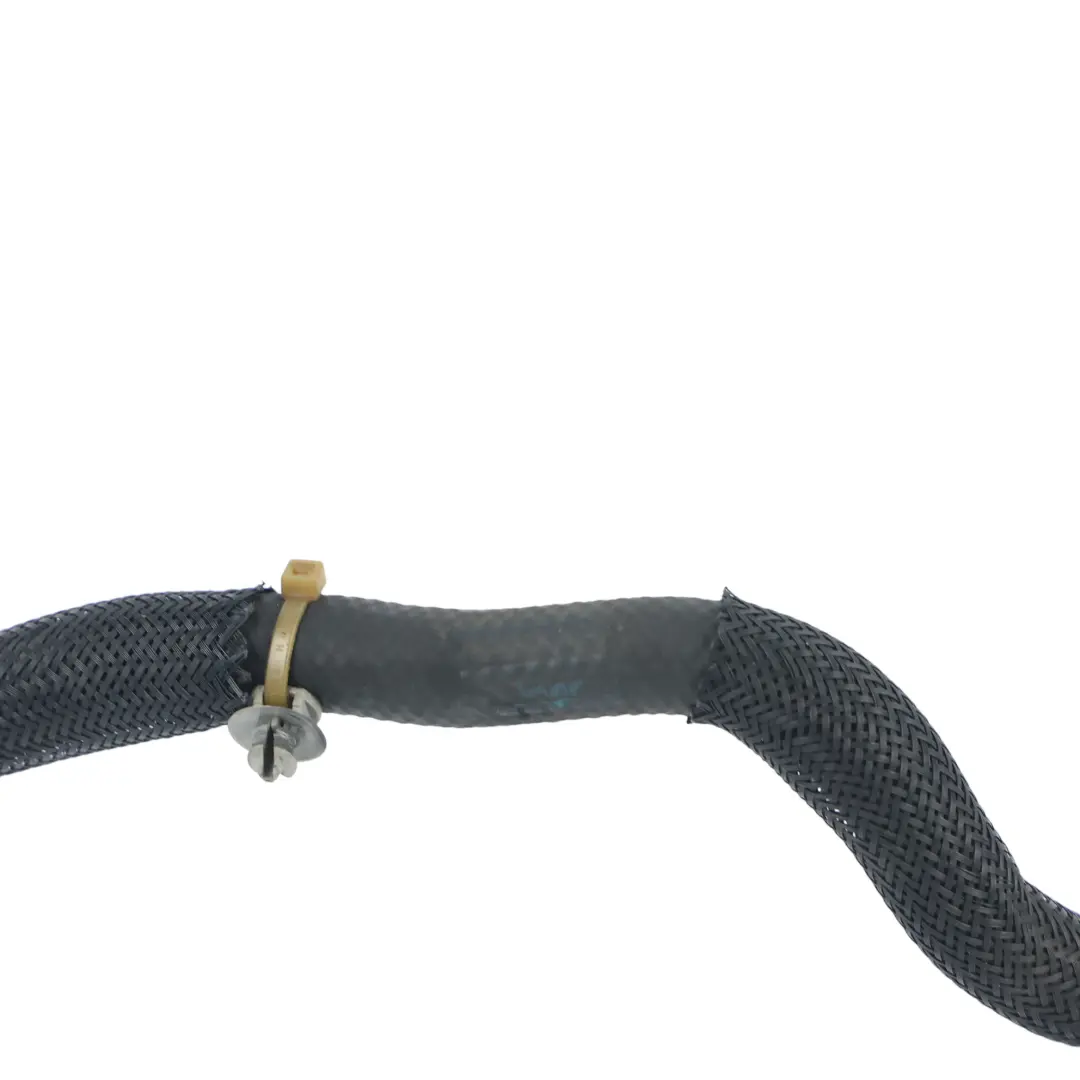

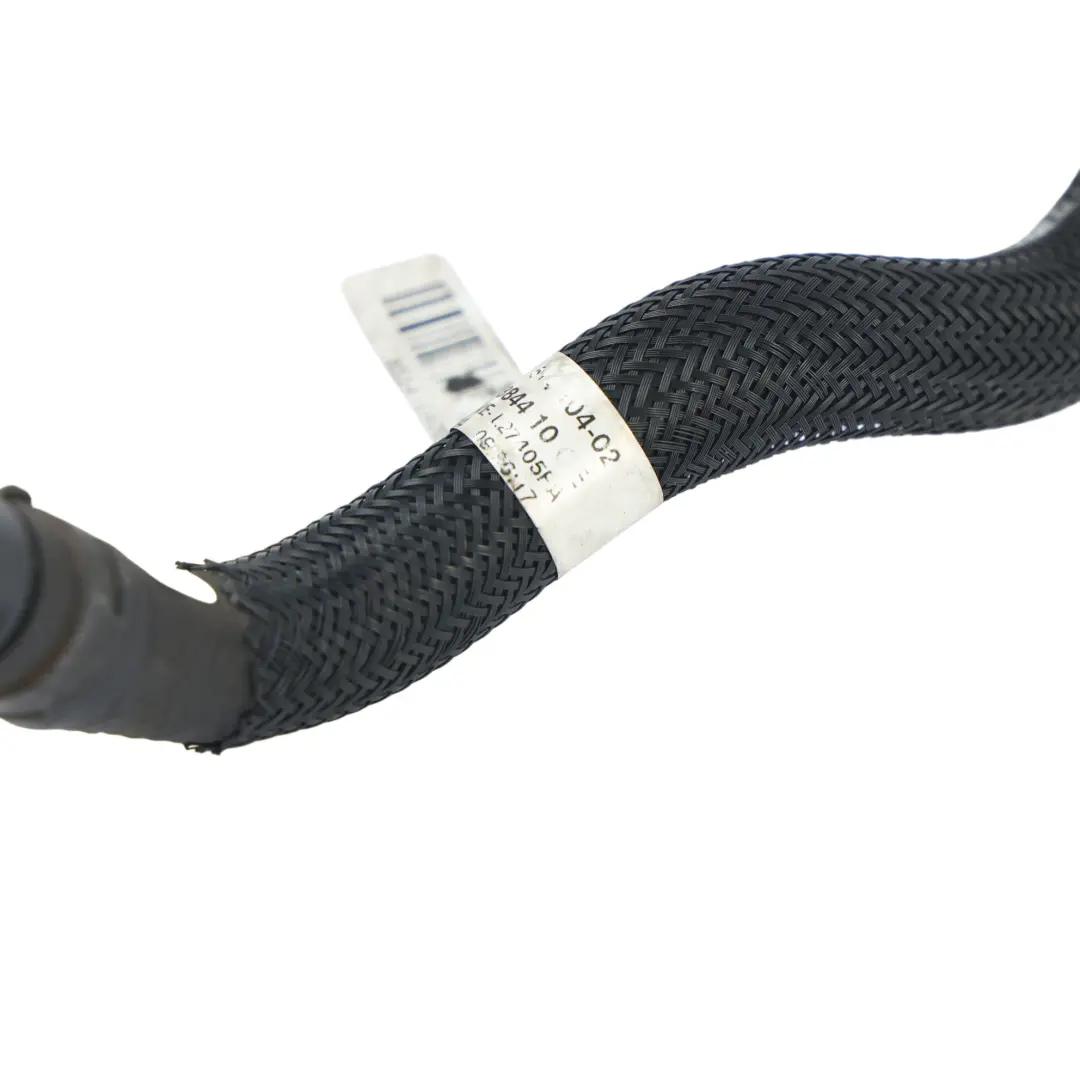

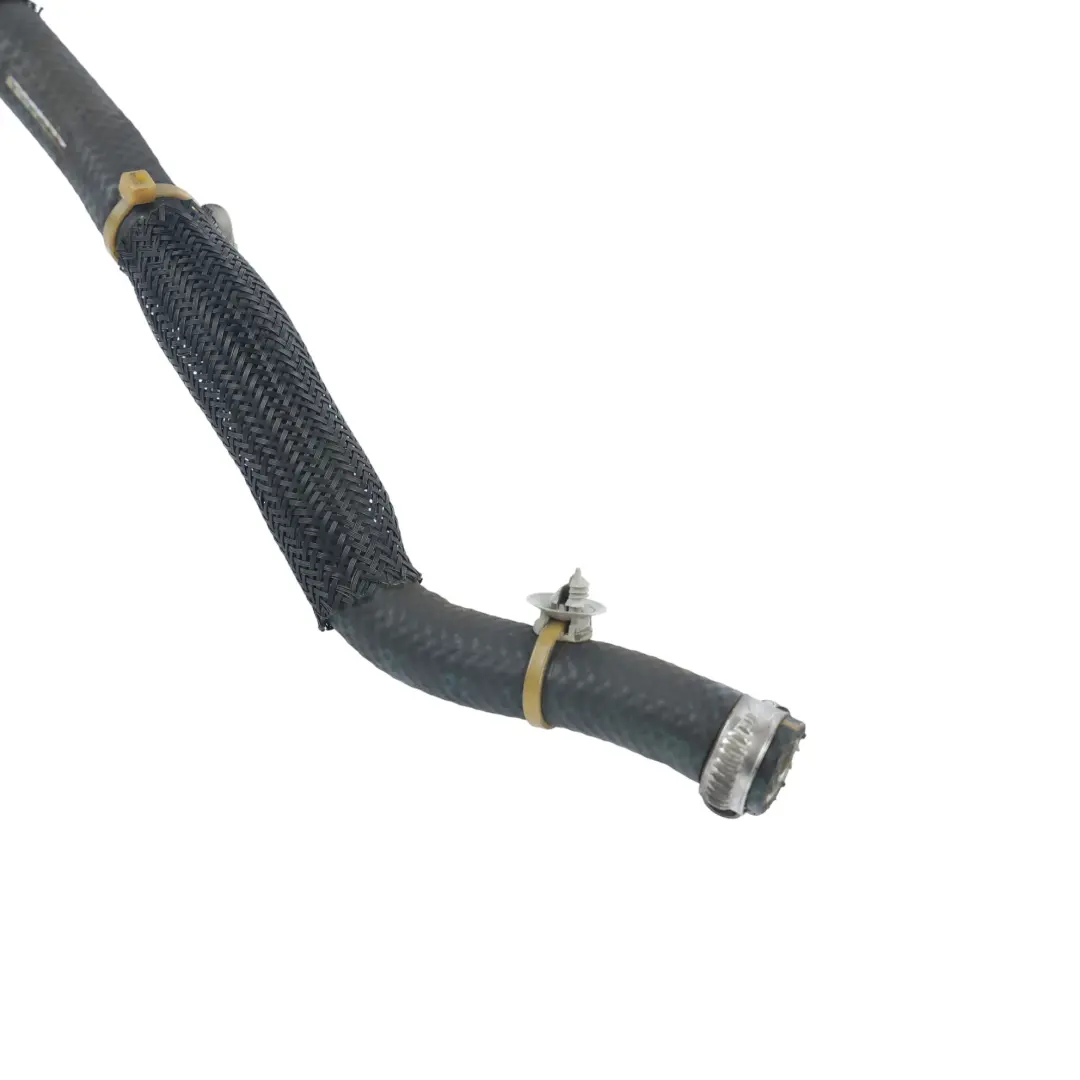

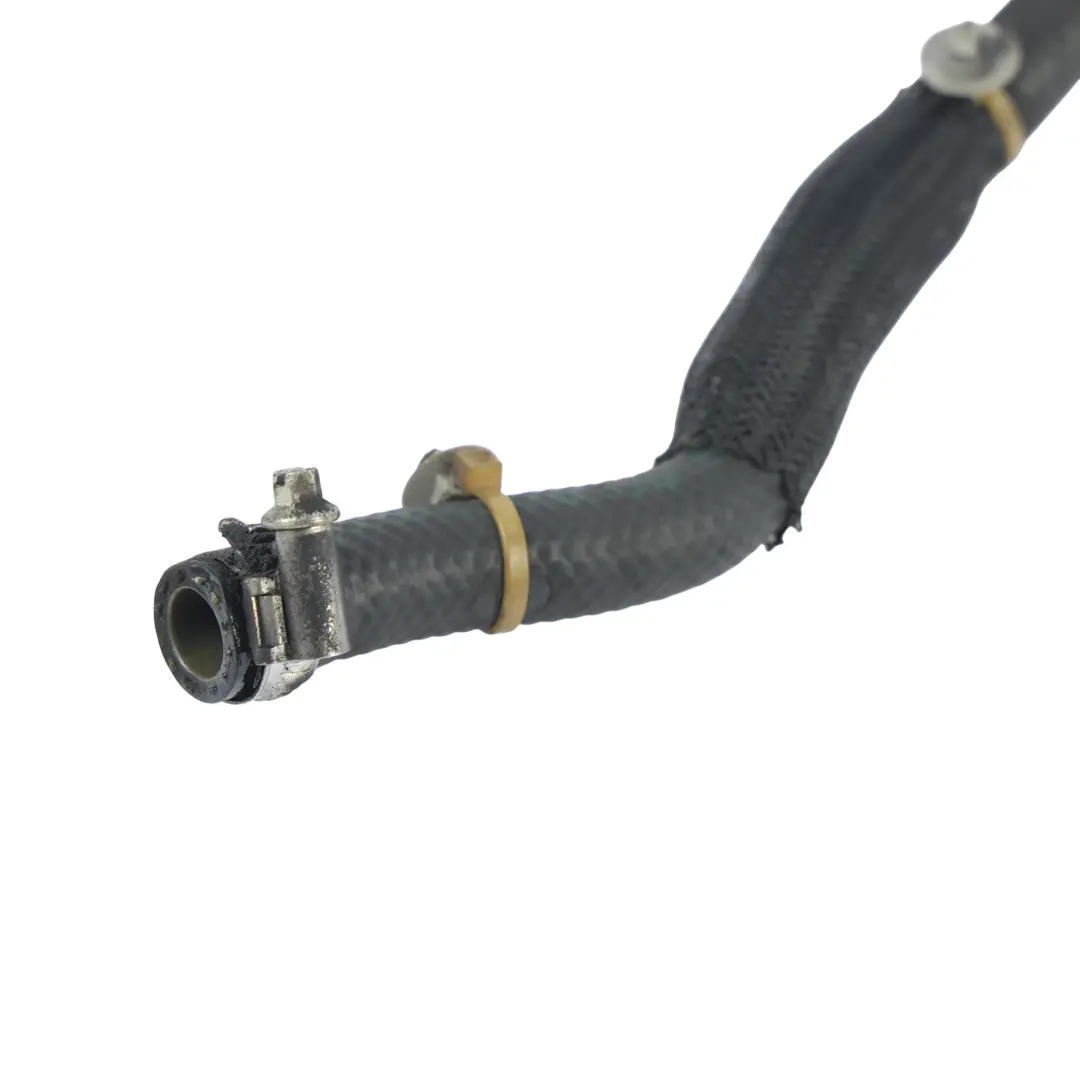

BMW X3 F25 X4 F26 Diesel Fuel Return Line Hose Pipe 2.0D B47 8514104

BMW X3 F25 X4 F26 Diesel Fuel Return Line Hose Pipe 2.0D B47 is a fuel system component designed for BMW B47 family diesel engines used in X3 F25 and X4 F26 models. As part of the Lines, hoses and pipes group, it is responsible for the safe and controlled return of diesel fuel from the rail or injection system to the tank, which is essential for the stable operation of the engine. Using an OEM component allows for an economical yet technically correct repair of the fuel system.

Specifications and technical data

• SKU: 8514104
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8514104
• Substitutable numbers: 8514104, 13538514104
• Fuel type: Diesel
• Part type: Line
• Category: Hoses, Lines & Pipes

Purpose and function in the fuel system

The fuel return line in the B47 diesel engine is responsible for draining excess diesel fuel from the injection system components back to the tank. A properly selected and leak-free line:

• stabilizes pressure in the fuel supply system,
• reduces the risk of air entering the system,
• minimizes fuel loss through a controlled circuit,
• supports the smooth operation of injectors and the high-pressure pump. Thanks to its fitment for the specific 2.0D B47 engine configuration in the X3 F25 and X4 F26 models, the line maintains the correct routing geometry and compatibility with factory quick-connectors and mounts.

Benefits of using an original fuel return line

Using an original return line in a diesel system provides a number of practical operational benefits. The most important include:

• Factory fitment – the correct length, diameter, and shape of the line reduce stress and the risk of chafing during engine and suspension operation.
• Compatibility with the B47 engine – the line is designed for specific connection points in the 2.0D unit, which facilitates installation and service.
• Stable fuel system operation – proper fuel return promotes smooth engine performance, especially under load and in low temperatures.
• Leak reduction – a properly selected line reduces the risk of leaks in critical areas of the system.

Installation and operational characteristics

The fuel return line in this configuration is designed to work with diesel fuel, which means it is resistant to typical conditions in the engine bay and contact with fuel. The design of the line is adapted to:

• factory brackets and routing in the BMW X3 F25 and X4 F26 engine bay,
• original connectors used in the B47 fuel supply system,
• thermal and vibration conditions typical for diesel units. Using this component allows for the restoration of proper fuel circulation without the need for aftermarket parts with uncertain parameters, which is especially important in precise common rail systems.

Application in service practice

Replacing the fuel return line is recommended in situations where the following occur:

• traces of seepage or diesel fuel leaks in the vicinity of the lines,
• starting problems after a long period of inactivity resulting from air in the system,
• mechanical damage to the line (cracks, abrasions, deformations),
• traces of interference in the fuel system from previous repairs. Selecting a line dedicated to the BMW X3 F25 and X4 F26 with the 2.0D B47 engine facilitates service work, shortens installation time, and reduces the risk of errors resulting from incorrect component fitment.
