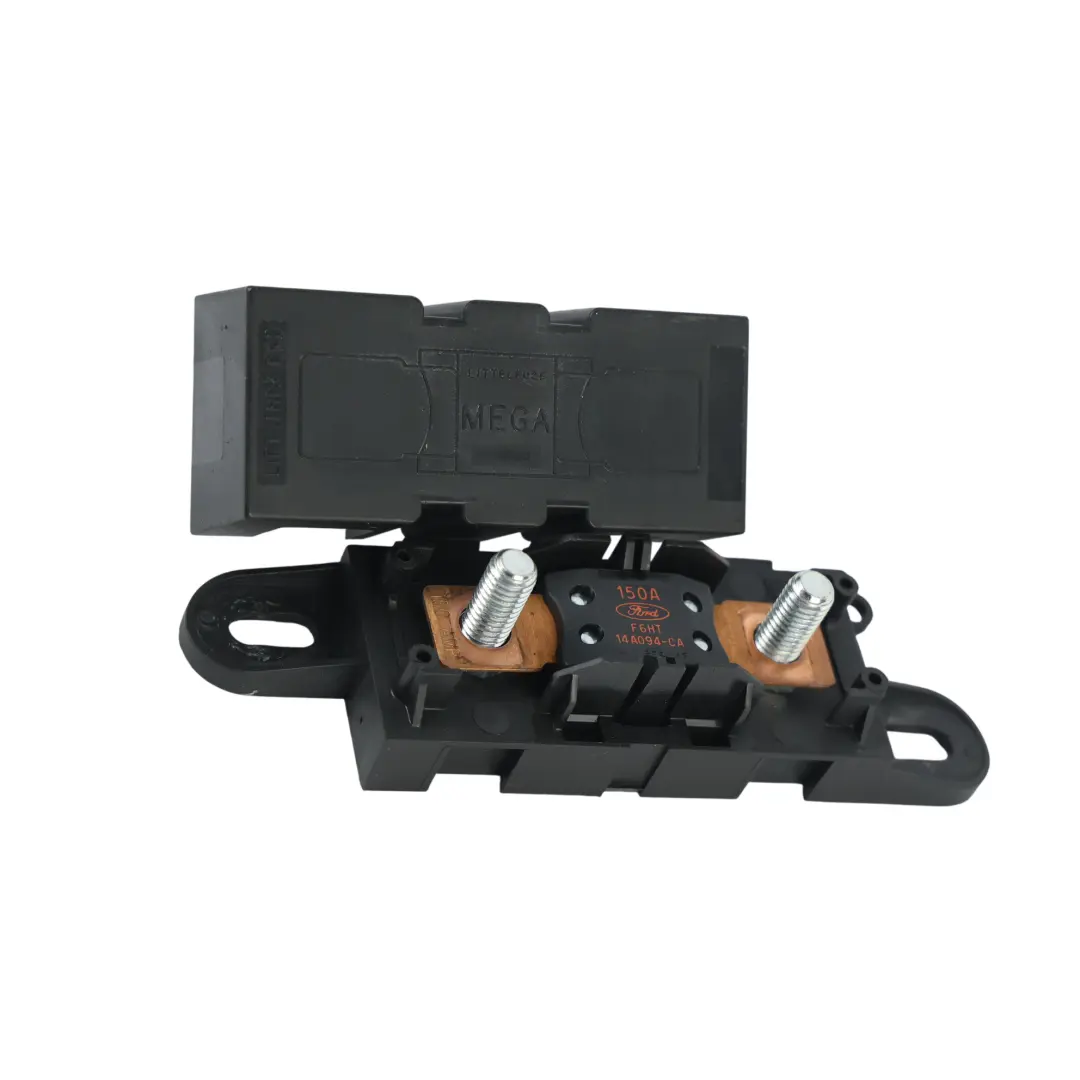

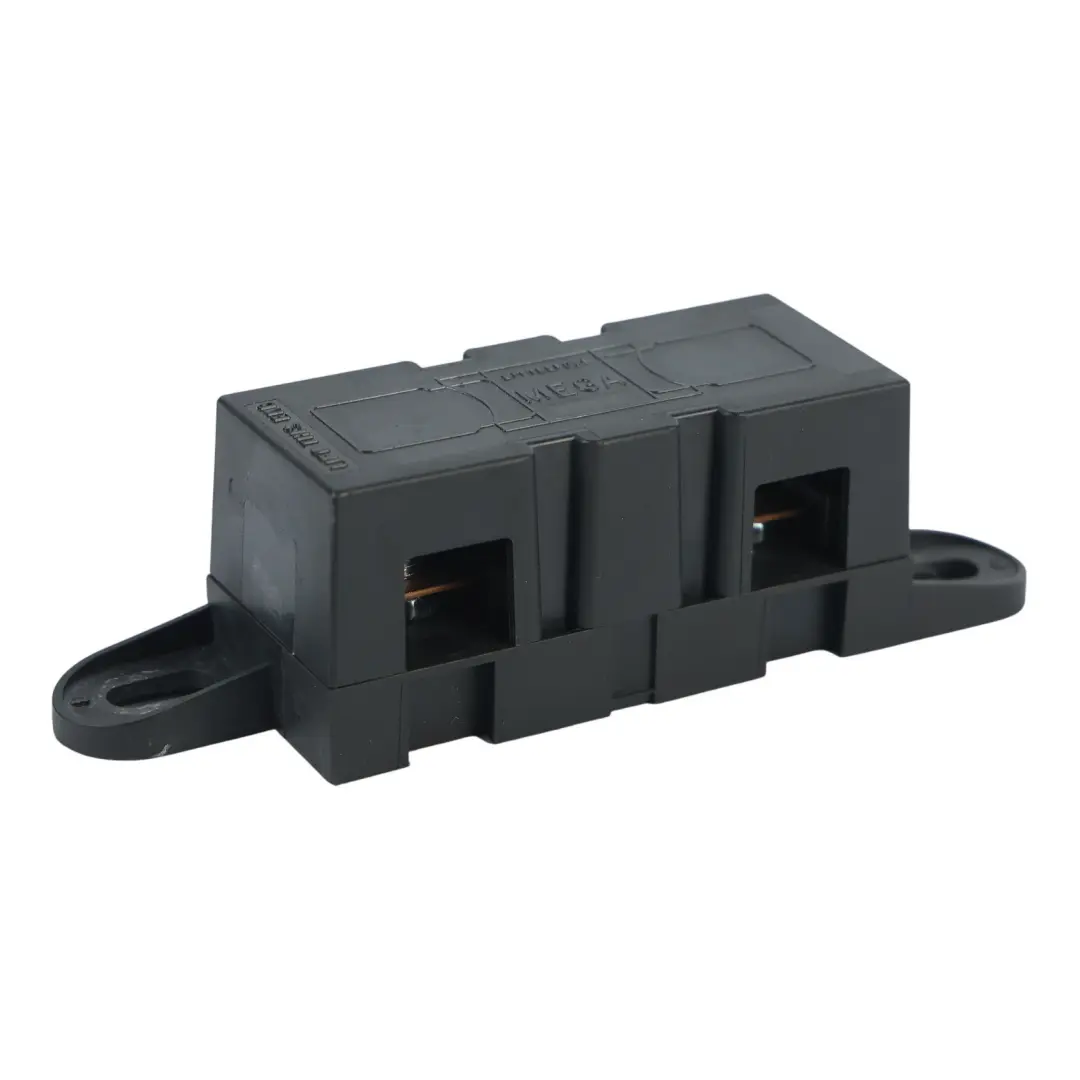

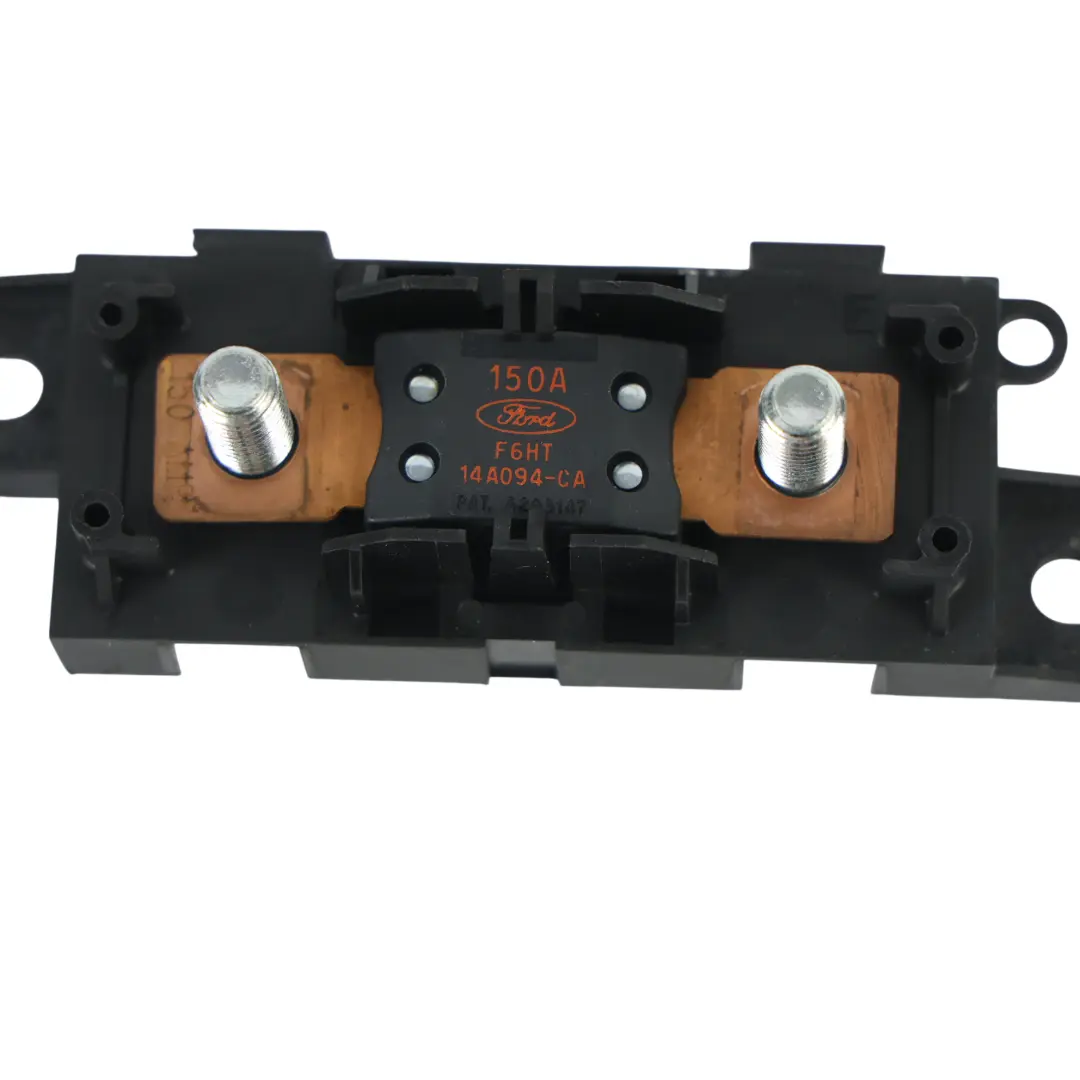

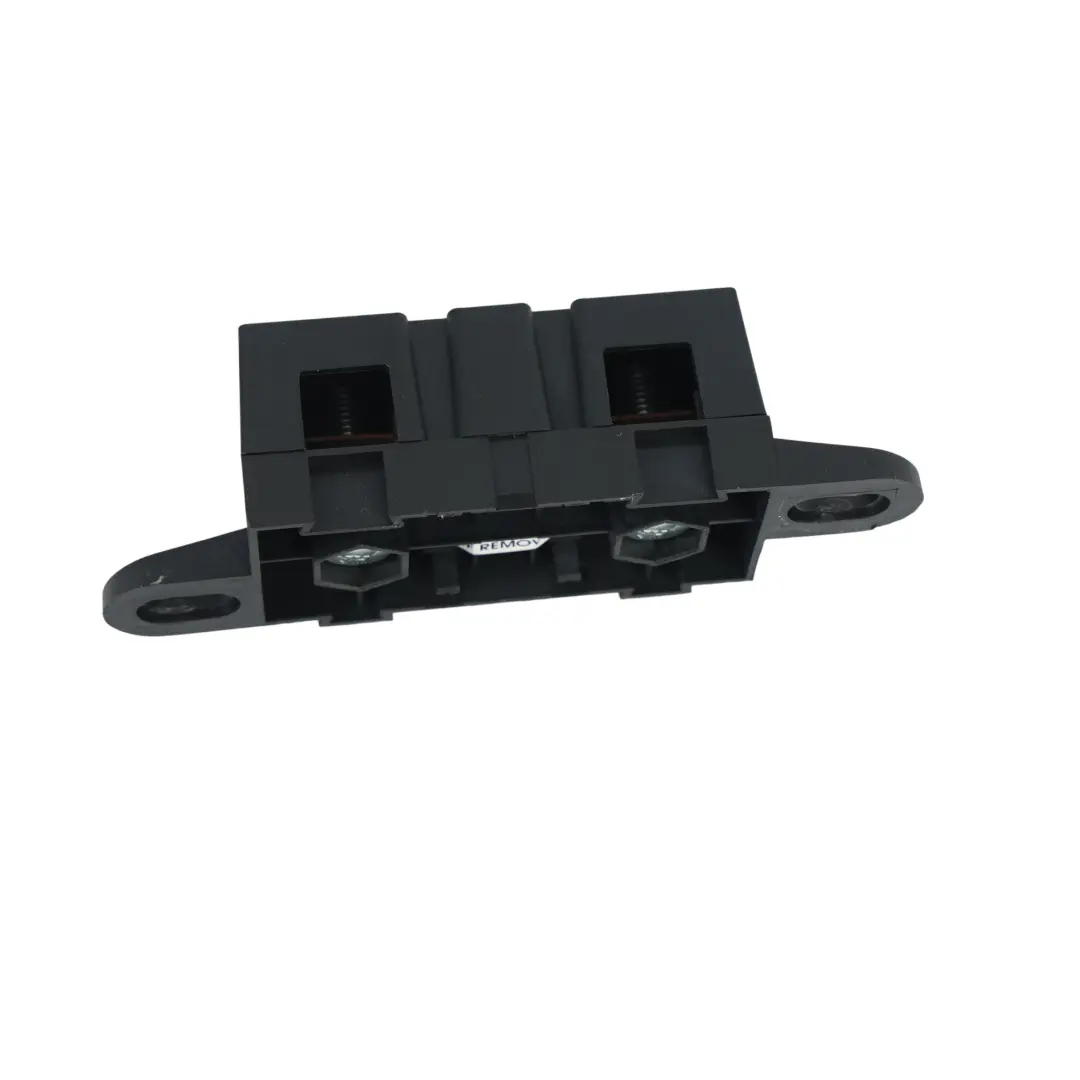

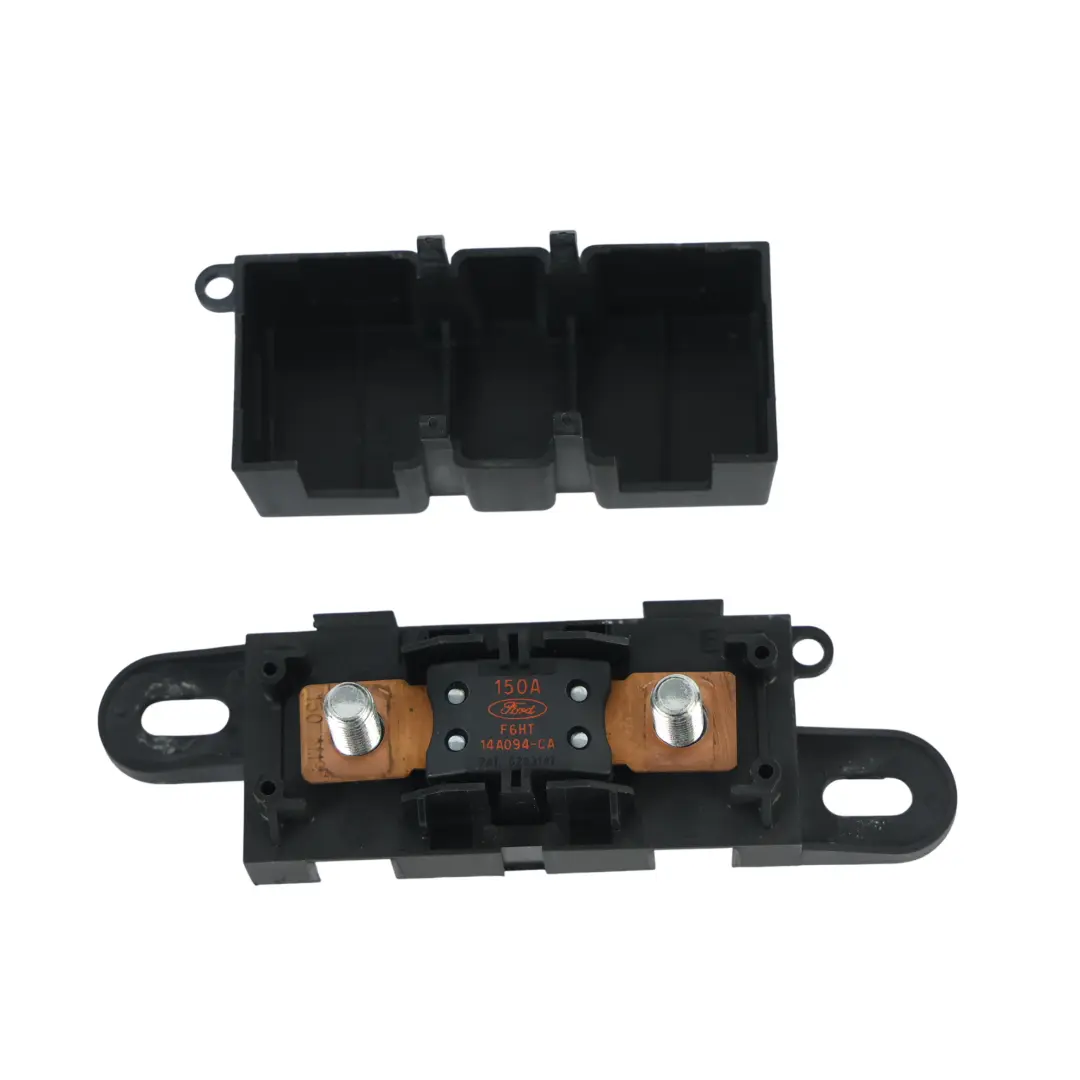

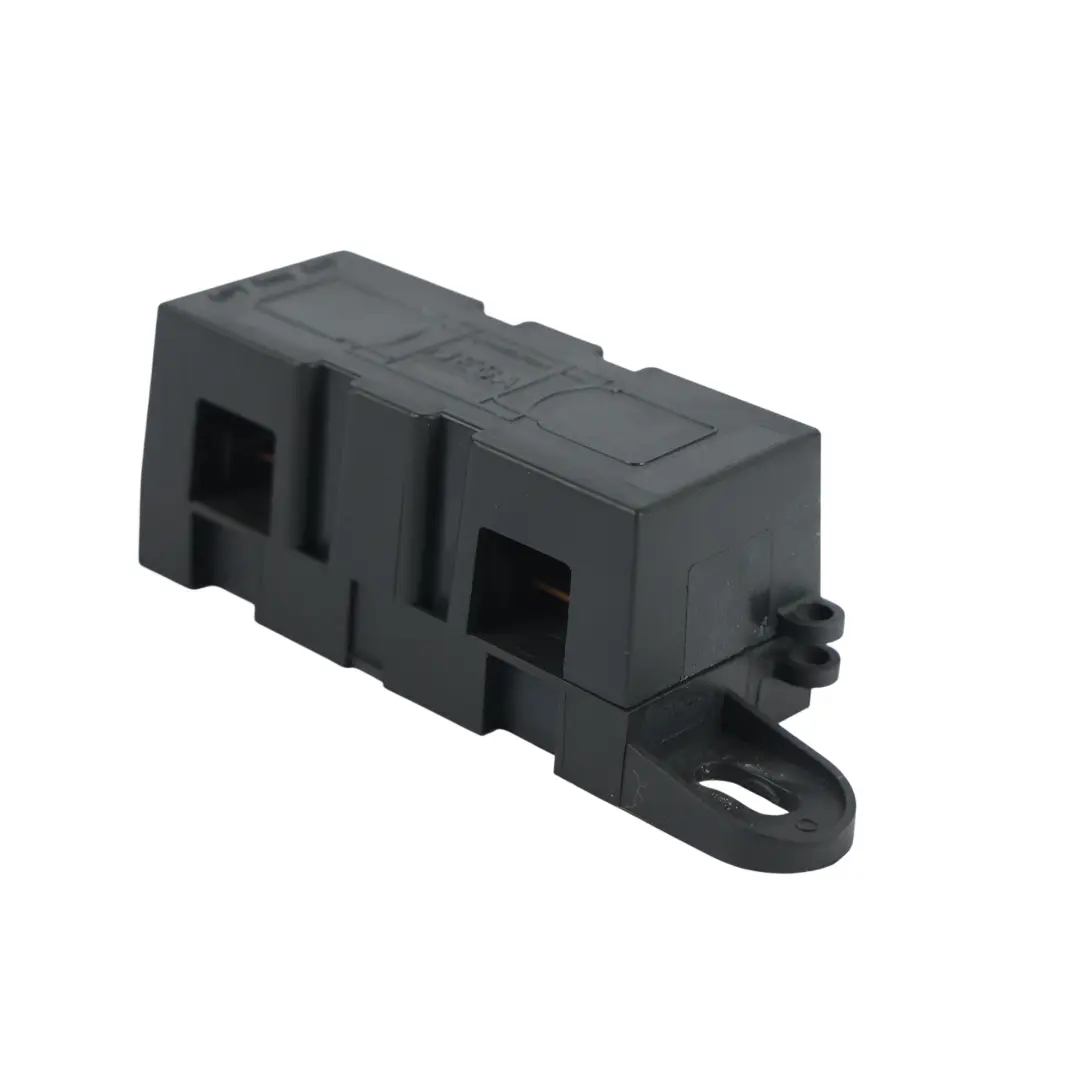

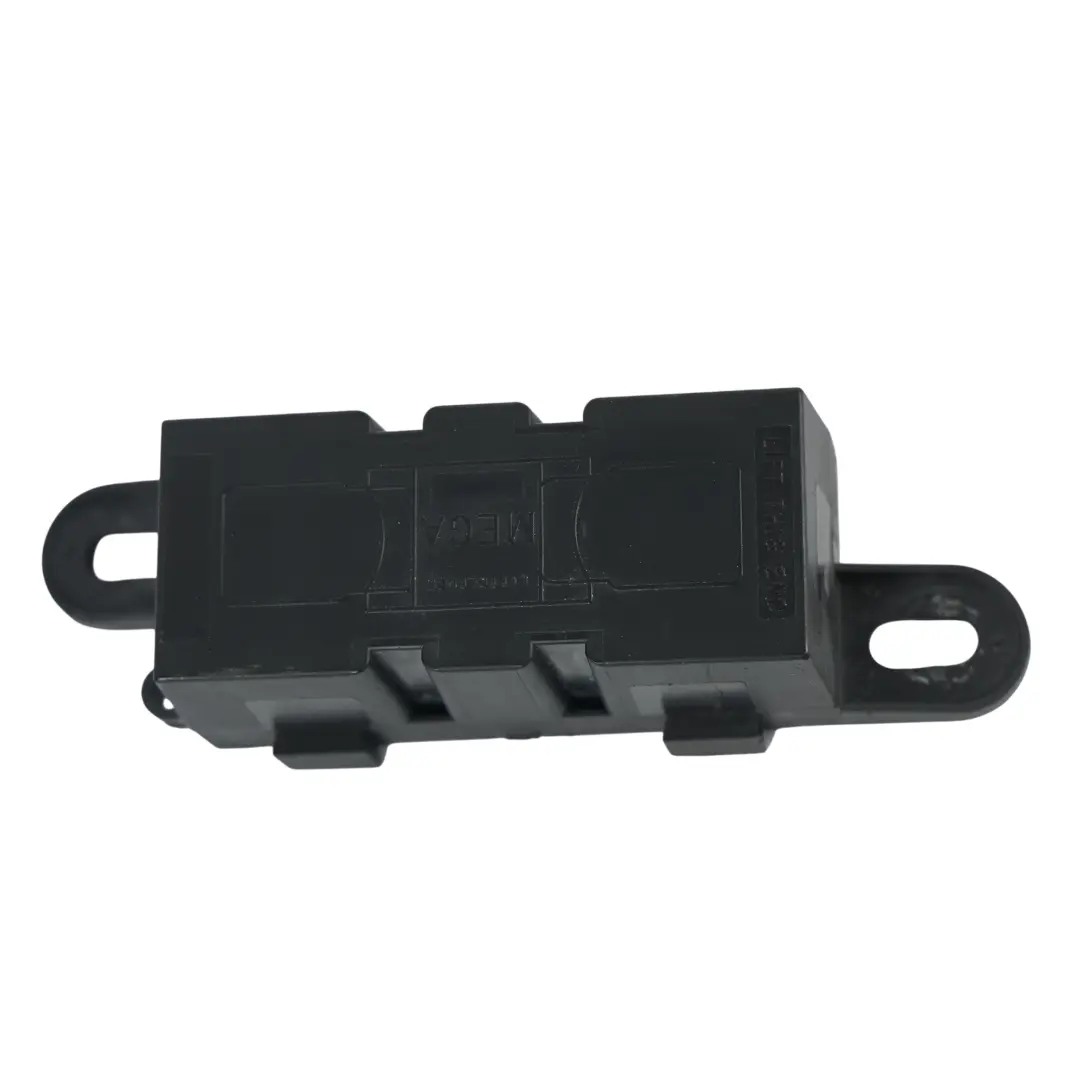

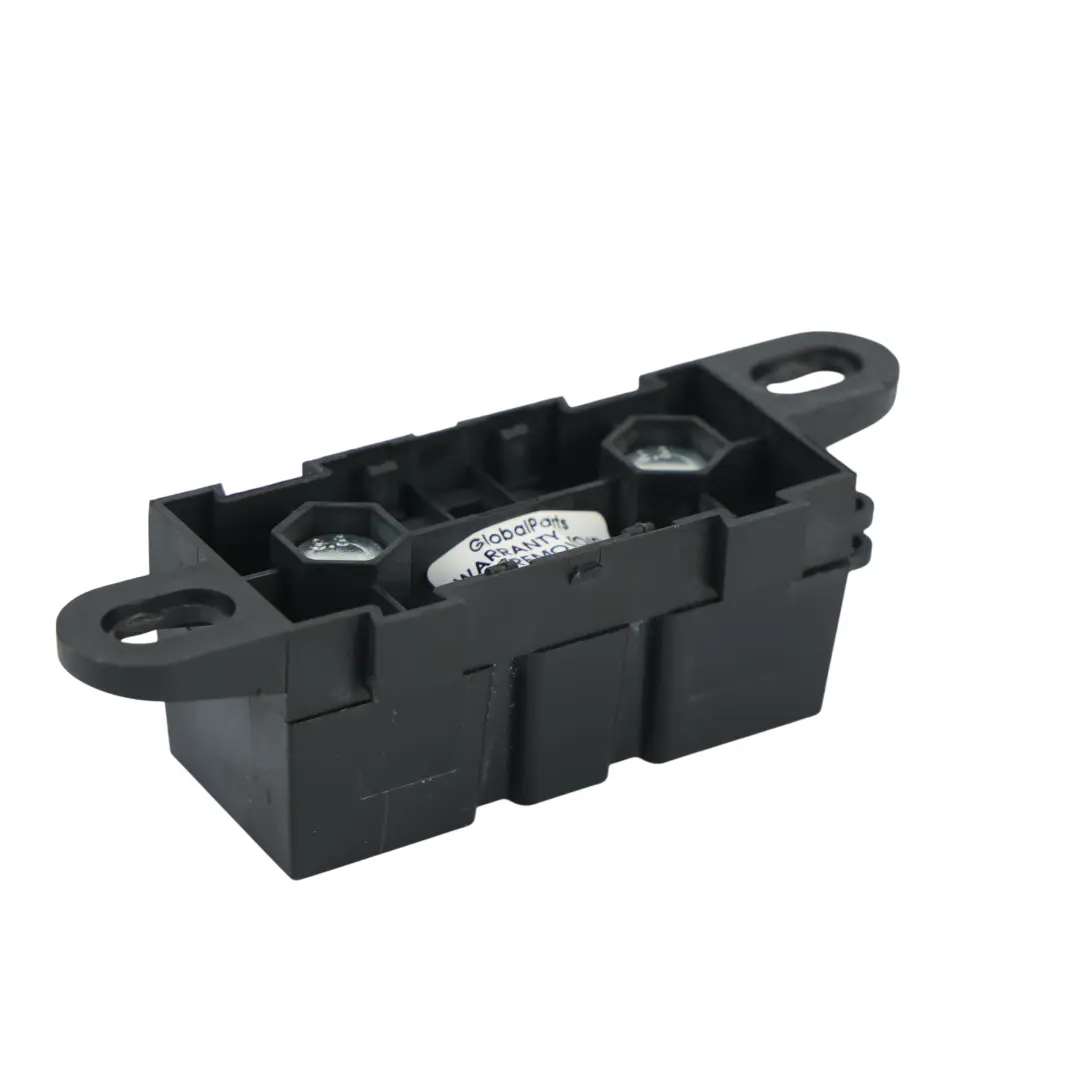

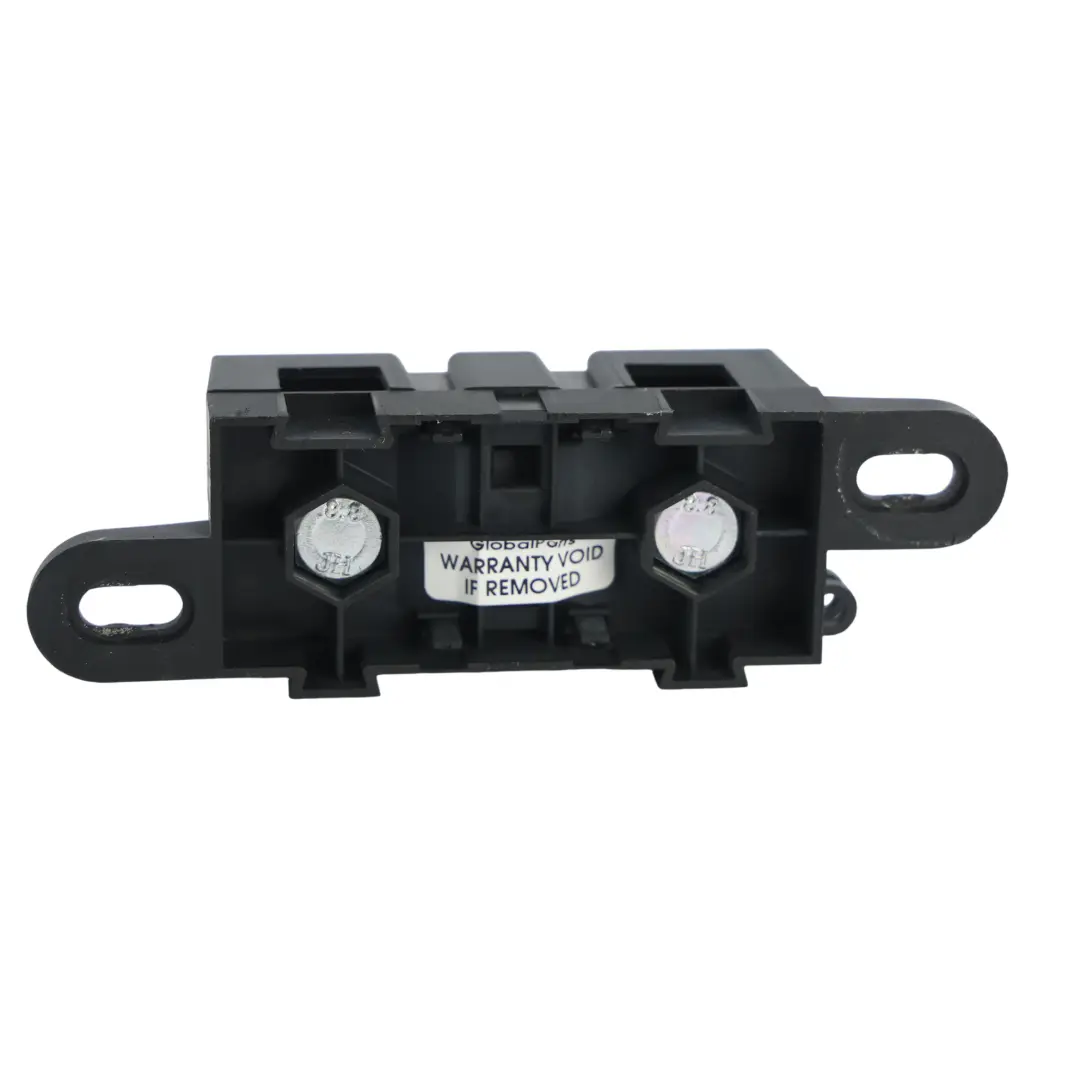

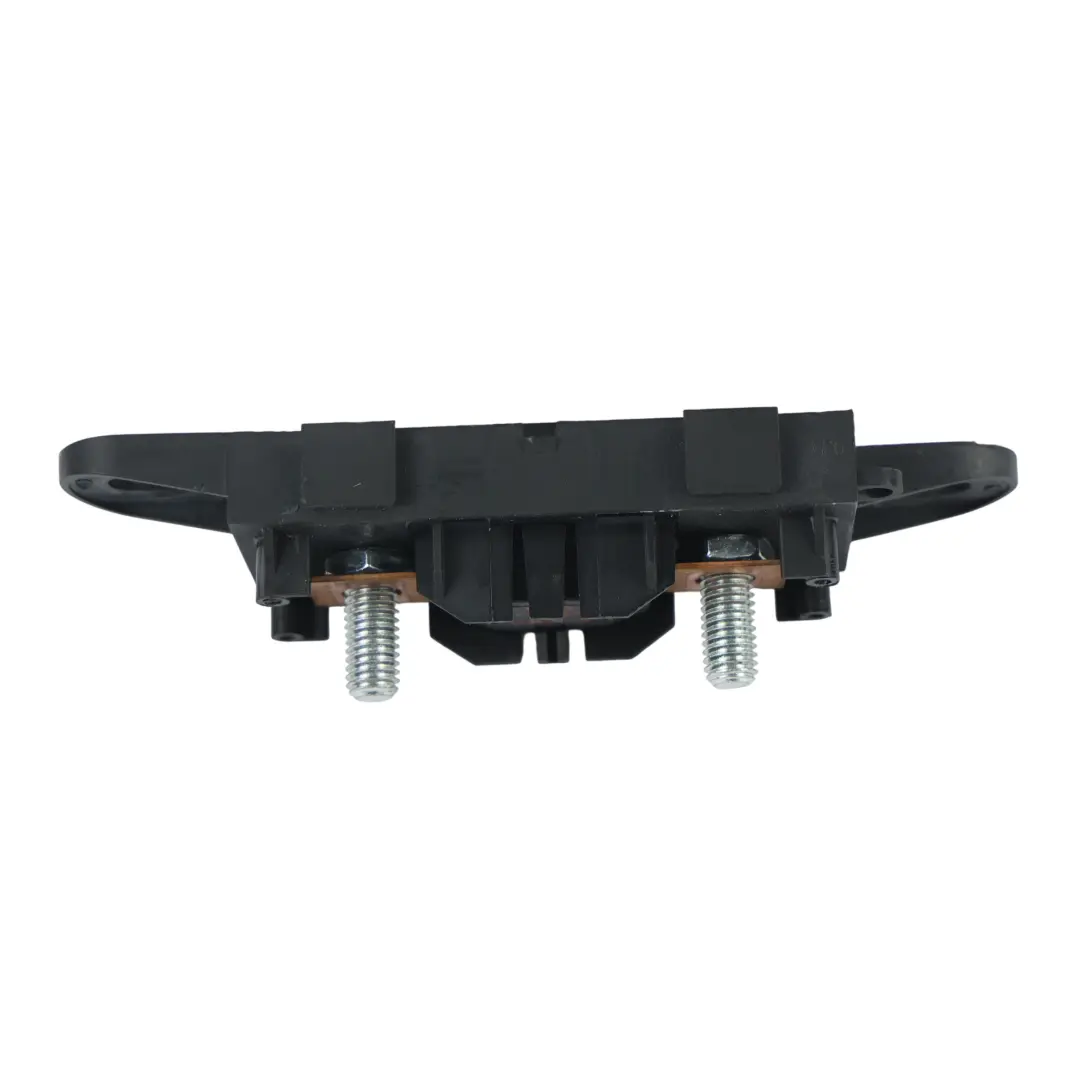

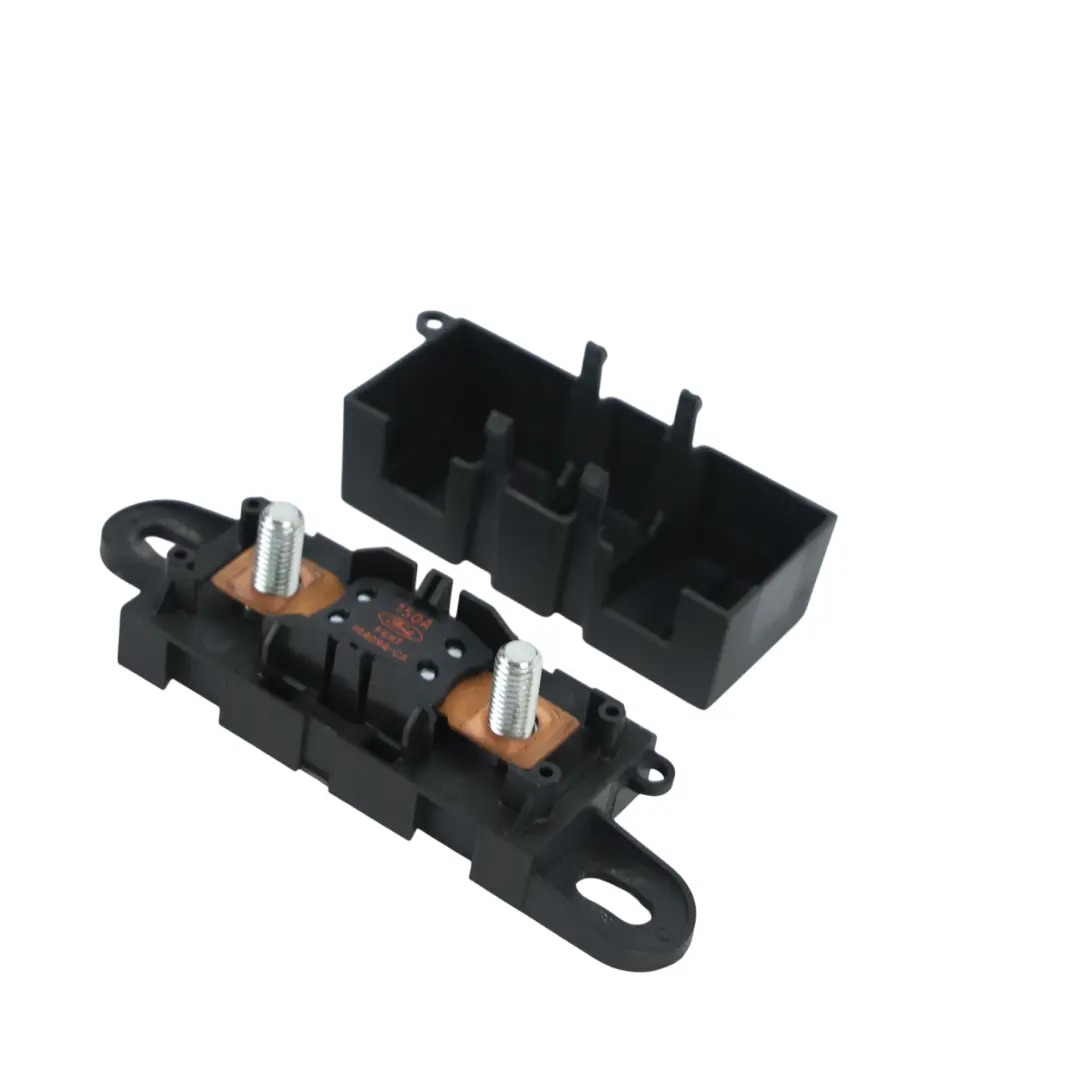

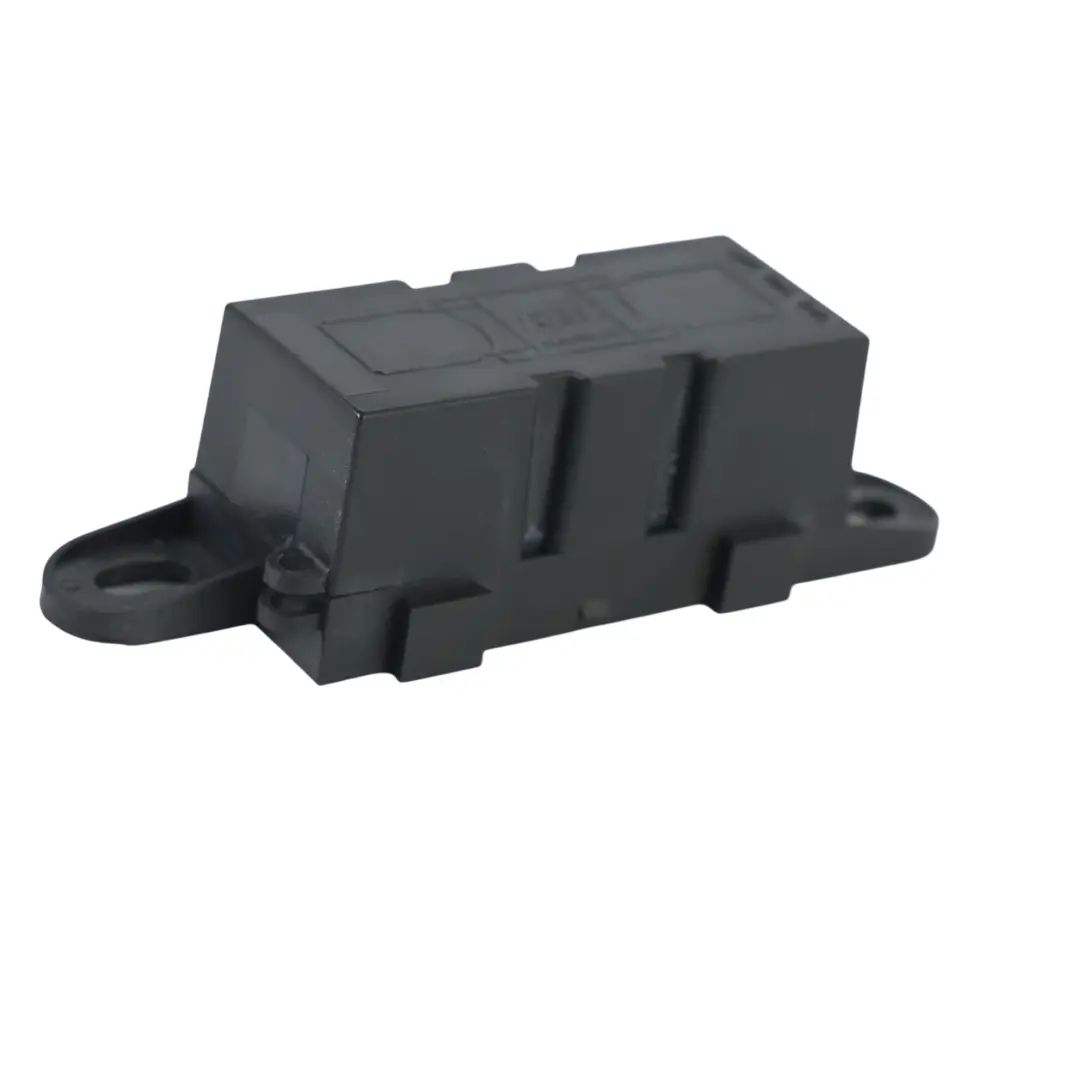

Jaguar XF X250 150 Amp Mega Fuse Box Fuse Relay Unit Module F6HT-14A094-CA

Jaguar XF X250 150 Amp Mega Fuse Box Fuse Relay Unit Module is a specialized electrical system component, designed to handle high current loads within the vehicle's power supply system. This fuse box module ensures stable power distribution and effective protection of key circuits, which translates into safe and predictable operation of the electronics in your Jaguar XF X250. Thanks to its design compliant with the manufacturer's standards, this is a particularly beneficial solution for professional repairs and diagnostics of electrical systems.

Specifications and technical data

• SKU: C2Z4723
• Mark: Jaguar
• Condition: Used
• OEM Part Number: C2Z4723
• Substitutable numbers: C2Z4723, 8X2T14A067FA, 8X2T-14A067-FA, F6HT-14A094-CA, F6HT14A094CA
• Part type: Fuse Box
• Category: Fuses & Fuse Boxes

Purpose and function in the electrical system

The presented fuse box module acts as a central power distribution point in the vehicle, supporting circuits that require high current intensity. The use of a 150 Amp Mega type fuse allows for controlled protection of critical power lines, minimizing the risk of installation damage during overloads or short circuits. This element is particularly important in vehicles with extensive electronics, such as the Jaguar XF X250, where voltage stability and properly selected protections have a direct impact on the operation of control units, comfort modules, and driver assistance systems.

Construction and performance parameters

The module is designed as part of the Fuses and fuse boxes group, which means it integrates both the protective element and connectors for plugging into the factory electrical harness in a single housing. This type of solution facilitates service, reduces the number of connections, and improves the clarity of the system in the engine compartment. Key performance features include:

• adaptation to high operating current,
• compact form facilitating installation in the designated location,
• maintenance of the factory protection logic in the vehicle,
• possibility of use in electrical system diagnostic processes.

Benefits of using an original Jaguar module

Using a module from the Jaguar brand allows for maintaining the consistency of the electrical system with the factory design assumptions. Proper fitment to harnesses, brackets, and mounting points reduces the risk of mechanical stress on wires and eliminates the need for installation modifications. In practice, this means:

• secure fitment to the specific configuration of the XF X250 model,
• preservation of the original current flow path and protection characteristics,
• easier interpretation of electrical diagrams during service.

Condition and use in repairs

The item is offered in used condition, which in the case of modules from the Fuses and fuse boxes group often represents a reasonable compromise between repair cost and maintaining the vehicle's original specification. This type of component is particularly useful when repairing the effects of surges, local connector overheating, or mechanical damage within the factory fuse box. The module will perform well both in workshops specializing in the Jaguar brand and in independent services that carry out advanced electrical system repairs in premium class vehicles.

Integration with other protection system elements

In the case of extensive work on the power supply installation, it is worth treating this module as part of a larger protection system. If you are planning a comprehensive repair or modernization of the electrical installation area in your Jaguar and need other elements from the same group, such as additional modules, housings, or connectors, check the available parts in the Jaguar Fuses and fuse boxes category. To better plan service work and reduce vehicle downtime in the workshop, it is also worth checking out practical tips regarding the selection and availability of parts – you will find them in the article No more weeks of waiting – how a wide assortment in one warehouse really shortens your car's downtime at the mechanic?.
