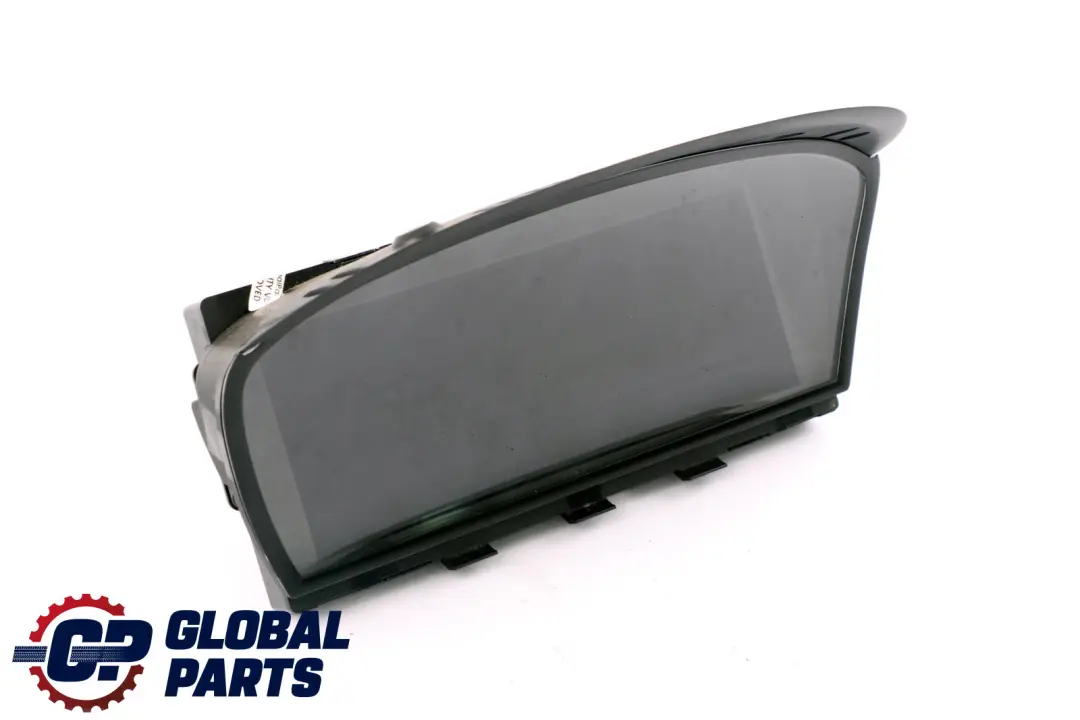

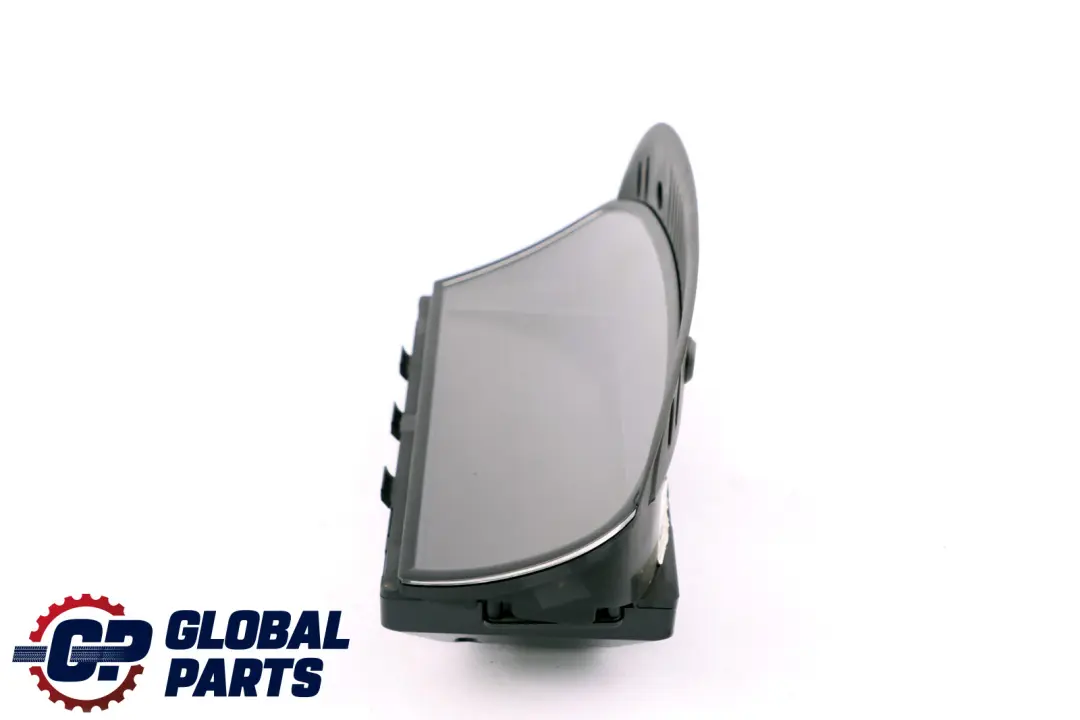

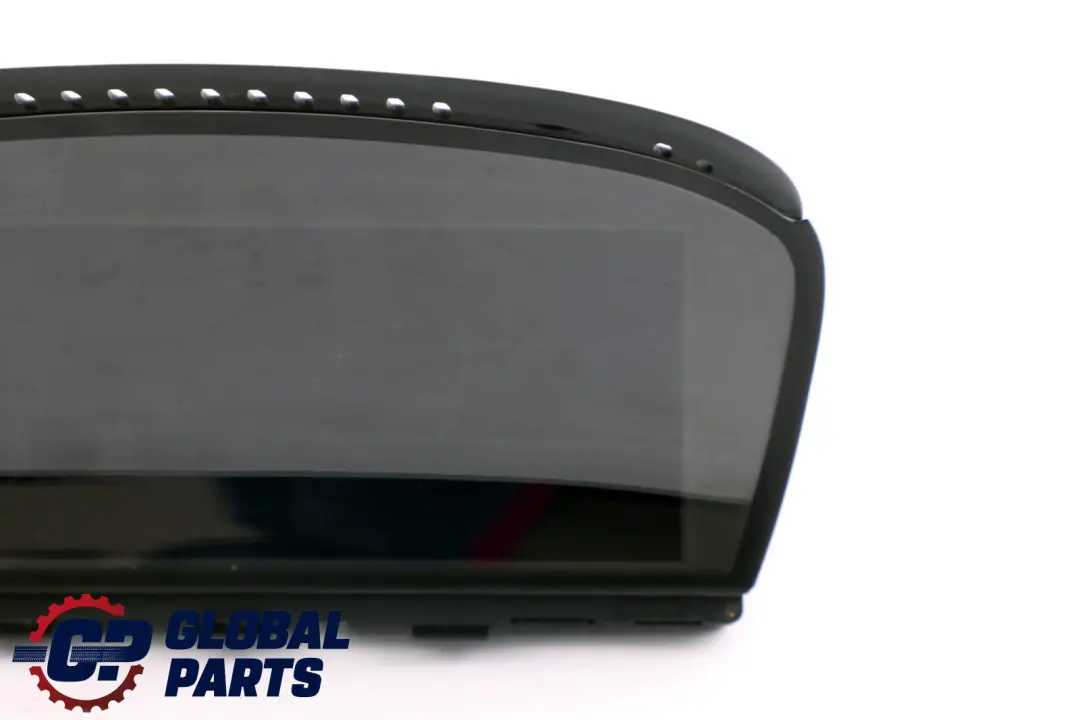

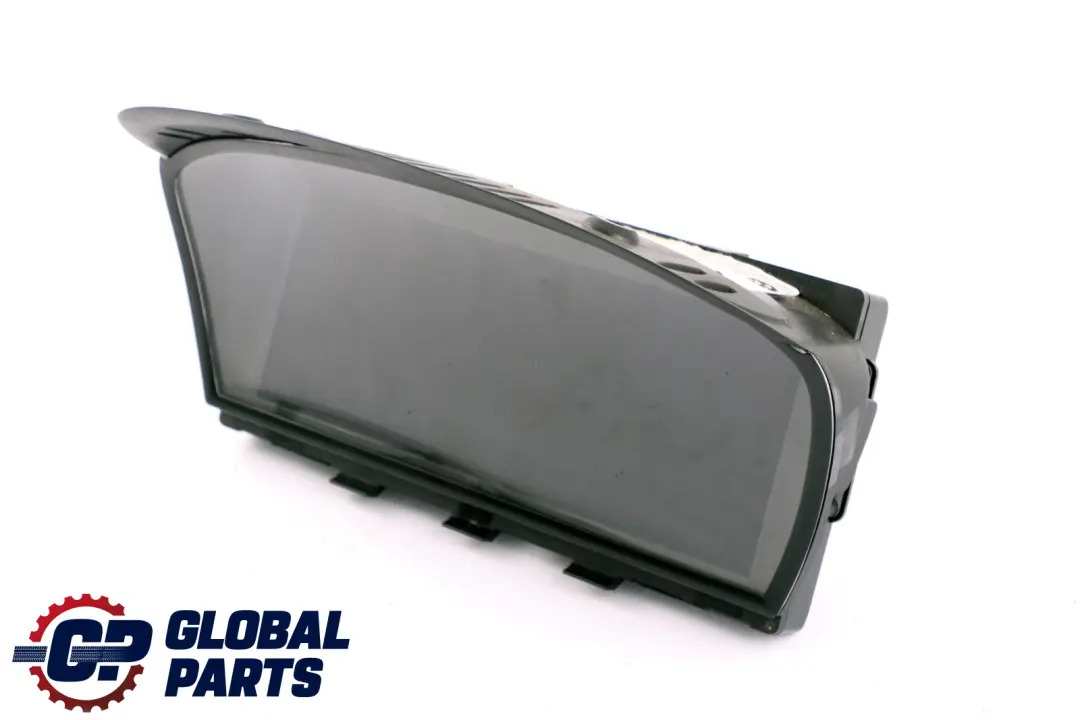

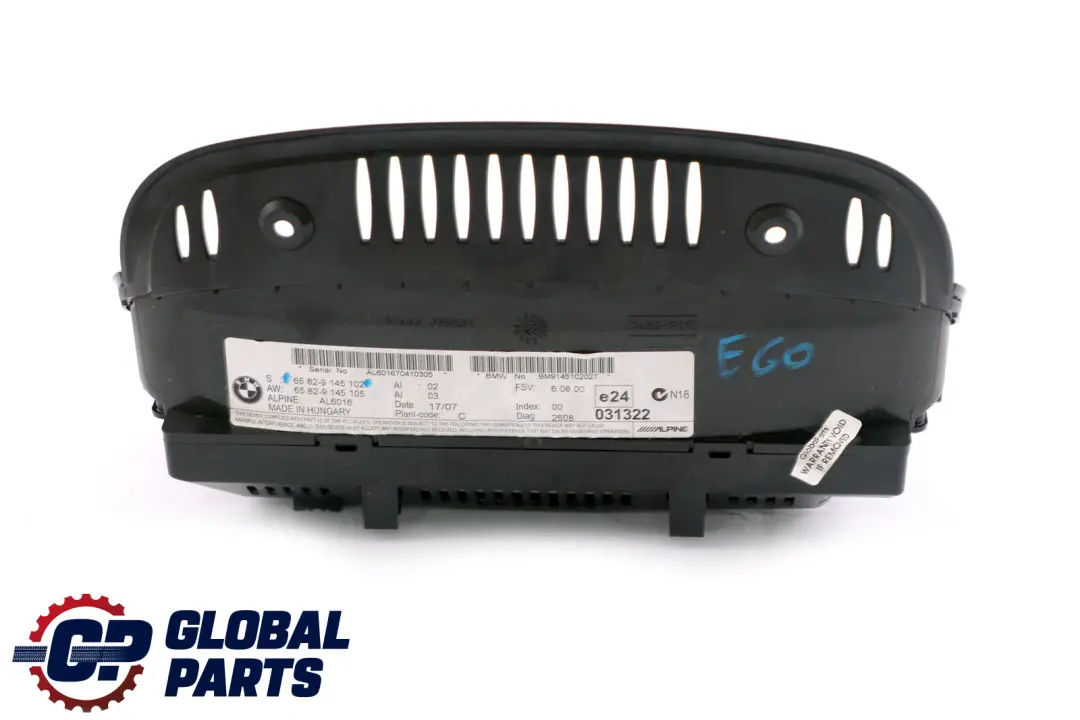

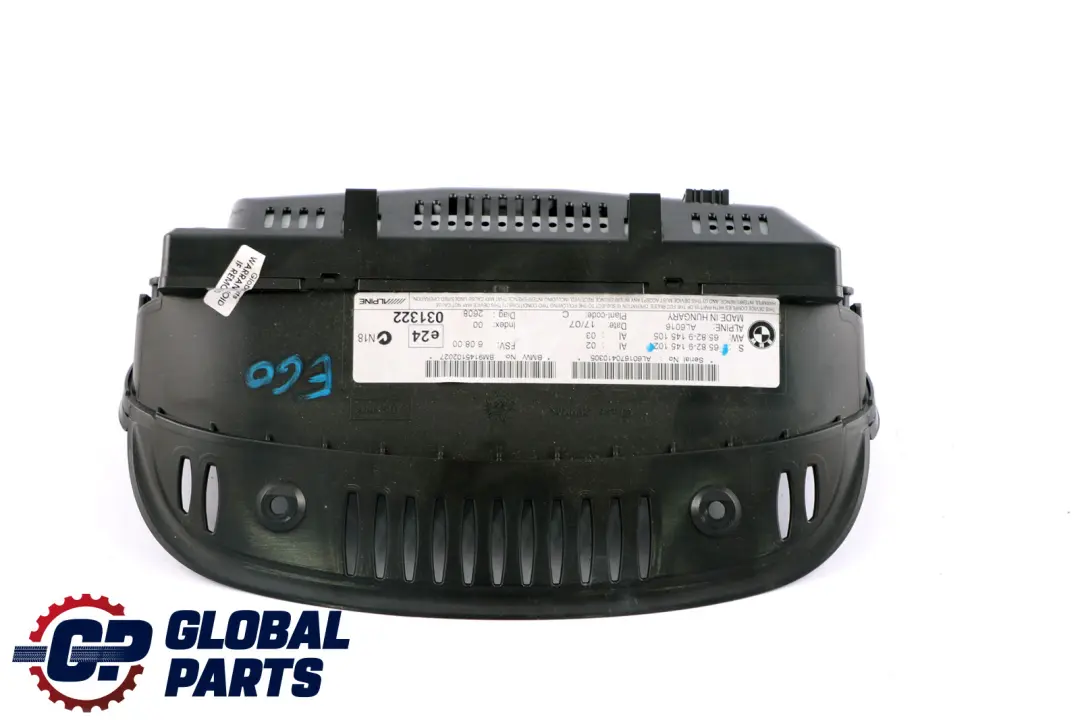

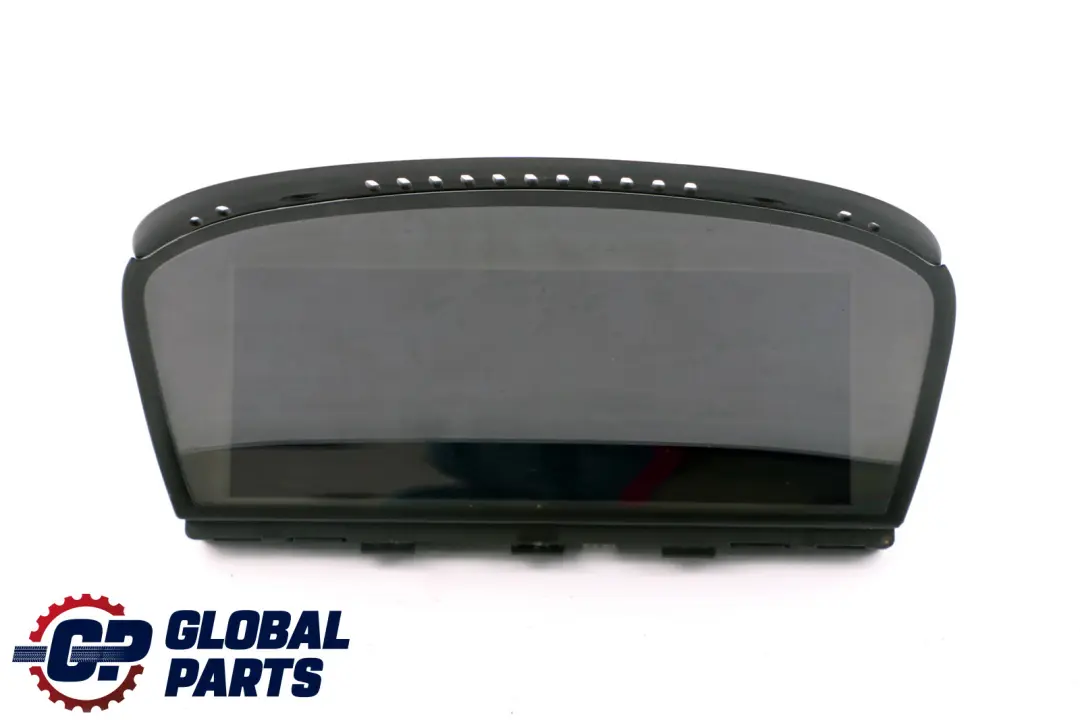

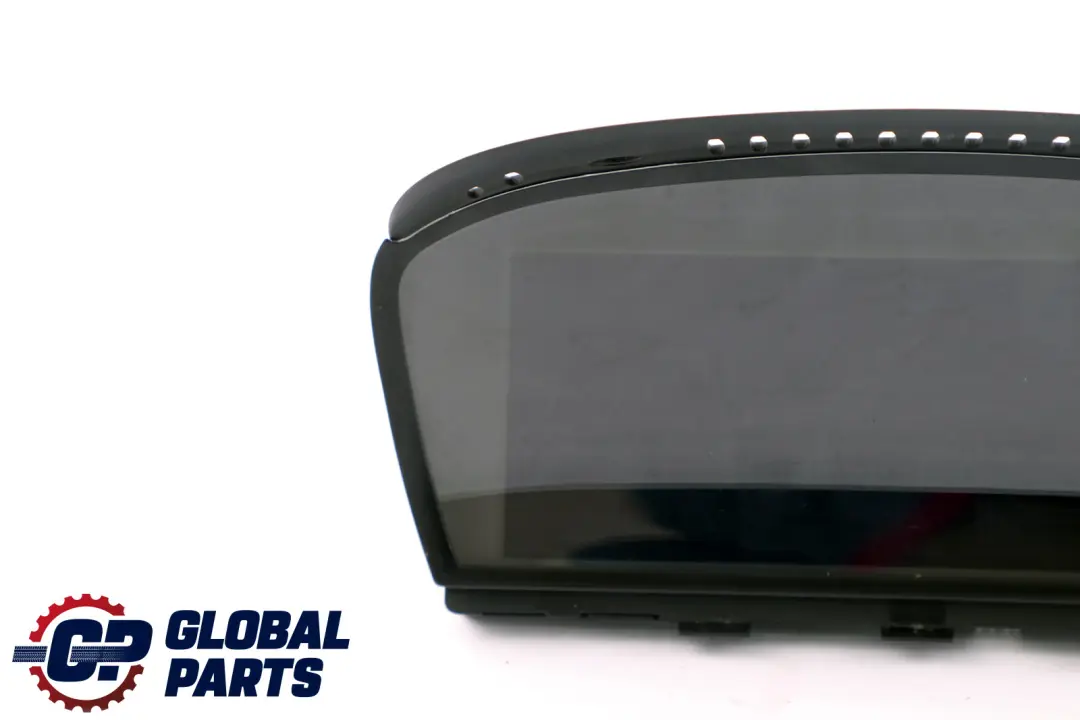

BMW E60 E90 Dashboard Dash Onboard Monitor Display Screen 8.8" CCC 9145102

BMW E60 E90 Dashboard Dash Onboard Monitor Display Screen 8.8" CCC is an original multimedia system component designed for 5 Series E60 and 3 Series E90 models equipped with the CCC unit. This used OEM display ensures factory integration with iDrive, maintaining interface consistency, ergonomics, and interior aesthetics. It is the ideal solution for users looking to restore full system functionality without compromising on compatibility.

Specifications and technical data

• SKU: 9145102
• Mark: BMW (Genuine OE)
• Condition: Used

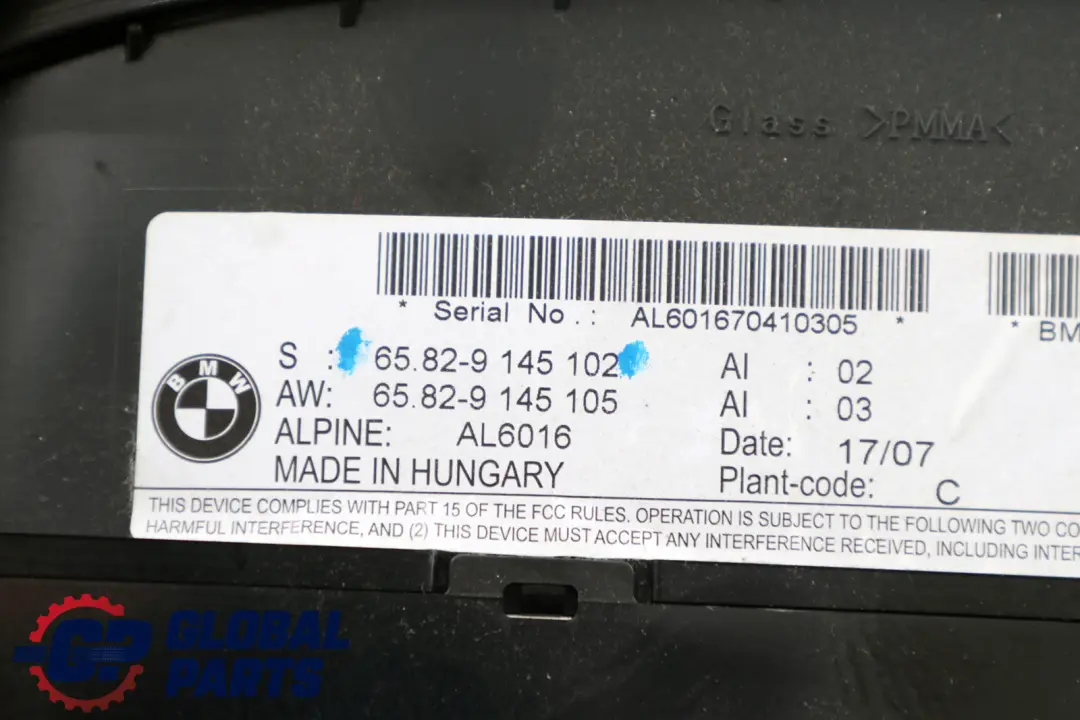

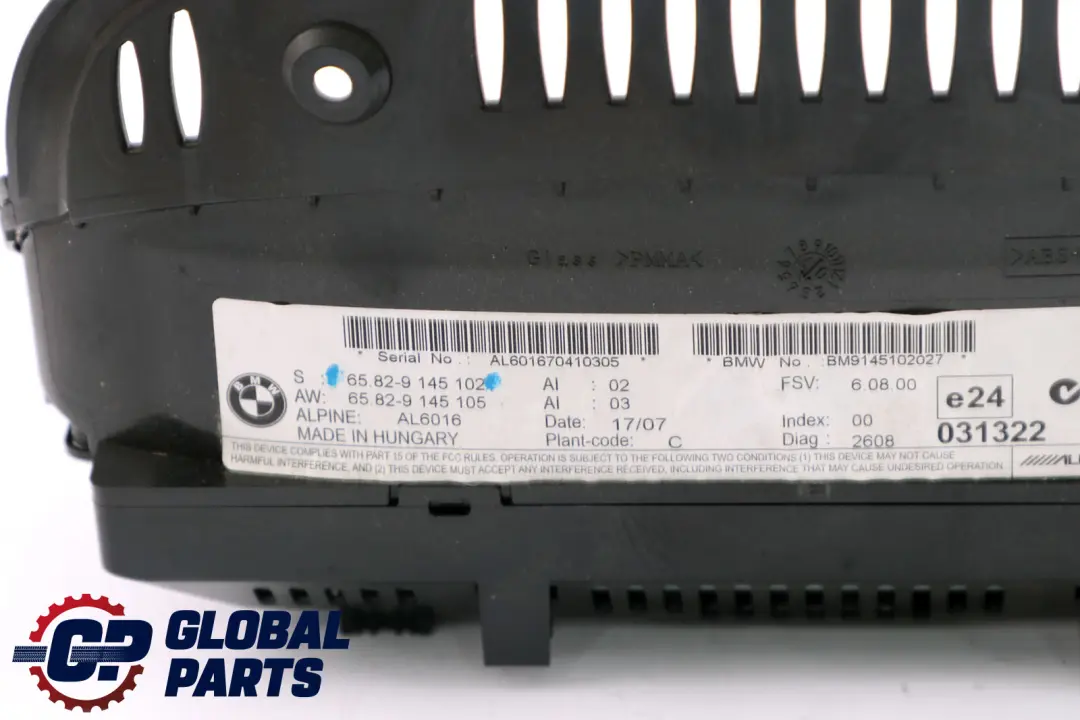

• OEM Part Number: 9145102
• Substitutable numbers: 65829193747, 9193747, 65829151978, 9151978, 65829114356, 9114356, 65826989396, 6989396, 65829111272, 9111272, 65826970343, 6970343, 65829114362, 9114362, 65826957343, 6957343, 65826973672, 6973672, 65829145102, 9145102, 65826985868, 6985868, 65829151979, 9151979, 65829141809, 914
• Category: ECUs & Computer Modules

Purpose and function in the CCC system

The BMW E60 E90 Dashboard Dash Onboard Monitor Display Screen 8.8" CCC acts as the central display for the iDrive system, presenting data from navigation, radio, phone, vehicle settings, and comfort modules. Thanks to its factory aspect ratio and compatibility with the CCC unit, the screen correctly handles menus, graphics, and system messages, which is crucial for readability and intuitive operation. The display works with original BMW electronic modules, minimizing the risk of communication errors in the MOST and CAN bus. Full integration with the iDrive controller, sensors, and other electronic control modules and ECUs in the vehicle is maintained.

Construction, integration, and OEM advantages

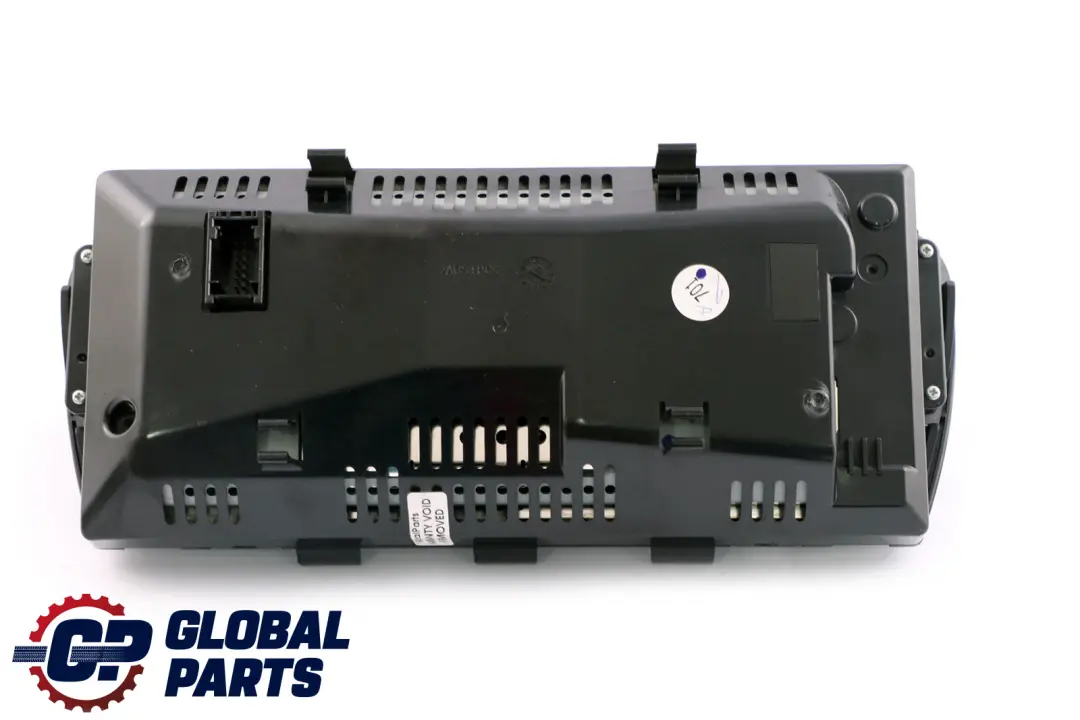

As an OEM component, the monitor features factory mounting points and connectors, allowing for installation in place of the existing screen without any modifications to the wiring. The 8.8" diagonal provides excellent readability for maps, station lists, and service messages, while fitting perfectly into the original center console of the BMW E60 and E90. Original construction ensures compliance with factory brightness, contrast, and backlight parameters, translating to user comfort both day and night. The used OEM component is a great choice for drivers who want to maintain a consistent cockpit look and avoid issues typical of aftermarket replacements (mismatches, interference, communication errors with modules).

Compatibility and interchangeable part numbers

The monitor belongs to the Electronic control modules and ECUs group, and its design is intended for use with many variants of CCC units used in the 3 and 5 Series. The presence of dedicated interchangeable part numbers allows the screen to be matched to specific equipment configurations, model years, and software versions, facilitating the selection of the correct component for repair or replacement. As a result, one type of display can support various vehicle configurations, provided there is compatibility with the central unit and wiring. This is a practical solution for workshops specializing in BMW and for users looking for a proven part from dismantling.

Condition, installation, and service application

The offered monitor is a used item, which allows for lower repair costs compared to a new OEM component, while maintaining factory design and purpose. The screen is suitable both as a replacement for a damaged display (no image, artifacts, mechanical damage) and for restoring the completeness of the iDrive system after previous modifications. Plug-and-play installation in place of the original monitor (while maintaining CCC unit compatibility) reduces service time and minimizes the risk of installation errors. This is a particularly beneficial solution for professional workshops and users who value factory BMW solutions.

Expanding knowledge and selecting BMW electronics

If you are planning a comprehensive repair or upgrade of the iDrive multimedia system in your BMW 3 or 5 Series and want to better understand how the CCC monitor works with other modules, such as the engine ECU or FRM module, it is worth consulting specialist materials. Practical tips on diagnostics and using parts from dismantling can be found in the article Driving pleasure for years – how to take care of iDrive systems and electronic modules in BMW 3 and 5 Series models. If you are planning a comprehensive repair or upgrade of your BMW's onboard electronics and need other elements from the same group, such as comfort modules, light controllers, or multimedia units, check out the available parts in the BMW electronic control modules and ECUs category.
